WF12T6421BTL datasheet, PDF - EEWORLD Datasheet

WF12T6421BTL: DescriptionFixed Resistor, Thin Film, 0.125W, 6420ohm, 200V, 0.1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP, LEAD FREE; CategoryPassive components The resistor; File Size241KB，8 Pages; ManufacturerWalsin Technology Corporation; Environmental Compliance

Download Datasheet Parametric View All

WF12T6421BTL Overview

Fixed Resistor, Thin Film, 0.125W, 6420ohm, 200V, 0.1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP, LEAD FREE

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Walsin Technology Corporation
package instruction	SMT, 1206
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH PRECISION, LASER TRIMMABLE
structure	Rectangular
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.55 mm
Package length	3.05 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1.55 mm
method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.125 W

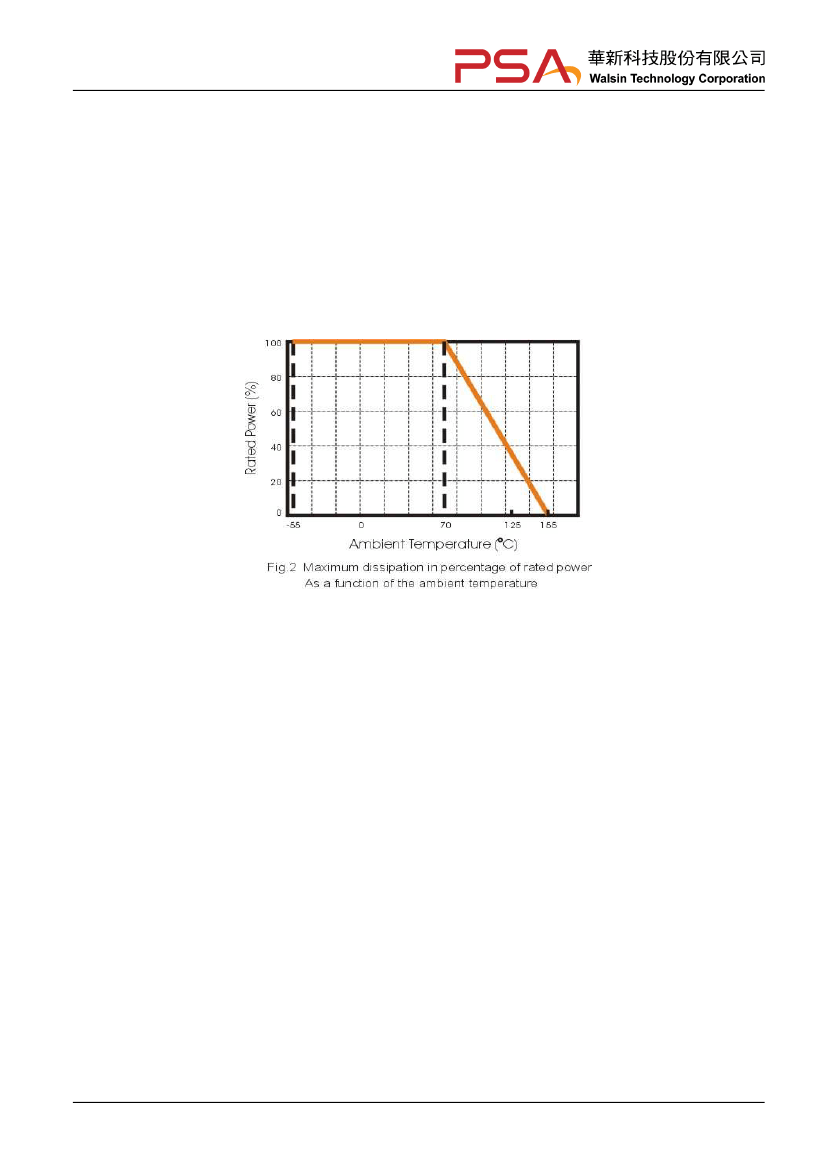

Rated temperature	70 °C
resistance	6420 Ω
Resistor type	FIXED RESISTOR
size code	1206
surface mount	YES
technology	THIN FILM
Temperature Coefficient	50 ppm/°C
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	0.1%
Operating Voltage	200 V

Approval sheet

WF12T, WF08T, WF06T, WF04T

1.0%,

0.5%, 0.25%,

0.1%,

0.05%

TC50

High Precision Thin Film chip resistors

Size 1206, 0805, 0603, 0402

*Contents in this sheet are subject to change without prior notice.

Page 1 of 8

ASC_WFxxT_V13

June.2011
