STG406N: DescriptionToggle Switch, 4PDT, On-on, Horizontal, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size77KB，2 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/

Download Datasheet Parametric View All

STG406N Overview

Toggle Switch, 4PDT, On-on, Horizontal, 4A, 30VDC, Solder Lug Terminal, Toggle Actuator, Panel Mount

STG406N Parametric

Parameter Name	Attribute value
Maker	Knitter-switch
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator angle	24 deg
Executor completed	CHROME
Actuator length	0.453 inch
Actuator type	TOGGLE
Other features	ROHS COMPLIANT
body height	12.4968 mm
Nozzle length	0.472 inch
Casing type	15/32-32
center contact material	COIN SILVER
Contact (AC) maximum rated R load	3A@250VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	4 A
Contact (DC) maximum rated R load	4A@30VDC
Contact function	ON-ON
Contact resistance	0.02 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	1500VAC V
Electrical life	100000 Cycle(s)
End contact material	COIN SILVER
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	STG
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
seal	EPOXY
Solderability	HAND
surface mount	NO
Switch action	HORIZONTAL
switch function	4PDT
Switch type	TOGGLE SWITCH
Terminal length	0.106 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER LUG

Preview

Download Datasheet

View All

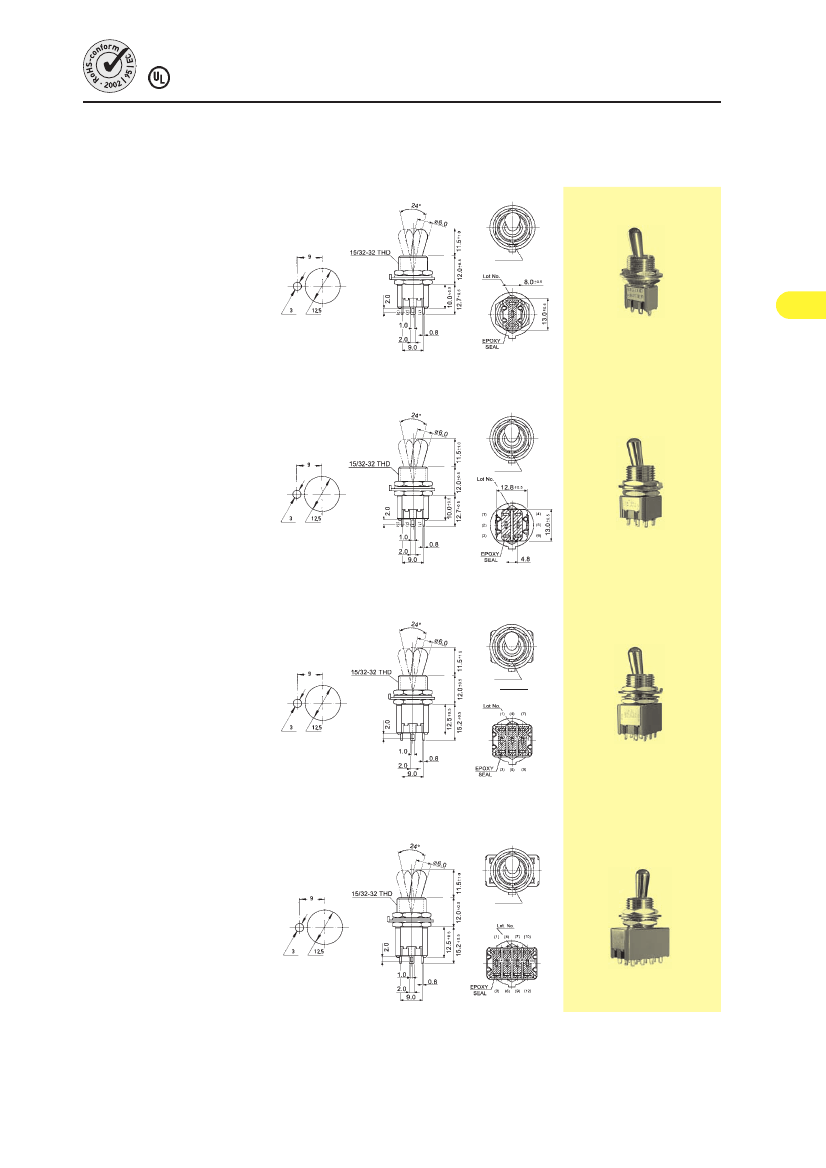

Mustang Toggle Switches

Specifications:

Contact rating:

250 V AC, 3 A / 125 V AC, 6 A

30 V DC, 4 A / 12 V DC, 5 A

6 V DC, 6 A

< 20 mΩ

> 1000 MΩ at 500 V DC

1500 V, 50 Hz for the duration of 1 minute

– 20° to + 85° C

minimum 100 000 operations

coin silver (common contact copper alloy, silver-plated)

also available gold-plated version B and G (see page 4)

solder tags, copper alloy silver-plated

further terminal versions see page 8

case: diallyle-phthalate, meets UL 94 V–0, green

lever: chromium-plated, metal parts: nickel-plated

bushing 15/32-32 THD with locking plate (M 12 x 0,75), key 14 mm

hand-soldering – max.: 60 W, 3 sec, 420º C

auto-soldering – max.: 5 sec, 270º C

2

Contact resistance:

Insulation resistance:

Dielectric strength:

Operating temperature:

Mechanical life:

Contacts:

Terminals:

Material:

Mounting:

Soldering conditions:

Accessories:

Plastic caps (height 12,7 mm)

orange

blue

black

green

grey

yellow

red

white

C 2103

C 2104

C 2105

C 2106

C 2107

C 2108

C 2109

C 2110

Waterproof sealing cap (height 21,4 mm)

grey

ET 307

Waterproof sealing cap (height 11 mm)

grey

ET 507

20
