KAB2402402NA29010 datasheet, PDF

Datasheet> All Categories > Circuit protection> Circuit protection> KAB2402402NA29010

KAB2402402NA29010: DescriptionElectric Fuse, Fast Blow, 4A, 24VDC, 50A (IR), Surface Mount, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size987KB，10 Pages; ManufacturerMatsuo; Websitehttps://www.ncc-matsuo.co.jp; Environmental Compliance

Download Datasheet Parametric View All

KAB2402402NA29010 Overview

Electric Fuse, Fast Blow, 4A, 24VDC, 50A (IR), Surface Mount, ROHS COMPLIANT

KAB2402402NA29010 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Matsuo
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 24 VDC: 50 A
Fusing characteristics	FAST
body width	0.8 mm
body height	0.45 mm
Body length or diameter	1.6 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Installation features	SURFACE MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
method of packing	TAPE AND REEL
physical size	1.6mm x 0.8mm x 0.45mm
Rated breaking capacity	50 A
Rated current	4 A
Rated voltage (DC)	24 V
Guideline	UL
surface mount	YES
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

TYPE

KAB

(P-KAB-E003)

Type KAB micro fuse is designed for circuit protection against excessive current in portable electronic equipment, electronic circuit

around battery, etc. because the demand for high capacity batteries is increasing.

Further miniaturization and low profile with extended rated range can be used for wider application.

Also, the ecology design of Type KAB is friendly to environment due to complete lead free.

FEATURES

1. New type fuses were developed by our original technology. They show no variation in fusing characteristics and have excellent

fast-blow capability.

2. Surface temperature rise is 75°C or less when applying rated current. This offers less influence on the peripheral units.

3. The fuses come in ultra-small size 1608 (1.6×0.8×0.45 mm) and 2012 (2.0×1.25×0.5 mm).

4. Suitable for automatic mounting

5. Precise dimensions allows high-density mounting and symmetrical construction of terminals provide “Self-Alignment”.

6. Resistance to soldering heat : Reflow or flow soldering 10 seconds at 260°C

7. High accuracy carrier tape by using pressed pocket paper ensures excellent mounting.

8. LEAD-FREE and RoHS Compliant

RATING

Item

Category Temperature Range

Rated Current

2.0×1.25

Rated Voltage

Voltage Drop

Insulation Resistance

(between Terminals and Case)

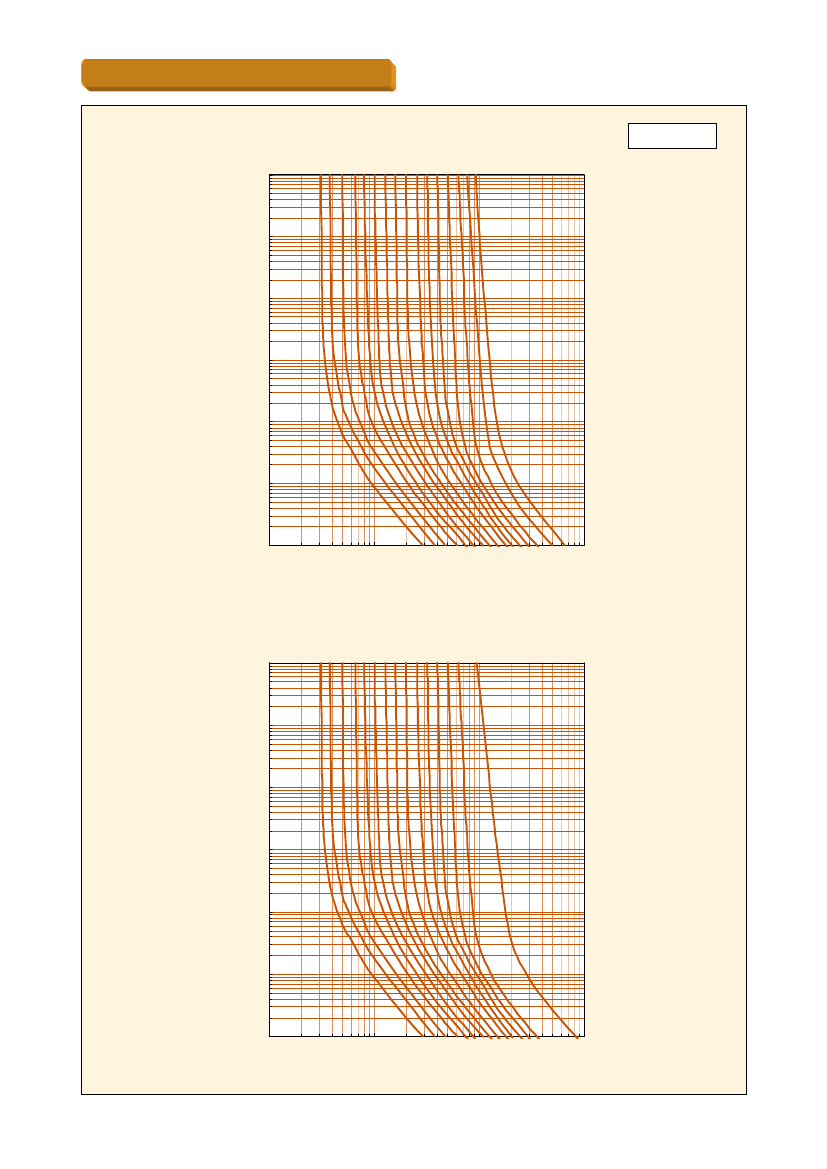

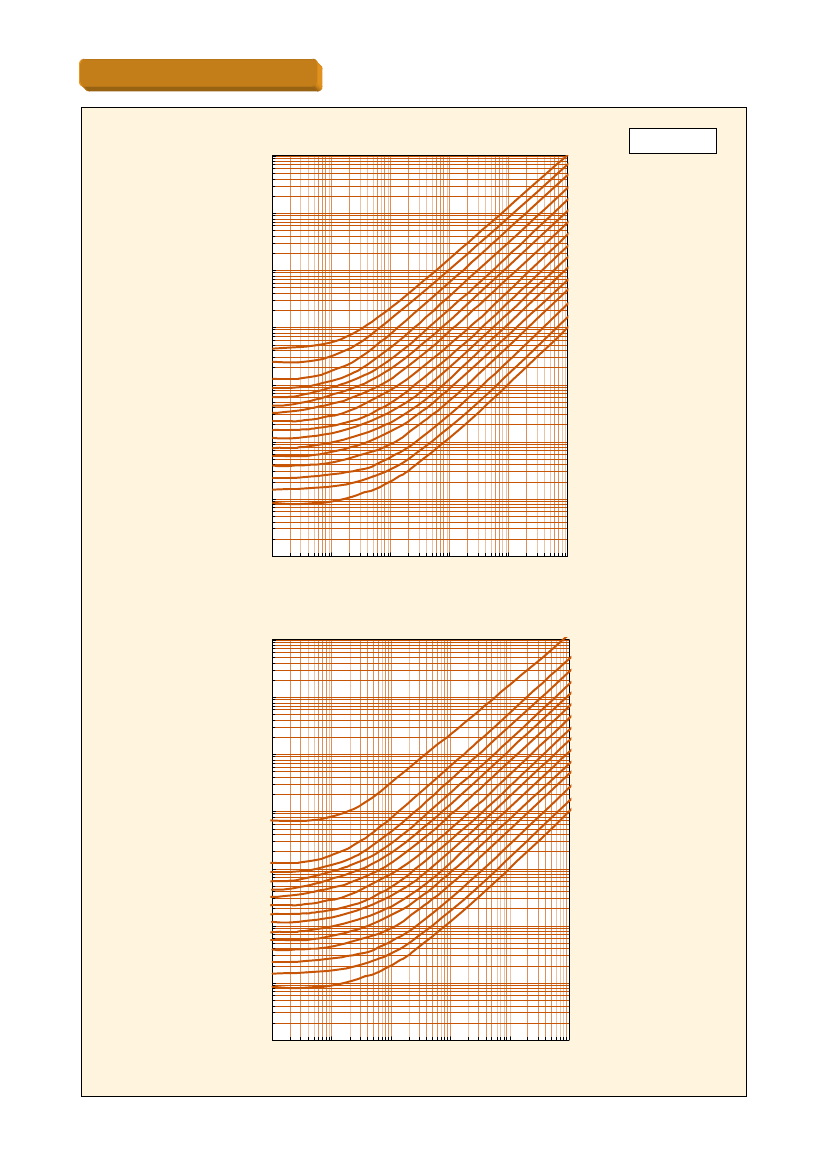

Fusing Characteristics

Clearing Characteristics

0.2-0.25-0.315-0.4-0.5-0.63-0.8-1.0-1.25-1.6-2.0-2.5-3.15-4.0-5.0A

24VDC, 32VDC, 50VDC

Refer to CATALOG NUMBERS AND RATING

1000MΩ or more

Fusing within 1 min if the current is 200% of rated current.

Breaking voltage

：

24V, 32V, 50V

Breaking current

：

50A

　　-40 ½

+125℃

1.6×0.8

0.2-0.25-0.315-0.4-0.5-0.63-0.8-1.0-1.25-1.6-2.0-2.5-3.15-4.0-5.0-6.3A

Rating

ORDERING INFORMATION

KAB

3202

102

010

Type

KAB

Code

2402

3202

5002

Voltage

24V

32V

50V

Code Rated current

201

251

321

401

501

631

801

102

0.2 A

0.25 A

0.315 A

0.4 A

0.5 A

0.63 A

0.8 A

1.0 A

Code Rated current

132

162

202

252

322

402

502

632

1.25 A

1.6 A

2.0 A

2.5 A

3.15 A

4.0 A

5.0 A

6.3 A

Code Packaging type

φ180 Real

Code Case size

1.6 × 0.8

2.0 × 1.25

Special product code

010

※

The special product code 010 indicates lead-free terminals.
