Features
■
3/4 ” Rectangular / Multiturn / Cermet /
■
RoHS compliant* version available
■
For trimmer applications/processing
Industrial / Sealed
■
Low PC board profile - only 1/4 ” high
■
Panel mount option available
■
Transparent housing available, can
be set visually without hook-up and
instrumentation (“P” style only)
guidelines,
click here

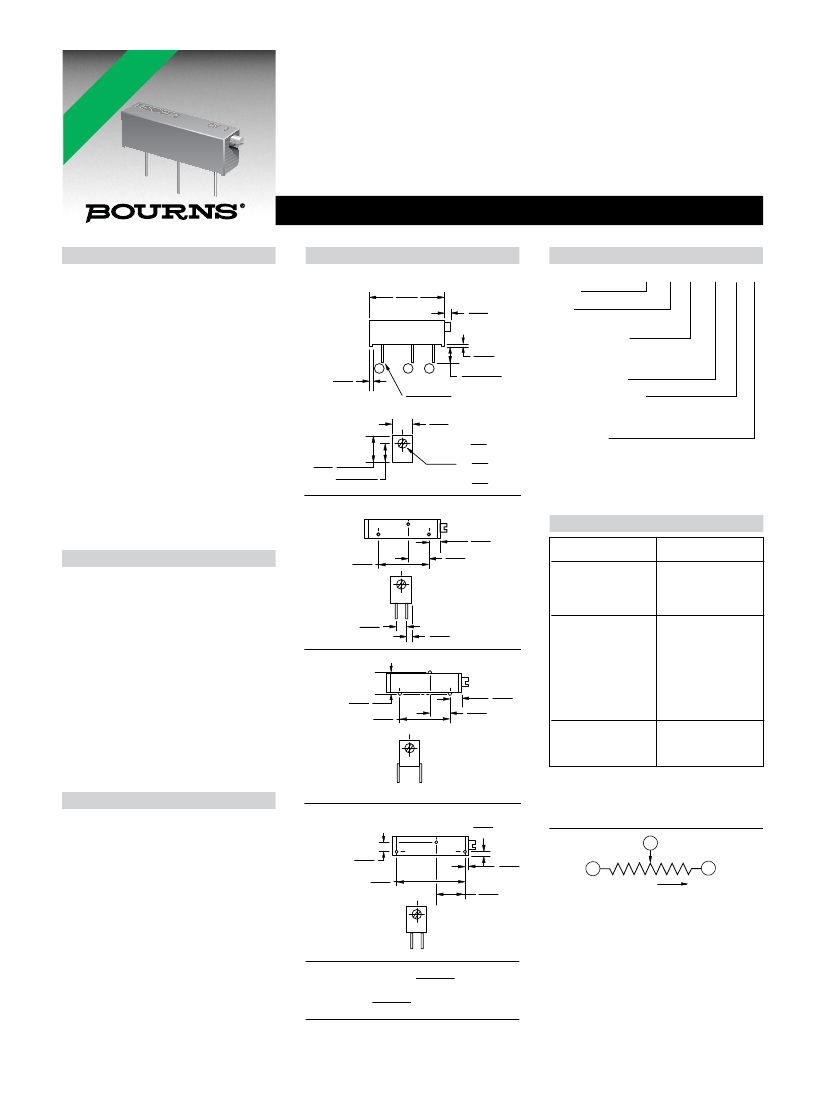

3006 - Trimpot
®
Trimming Potentiometer
Electrical Characteristics
Standard Resistance Range
................................10 to 5 megohms
(see standard resistance table)
Resistance Tolerance ........... ±10 % std.
(tighter tolerance available)
Absolute Minimum Resistance
........................ 1.0 % or 2 ohms max.
(whichever is greater)
Contact Resistance Variation
.......................... 1.0 % or 1 ohm max.
(whichever is greater)
Adjustability
Voltage .................................. ±0.01 %
Resistance ............................ ±0.05 %
Resolution ................................... Infinite
Insulation Resistance ............... 500 vdc.
1,000 megohms min.
Dielectric Strength
Sea Level............................. 1,000 vac
80,000 Feet ............................ 250 vac
Adjustment Angle .............15 turns nom.
Environmental Characteristics
Power Rating (400 volts max.)
70 °C .................................... 0.75 watt
125 °C ....................................... 0 watt
Temperature Range ... -55 °C to +125 °C
Temperature Coefficient ... ±100 ppm/°C
Seal Test ......................85 °C Fluorinert†
Humidity .......MIL-STD-202 Method 103
96 hours
(3 %
ΔTR,
20 Megohms IR)
Vibration ....... 20 G (2 %
ΔTR;
2 %
ΔVR)
Shock ........... 50 G (2 %
ΔTR;
2 %
ΔVR)
Load Life...1,000 hours 0.75 watt 70 °C
(4 %
ΔTR)
Rotational Life .......................200 cycles
(3 %
ΔTR;
1 % or 1 ohm,
whichever is greater, CRV)
Physical Characteristics
Torque............................. 5.0 oz-in. max.
Mechanical Stops ................. Wiper idles
Terminals .......................Solderable pins
Weight ....................................... 0.04 oz.
Marking........................... Manufacturer’s
trademark, resistance code,
terminal numbers, date code,
manufacturer’s model number
and style
Wiper ............... 50 % (Actual TR) ±10 %
Flammability ..........................U.L. 94V-0
Standard Packaging .....25 pcs. per tube
Adjustment Tool..............................H-90
REV. 08/10
Product Dimensions
Common Dimensions
19.05
(.750)
How To Order
3006 P - 1 - 103 Z LF
Model
1.52
(.060)
Style
Standard or Modified
Product Indicator
-1 = Standard Product
-7 = Transparent Housing
Resistance Code
Optional Suffix Letter
Z = Panel Mount
(Factory Installed)
Terminations
LF =
100 % Tin-plated (RoHS compliant)
Blank = 90 % Tin / 10 % Lead-plated
(Standard)
Consult factory for other available options.
1
.76
(.030)
2
3
.38 MIN.
(.015)
5.33 .89
(.210
.035)
.51 .03
DIA. PINS TYP.
(.020 .001)
4.83
(.190)
6.35
(.250) 4.70 .38
(.185 .015)
ADJ. SLOT
2.36
DIA.
(.093)
.79
DEEP
X
(.031)
.64 WIDE
X
(.025)
3006P
Standard Resistance Table
12.70
(.500)
5.08
(.200)
3.30
(.130)
2.54
(.100)
1.40
(.055)
3006W
3.30
(.130)
5.08
(.200)
12.70
(.500)
5.08
(.200)
Resistance
(Ohms)
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
25,000
50,000
100,000
200,000
250,000
500,000
1,000,000
2,000,000
Resistance
Code
100
200
500
101
201
501
102
202
502
103
203
253
503
104
204
254
504
105
205
Popular distribution values listed in boldface.
Special resistances available.
3006Y
1.40
(.055)
2
2.54
(.100)
17.78
(.700)
.64
(.025)
7.62
(.300)
WIPER
CCW
1
CLOCKWISE
3
CW
DIMENSIONS:
TOLERANCES: ±
0.25
(.010)
MM
(INCHES)
EXCEPT WHERE NOTED
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.
“Trimpot” is a registered trademark of Bourns, Inc.
†“Fluorinert” is a registered trademark of 3M Co.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
