3059J-1-254M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 3059J-1-254M

3059J-1-254M: DescriptionTrimmer, Cermet, 1W, 250000ohm, 10% +/-Tol, -100,100ppm/Cel, 22 Turn(s), 1-1/4 INCH, RECTANGULAR, 3 PINS; CategoryPassive components The resistor; File Size95KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

3059J-1-254M Overview

Trimmer, Cermet, 1W, 250000ohm, 10% +/-Tol, -100,100ppm/Cel, 22 Turn(s), 1-1/4 INCH, RECTANGULAR, 3 PINS

3059J-1-254M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Bourns
package instruction	1-1/4 INCH, RECTANGULAR, 3 PINS
Reach Compliance Code	not_compliant
Actuator direction	HORIZONTAL
Actuator type	SCREW
structure	Rectangular
gang number	1
JESD-609 code	e0
Installation features	PANEL MOUNT
Number of terminals	3
number of turns	22
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package height	8 mm
Package length	31.75 mm
Package form	Panel Mount
Package width	4.83 mm
method of packing	Bulk
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	250000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	7920 deg
surface mount	NO
technology	CERMET
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn60Pb40)
Terminal shape	HOOK
Tolerance	10%
Operating Voltage	400 V

Preview

Download Datasheet

View All

DI TH AIL

ST RO AB

RI U LE

BU GH

3059

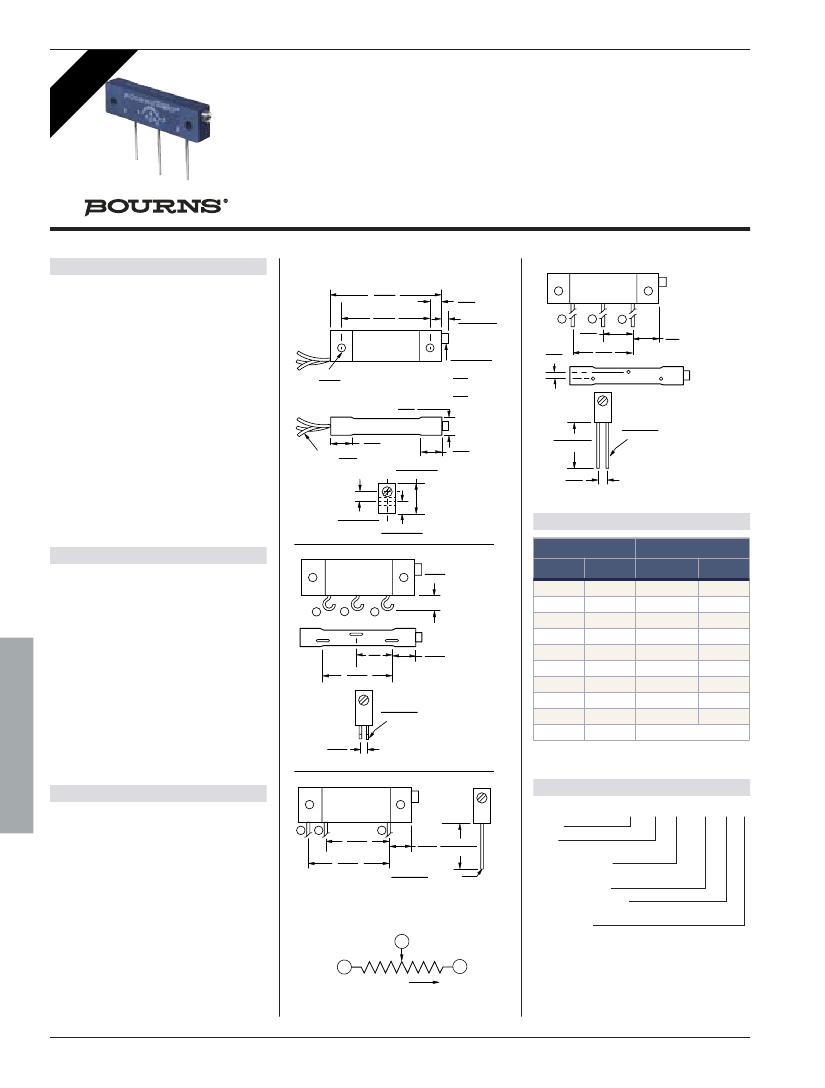

Trimpot® Trimming Potentiometer

Features

1-1/4 ˝ Rectangular / Multiturn

Listed on the QPL for style RJ12 per

Cermet / Industrial / Sealed

Panel mount option available

MIL-PRF-22097

RoHS compliant

†

version available

Electrical Characteristics

Standard Resistance Range

.....................................10 to 2 megohms

(see standard resistance table)

Resistance Tolerance ................±10 % std.

(tighter tolerance available)

Absolute Minimum Resistance

................................1 % or 2 ohms max.

(whichever is greater)

Contact Resistance Variation

...............................1.0 % or 1 ohm max.

(whichever is greater)

Adjustability

Voltage........................................±0.01 %

Resistance ..................................±0.05 %

Resolution.........................................Infinite

Insulation Resistance ....................500 vdc.

1,000 megohms min.

Dielectric Strength

Sea Level .....................................900 vac

70,000 Feet..................................350 vac

Effective Travel......................22 turns nom.

3059L

Common Dimensions

31.75

(1.25)

25.4

(1.000)

3.18

(.125)

1.47 ± .56

(.058 ± .022)

ADJ. SLOT

2.92 ± .38

DIA.

(.115 ± .015)

.64

WIDE

(.025)

.79

DEEP

(.031)

3059Y

2.54

(.100)

7.62

(.300)

17.78

(.700)

6.60

(.260)

2.36

DIA.

(.093)

MTG. HOLES (2)

4.83

(.190)

6.10

TYP.

(.240)

152.4

LEADS

MIN. LENGTH

(6.000)

8.00 ± .38

(.315 ± .015)

6.10

TYP.

.240

12.70 ± .79

(.500 ± .031)

.71 ± .03 DIA. TYP.

(.028 ± .001)

2.54

(.100)

DIMENSIONS: MM/(INCHES)

TOLERANCES: ±.25/(±.010)

EXCEPT WHERE NOTED

2.67 ± .25

(.105 ± .010)

3.43 ± .38

(.135 ± .015)

Standard Resistance Table

Resistance

3.80

(.150)

Environmental Characteristics

Power Rating @ 70 °C (400 volts max.)

.....................................................1.0 watt

Power Rating @ 150 °C ...................0 watt

Temperature Range........-55 °C to +150 °C

Temperature Coefficient ........±100 ppm/°C

Seal Test ...........................85 °C Fluorinert*

(pin styles only)

Humidity............MIL-STD-202 Method 106

(2 %

∆TR,

10 Megohms IR)

Vibration ............20 G (1 %

∆TR;

1 %

∆VR)

Shock ................50 G (1 %

∆TR;

1 %

∆VR)

Load Life......1,000 hours 1.0 watt @ 70 °C

(3 %

∆TR;

1% or 1 ohms,

whichever is greater, CRV)

Rotational Life............................200 cycles

(2 %

∆TR;

1 % or 1 ohm,

whichever is greater, CRV)

3059J

Resistance

Ohms

20,000

25,000

50,000

100,000

200,000

250,000

500,000

1,000,000

2,000,000

Code

203

253

503

104

204

254

504

105

205

Ohms

100

200

500

1,000

2,000

5,000

10,000

Code

100

200

500

101

201

501

102

202

502

103

7.62

(.300)

17.78

(.700)

6.60

(.260)

Trimmer Data Sheets

.71 ± .03 DIA. TYP.

(.028 ± .001)

2.54

(.100)

Popular distribution resistance values listed in

boldface.

Special resistances available.

3059P

Physical Characteristics

Torque .................................5.0 oz-in. max.

Mechanical Stops .....................Wiper idles

Terminals.....Solderable printed circuit pins

Flexible leads...........(7 strands of 30 AWG)

Weight ..............................................0.1 oz.

Marking .............Manufacturer’s trademark,

resistance code, terminal numbers,

date code, manufacturer’s

model number and style

Wiper....................50 % (Actual TR) ±10 %

Flammability ...............................U.L. 94V-0

Standard Packaging

P&Y Styles .....................10 pcs. per tube

L&J Styles .......................25 pcs. per bag

Adjustment Tool ..................................H-90

6.60 12.70 ± .79

(.260) (.500 ± .031)

.71 ± .03

DIA. TYP.

(.028 ± .001)

How To Order

3059 L - 1 - 103 M LF

17.78

(.700)

22.86

(.900)

RED

YELLOW

CCW

WIPER

Model

Style

Standard or Modified

Product Indicator

-1 = Standard Product

Resistance Code

Optional Suffix Letter

M = Panel Mount (Factory Installed)

Terminations

LF = 100 % Tin-plated (RoHS compliant)

Blank = 90 % Tin / 10 % Lead-plated

(Standard)

*”Fluorinert” is a registered trademark of 3M Co.

†

RoHS Directive 2002/95/EC Jan 27 2003 including Annex.

Specifications are subject to change without notice.

Customers should verify actual device performance in

their specific applications.

REV 09/04

CLOCKWISE

GREEN

3059J-1-254M Related Products

	3059J-1-254M	3059J-1-100M	3059L-1-100M	3059L-1-253MLF	3059L-1-253M	3059J-1-205M	3059J-1-254MLF	3059J-1-100MLF	3059J-1-205MLF	3059L-1-100MLF
Description	Trimmer, Cermet, 1W, 250000ohm, 10% +/-Tol, -100,100ppm/Cel, 22 Turn(s), 1-1/4 INCH, RECTANGULAR, 3 PINS	Trimmer, Cermet, 1W, 10ohm, 10% +/-Tol, -100,100ppm/Cel, 22 Turn(s), 1-1/4 INCH, RECTANGULAR, 3 PINS	Trimmer, Cermet, 1W, 10ohm, 10% +/-Tol, -100,100ppm/Cel, 22 Turn(s), 1-1/4 INCH, RECTANGULAR, 3 PINS	Trimmer, Cermet, 1W, 25000ohm, 10% +/-Tol, -100,100ppm/Cel, 22 Turn(s), 1-1/4 INCH, RECTANGULAR, 3 PINS, ROHS COMPLIANT	Trimmer, Cermet, 1W, 25000ohm, 10% +/-Tol, -100,100ppm/Cel, 22 Turn(s), 1-1/4 INCH, RECTANGULAR, 3 PINS	Trimmer, Cermet, 1W, 2000000ohm, 10% +/-Tol, -100,100ppm/Cel, 22 Turn(s), 1-1/4 INCH, RECTANGULAR, 3 PINS	Trimmer, Cermet, 1W, 250000ohm, 10% +/-Tol, -100,100ppm/Cel, 22 Turn(s), 1-1/4 INCH, RECTANGULAR, 3 PINS, ROHS COMPLIANT	Trimmer, Cermet, 1W, 10ohm, 10% +/-Tol, -100,100ppm/Cel, 22 Turn(s), 1-1/4 INCH, RECTANGULAR, 3 PINS, ROHS COMPLIANT	Trimmer, Cermet, 1W, 2000000ohm, 10% +/-Tol, -100,100ppm/Cel, 22 Turn(s), 1-1/4 INCH, RECTANGULAR, 3 PINS, ROHS COMPLIANT	Trimmer, Cermet, 1W, 10ohm, 10% +/-Tol, -100,100ppm/Cel, 22 Turn(s), 1-1/4 INCH, RECTANGULAR, 3 PINS, ROHS COMPLIANT
Is it lead-free?	Contains lead	Contains lead	Contains lead	Lead free	Contains lead	Contains lead	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	incompatible	incompatible	incompatible	conform to	incompatible	incompatible	conform to	conform to	conform to	conform to
Maker	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns
package instruction	1-1/4 INCH, RECTANGULAR, 3 PINS	PCB Mount,	PCB Mount,	PCB Mount,	PCB Mount,	PCB Mount,	PCB Mount,	PCB Mount,	1-1/4 INCH, RECTANGULAR, 3 PINS, ROHS COMPLIANT	1-1/4 INCH, RECTANGULAR, 3 PINS, ROHS COMPLIANT
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Actuator direction	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL
Actuator type	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW
structure	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular	Rectangular
gang number	1	1	1	1	1	1	1	1	1	1
JESD-609 code	e0	e0	e0	e3	e0	e0	e3	e3	e3	e3
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of terminals	3	3	3	3	3	3	3	3	3	3
number of turns	22	22	22	22	22	22	22	22	22	22
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm
Package length	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm
Package form	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount
Package width	4.83 mm	4.83 mm	4.83 mm	4.83 mm	4.83 mm	4.83 mm	4.83 mm	4.83 mm	4.83 mm	4.83 mm
method of packing	Bulk	Bulk	BULK	Bulk	BULK	BULK	Bulk	Bulk	BULK	Bulk
Rated power dissipation(P)	1 W	1 W	1 W	1 W	1 W	1 W	1 W	1 W	1 W	1 W
Rated temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
resistance	250000 Ω	10 Ω	10 Ω	25000 Ω	25000 Ω	2000000 Ω	250000 Ω	10 Ω	2000000 Ω	10 Ω
resistance law	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR	LINEAR
Resistor type	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER	TRIMMER
rotation angle	7920 deg	7920 deg	7920 deg	7920 deg	7920 deg	7920 deg	7920 deg	7920 deg	7920 deg	7920 deg
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET
Temperature Coefficient	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C
Terminal surface	Tin/Lead (Sn60Pb40)	Tin/Lead (Sn60Pb40)	Tin/Lead (Sn60Pb40)	Matte Tin (Sn)	Tin/Lead (Sn60Pb40)	Tin/Lead (Sn60Pb40)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	HOOK	HOOK	FLEXIBLE WIRE	FLEXIBLE WIRE	FLEXIBLE WIRE	HOOK	HOOK	HOOK	HOOK	FLEXIBLE WIRE
Tolerance	10%	10%	10%	10%	10%	10%	10%	10%	10%	10%
Operating Voltage	400 V	400 V	400 V	400 V	400 V	400 V	400 V	400 V	400 V	400 V
Base Number Matches	-	1	1	1	1	1	1	-	-	-
