PL
IA
NT
Features
n
RoHS compliant*
n
Small package dimensions
n
Power rating at 70 °C = 1/20 W
n
Three layer termination process with nickel
barrier helps prevent leaching and provides
excellent solderability
LE
AD
F
RE
E
CO
M
processes
n
Standard packaging on paper tape and reel
n
Sulfur-resistant design
n
Suitable for most types of soldering
*R
oH
S

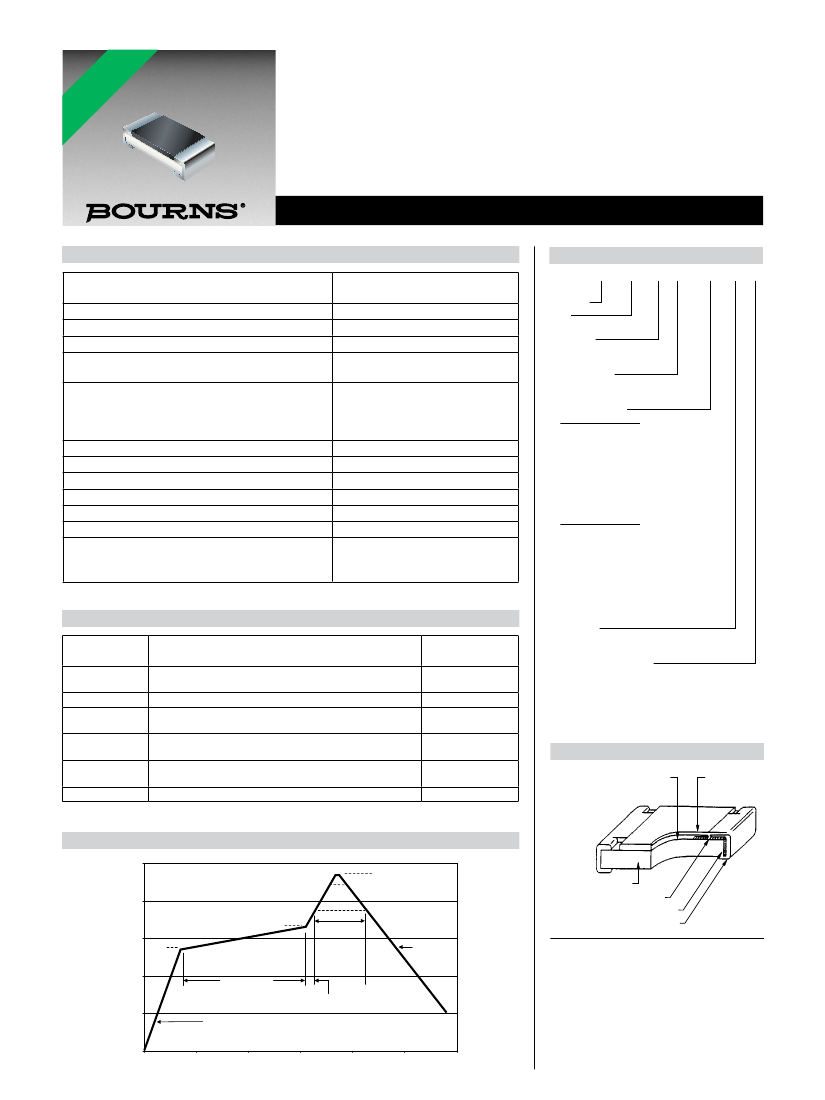

CR0201-AS Series -
Sulfur-Resistant Thick Film Chip Resistors
How To Order
General Characteristics
Characteristic
Ro VE LEA
HS RS D
C ION FRE
OM S E
PL AR
IA E
NT
*
CR0201-AS
0.05 W
±1 %, ±5 %
10 ohms to 2 megohms
1 ohm to 10 megohms,
0 ohms
±200 ppm/°C
±200 ppm/°C**
N/A
50 V
25 V
-55 to +125 °C
Power Rating @ 70 °C per Resistor
Resistor Tolerance
Resistance Range - 1 % Tolerance (E24 + E96)
Resistance Range - 5 % Tolerance (E24),
Zero-ohm Jumper
Temperature Coefficient of Resistance (TCR)
1 % Tolerance
5 % Tolerance
Zero-ohm Jumper
Maximum Overload Voltage
Maximum Working Voltage
Operating Temperature Range
Storage Conditions
Derating Temperature
Packaging (Paper Tape)
Zero-ohm Jumper:
Current Rating
Maximum Resistance
+5 ~ +40 °C, 25~75 % RH, 1 year
+70 °C
15,000 pcs. per reel
1 A per element
100 milliohms
**TCR for 1 ohm to 9.1 ohm resistance range, 5 % tolerance is -600 to +100 ppm/°C.
Environmental Characteristics
Specification
Test Method
(JIS C 5201-1)
Characteristics
±(2 % +0.1 ohm)
±(2 % +0.1 ohm)
±(5 % +0.05 ohm)
±(5 % +0.1 ohm)
±(5 % +0.1 ohm)
±(5 % +0.1 ohm)
Short Time
Overload
Soldering Heat
Temperature
Cycling
Moisture Load
Life
Load Life
Sulfur Test
Rated voltage x 2.5, 5 seconds
+260 °C ±5 °C, 10 ±1 seconds
-55 °C (30 minutes) - normal (2~3 minutes)
+125 °C (30 minutes) - normal (2~3 minutes), 5 cycles
+40 °C, 90~95 % RH, 1000 hours,
1.5 hours ON, 0.5 hours OFF
+70 °C, 1000 hours,
1.5 hours ON, 0.5 hours OFF
3 ppm H2S, +50 °C, 90~95 % RH, 100 hours
Chip
Resistor
Size
• 0201
Tolerance
• F=1%
• J=5%
TCR (ppm/°C)
• W = ±200
• / = N/A (for Jumper & R<10 ohms)
Resistance Code
• For 1 % Tolerance
<100 ohms:
“R” designates decimal point
(example: 24R3 = 24.3 ohms)
≥100 ohms:
First three digits are significant,
fourth digit represents number of
zeros to follow
(example: 8252 = 82.5K ohms)
• For 5 % Tolerance
<10 ohms:
“R” designates decimal point
(example: 4R7 = 4.7 ohms)
≥10 ohms:
First two digits are significant,
third digit represents number of
zeros to follow
(example: 474 = 470K ohms;
000 = Zero-ohm jumper)
Packaging
• G = Paper Tape
(15,000 pcs. on 7-inch plastic reel)
Special Characteristics
• AS = Sulfur-resistant, Tin-plated terminations
(RoHS compliant)
CR 0201 - F W - 1002 G AS
For Standard Values Used in Capacitors,
Inductors, and Resistors,
click here.
Construction
Resistor (Ru0
2
)
(Jumper chip is
a conductor)
Overcoat
NOTE: Zero-ohm jumper ≤100 milliohms.
Soldering Profile
275
<1>
Maximum of 20 seconds between
+255 °C and +260 °C
260 °C peak
<1>
255 °C
Alumina Substrate
Internal Electrode
Secondary Electrode (Nickel Plated)
60 - 90
seconds
Ramp Down
6 °C/second
225
220 °C
Temperature (°C)
190 °C
175
150 °C
External Electrode (Sn)
125
60 - 120 seconds
10 seconds minimum
* RoHS Directive 2002/95/EC Jan. 27, 2003 including
annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data
sheet can and do vary in different applications and
actual device performance may vary over time.
150
Time (seconds)
200
250
300
75
Ramp Up
3 °C/second maximum
25
0
50
100
Users should verify actual device performance in their
specific applications.
