BL-HF0G323F-TRB
●
Features:
1. Emitted Color : Super Red and
Yellow Green
2. Lens Appearance : White Diffused.
3. Bi-color type.
4. 3.2x2.7x1.1mm(1210) standard package
5. Suitable for all SMT assembly methods.
6. Compatible with infrared and vapor phase
reflow solder process.
7. Compatible with automatic placement
equipment.
●

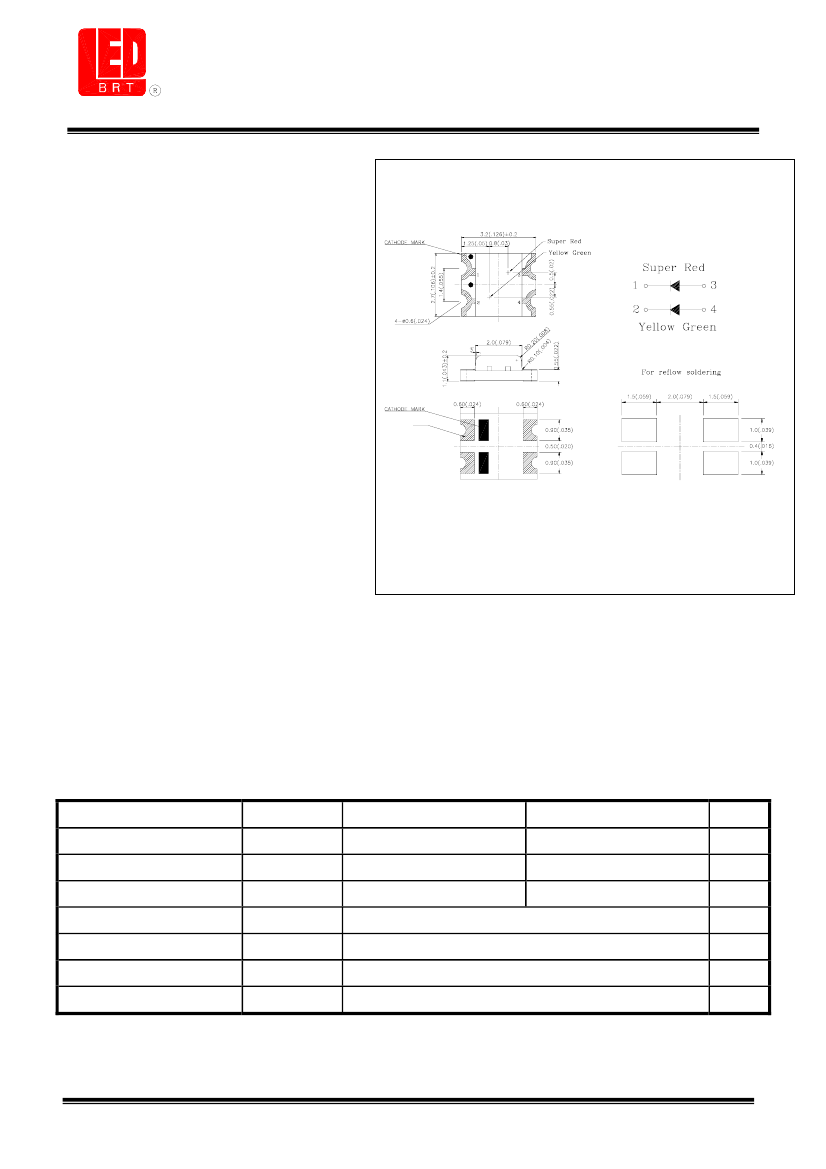

Package Dimensions:
銅箔
8. This product doesn’t contain restriction
Substance, comply ROHS standard.
●
Applications:
1.
2.
3.
Automotive : Dashboards, stop lamps,
turn signals.
Backlighting : LCDs, Key pads advertising.
Status indicators : Comsumer & industrial
electronics.
NOTES:
1.All dimensions are in millimeters (inches).
2.Tolerance is ± 0.10mm (0.004”) unless otherwise specified.
3.Specifications are subject to change without notice.
4.
General use.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Peak Forward Current
＊1
Reverse Volage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Super Red
80
30
100
5
-25℃~80℃
-30℃~85℃
See Page6
Yellow Green
100
30
100
Unit
mW
mA
mA
V
-
-
-
＊1
Condition for IFp is pulse of 1/10 duty and 0.1msec width.
Ver.1.1 Page 1 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HF0G323F-TRB
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Veiwing Angle
Symbol
Vf
Iv
I
R
λp
λd
Δλ
2θ
1/2
Condition
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Color
Super Red
Yellow Green
Super Red
Yellow Green
Super Red
Yellow Green
Super Red
Yellow Green
Super Red
Yellow Green
Super Red
Yellow Green
Super Red
Yellow Green
Min.
-
18.5
28.0
-
-
638
566
-
-
Typ.
2.0
2.2
35
40
-
660
570
-
20
30
120
Max.
2.6
2.6
-
100
-
648
576
-
-
Unit
V
mcd
µA
nm
nm
nm
deg
●

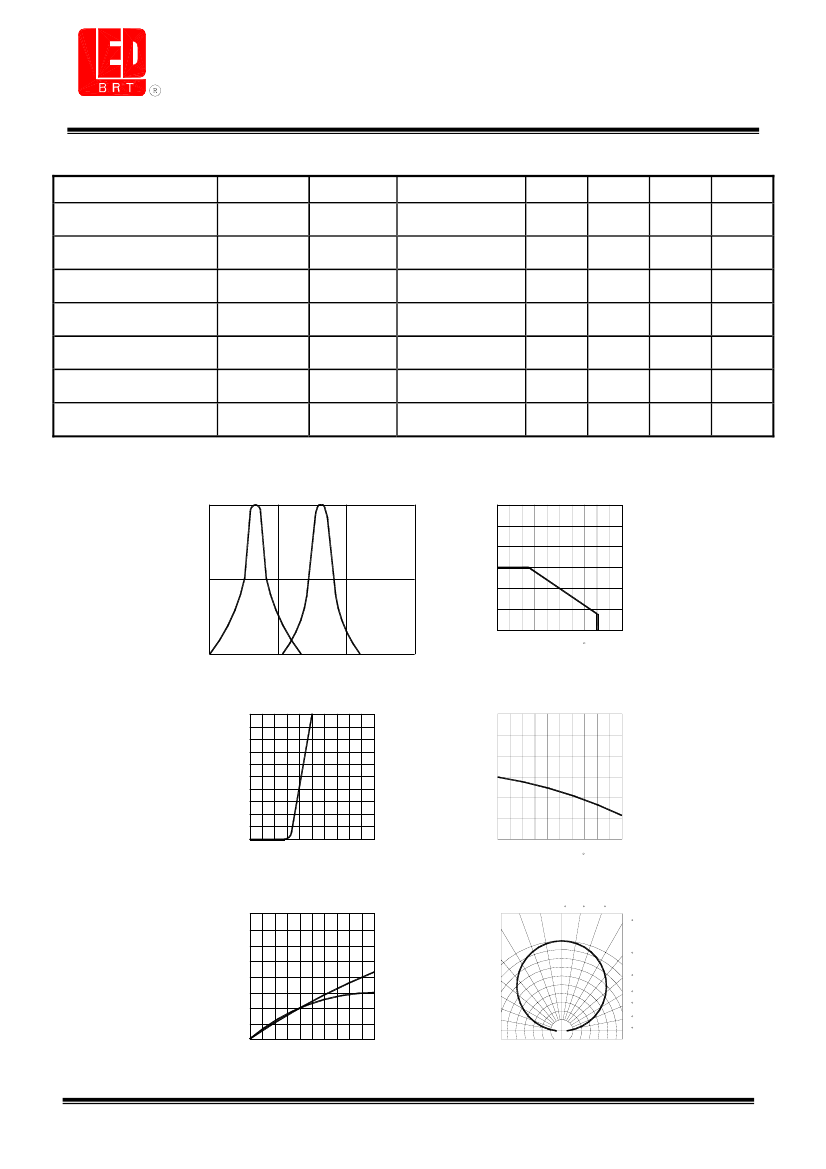

Typical Electro-Optical Characteristics Curves
Fig.2 Forward current derating curve
Fig.1 Relative intensity vs. wavelength
1.0
(G)
(R)
60
vs. ambient temperature
50
Forward Current (mA)
40
Relative radiant intensity
30
0.5
20
10
0
20
40
60
80
100
Ambient temperature Ta( C)
0
500
600
700
800
Wavelength (nm)
Fig.3 Forward current vs. forward voltage
(R) (G)
3.0
Fig.4 Relative luminous intensity vs.
ambient temperature
40
Relative luminous intensity
2.5
(Normalized @ 20mA)
Forward current (mA)
2.0
30
1.5
20
1.0
10
0.5
0
1
2
3
4
5
0
-40
-20
0
20
40
60
Forward voltage(V)
A
Ambient temperature Ta( C)
Fig.5 Relative luminous intensity vs. forward current
4.0
Fig.6 Radiation diagram
0
10
20
30
Relative luminous intensity (@20mA)
3.0
Relative radlant intensity
40
1.0
0.9
0.8
50
60
70
0.7
80
90
2.0
(R)
(G)
1.0
0
5
10
20
30
40
50
0.5
0.3
0.1
0.2
0.4
0.6
Forward current (mA)
Ver.1.2 Page 2 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HF0G323F-TRB
●
Tapping and packaging specifications(Units: mm)
USER DIRECTION OF FEED
1.27± 0.1
13.0± 0.5
ANODE
ANODE
2.82 ± 0.1
START
END
71.0± 0.1
3.35± 0.1
13.0± 0.5
5.3 ± 0.05
3.5 ± 0.05
8.0 ± 0.3
TRAILER
CATHODE
CATHODE
1.75 ± 0.1
LEADER
0.3
FIXING TAPE
4.0 ± 0.1
4.0 ± 0.1
1.5± 0.1
2.0± 0.05
NOTE: 3000 pcs PER REEL
●
Package Method:(unit:mm)
12 bag/box
3000 pcs/reel
215
Bar Code Label
245
220
185
220
Aluminum Foil Bag
645
6 box/carton
210
470
Ver.1.2 Page 3 of 7
179± 1
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HF0G323F-TRB
●
Bin Limits
I n t e n s i t y B i n L i m i ts ( F 0 ) ( A t 2 0 m A )
BIN CODE
Min. (mcd)
L
M
N
P
16.0
24.0
37.0
55.0
Max. (mcd)
32.0
48.0
72.0
11 0 . 0
I n t e n s i t y B i n L i m i ts ( G 3 ) ( A t 2 0 m A )
BIN CODE
Min. (mcd)
M
N
P
Q
24.0
37.0
55.0
82.0
Max. (mcd)
48.0
72.0
11 0 . 0
160.0
C o l o r B i n L i m i ts ( G 3 ) ( A t 2 0 m A )
BIN CODE
Min. (nm)
4
5
6
7
8
565
567
569
571
573
Max. (nm)
569
571
573
575
577
●
B IN：
x - x
x
Color BIN CODE(G3)
Intensity BIN CODE(G3)
Intensity BIN CODE(F0)
Ver.1.2 Page 4 of 7
