BL-PPY-SES-C10 datasheet, PDF - EEWORLD Datasheet

BL-PPY-SES-C10: DescriptionSingle Color LED, Yellow, Water Clear, 3.3mm, 6 X 6 MM, 1.50 MM HEIGHT, SURFACE MOUNT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size227KB，5 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric View All

BL-PPY-SES-C10 Overview

Single Color LED, Yellow, Water Clear, 3.3mm, 6 X 6 MM, 1.50 MM HEIGHT, SURFACE MOUNT PACKAGE-2

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	BRIGHT
package instruction	6 X 6 MM, 1.50 MM HEIGHT, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.175 A
Lens type	WATER CLEAR
Nominal luminous intensity	2000.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.5 mm
method of packing	TAPE AND REEL
shape	ROUND
size	3.3 mm
surface mount	YES
perspective	120 deg

AMERICAN BRIGHT

OPTOELECTRONICS CORP.

NOVALED AlInGaP BL-PPx-SES Series

•

Feature:

1. Super high brightness surface mount LED.

2. High flux output.

3. 120° viewing angle.

4. Compact package outline (LxW) of 6.0 x 6.0 mm. Ultra low height profile – 1.5 mm.

5. Designed for high current drive; typically 175 mA.

6. Low thermal resistance; Rth

(js)

= 20 K/W.

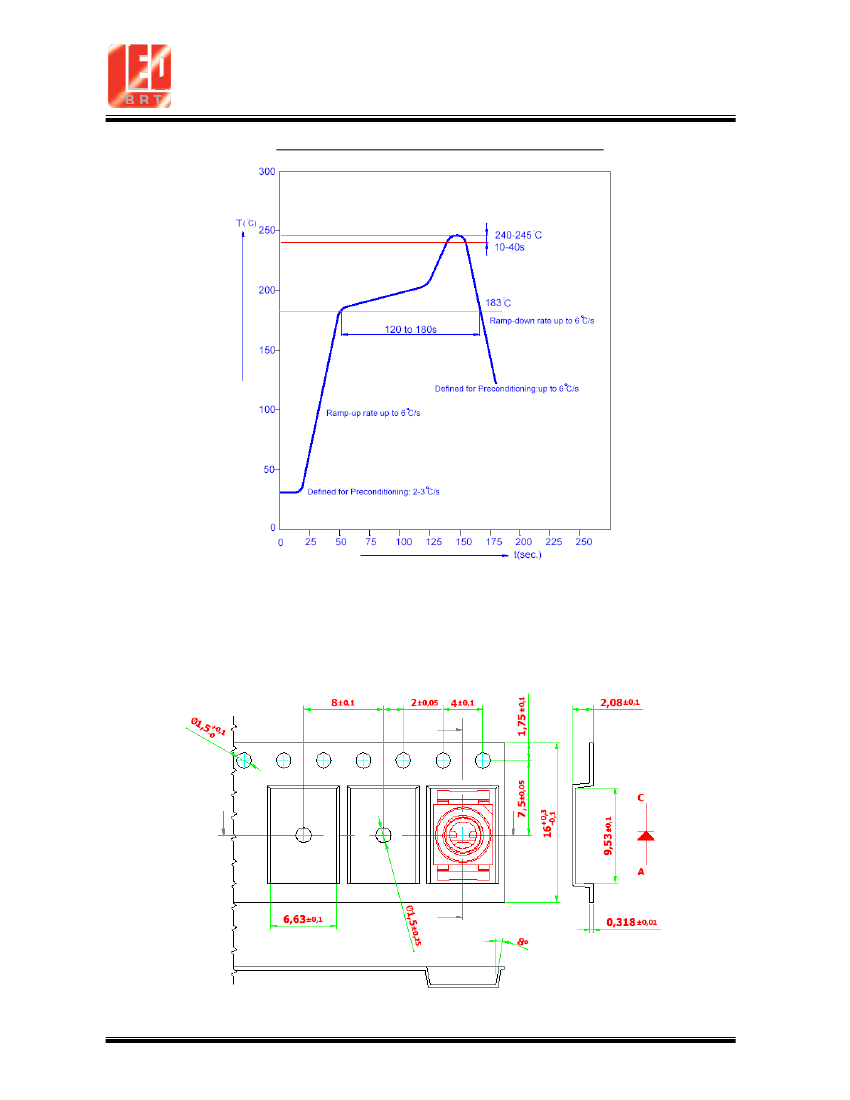

7. Compatible to IR reflow soldering.

•

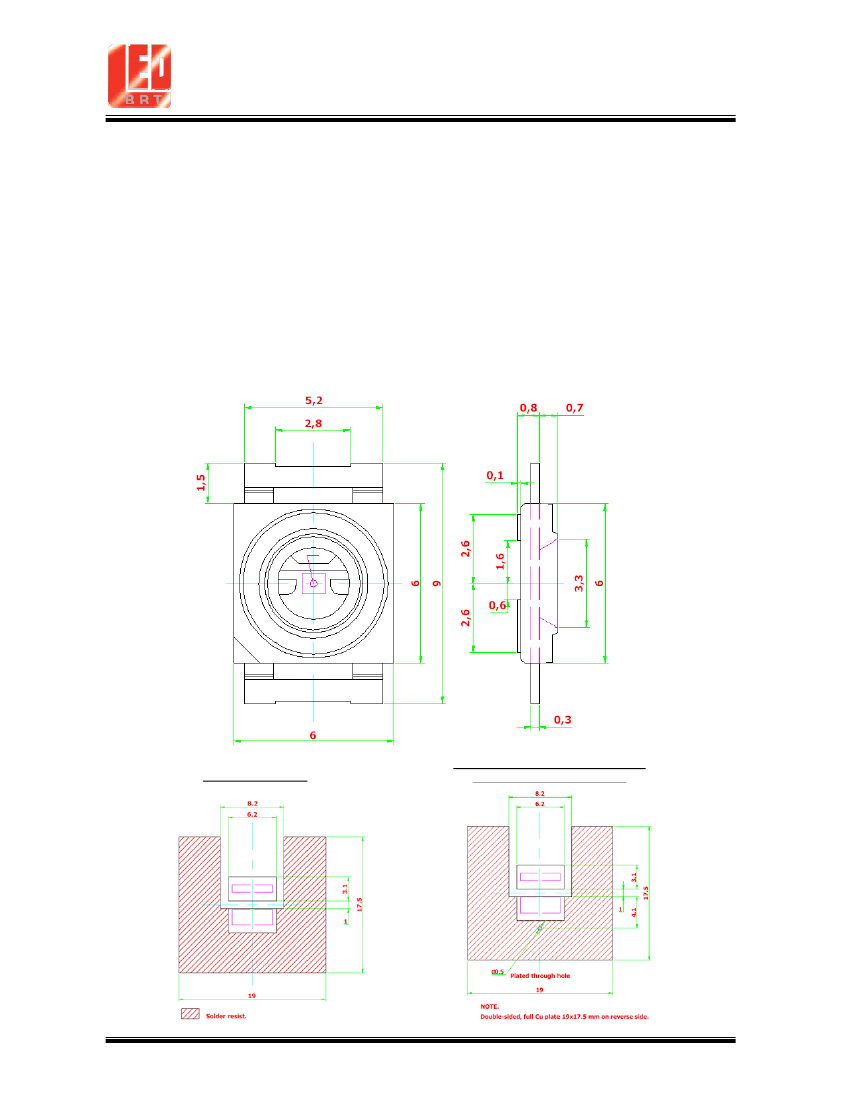

Package Dimension:

Solder Pad Design

Recommended Solder Pad Design

For Better Heat Dissipation.

V.4 Page: 1 of 5
