BS-A34JERI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BS-A34JERI

BS-A34JERI: DescriptionSmart/Normal 7 Seg Numeric LED Display, ROHS COMPLIANT PACKAGE-10; CategoryLED optoelectronic/LED photoelectric; File Size165KB，3 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/; Environmental Compliance

Download Datasheet Parametric View All

BS-A34JERI Overview

Smart/Normal 7 Seg Numeric LED Display, ROHS COMPLIANT PACKAGE-10

BS-A34JERI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	BRIGHT
package instruction	ROHS COMPLIANT PACKAGE-10
Reach Compliance Code	unknown
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

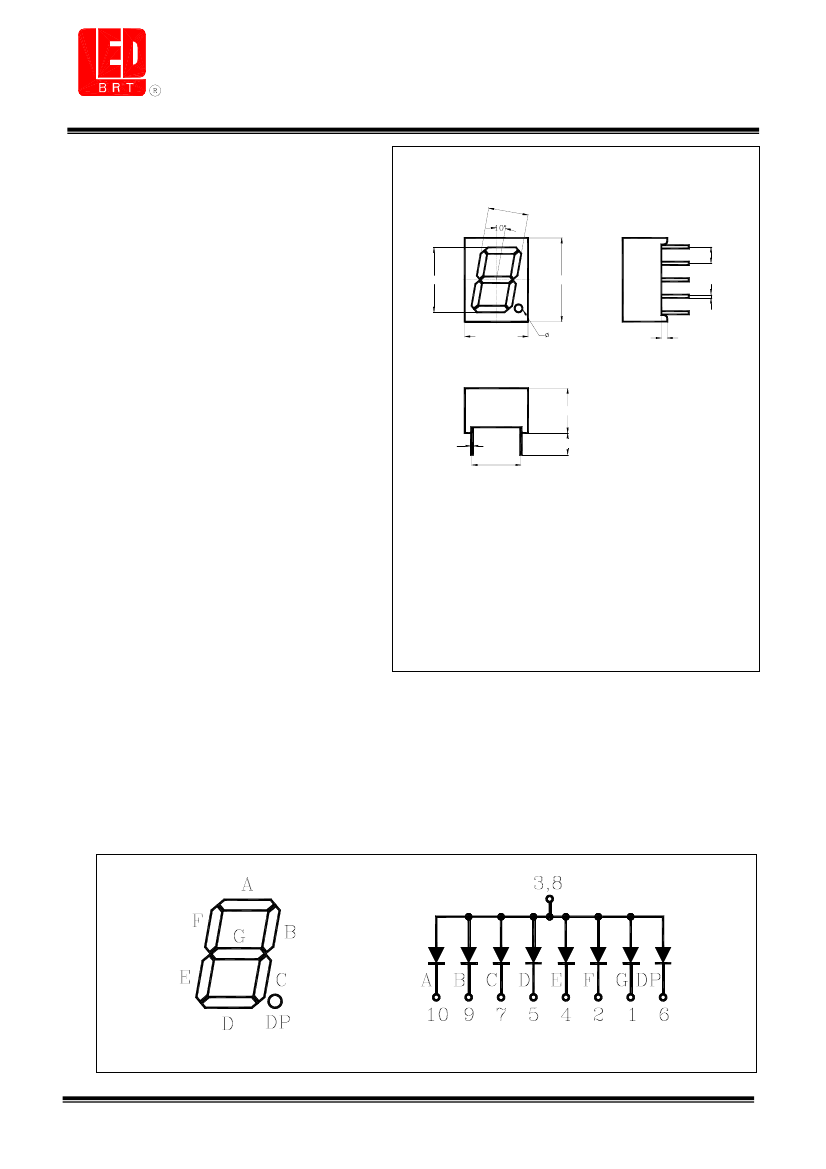

BRIGHT LED ELECTRONICS CORP.

SINCE 1981

BS-A34JERI

●

Features :

0.39 inch (10.0mm) Digit Height.

Continuous uniform segments.

Low power requirement.

Excellent characters appearance.

Solid state reliability.

Categorized for luminous intensity.

Direct drive common anode.

●

Package Dimensions :

6.20(.2

44)

2.54(.100)

10.00(.390)

12.90(.508)

0.50(.020)

9.80(.386)

1.2(.047)

0.90(.035)

6.90(.272)

●

Description :

The BS-A34JERI is a 10.0mm(0.39")

high single digit seven segments display.

This product use super orange red chips,

which are made from AlInGaP on GaAs

substrate

Notes:

1. All dimensions are in millimeters(inches).

2. Tolerance is ±0.25mm(.01")unless otherwise

specified.

3. Specifications are subject to change without

notice.

0.25(.010)

7.5(.295)

3.0(.118)MIN.

This product have a gray face and white

segments.

This product doesn't contain restriction

substance, comply ROHS standard.

●

Internal Circuit Diagram :

Ver.1.0 Page 1 of 3
