L63500A0GC-30 datasheet, PDF - EEWORLD Datasheet

L63500A0GC-30: DescriptionSerial IO/Communication Controller, CMOS, CPGA180,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size621KB，12 Pages; ManufacturerBroadcom

Download Datasheet Parametric Compare View All

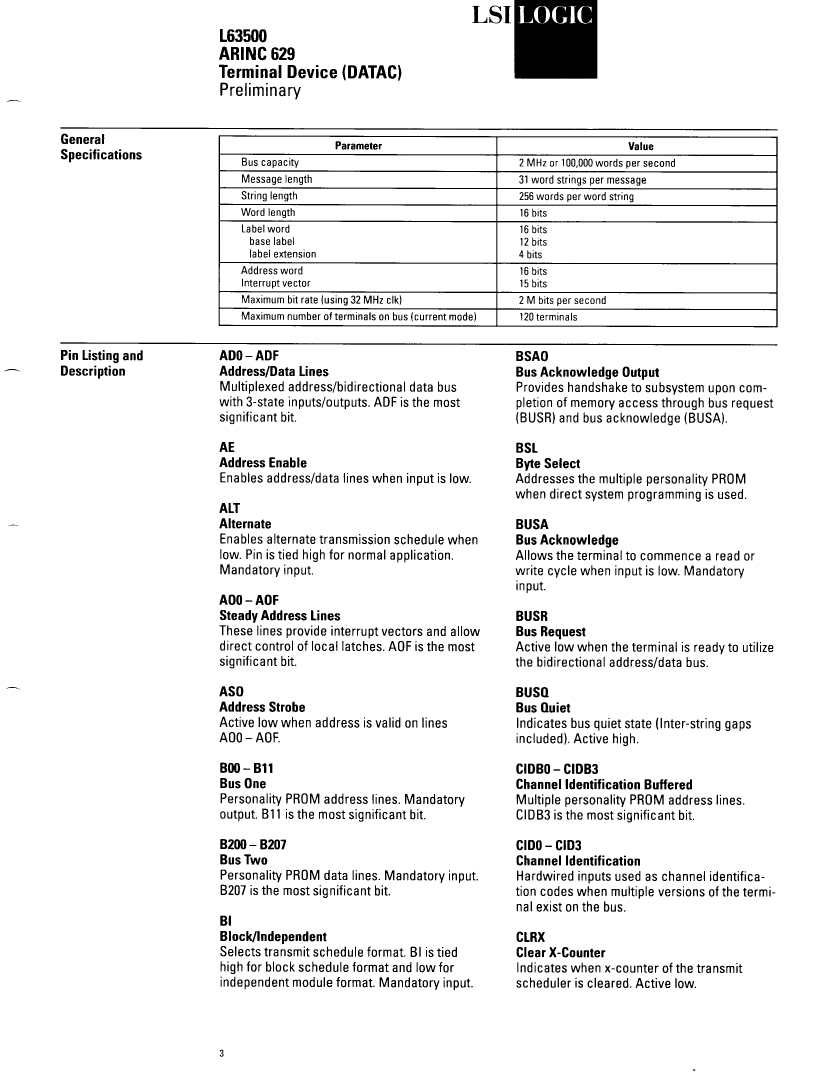

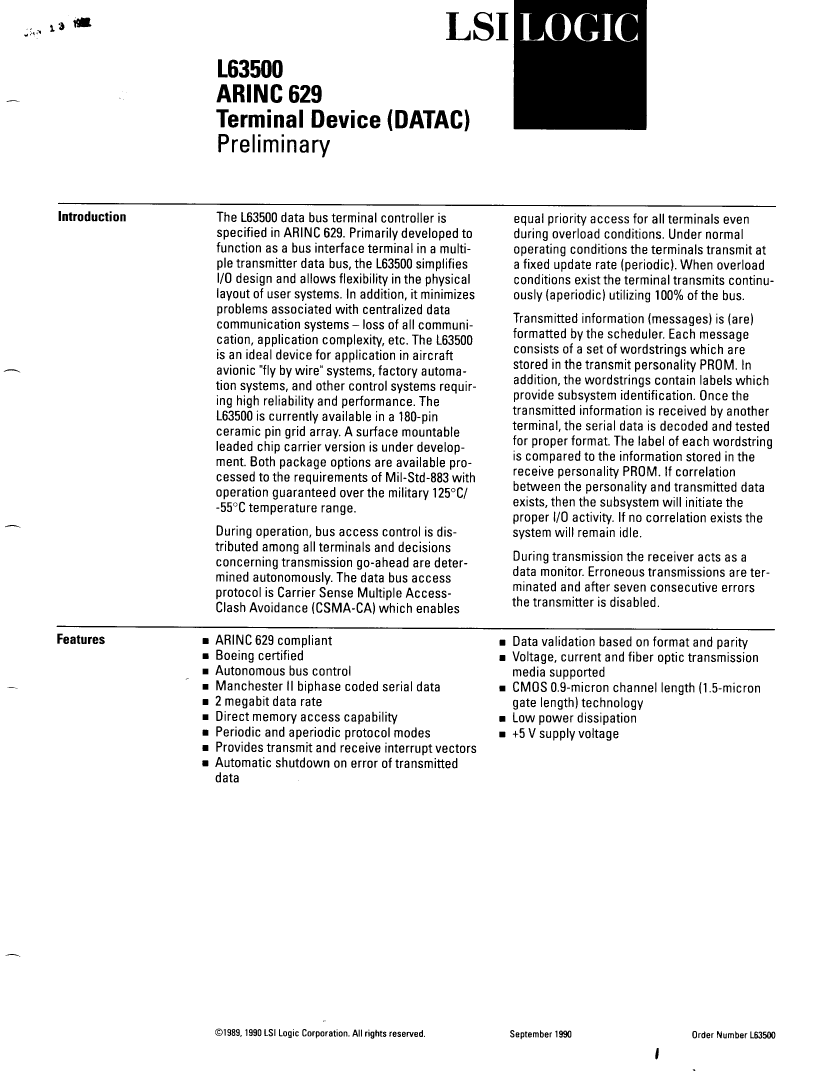

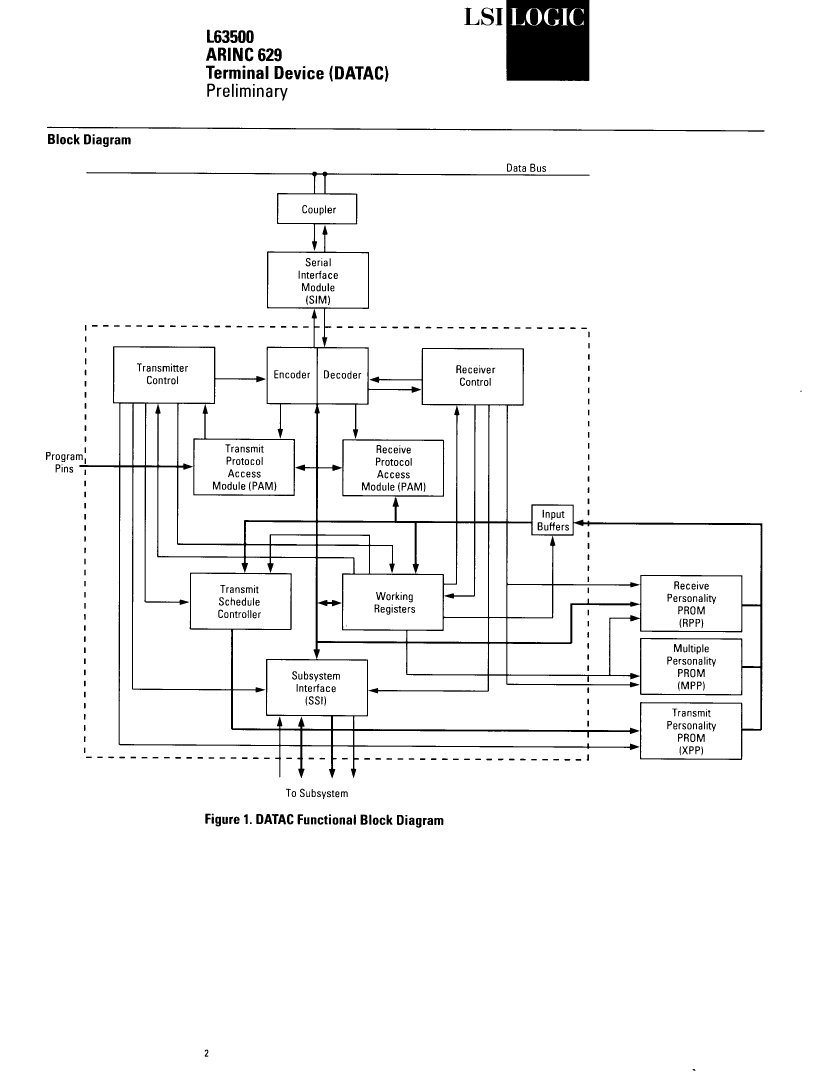

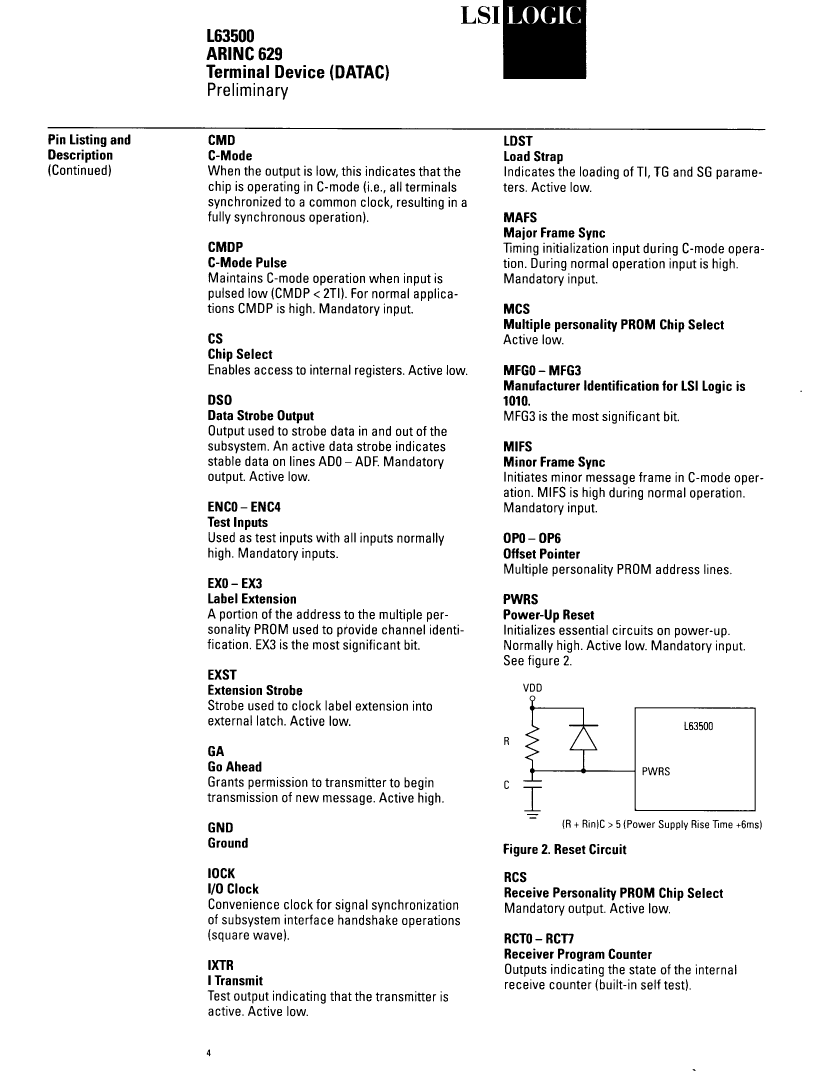

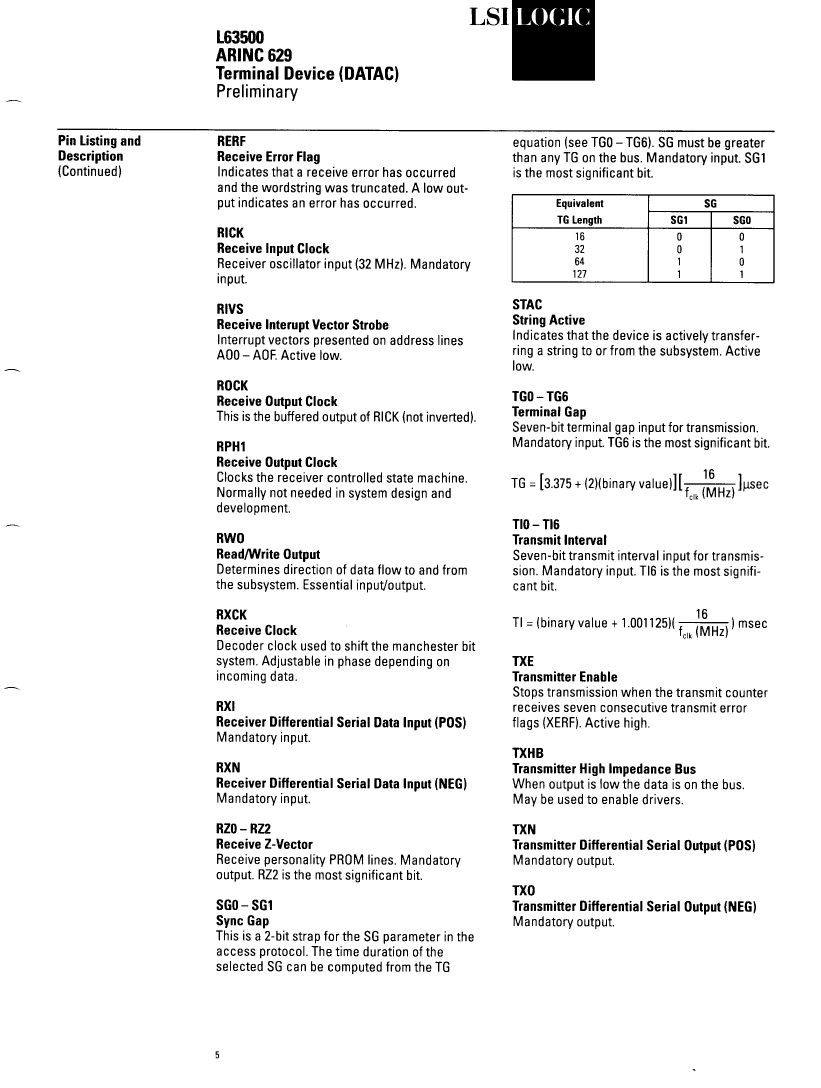

L63500A0GC-30 Overview

Serial IO/Communication Controller, CMOS, CPGA180,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Broadcom
Reach Compliance Code	unknown
JESD-30 code	S-XPGA-P180
JESD-609 code	e0
Number of terminals	180
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	PGA
Encapsulate equivalent code	PGA180M,15X15
Package shape	SQUARE
Package form	GRID ARRAY
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR

	L63500A0GC-30	L63500A0GM-30	L63500A0LM-30	L63500A0LC-30
Description	Serial IO/Communication Controller, CMOS, CPGA180,	Serial IO/Communication Controller, CMOS, CPGA180	Serial IO/Communication Controller, CMOS, CQCC196,	Serial IO/Communication Controller, CMOS, CQCC196,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Broadcom	Broadcom	Broadcom	Broadcom
Reach Compliance Code	unknown	unknown	unknown	unknown
JESD-609 code	e0	e0	e0	e0
Number of terminals	180	180	196	196
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	PGA	PGA	QCCJ	QCCJ
Encapsulate equivalent code	PGA180M,15X15	PGA180M,15X15	LDCC196(UNSPEC)	LDCC196(UNSPEC)
Package form	GRID ARRAY	GRID ARRAY	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	J BEND	J BEND
Terminal location	PERPENDICULAR	PERPENDICULAR	QUAD	QUAD
