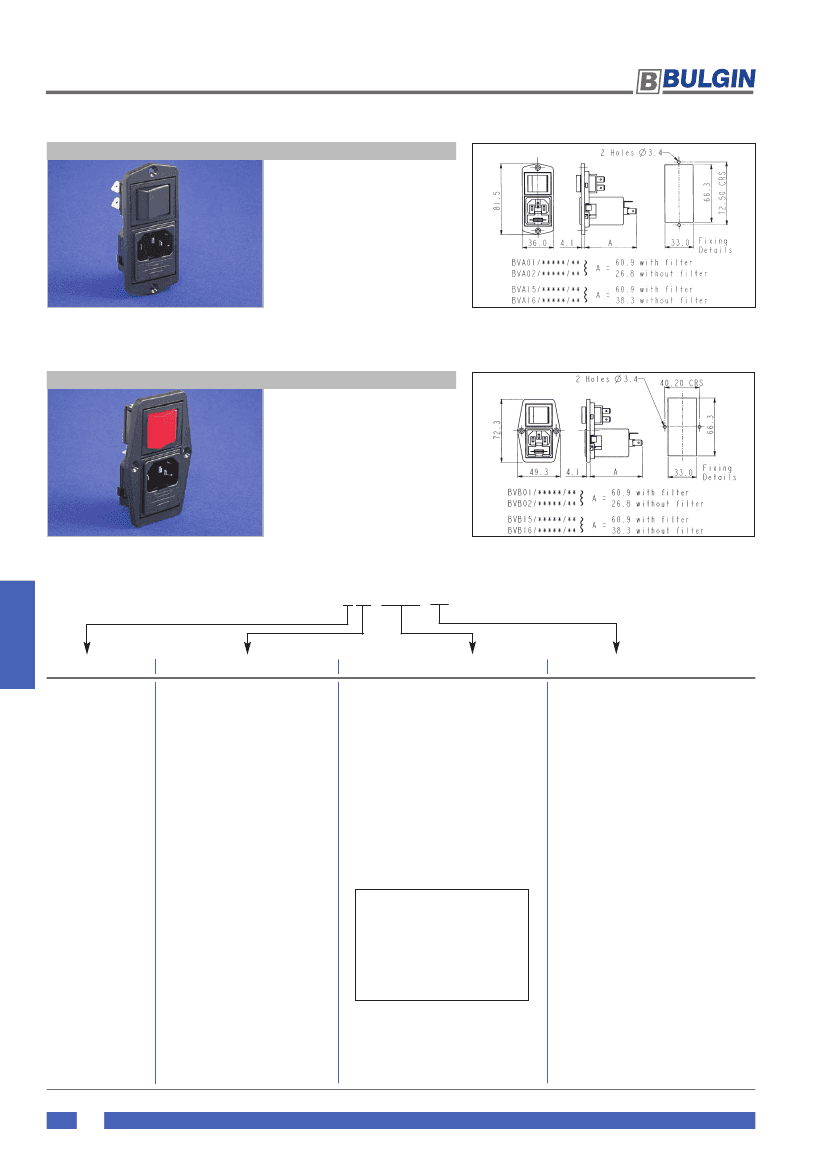

POLYSNAP
®
POWER INLET MODULES
C14 IEC Fused Inlet - Polyflange
VERTICAL MODULE ARRANGEMENT
Fused Inlet with 2.8mm or
6.3mm tags
Screw Fixing to Panel
Double Pole Switch Variations
Filtered Inlet Option
Options of I/O marked
switches
BVA01/Z0000/10
VERTICAL MODULE ARRANGEMENT
Fused Inlet with 2.8mm or
6.3mm tags
Screw Fixing to Panel
Double Pole Switch Variations
Filtered Inlet Option
Options of I/O marked
switches
BVB01/Z0000/11
IEC CONNECTORS
How to Order
BV x xx / xxxxx / xx
Flange Type
A
= Top fixing
B
= Side fixing
Type of Inlet / Outlet
Fused C14 Power Inlet (cold
condition), 6.3 or 2.8mm tabs:
01
= PF0011/63
02
= PF0011/28
Twin Fused C14 Power Inlet
(cold condition), 6.3 or 2.8mm
tabs:
15
= PF0033/63
16
= PF0033/28
Filtered or Non Filtered Inlet
Z0000 = Non Filtered
Axxxx = Standard
Bxxxx = Medical (Twin Fuse Version only)
Combination of Other Components
Neon Indicator:
D3
= Red Neon Indicator
Double Pole Switch:
10
= D.P Switch
.
Double Pole Neon Switch:
11
= D.P Red Neon Switch
.
12
= D.P Green Neon Switch
.
Double Pole High Inrush Switch:
13
= D.P High Inrush Switch
.
For Filtered inlet use 6th to 9th
characters from filter ordering code see
pages 127-129.
E.g. BVA01/A0620/10
Double Pole Switch Marked I/O:
70
= D.P Switch (I/O)
.
Double Pole Neon Switch Marked (I/O):
76
= D.P Red Neon Switch (I/O)
.
77
= D.P Green Neon Switch (I/O)
.
Double Pole High Inrush Switch Marked
(I/O):
78
= D.P High Inrush Switch (I/O)
.
B1
= D.P High Inrush Green Neon Switch
.
(I/O)
Note: For technical details of individual components please see page 106
124
www.elektron-bulgin.com
