Indicators
This range of panel mounting LED indicators consists of many different
bezel styles, types of LED’s and colours. The range has developed to
meet the many different needs of panel design including IP67
environmentally sealed versions for use where a front panel seal is
needed.
The vandal resistant LED indicators are designed to complement the
vandal resistant switches (see the Switch Section, page 177), they have
similar profiles with stainless steel bodies, sealing to IP66 & 68 and are
built to withstand harsh environments.
Type
Vandal Resistant LEDs
DX0505, DX0506
DX0507, DX0508
LEDs
DX0998,
DX1120,
DX1090,
DX1116,
DX0999
DX1121
DX1091, DX1092, DX1093
DX1117, DX1118, DX1119
Page
170
171
172
172
173
174
www.bulgin.co.uk
169
INDICATORS

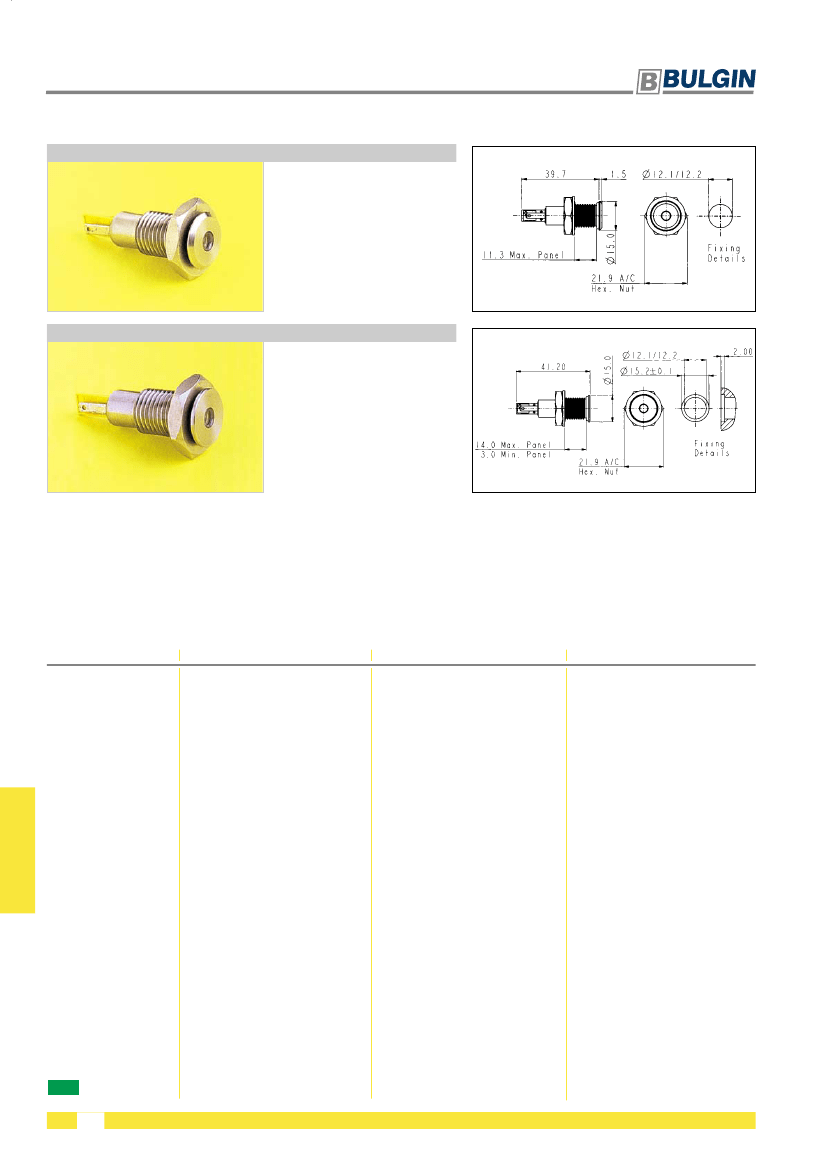

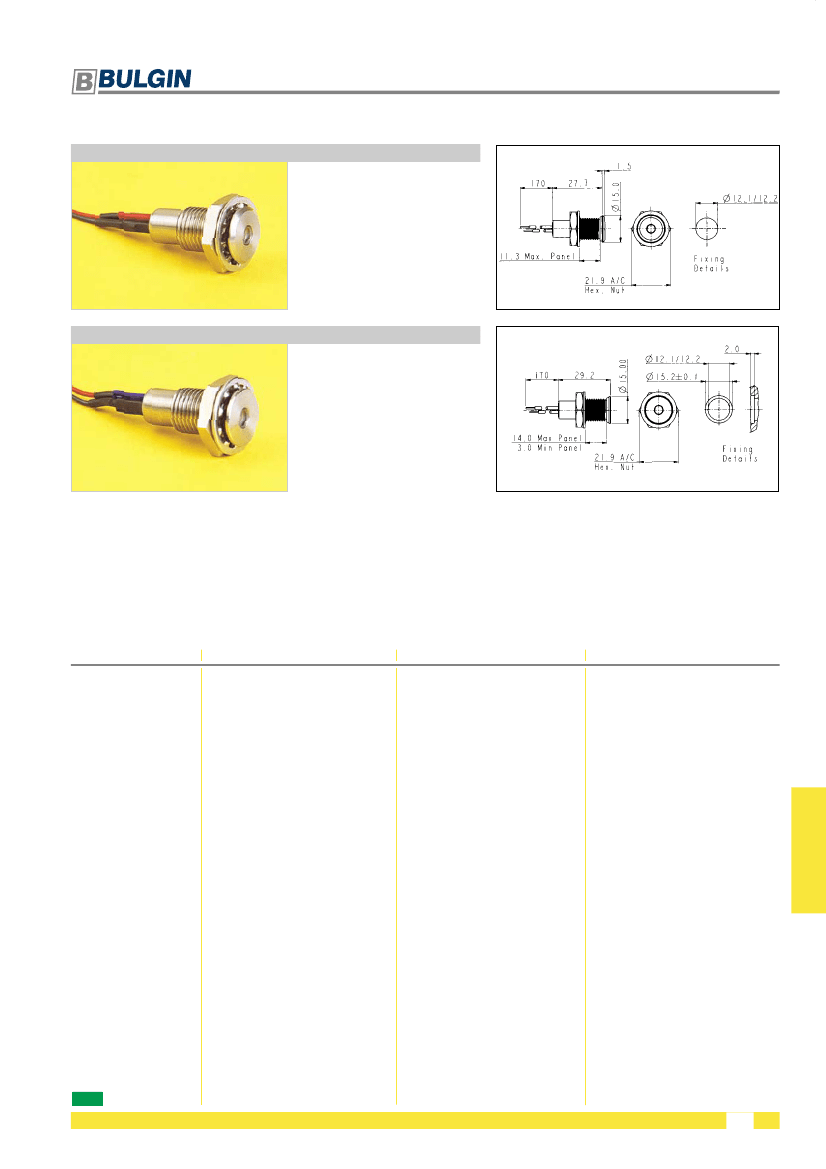

Vandal Resistant LED Indicators
PROUD OF PANEL PROFILE
Solder Tag/2.8mm Tag
Termination
Sealed to IP67
Red, Green, Yellow or Blue
LED Options
Wide Viewing Angle
DX0505
FLUSH PANEL PROFILE
Solder Tag/2.8mm Tag
Termination
Sealed to IP67
Red, Green, Yellow or Blue
LED Options
Wide Viewing Angle
DX0506
Shock and Vibration Resistant
Stainless Steel body
Shock and Vibration Resistant
Stainless Steel body
Specification
Terminations:
Forward Voltage:
Cont. Forward Current:
(max)
Power Dissipation:
Reverse Current:
(@Vr = 5V)
LED Luminous Intensity:
Operating Temp. Range:
Storage Temperature:
Sealing (Front of panel):
Materials:
Body:
Lens:
O Ring (external):
(internal):
LED Colours:
LED Voltage:
DX0505/Col/Voltage
Solder Tab/2.8mm Tab
Red 1.85V, Green 2.2V, Yellow 2.0V,
Blue 3.8V
Red 30mA, Green 25mA,
Yellow 30mA, Blue 25mA
Red 100mW, Green 105mW,
Yellow 125mW, Blue 120mW
Red 10µA max., Green 10µA max.,
Yellow 10µA max., Blue 50µA max.
Red 2000mcd, Green 100mcd,
Yellow 400mcd, Blue 1600mcd (typ)
–40ºC to +80ºC
–40ºC to +85ºC
Protection Classification IP67 to
BS EN60529:1992
Stainless Steel
Polycarbonate UL94V-0
Nitrile
Silicon
/RD (Red), /GN (Green), /YL (Yellow)
/BL (Blue), with colour coded insulator
/12 (12V d.c.), /24 (24V d.c.) or
/00 (no ballast resistor)
Compliant
DX0506/Col/Voltage
Solder Tab/2.8mm Tab
Red 1.85V, Green 2.2V, Yellow 2.0V,
Blue 3.8V
Red 30mA, Green 25mA,
Yellow 30mA, Blue 25mA
Red 100mW, Green 105mW
Yellow 125mW, Blue 120mW
Red 10µA max., Green 10µA max.
Yellow 10µA max., Blue 50µA max.
Red 2000mcd, Green 100mcd,
Yellow 400mcd, Blue 1600mcd (typ)
–40ºC to +80ºC
–40ºC to +85ºC
Protection Classification IP67 to
BS EN60529:1992
Stainless Steel
Polycarbonate UL94V-0
Nitrile
Silicon
/RD (Red), /GN (Green), /YL (Yellow)
/BL (Blue), with colour coded insulator
/12 (12V d.c.), /24 (24V d.c.) or
/00 (no ballast resistor)
Compliant
www.bulgin.co.uk
INDICATORS
RoHS
170
Vandal Resistant LED Indicators
PROUD OF PANEL PROFILE
Flying Lead Termination
Sealed to IP67
Red, Green, Yellow or Blue
LED Options
Wide Viewing Angle
Shock and Vibration Resistant
DX0507
FLUSH PANEL PROFILE
Flying Lead Termination
Sealed to IP67
Red, Green, Yellow or Blue
LED Options
Wide Viewing Angle
Shock and Vibration Resistant
DX0508
Stainless Steel body
Stainless Steel body
Specification
Terminations:
Forward Voltage:
Cont. Forward Current:
(max)
Power Dissipation:
Reverse Current:
(@Vr = 5V)
LED Luminous Intensity:
Operating Temp. Range:
Storage Temperature:
Sealing (Front of panel):
Materials:
Body:
Lens:
O Ring (external):
(internal):
LED Colours:
LED Voltage:
DX0507/Col/Voltage
Flying Leads
Red 1.85V, Green 2.2V, Yellow 2.0V,
Blue 3.8V
Red 30mA, Green 25mA,
Yellow 30mA, Blue 25mA
Red 100mW, Green 105mW,
Yellow 125mW, Blue 120mW
Red 10µA max., Green 10µA max.,
Yellow 10µA max., Blue 50µA max.
Red 2000mcd, Green 100mcd,
Yellow 400mcd, Blue 1600mcd (typ)
–40ºC to +80ºC
–40ºC to +85ºC
Protection Classification IP67 to
BS EN60529:1992
Stainless Steel
Polycarbonate UL94V-0
Nitrile
Silicon
/RD (Red), /GN (Green), /YL (Yellow)
/BL (Blue), with colour coded insulator
/12 (12V d.c.), /24 (24V d.c.) or
/00 (no ballast resistor)
Compliant
DX0508/Col/Voltage
Flying Leads
Red 1.85V, Green 2.2V, Yellow 2.0V,
Blue 3.8V
Red 30mA, Green 25mA,
Yellow 30mA, Blue 25mA
Red 100mW, Green 105mW
Yellow 125mW, Blue 120mW
Red 2000mcd, Green 100mcd,
Yellow 400mcd, Blue 1600mcd (typ)
–40ºC to +80ºC
–40ºC to +85ºC
Protection Classification IP67 to
BS EN60529:1992
Stainless Steel
Polycarbonate UL94V-0
Nitrile
Silicon
/RD (Red), /GN (Green), /YL (Yellow)
/BL (Blue), with colour coded insulator
/12 (12V d.c.), /24 (24V d.c.) or
/00 (no ballast resistor)
Compliant
171
RoHS
www.bulgin.co.uk
INDICATORS
Red 10µA max., Green 10µA max.,
Yellow 10µA max., Blue 50µA max.

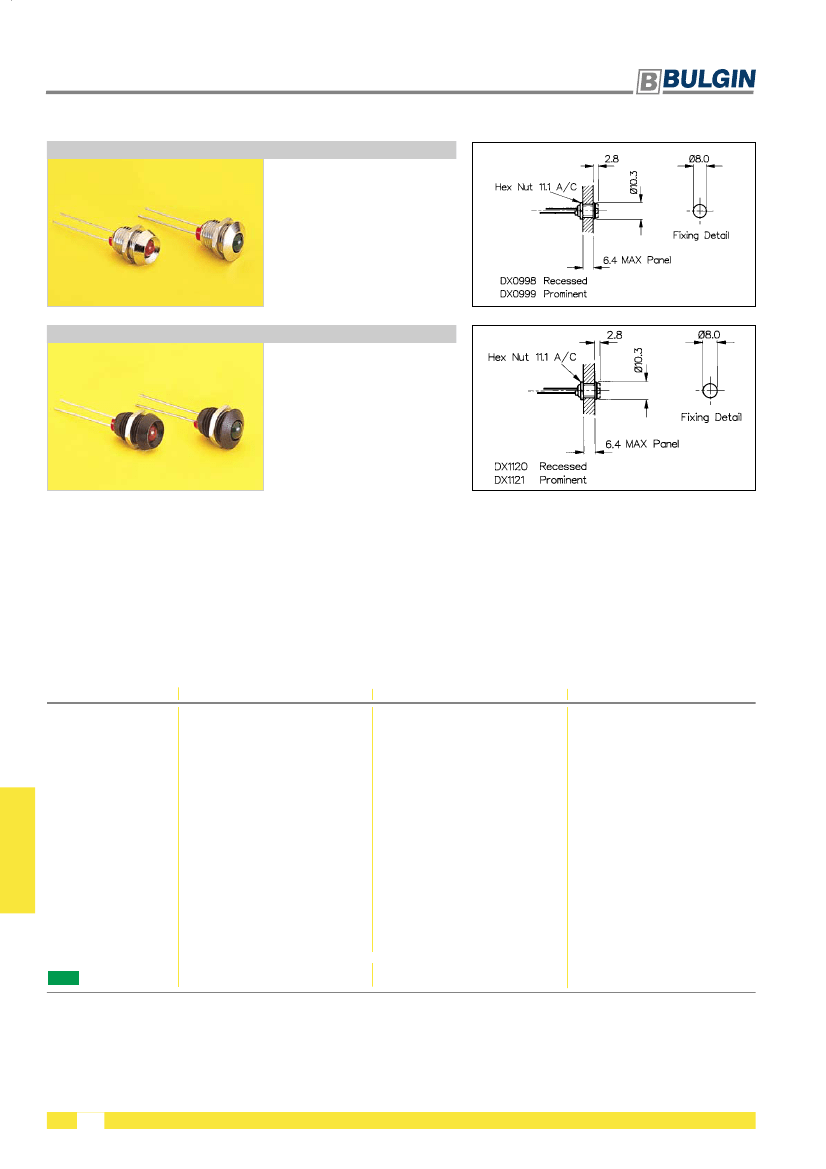

5mm LED Indicators
CHROME PLATED BRASS BEZEL
Chrome Plated Brass Bezel
Prominent or Recessed Style
Choice of LED Types and
Colours
DX0998
DX0999
NYLON BEZEL
Glass Filled Nylon Bezel
Prominent or Recessed Style
Choice of LED Types and
Colours
DX1120
DX1121
Specification
Bezel Material:
Style:
Operating Temp. Range:
Storage Temperature:
DX0998, DX0999/Colour/Options
Brass, Chrome Plated
Recessed (DX0998)
Prominent (DX0999)
Dependent on LED used
Dependent on LED used
/RD (Red), /GN (Green), /YL (Yellow),
/BL (Blue), /TR (Tri Colour),
/D1 (Dual Colour - Red/Green),
/D2 (Dual Colour - Red/Amber),
/D3 (Dual Colour - Green/Amber)
/02 (Flashing, Green or Red only)
DX1120, DX1121/Colour/Options
Glass filled Nylon
Recessed (DX1120)
Prominent (DX1121)
Dependent on LED used
Dependent on LED used
/RD (Red), /GN (Green), /YL (Yellow),
/BL (Blue), /TR (Tri Colour),
/D1 (Dual Colour - Red/Green),
/D2 (Dual Colour - Red/Amber),
/D3 (Dual Colour - Green/Amber)
/02 (Flashing, Green or Red only)
INDICATORS
LED Colours:
LED Options:
See Page 175 for LED options and specifications
RoHS
Compliant
Compliant
172
www.bulgin.co.uk

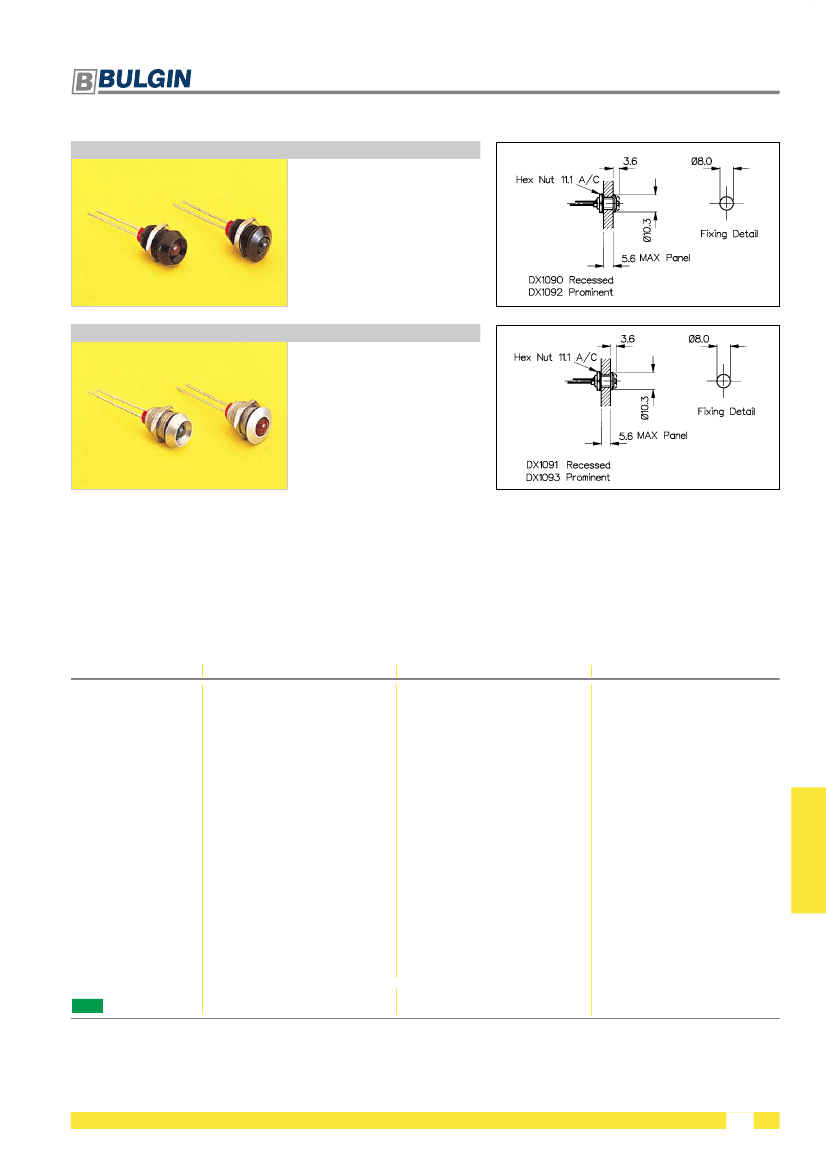

5mm LED Indicators
ALUMINIUM BEZEL - IP66 SEALED
Aluminium Bezel, Black
Anodised Finish
IP66 Front Panel Sealed
Prominent or Recessed Style
Choice of LED Types and
Colours
DX1090
DX1092
ALUMINIUM BEZEL - IP66 SEALED
Aluminium Bezel, Clear
Anodised Finish
IP66 Front Panel Sealed
Prominent or Recessed Style
Choice of LED Types and
Colours
DX1091
DX1093
Specification
Materials:
Style:
Operating Temp. Range:
Storage Temperature:
Sealing (Front of panel):
DX1090, DX1092/Colour/Options
Aluminium - Black
Recessed (DX1090)
Prominent (DX1092)
Dependent on LED used
Dependent on LED used
Protection Classification IP66 to
BS EN60529: 1992
Torque 8ozf. in. (0.056Nm) min.
260ºC for 5 seconds max.
/RD (Red), /GN (Green), /YL (Yellow),
/BL (Blue), /TR (Tri Colour),
/D1 (Dual Colour - Red/Green),
/D2 (Dual Colour - Red/Amber),
/D3 (Dual Colour - Green/Amber)
/02 (Flashing, Green or Red only)
DX1091, DX1093/Colour/Options
Aluminium - Clear
Recessed (DX1091)
Prominent (DX1093)
Dependent on LED used
Dependent on LED used
Lead Solder Time:
LED Colours:
260ºC for 5 seconds max.
/RD (Red), /GN (Green), /YL (Yellow),
/BL (Blue), /TR (Tri Colour),
/D1 (Dual Colour - Red/Green),
/D2 (Dual Colour - Red/Amber),
/D3 (Dual Colour - Green/Amber)
/02 (Flashing, Green or Red only)
LED Options:
See Page 175 for LED options and specifications
RoHS
Compliant
Compliant
www.bulgin.co.uk
173
INDICATORS
Protection Classification IP66 to
BS EN60529: 1992
Torque 8ozf. in. (0.056Nm) min.
