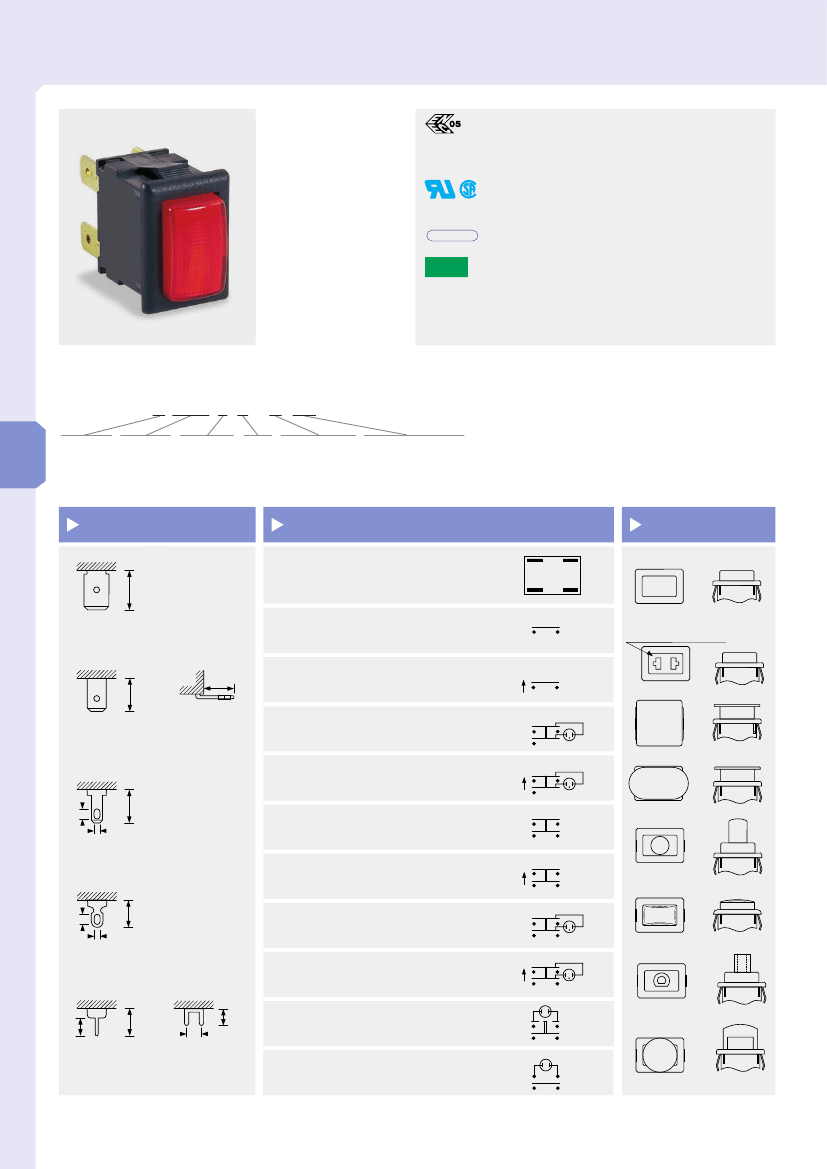

8300 Push Button Switches
8(8)A 250Vac & 12(12)A 250Vac
Miniature push button
8A Inductive current rating
Ratings up to 12(12)A,
250V ac (H suffix)
Illuminated and non-
illuminated
Single and double pole
Latching and momentary
Slotted actuator for
custom buttons
Industry standard panel
cutout
Panel cut out:
19.3 x 12.9
In house test
16(4)A 250Vac T85, 1E4 (10,000 Operations)
12(12)A 250Vac T105, 1E4 (10,000 Operations)
8(8)A 250Vac T105, 5E4 (50,000 Operations)
6(6)A 250Vac T125, 5E4 (50,000 Operations)
12A 250Vac DP, 13A 250Vac SP
250Vac 1hp, 125Vac 1/2hp
UL 85˚C, file E45221, CSA file LR10990
10(10)A 250Vac
RoHS compliant
RoHS
3mm contact gap.
Technical data on pages 4 & 5 (switches), 6 (indicators).
H 8353 J E
push
switches
H --
TERMINAL FUNCTION ACTUATOR BODY HIGHER RATING PRINT, COLOUR, ETC
TERMINAL
C
10.1
FUNCTION
1
3
2
4
ACTUATOR
A
Standard actuator
Approvals & ratings vary with function
Single pole switches use terminals 1 & 2 (& 3)
6.3 x 0.8
8300
A
7.7
8.5
H
Slotted for custom caps
ON - OFF Single pole
Slots for snap-in buttons
H
8301
ON - OFF (momentary ON) Single pole
C
Square actuator
8303
8304
ON - OFF with light Single pole
4.8 x 0.8
As “H” but right angle
4.8 x 0.8
E
Radiused actuator
K
8.5
ON - OFF (momentary ON) with light
Single pole
2.6
1.5
F
Small round actuator
8350
ON - OFF Double pole
2.8 x 0.8
T
2.6
1.5
7.0
8351
ON - OFF (momentary ON) Double pole
J
Smooth curved actuator
8353
Solder
ON - OFF with light Double pole
M
8354
X
4.5
7.0
V
4.3
3.7Ctrs
ON - OFF (momentary ON) with light
Double pole
ON - OFF Single pole
Isolated light - switched
C, E & M actuators only
8355
D
Large round actuator
PCB 0.8 Sq
Dual pin PCB
(Call sales for
mounting dims)
8356
ON - OFF Single pole
Isolated light - unswitched
C, E & M actuators only
All actuators except H available lit
40
tel: +44 (0)20 8979 3232 •
Arcolectric
• email: info@arcoswitch.co.uk
H8350AB ---
T8350AB ---
H8353JE ---
T8353JE ---
H8353EB ---
T8353EB ---
push
switches
H8353CB ---
T8353CB ---
H8350DB ---
T8350DB ---
H8350HB ---

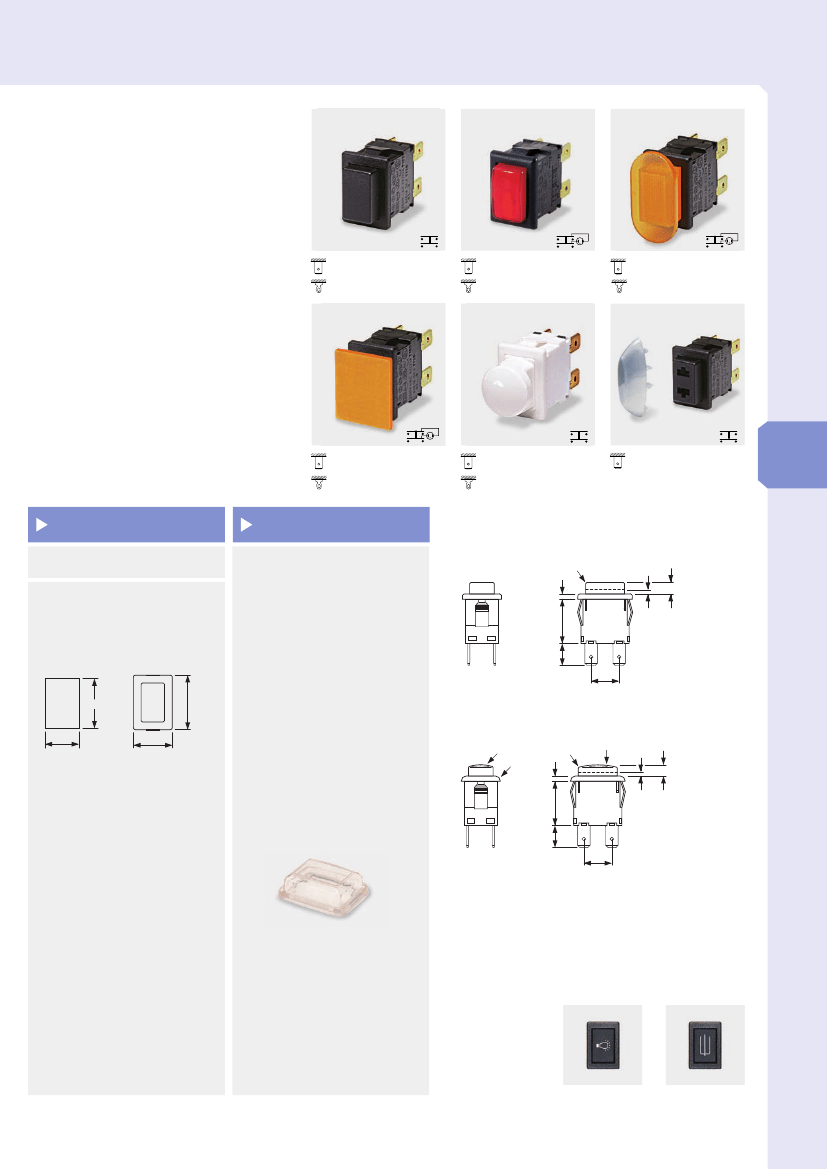

Example of button
BODY
Panel cut-out
Bezel
Cut-outs must be punched in the direction of insertion
OPTIONS
H
12(12)A 250Vac switch rating
DIMENSIONS
(mm)
Actuator A
Body B
2.0
17.0
8.5
11.0
"ON" "OFF"
R0.5
B
Standard body
E
Softline style body with radiused bezel
Finish
Matt finish standard except on J and D
actuators which are gloss
1.7
4.5
Colour
Call sales for custom colours
A full range is available for large orders
X
21.0
Legend printing
Select from the examples or call sales for
custom legends
Actuator J
Body E
R12.0
R1.8
2.0
17.0
8.5
R0.5
12.9
15.0
R29.6
Special buttons
Some of the many options are shown
Call sales for the full range
Dimensions for snap-in fixing
Panel
thickness
0.75-1.24
1.25-1.99
2.00-3.00
Dimension X
19.1/19.2
19.3/19.4
19.7/19.8
L167 Protective cover
(designed to IP65)
"ON" "OFF"
1.7
4.3
11.0
Spacing between centre of terminals 1 & 3 or 2 & 4 is 10.0mm
X and V PCB terminals.
Additional dummy terminals may be supplied
for extra support.
Snaps on to switch bodies fitted with “A” or
“J” style actuators but increases effective
panel thickness by 0.8mm
Examples of printing
