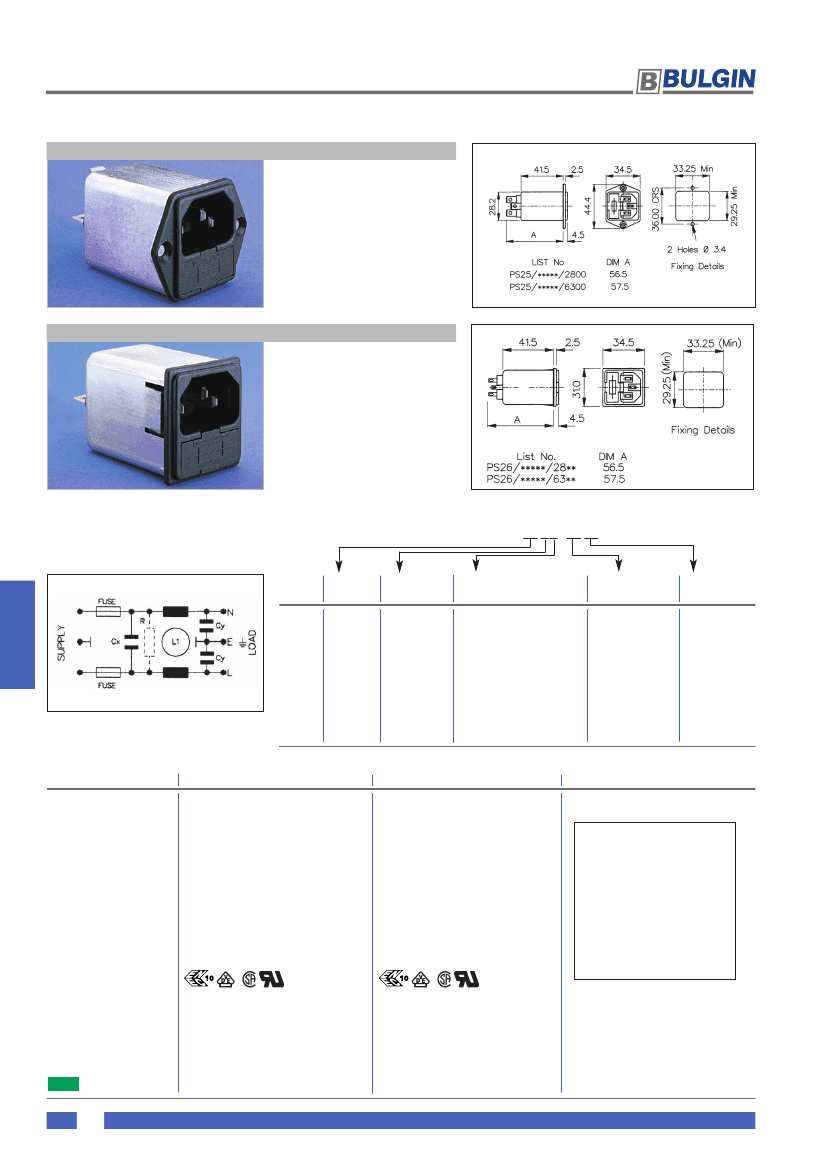

MAINS FILTERS
IEC Power Inlets Flange and Snap Fit (Twin Fused)
PANEL MOUNTING
2 or 4 Amp Current Rating
Twin Fused
Optional Additional
Components
2.8 or 6.3mm tabs
PS25/A
SNAP FIT
2 or 4 Amp Current Rating
Twin Fused
Optional Additional
Components
2.8 or 6.3mm tabs
1, 1.5, 2 or 3mm panels
PS26/A
PS25 or PS26/Axx 2x /xx xx
IEC CONNECTORS
Series
PS25/A
PS26/A
Rating
02 = 2A
04 = 4A
L/C Circuit
2 = Version 2
Additional
Components
0 = None
1 = Bleed (R) Resistor
Tag Type and
Configuration
28 = 2.8mm
Panel
Thickness
Blank = Flange
63 = 6.3mm tabs 10 = 1.0mm
15 = 1.5mm
20 = 2.0mm
30 = 3.0mm

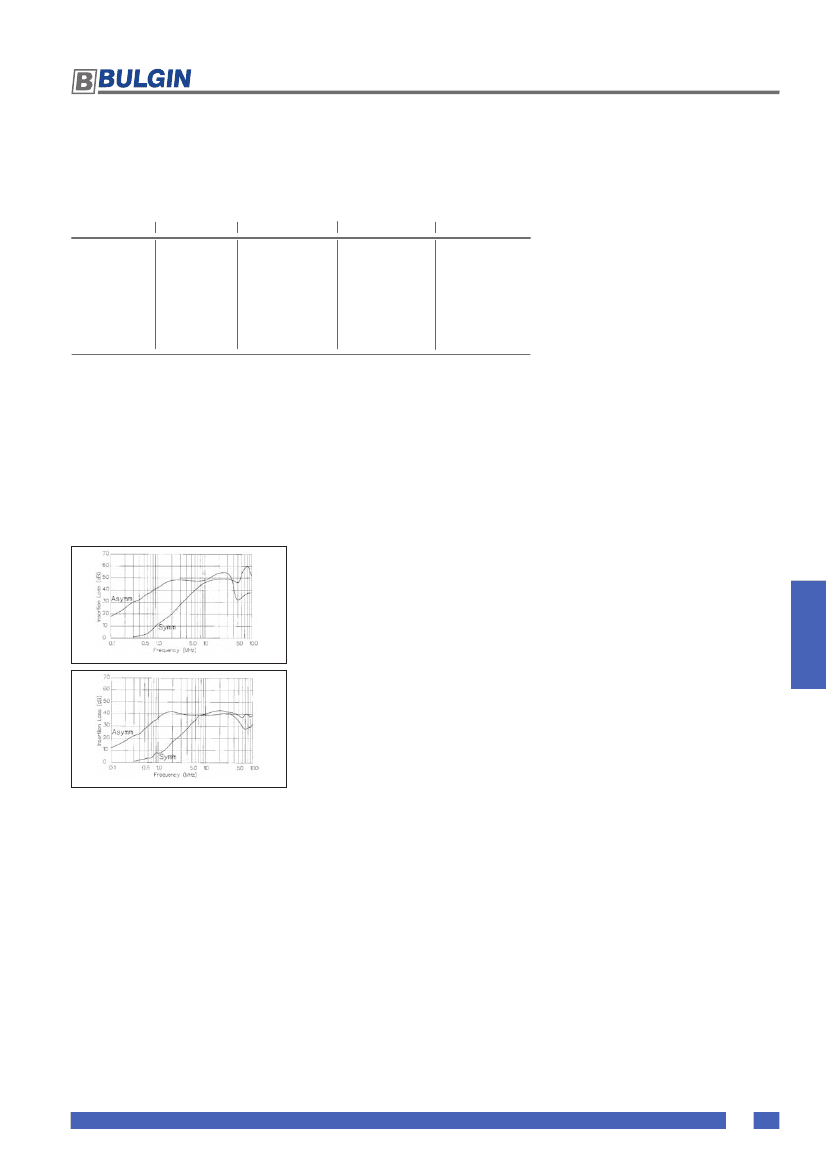

Specification
Max. Working Voltage:
Max. Power Dissipation:
Earth Leakage Current:
Temperature Range:
Max. Ambient Temp.:
(@ Full Load)
Test Voltage:
Approvals:
PS25/Axx2x/xx00
250V a.c. 50-400Hz
2.5W per fuse
<0.35mA (250V, 50Hz)
–25ºC to +85ºC
40ºC (derate linearly to 0A @ 85ºC)
2700V d.c. 2 secs. Lines to Earth
1100V d.c. 2 secs. Live to Neutral
PS26/Axx2x/xxxx
250V a.c. 50-400Hz
2.5W per fuse
<0.35mA (250V, 50Hz)
–25ºC to +85ºC
40ºC (derate linearly to 0A @ 85ºC)
2700V d.c. 2 secs. Lines to Earth
1100V d.c. 2 secs. Live to Neutral
Part No. Example
PS25/A0420/28=
PS25 series, flange fitting,
standard filtered IEC power inlet,
twin fused, rated at 4 amperes.
L/C circuit version 2, i.e L1 = 2 x
0.7mH,
Cx = 1 x 15nF, Cy = 2 x 2.2nF
Without bleed resistor fitted, with
2.8mm tabs.
Mating Connectors:
Accessories:
PX0587, PX0587/SE, PX0588
P
.No. 14340 (see page 96)
Compliant
PX0587, PX0587/SE, PX0588
P
.No. 14340 (see page 96)
Compliant
