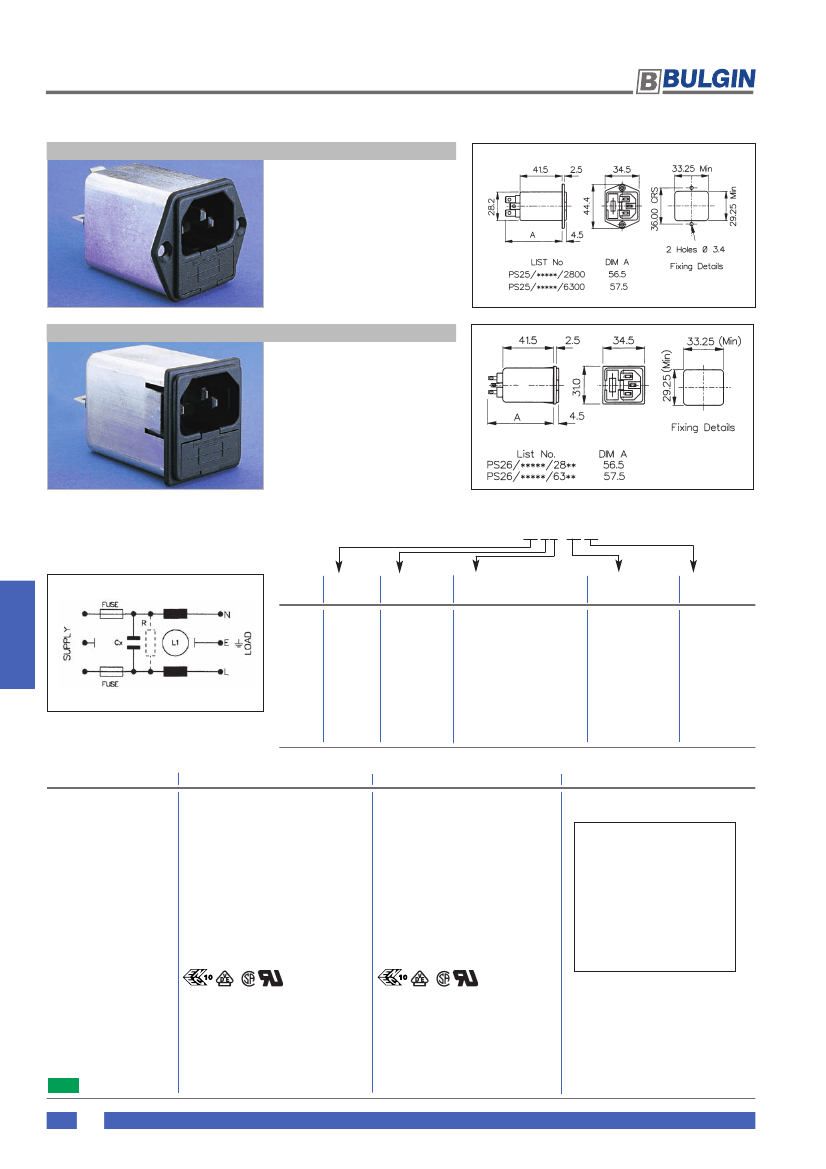

MAINS FILTERS
Medical IEC Power Inlets (Twin Fused)
PANEL MOUNTING
2 or 4 Amp Current Rating
Medical
Twin Fused
Optional Additional
Components
2.8 or 6.3mm tabs
PS25/B
Flange
SNAP FIT
2 or 4 Amp Current Rating
Medical
Twin Fused
Optional Additional
Components
2.8 or 6.3mm tabs
1, 1.5, 2 or 3mm panels
PS26/B
Snap-Fit
PS25 or PS26/Bxx 2x /xx xx
IEC CONNECTORS
Series
PS25/B
PS26/B
Rating
02 = 2A
04 = 4A
L/C Circuit
2 = Version 2
Additional
Components
0 = None
1 = Bleed (R) Resistor
Tag Type and
Configuration
28 = 2.8mm
Panel
Thickness
Blank = Flange
63 = 6.3mm tabs 10 = 1.0mm
15 = 1.5mm
20 = 2.0mm
30 = 3.0mm
Specification
Max. Working Voltage:
Max. Power Dissipation:
Earth Leakage Current:
Temperature Range:
Max. Ambient Temp.:
(@ Full Load)
Test Voltage:
Approvals:
PS25/Bxx2x/xx00
250V a.c. 50-400Hz
2.5W per fuse
<100µA (typically 5µA 250V, 50Hz)
–25ºC to +85ºC
40ºC (derate linearly to 0A @ 85ºC)
2700V d.c. 2 secs. Lines to Earth
1100V d.c. 2 secs. Live to Neutral
PS26/Bxx2x/xxxx
250V a.c. 50-400Hz
2.5W per fuse
<100µA (typically 5µA 250V, 50Hz)
–25ºC to +85ºC
40ºC (derate linearly to 0A @ 85ºC)
2700V d.c. 2 secs. Lines to Earth
1100V d.c. 2 secs. Live to Neutral
Part No. Example
PS25/B0220/63 =
PS25 series, flange fitting, for
medical applications, rated at 2
amperes. L/C circuit version 2,
i.e L1 = 2 x 1.8mH, Cx = 1 x
15nF, without bleed resistor fitted,
with 6.3mm tabs.
Mating Connectors:
Accessories:
PX0587, PX0587/SE, PX0588
P
.No. 14340 (see page 96)
Compliant
PX0587, PX0587/SE, PX0588
P
.No. 14340 (see page 96)
Compliant
www.elektron-bulgin.com
RoHS
144

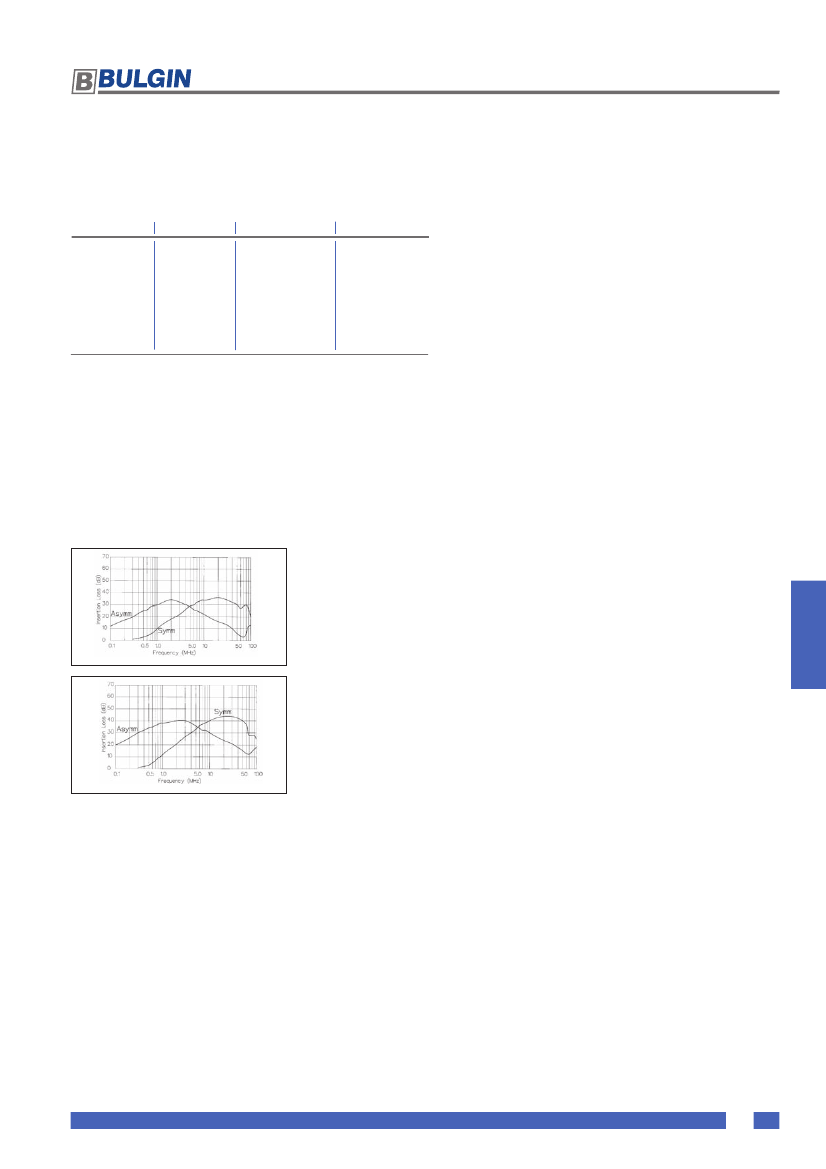

MAINS FILTERS
Rating & Version Table
PS25/Bxx2x/xx00 & PS26/Bxx2x/xxxx
Rating
2 AMP
“
“
4 AMP
“
“
Version
1
2
3
1
2
3
L1
Cx
2 x 1.8mH
1 x 15nF
2 x 0.7mH
1 x 15nF
Version 2
PS25/B042x/xx
PS26/B042x/xx
PS25/B022x/xx
PS26/B022x/xx
www.elektron-bulgin.com
145
