DAC600BN datasheet, PDF - EEWORLD Datasheet

DAC600BN: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 0.015us Settling Time, PQCC68,; CategoryAnalog mixed-signal IC converter; File Size333KB，12 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

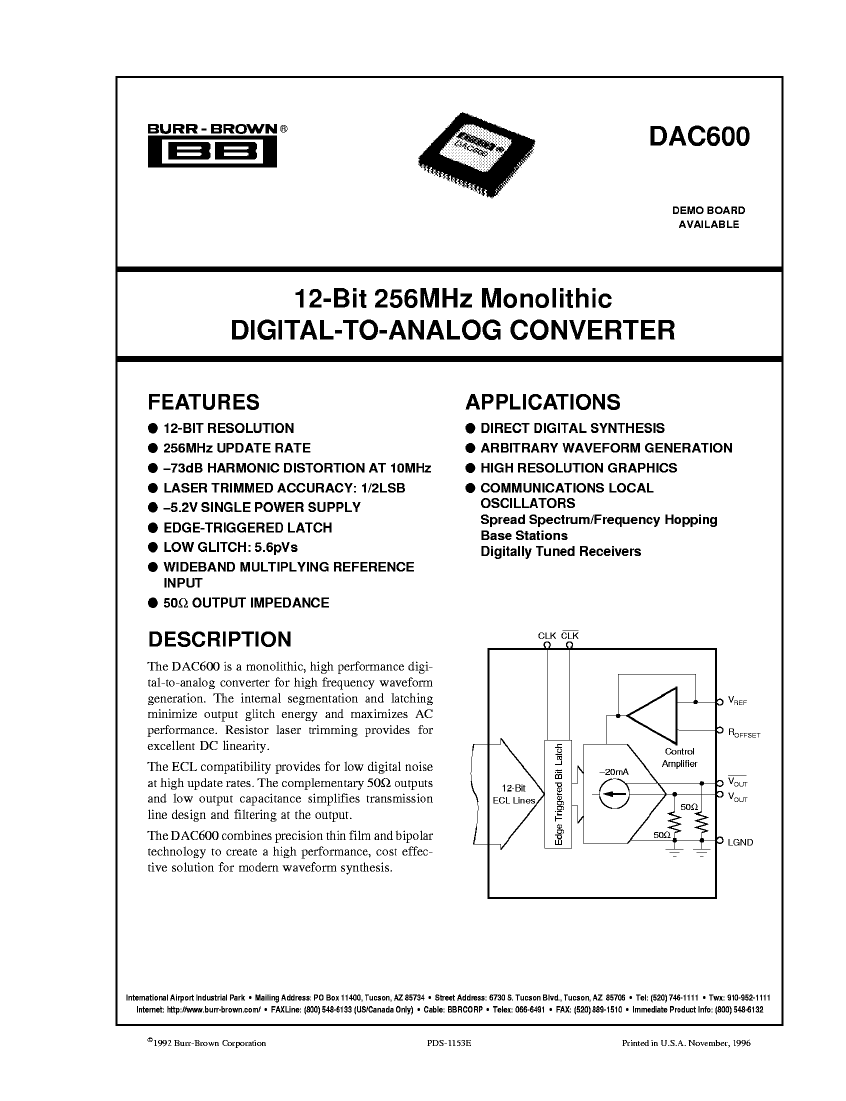

DAC600BN Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 0.015us Settling Time, PQCC68,

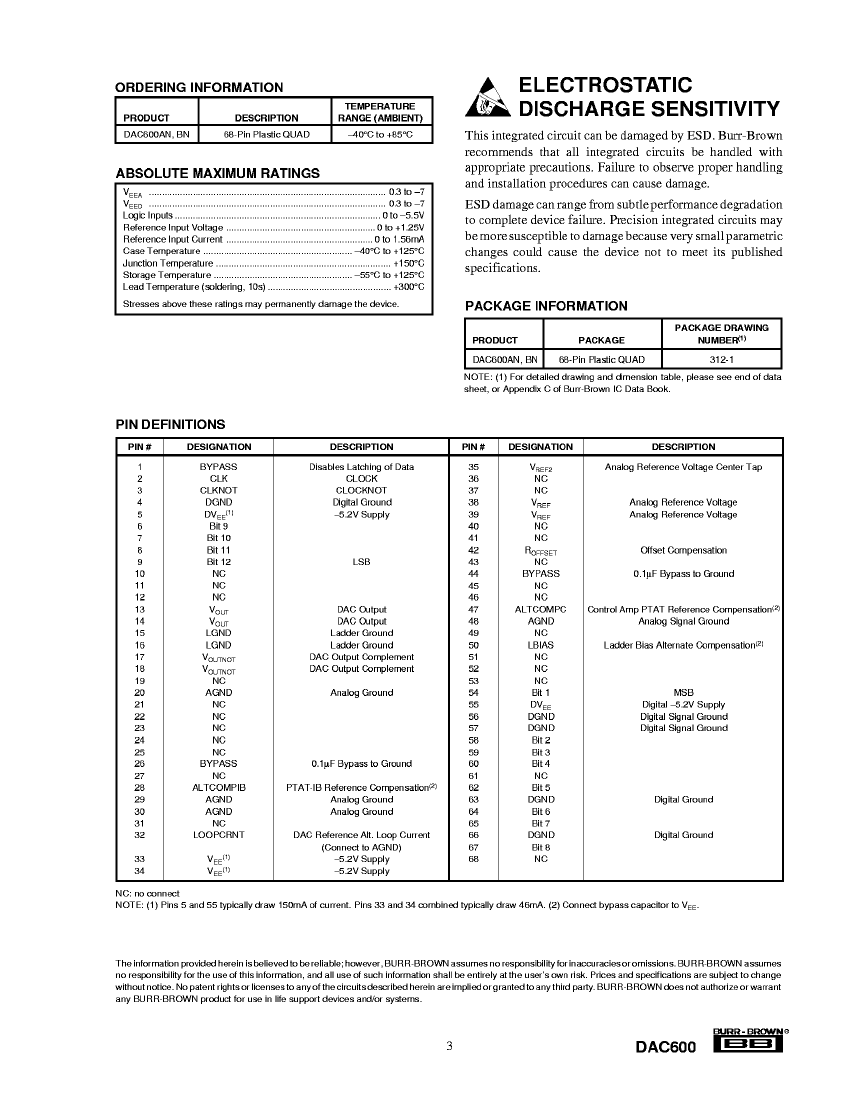

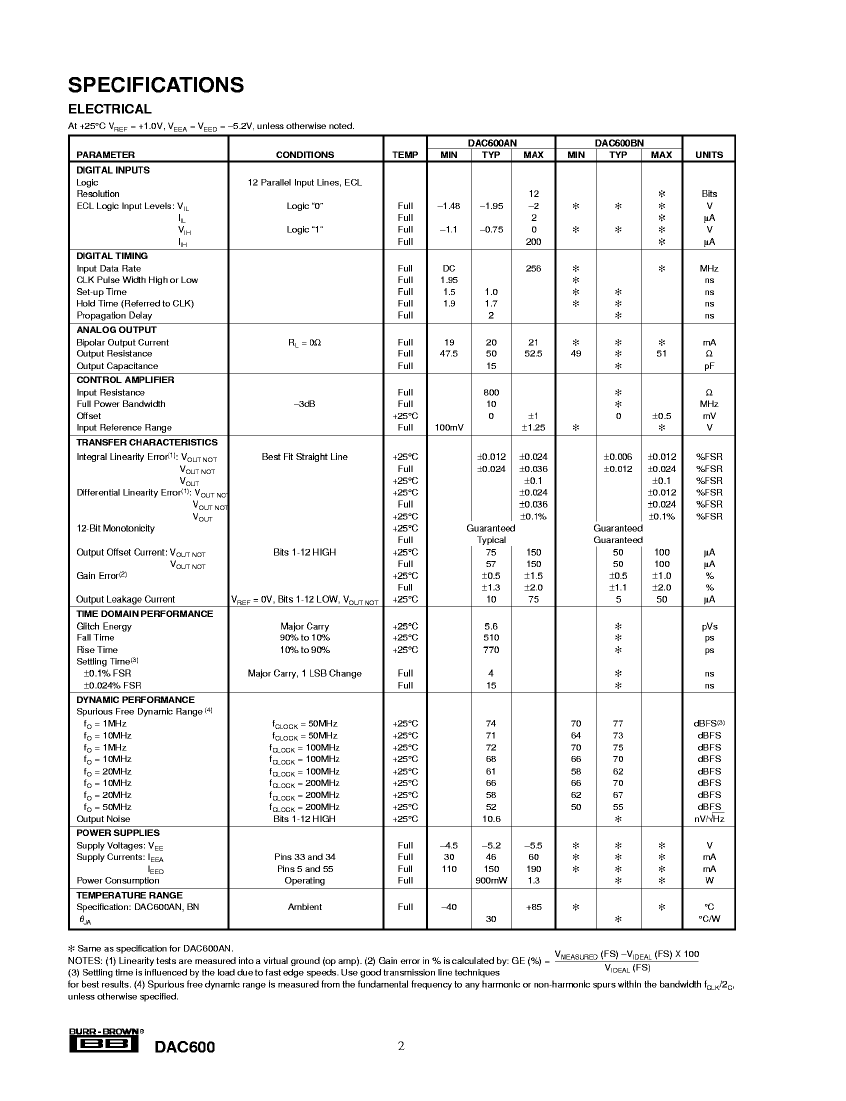

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, WORD
JESD-30 code	S-PQCC-J68
JESD-609 code	e0

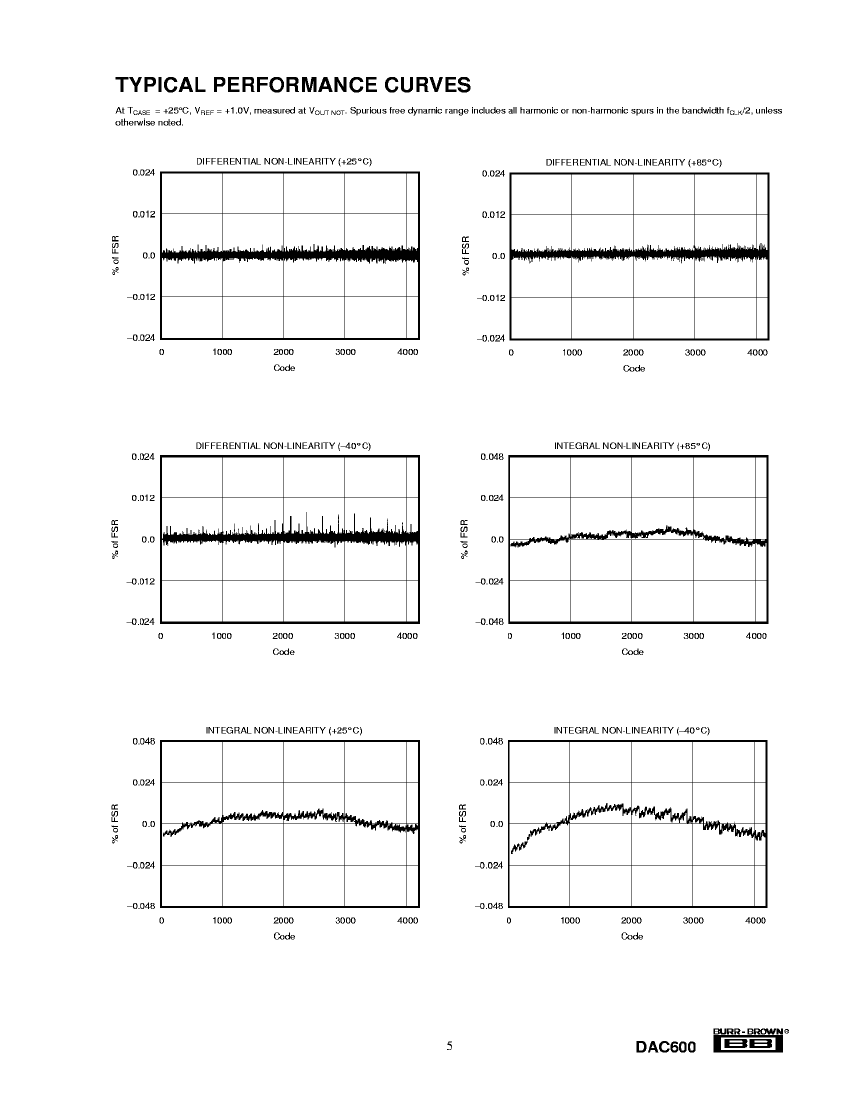

Maximum linear error (EL)	0.024%
Nominal negative supply voltage	-5.2 V
Number of digits	12
Number of functions	1

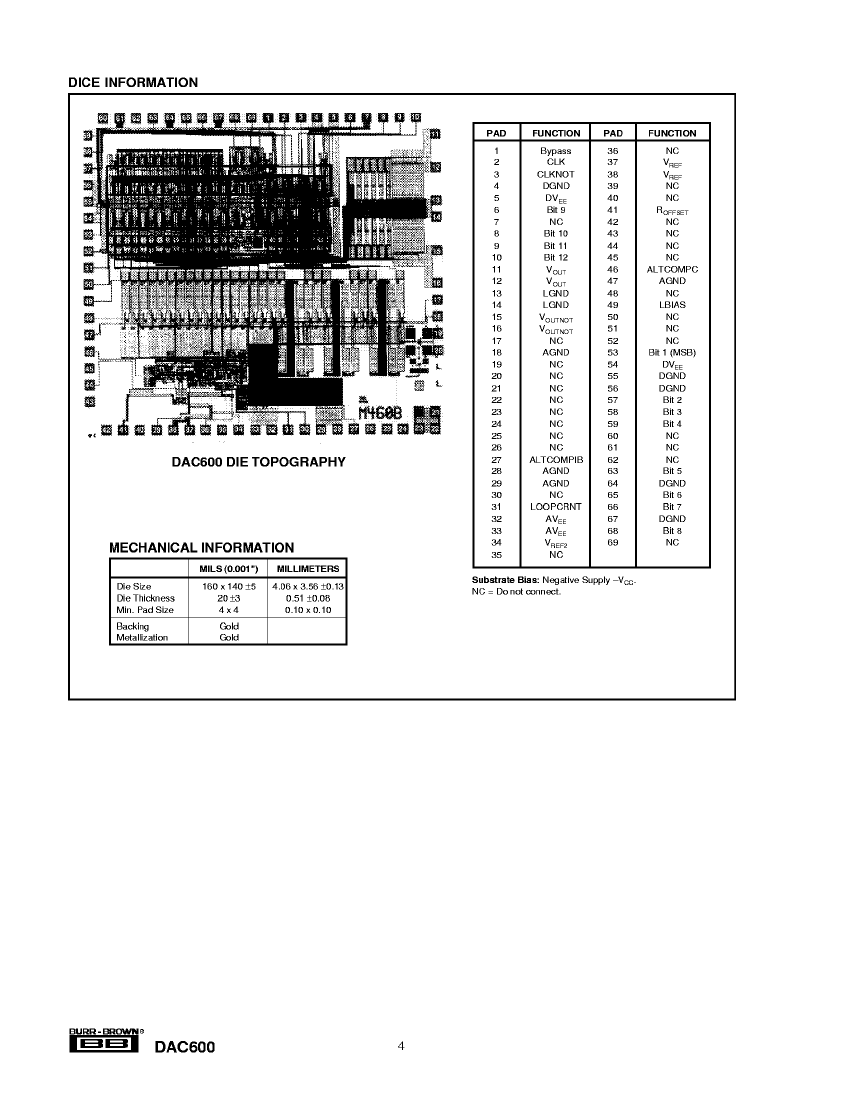

Number of terminals	68
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	-5.2 V
Certification status	Not Qualified
Nominal settling time (tstl)	0.015 µs
Maximum slew rate	190 mA
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED

	DAC600BN	DAC600AN
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 0.015us Settling Time, PQCC68,	D/A Converter, 1 Func, Parallel, Word Input Loading, 0.015us Settling Time, PQCC68,
Is it Rohs certified?	incompatible	incompatible
Maker	Burr-Brown	Burr-Brown
Reach Compliance Code	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	S-PQCC-J68	S-PQCC-J68
JESD-609 code	e0	e0
Maximum linear error (EL)	0.024%	0.036%
Nominal negative supply voltage	-5.2 V	-5.2 V
Number of digits	12	12
Number of functions	1	1
Number of terminals	68	68
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ	LDCC68,1.0SQ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	-5.2 V	-5.2 V
Certification status	Not Qualified	Not Qualified
Nominal settling time (tstl)	0.015 µs	0.015 µs
Maximum slew rate	190 mA	190 mA
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
