LME0309D

Description
DC-DC Regulated Power Supply Module, 1 Output, 0.25W, Hybrid, DIP-8/4
CategoryPower/power management    The power supply circuit
File Size90KB,2 Pages
ManufacturerC&D
Download Datasheet Parametric Compare View All

LME0309D Online Shopping

Suppliers Part Number Price MOQ In stock
LME0309D - - View Buy Now

LME0309D Overview

DC-DC Regulated Power Supply Module, 1 Output, 0.25W, Hybrid, DIP-8/4

LME0309D Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerC&D
Parts packaging codeDIP
package instructionDIP, DIP8,.3
Contacts8
Reach Compliance Codeunknown
ECCN codeEAR99
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage3.63 V
Minimum input voltage2.97 V
Nominal input voltage3.3 V
JESD-30 codeR-XDIP-T4
JESD-609 codee0
length11.5 mm
Maximum load regulation10%
Number of functions1
Output times1
Number of terminals4
Maximum operating temperature70 °C
Minimum operating temperature
Maximum output current0.028 A
Maximum output voltage9.9 V
Minimum output voltage8.325 V
Nominal output voltage9 V
Package body materialUNSPECIFIED
encapsulated codeDIP
Encapsulate equivalent codeDIP8,.3
Package shapeRECTANGULAR
Package formIN-LINE
Certification statusNot Qualified
Maximum seat height7.05 mm
surface mountNO
technologyHYBRID
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum total power output0.25 W
Fine-tuning/adjustable outputNO
width7.62 mm

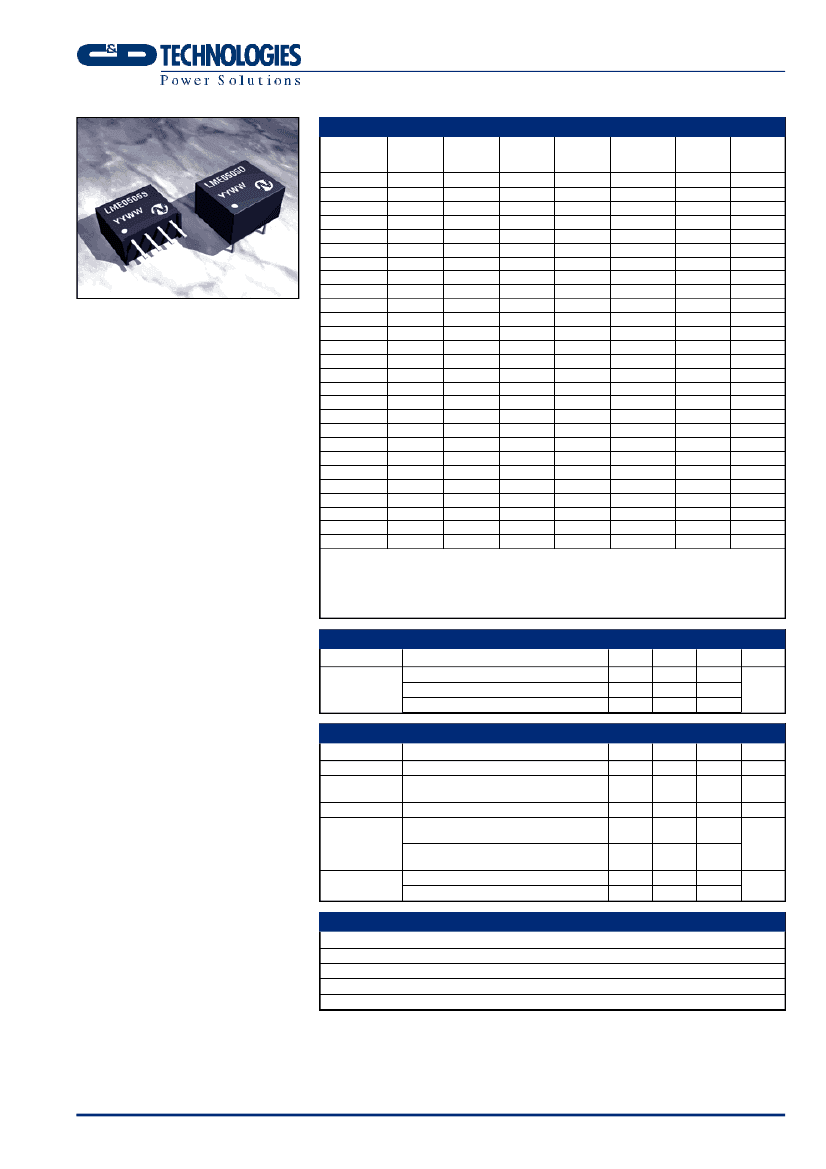

LME SERIES
Isolated 250mW Single Output DC-DC Converters
SELECTION GUIDE
Nominal
Input
Voltage
Output
Voltage
Output
Current
Isolation
Efficiency Capacitance
MTTF
1
Package
Style
Order Code
LME0305D
LME0305S
LME0309D
LME0309S
LME0312D
LME0312S
LME0315D
LME0315S
LME0503D
LME0503S
LME0505D
LME0505S
LME0509D
LME0509S
LME0512D
LME0512S
LME0515D
LME0515S
LME1205D
LME1205S
LME1209D
LME1209S
LME1212D
LME1212S
LME1215D
LME1215S
FEATURES
s
High Efficiency for Low Power
Applications
s
Pin Compatible with NME & NML
s
1kVDC Isolation
s
SIP & DIP Package Styles
s
Single Output Rail
s
Power Density 0.36W/cm
3
s
3.3V, 5V and 12V Input
s
3.3V, 5V, 9V, 12V and 15V Output
s
Footprint from 0.69cm
2
s
UL 94V-0 Package Material
s
No Heatsink Required
s
Internal SMD Construction
s
Toroidal Magnetics
s
Fully Encapsulated
s
No External Components Required
s
MTTF up to 3.2 Million Hours
s
PCB Mounting
s
Custom Solutions Available
DESCRIPTION
The LME series of DC-DC converters are
optimised for low-power operation. Due to
the low quiescent current they are able to
offer efficiencies up to 75%. The use of
advanced magnetics ensures a minimal
quiescent current of around 2.5mA which
ensures that efficiency is maximised in low
power applications. They are ideally suited
to generating a negative supply where only
a positive rail exists.
(V)
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
5
5
5
5
5
5
5
5
5
5
12
12
12
12
12
12
12
12
(V)
5
5
9
9
12
12
15
15
3.3
3.3
5
5
9
9
12
12
15
15
5
5
9
9
12
12
15
15
(mA)
50
50
28
28
21
21
16
16
76
76
50
50
28
28
21
21
16
16
50
50
28
28
21
21
16
16
(%)
70
70
75
75
75
75
75
75
70
70
70
70
75
75
75
75
75
75
70
70
75
75
75
75
75
75
(pF)
25
25
30
30
38
38
38
38
25
25
29
29
37
37
41
41
40
40
38
38
40
40
43
43
45
45
kHrs
2767
2767
1250
1250
655
655
367
367
2637
2637
2279
2279
1139
1139
624
624
357
357
536
536
434
434
330
330
237
237
DIP
SIP
DIP
SIP
DIP
SIP
DIP
SIP
DIP
SIP
DIP
SIP
DIP
SIP
DIP
SIP
DIP
SIP
DIP
SIP
DIP
SIP
DIP
SIP
DIP
SIP
i When operated
without
additional external load capacitance, the output voltage of the devices is guaranteed
to be within 95% of its steady state value within 100ms after the input voltage has reached 95% of its steady
state value,
irrespective of the rise time of the input voltage.
ii When operated
with
additional external load capacitance the rise time of the input voltage will determine the
maximum external capacitance value for guaranteed start up. The slower the rise time of the input voltage the
greater the maximum value of the additional external capacitance for reliable start up.
INPUT CHARACTERISTICS
Parameter
Conditions
MIN
TYP
MAX
Units
Voltage Range
Continuous operation, 3.3V input types
Continuous operation, 5V input types
Continuous operation, 12V input types
2.97
4.5
10.8
3.3
5
12
3.63
5.5
13.2
V
OUTPUT CHARACTERISTICS
Parameter
Conditions
MIN
TYP
MAX
Units
Rated Power
2
Voltage Set
Point Accuracy
Line Regulation
T
A
= 0°C to 70°C
See tolerance envelope
0.25
W
High V
IN
to low V
IN
10% load to rated load,
3.3V & 5V output types
Load Regulation
10% load to rated load,
all other output types
BW=DC to 20MHz, LME03 types
Ripple & Noise
BW=DC to 20MHz, all other output types
1.2
15
%/%
%
10
75
100
mV p-p
ABSOLUTE MAXIMUM RATINGS
Short-circuit duration
3
Lead temperature 1.5mm from case for 10 seconds
Input voltage V
IN
, LME03 types
Input voltage V
IN
, LME05 types
Input voltage V
IN
, LME12 types
1 second
300°C
5V
7V
15V
www.dc-dc.com
1 Calculated using MIL-HDBK-217F with nominal input voltage at full load.
2 See derating curve
3 Supply voltage must be discontinued at the end of the short circuit duration.
All specifications typical at T
A
=25°C, nominal input voltage and rated output current unless otherwise specified.
