UPB586G datasheet, PDF - EEWORLD Datasheet

UPB586G: DescriptionPrescaler/Multivibrator, ECL Series, 1-Func, Bipolar, PDSO8; Categorylogic logic; File Size137KB，4 Pages; ManufacturerCalifornia Eastern Labs; Websitehttp://www.cel.com/

Download Datasheet Parametric Compare View All

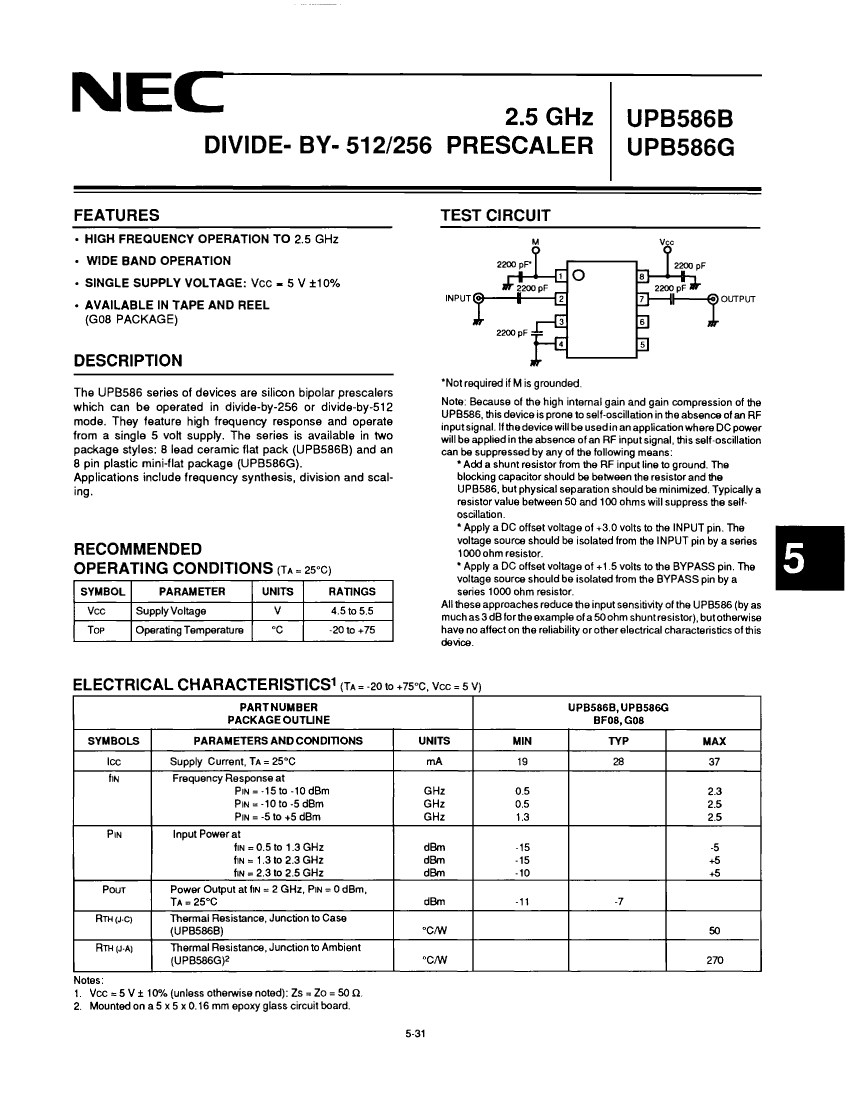

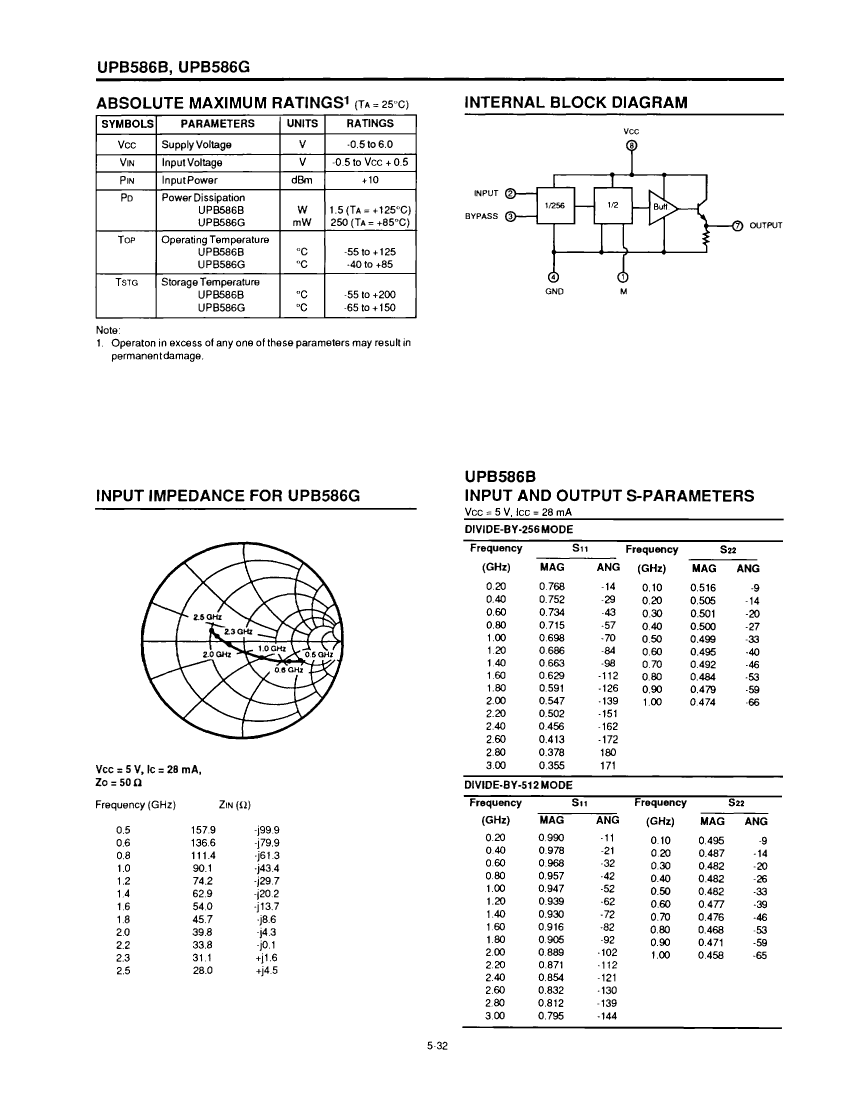

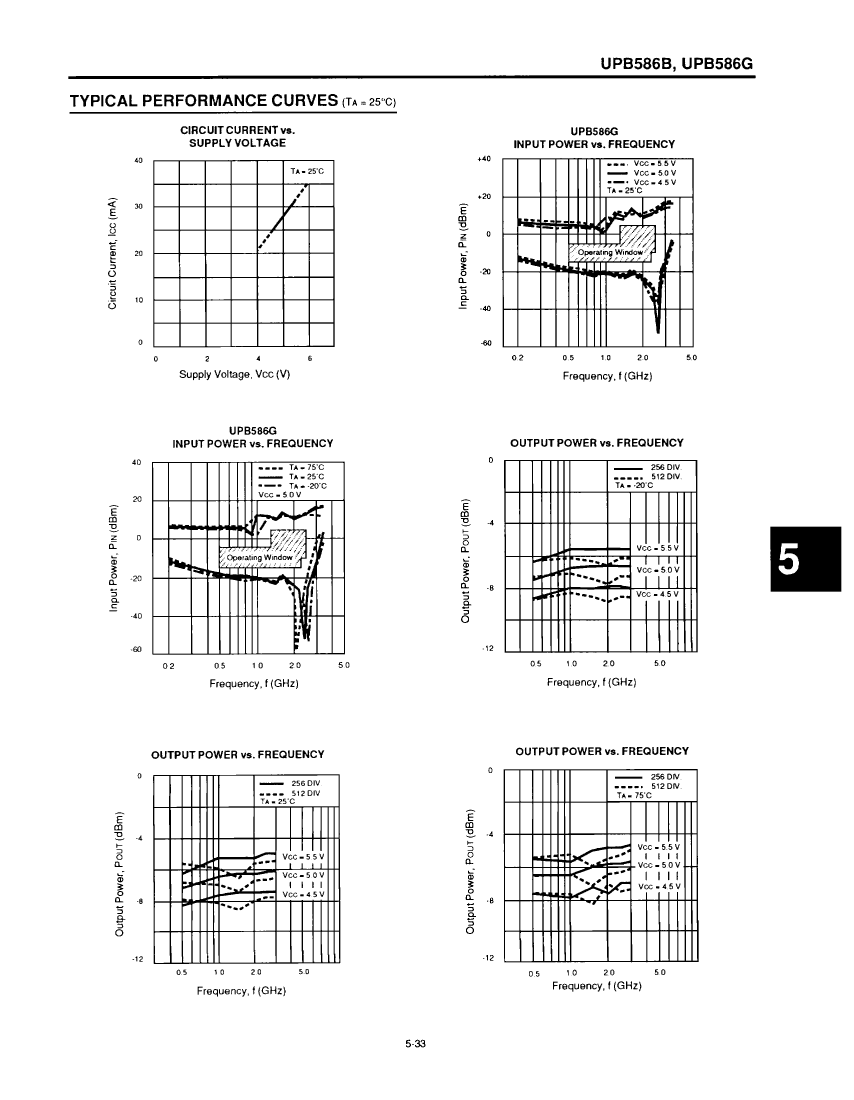

UPB586G Overview

Prescaler/Multivibrator, ECL Series, 1-Func, Bipolar, PDSO8

Parameter Name	Attribute value
Maker	California Eastern Labs
package instruction	SOP,
Reach Compliance Code	unknown
series	ECL
JESD-30 code	R-PDSO-G8
Number of data/clock inputs	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Output characteristics	EMITTER FOLLOWER

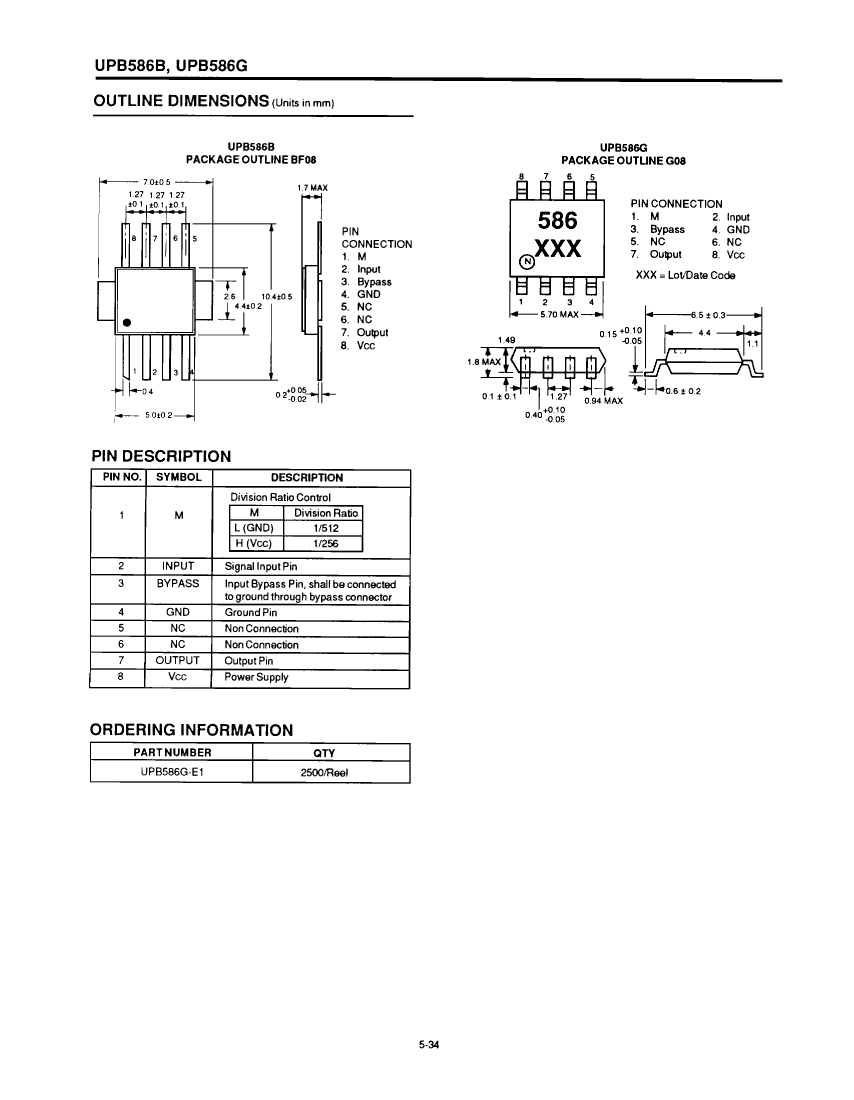

Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	37 mA
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal location	DUAL
minfmax	2300 MHz

	UPB586G	UPB586G-E1
Description	Prescaler/Multivibrator, ECL Series, 1-Func, Bipolar, PDSO8	Prescaler, ECL Series, 1-Func, Bipolar, PDSO8
Maker	California Eastern Labs	California Eastern Labs
package instruction	SOP,	SOP,
Reach Compliance Code	unknown	unknown
series	ECL	ECL
JESD-30 code	R-PDSO-G8	R-PDSO-G8
Number of data/clock inputs	1	1
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C
Output characteristics	EMITTER FOLLOWER	EMITTER FOLLOWER
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Maximum supply current (ICC)	37 mA	37 mA
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
minfmax	2300 MHz	2300 MHz
