HB1118U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HB1118U

HB1118U: DescriptionBoard Connector, 18 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size212KB，3 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/; Environmental Compliance

Download Datasheet Parametric View All

HB1118U Overview

Board Connector, 18 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

HB1118U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOXCONN
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HB11
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	18
UL Flammability Code	94V-0

HB1118U Preview

Download Datasheet

View All

SPECIFICATIONS

BreakaWay Header

HB11 Series

T/H Type

2.54mm [.100"] Pitch

Mechanical

Contact Retention Force:

0.91g min.

Electrical

Current Rating:

3.0A per pin min.

Dielectric Withstanding Voltage:

500V AC

Insulation Resistance:

1000MΩ min

Physical

Housing:

Nylon 6.6, Glass Filled, UL94V-0, Color Black

Contact:

Copper Alloy

Plating:

See “ORDERING INFORMATION”

Solder Pad:

Copper Alloy

Operating Temperature:

-40℃ to +105℃

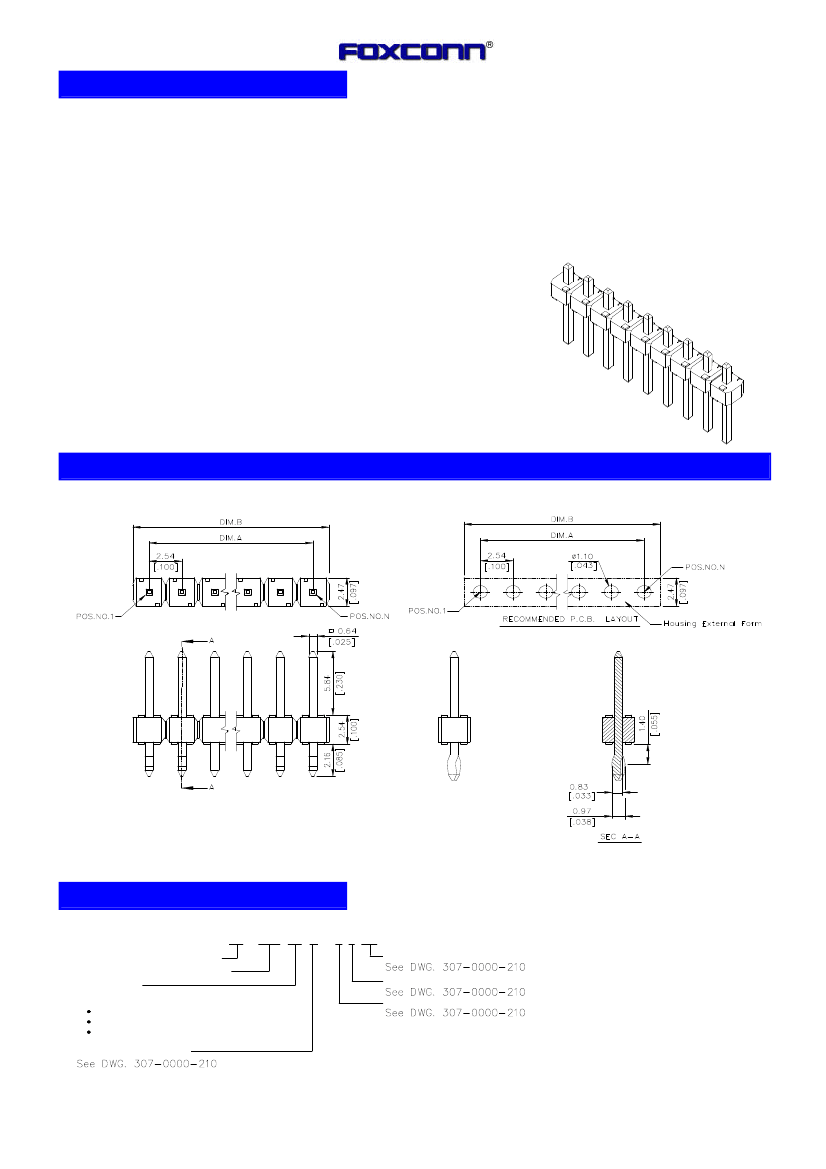

DRAWING

ORDERING INFORMATION

PRODUCT NO.:

Breakaway Header Series

Termination & Contact Type

No. Of Pos

1=1 Pos

2=2 Pos

HB 1 1 * * * - * * * *

Position Omitted

Optional For Housing Color

Optional For Kinks

40=40 Pos

Optional For Plating

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
