Memory Module Specification
KVR266X72RC25L/512
512MB 64M x 72-Bit DDR266 CL2.5
ECC Registered 184-Pin DIMM
DESCRIPTION:
This document describes ValueRAM's 64M x 72-bit (512MB) DDR266 CL2.5 SDRAM
(Synchronous DRAM) low-profile Registered ECC memory module. The components on
this module include eighteen 64M x 4-bit (16M x 4-bit x 4 Bank) DDR266 SDRAM in TSOP
packages. This 184-pin DIMM uses gold contact fingers and requires +2.5V. The electrical
and mechanical specifications are as follows:
FEATURES:
Clock Cycle Time (tCK)
Row Cycle Time (t
RC
)
Refresh Row Cycle Time (tRFC)
Row Active Time (tRAS)
Single Power Supply of
Power
UL Rating
7.5ns (min.) / 12ns (max.)
65ns (min.)
75ns (min.)
45ns (min.) / 120,000ns (max.)
+2.5V (+/- .2V)
5.175 W (operating)
94 V - 0
Note:
The module defined in this data sheet is one of several configurations available under this part number. While
all configurations are compatible, the DRAM combination and/or the module height may vary from what is described
here. However, in no configuration will the module height exceed 1.2" (30.48mm).

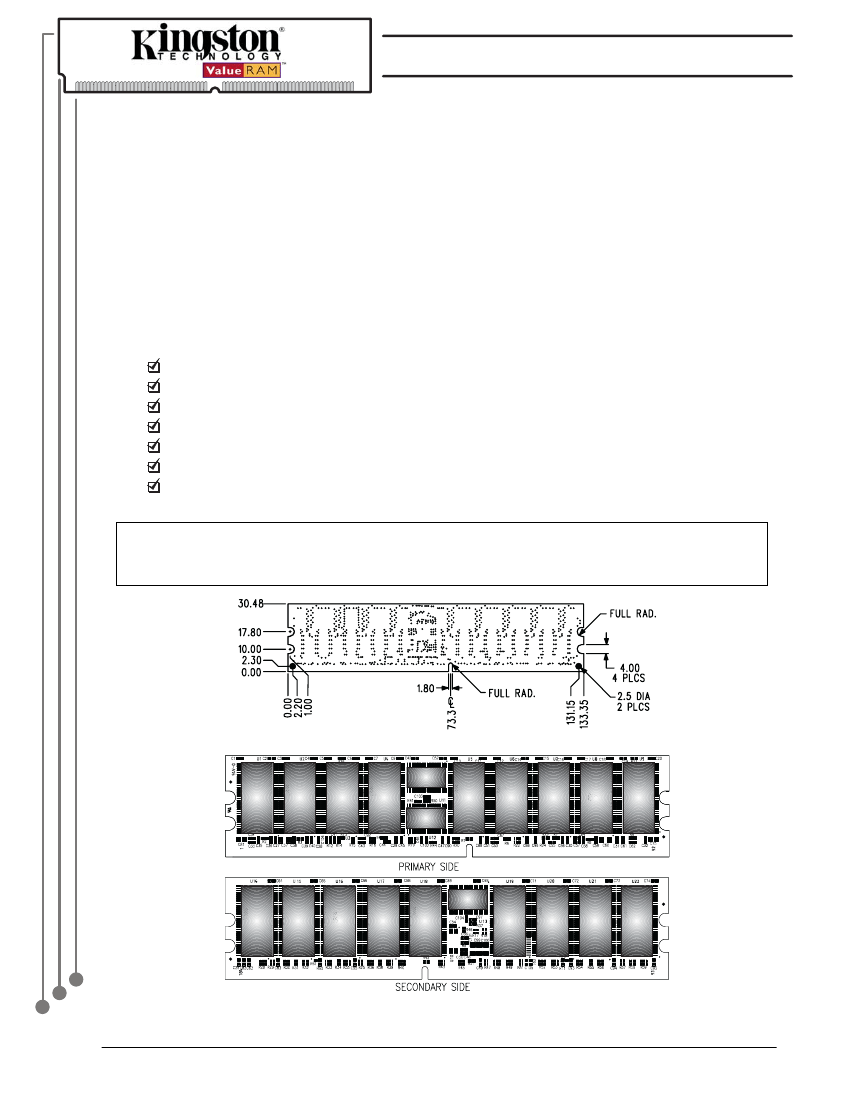

Figure 1: KVR266X72RC25L/512 184-Pin DIMM
Part No. VALUERAM0256-001.B00
08/31/04
