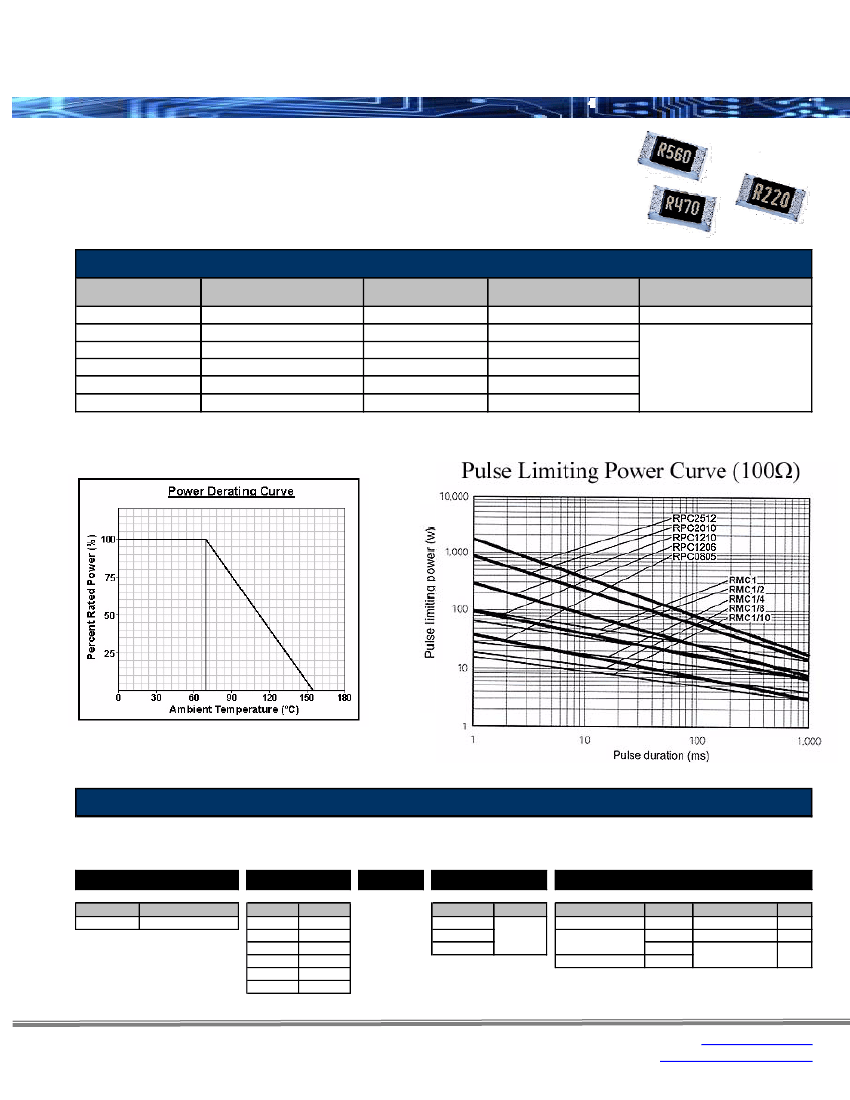

RPC Series
Pulse Withstanding Thick Film Chip Resistor
Features:
•
•
•
•
•
Stackpole Electronics, Inc.
Resistive Product Solutions
Excellent pulse withstanding performance
Broad resistance range
Higher anti-surge performance compared with RMC Series
Stability class: 5%
RoHS compliant / lead-free
Electrical Specifications
Type / Code
Power Rating (Watts) @ 70ºC
Maximum Working
Voltagej
Resistance Temperature
Coefficient
Ohmic Range and Tolerance
5%, 10%, 20%
RPC 0603
RPC 0805
RPC 1206
RPC 1210
RPC 2010
0.100W
0.250W
0.330W
0.500W
0.750W
50V
150V
200V
200V
200V
±200 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
10Ω - 1MΩ
0.27Ω - 22MΩ
RPC 2512
1.000W
200V
±200 ppm/ºC
1
Lesser of
√PR
or maximum working voltage
2
Higher power rating for each package size is valid if ambient temp
≤
80ºC and terminal temp
≤
105ºC
How to Order
SEI Type
Code
Nominal
Resistance
Tolerance
Packaging
RPC
Type
RPC
0805
Code
0603
0805
1206
1210
2010
2512
10M
5%
10%
20%
5%
Tolerance
Values
E24
A
SEI Types
0603
0805, 1206
1210, 2010, 2512
Description
Pulse Withstanding
Wattage
0.100W
0.250W
0.330W
0.500W
0.750W
1.000W
Pkg Qty
5,000
10,000
5,000
4,000
Description
7" Reel - Paper
10" Reel - Paper
7" Reel - Paper
Code
R
G
R
Rev Date: 9/30/2009
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
15
www.seielect.com
marketing@seielect.com
RPC Series
Pulse Withstanding Thick Film Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

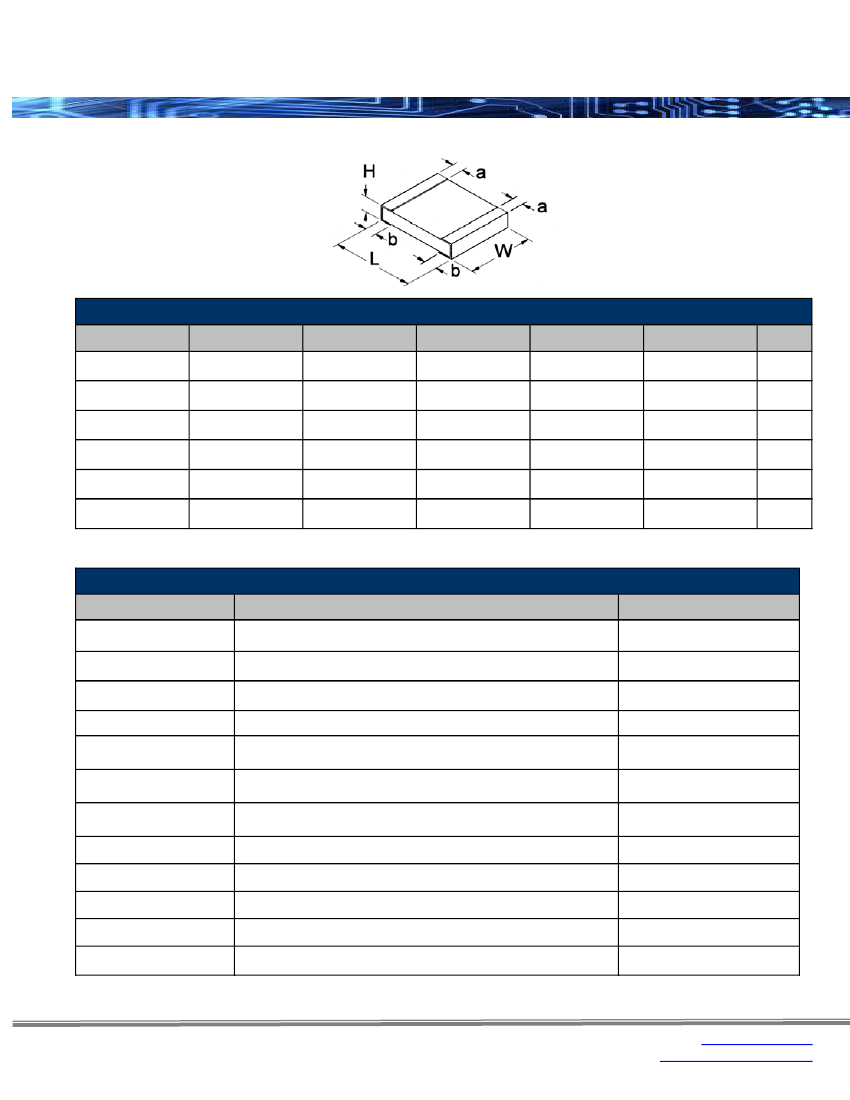

Mechanical Specifications
Type / Code
RPC 0603
RPC 0805
RPC 1206
RPC 1210
RPC 2010
RPC 2512
L
Body Length
0.063 ± 0.004
1.60 ± 0.10
0.079 ± 0.004
2.00 ± 0.10
0.126 ± 0.006
3.20 ± 0.15
0.126 ± 0.006
3.20 ± 0.15
0.197 ± 0.006
5.00 ± 0.15
0.248 ± 0.006
6.30 ± 0.15
W
Body Width
0.032 ± 0.004
0.80 ± 0.10
0.049 ± 0.004
1.25 ± 0.10
0.063 ± 0.006
1.60 ± 0.15
0.098 ± 0.006
2.50 ± 0.15
0.098 ± 0.006
2.50 ± 0.15
0.126 ± 0.006
3.20 ± 0.15
H
Body Height
0.018 ± 0.004
0.45 ± 0.10
0.021 ± 0.004
0.55 ± 0.10
0.021 ± 0.004
0.55 ± 0.10
0.021 ± 0.006
0.55 ± 0.15
0.021 ± 0.006
0.55 ± 0.15
0.021 ± 0.006
0.55 ± 0.15
a
Top Termination
0.012 ± 0.008
0.30 ± 0.20
0.012 ± 0.008
0.30 ± 0.20
0.012 ± 0.008
0.30 ± 0.20
0.012 ± 0.008
0.30 ± 0.20
0.012 ± 0.008
0.30 ± 0.20
0.012 ± 0.008
0.30 ± 0.20
b
Bottom Termination
0.012 ± 0.008
0.30 ± 0.20
0.016 ± 0.008
0.40 ± 0.20
0.020 ± 0.010
0.50 ± 0.25
0.020 ± 0.010
0.50 ± 0.25
0.024 ± 0.008
0.60 ± 0.20
0.024 ± 0.008
0.60 ± 0.20
Units
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Performance Characteristics
Test
Voltage Proof
Variation of Resistance with
Temperature
Overload
Solderability
Resistance to Soldering Heat
Rapid Change of Temperature
Climatic Sequence
Damp Test, Steady State
Endurance @ 70ºC
Endurance at the Upper Category
Temperature
Adhesion
Bend of Strength of the Face Plating
Test Methods (JIS C 5201-1 : 1198)
Clause 4.7 500Va.a., 60s
Clause 4.8 +20ºC/ -55ºC / +20ºC/ +125ºC/ +20ºC: RPC 2010, 2512
+20ºC/ -55ºC/ +20ºC/ +155ºC/ +20ºC: RPC 0603, 0805, 1206, 1210
Clause 4.13 The applied voltage shall be 2.5 times of the rated voltage or twice of the
limiting element voltage, whichever is the less severe, 2s.
Clause 4.17 235ºC, 2s.
Clause 4.18 After immersion into the flux, the immersion into
solder shall be carried out in solder bath at 260º for 5s.
Clause 4.19 Cycle: -55ºC/ +125ºC 5 times: RPC 2010, 2512
Cycle: -55ºC/ +155ºC 5 times: RPC 0603, 0805, 1206, 1210
Clause 4.23 Dry/Damp heat (12+12h cycle), first cycle/
Cold/Damp heat (12+12h cycle), remaining cycle / D.C. Load
Clause 4.24 40ºC, 95% R.H., 56 days, test a) and b) of Clause 4.24.2.1
Clause 4.25.1 Rated voltage, 1.5h "ON", 0.5h "OFF", 70ºC, 1,000h
Clause 4.25.3 125ºC, no load, 1.000h: RPC 2010, 2512
155ºC, no load, 1.000h: RPC 0603, 0805, 1206, 1210
Clause 4.32 5N, 10s
Clause 4.33 Amount of bend: 3mm RPC 0603, 0805, 1206, 1210
Amount of bend: 1mm RPC 2010, 2512
Test Results
No breakdown or flashover
R
≥
1G Ohm
See ratings table
∆R
≤
± 1% +0.05Ω
No visible damage, legible markings
In accordance with Clause 4.17.4.5
∆R ≤
± 1% +0.05Ω
∆R ≤
± 1% +0.05Ω
No visible damage
∆R ≤
± 5% +0.1Ω
No visible damage
∆R
≤
± 5% +0.1Ω
No visible damage, legible markings
∆R
≤
± 5% +0.1Ω
No visible damage
∆R
≤
± 5% +0.1Ω
No visible damage
No visible damage
∆R ≤
± 1% +0.05Ω
Operating Temperature Range:
-55ºC to +125ºC
Rev Date: 9/30/2009
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
16
www.seielect.com
marketing@seielect.com
