CFP1519-0101: DescriptionCard Edge Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Natural Insulator,; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric View All

CFP1519-0101 Overview

Card Edge Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Natural Insulator,

CFP1519-0101 Parametric

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	ZIF
body width	0.094 inch
subject depth	0.205 inch
body length	0.972 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-PB
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYPHENYLENE SULPHIDE
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	19
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N

Preview

Download Datasheet

View All

FPC Connector

FP-10

SU

SL

Series

1.0mm Spacing (SMT)

-02

(Upper Contact)

Hold Down Packing Style

01

02

11

12

With

Without

With

Without

Embossed Taping

Pack in Bulk

B

A

No. of Pins

q

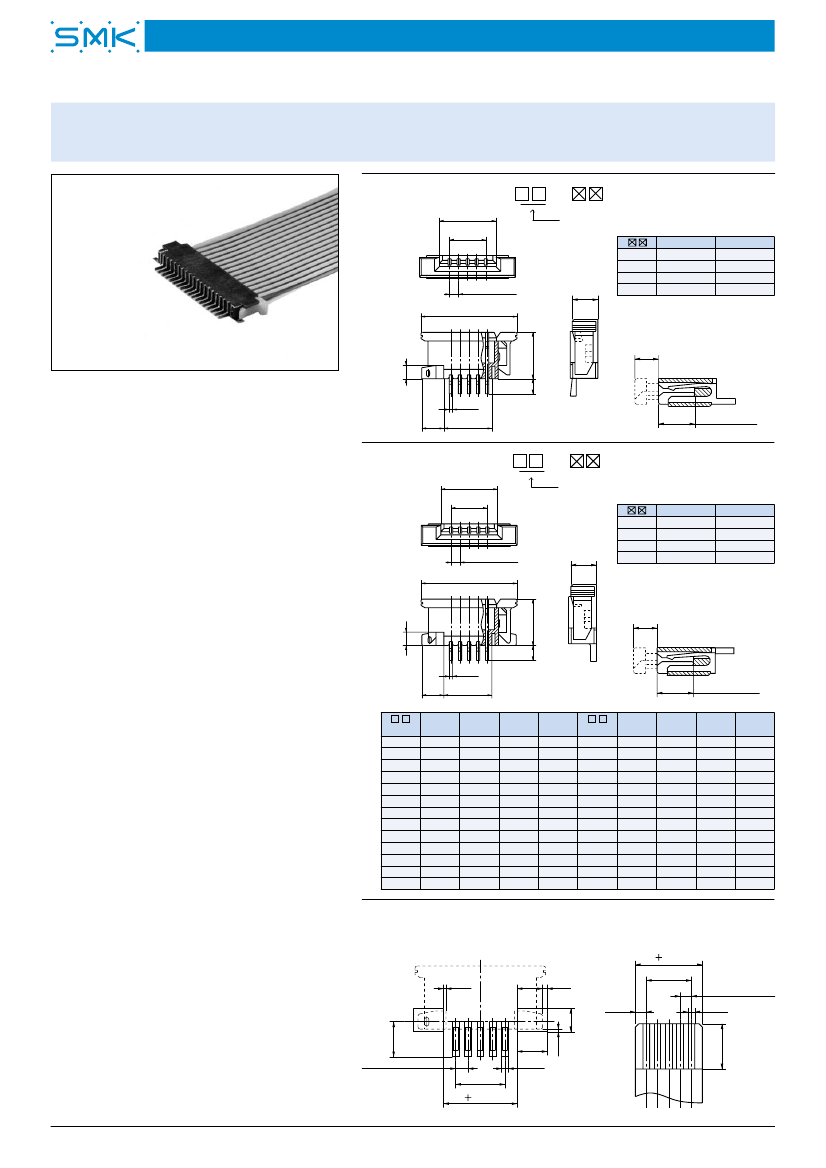

SU Series CFP05

1.0(Spacing)

C

2.4

1.5

s

Features

1. The FPC connectors in this series apply to the

1.0mm spacing SMT.

2. Of the ZIF structure.

3. The contact positions of the connectors are

classified into upper and lower types.

4. Supplied in emboss-tape packaging for

automatic mounting.

0.3

2.4

D

1.7

5.2

(2.0)

3.4

(Inserted size)

q

SL Series CFP15

B

A

-01

(Lower Contact)

Hold Down Packing Style

01

02

11

12

With

Without

With

Without

Embossed Taping

Pack in Bulk

No. of Pins

s

Specifications

1. Rating : 0.5A 50V AC/DC

2. Contact Resistance : 30mΩ max.

3. Insulation Resistance : 1000MΩ min. at 500V DC

4. Withstanding Voltage : 500V AC for one minute

5. Operating Temperature Range : –25˚C to +70˚C

1.0(Spacing)

C

2.4

5.2

(2.0)

Housing : Polyphenylene Sulfide

(Natural Color)94V-0

q

Cover : Polyphenylene Sulfide

(Natural Color)94V-0

q

Contact : Phosphor Bronze Tin-lead Plating

q

Frame : Phosphor Bronze Tin-lead Plating

q

0.3

2.4

D

3.4

(Inserted size)

No. of Pins

4

5

6

7

8

9

10

11

12

13

14

15

16

A

03.0

04.0

05.0

06.0

07.0

08.0

09.0

10.0

11.0

12.0

13.0

14.0

15.0

B

05.1

06.1

07.1

08.1

09.1

10.1

11.1

12.1

13.1

14.1

15.1

16.1

17.1

C

09.7

10.7

11.7

12.7

13.7

14.7

15.7

16.7

17.7

18.7

19.7

20.7

21.7

1.7

s

Material and Plating

1.5

D

04.5

05.5

06.5

07.5

08.5

09.5

10.5

11.5

12.5

13.5

14.5

15.5

16.5

No. of Pins

17

18

19

20

21

22

23

24

25

26

28

29

30

A

16.0

17.0

18.0

19.0

20.0

21.0

22.0

23.0

24.0

25.0

27.0

28.0

29.0

B

18.1

19.1

20.1

21.1

22.1

23.1

24.1

25.1

26.1

27.1

29.1

30.1

31.1

C

22.7

23.7

24.7

25.7

26.7

27.7

28.7

29.7

30.7

31.7

33.7

34.7

35.7

D

17.5

18.5

19.5

20.5

21.5

22.5

23.5

24.5

25.5

26.5

28.5

29.5

30.5

s

PC Board Dimension

s

Applicable FPC Dimension

(A 2)

±

0.1

0.2

2.4

0.5

1.0

±

0.15

A

±

0.05

1.0

±

0.05

(Spacing)

0.6

– 0.05

(Contact : Copper foil)

+ 0.1

3.0

2.6

0.5

A

±

0.05

(D 0.6)

+0.1

0

+0.1

0

0.25

2

(Spacing)1.0

±

0.15

4
