CAT22C10WI-30TE7 datasheet, PDF

Datasheet> All Categories > storage> storage> CAT22C10WI-30TE7

CAT22C10WI-30TE7: DescriptionNon-Volatile SRAM, 64X4, 300ns, CMOS, PDSO16, 0.300 INCH, SOIC-16; Categorystorage storage; File Size237KB，9 Pages; ManufacturerCatalyst; Websitehttp://www.catalyst-semiconductor.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CAT22C10WI-30TE7 Overview

Non-Volatile SRAM, 64X4, 300ns, CMOS, PDSO16, 0.300 INCH, SOIC-16

CAT22C10WI-30TE7 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Catalyst
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	300 ns
Other features	DATA RETENTION > 10 YEARS
JESD-30 code	R-PDSO-G16
JESD-609 code	e3
length	10.3 mm
memory density	256 bit
Memory IC Type	NON-VOLATILE SRAM
memory width	4
Humidity sensitivity level	1
Number of functions	1
Number of ports	1
Number of terminals	16
word count	64 words
character code	64
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	64X4
Output characteristics	3-STATE
Exportable	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	7.5 mm

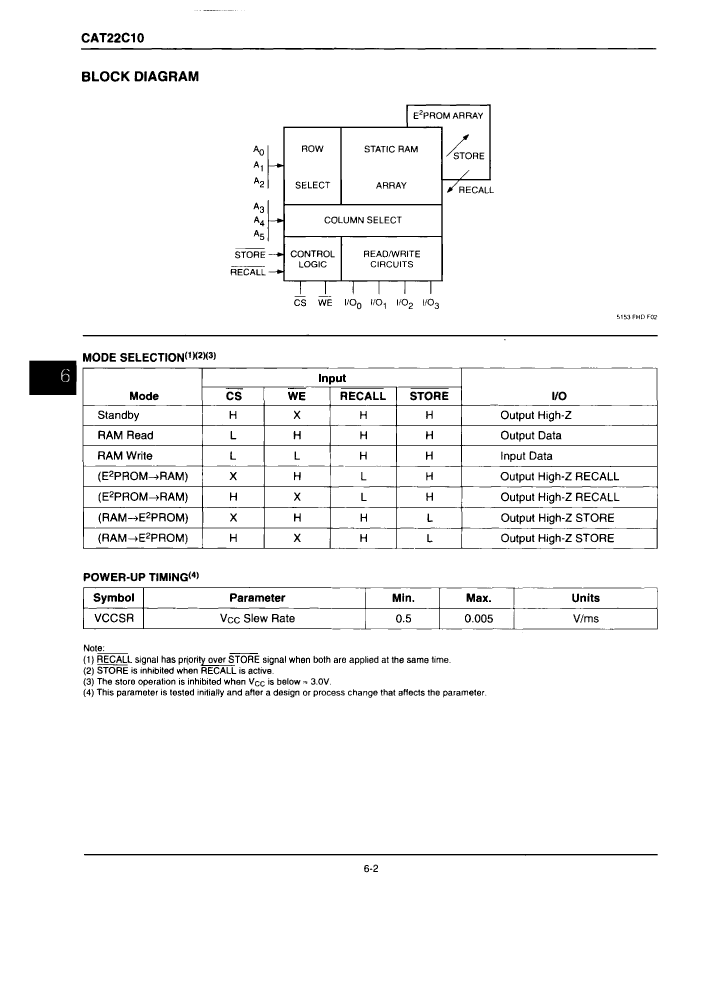

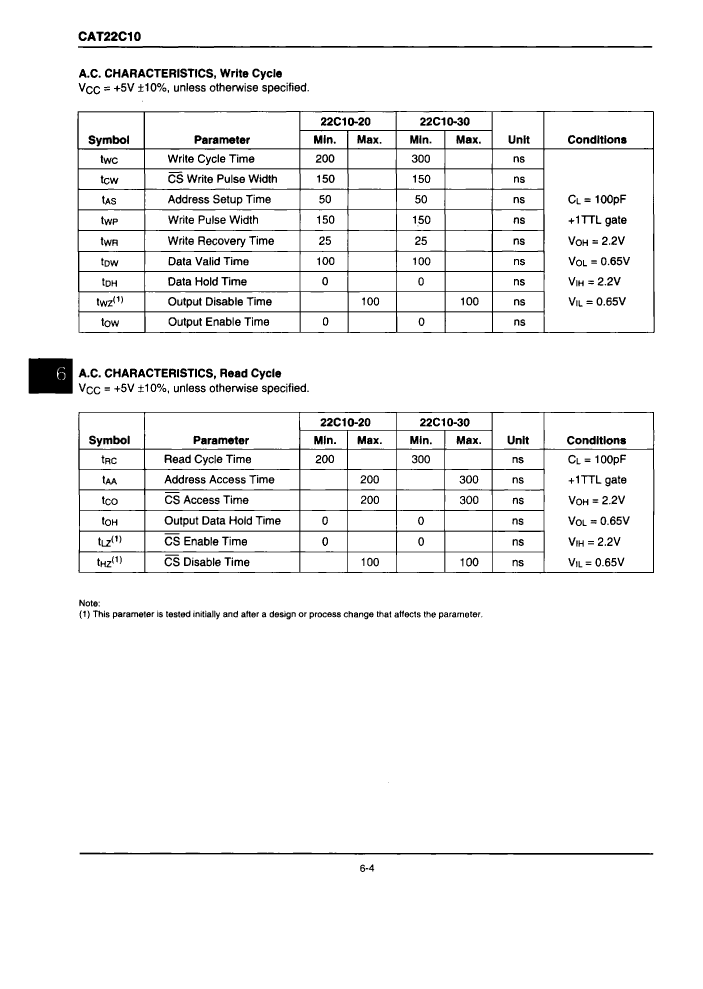

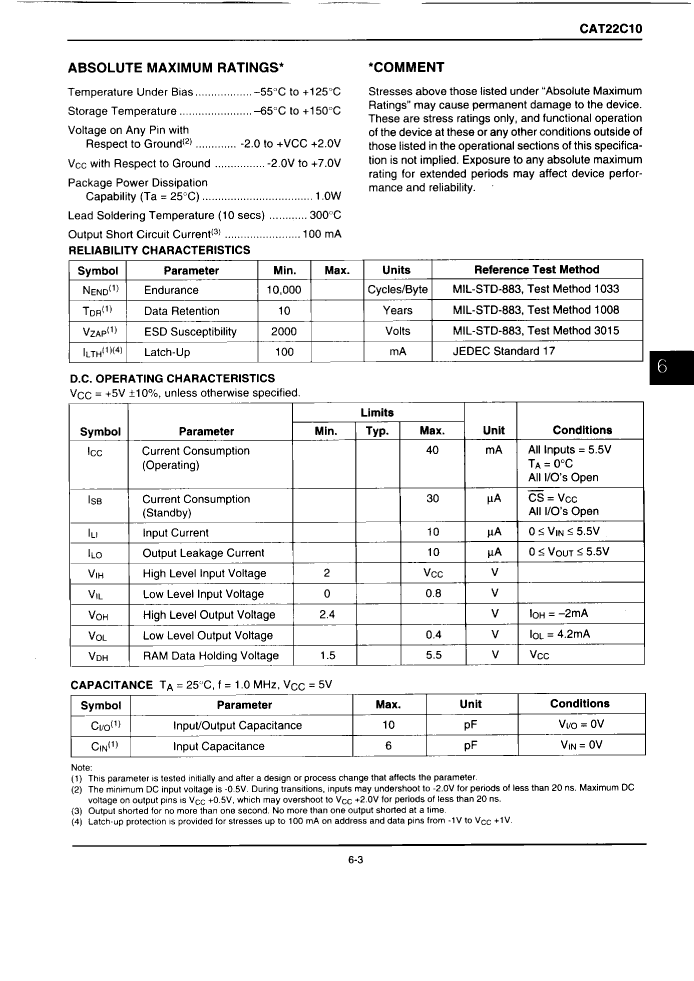

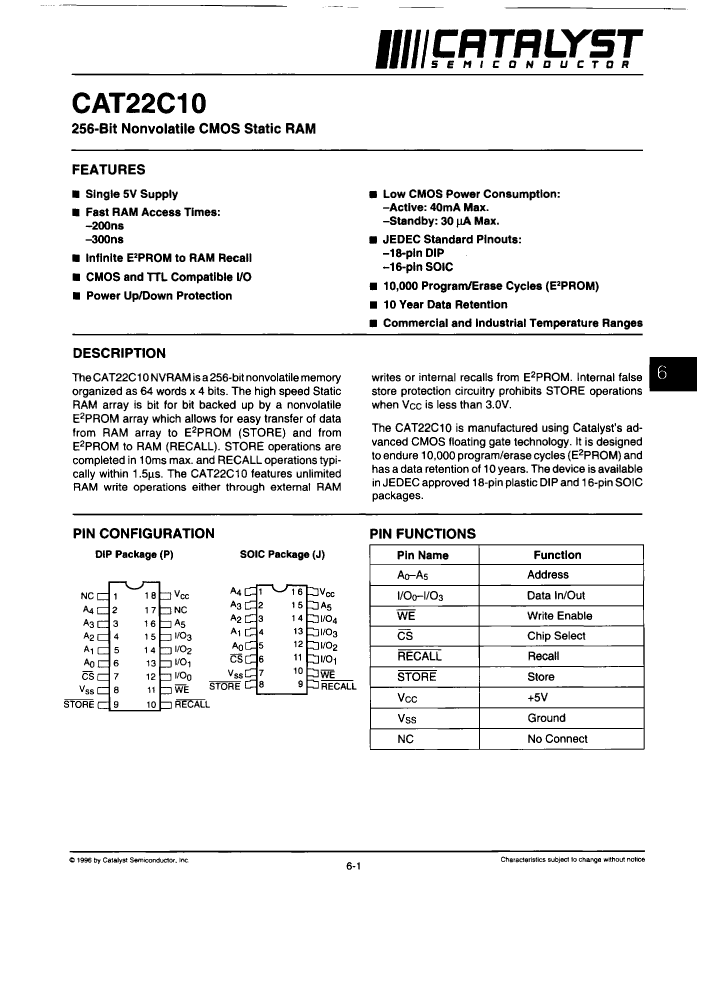

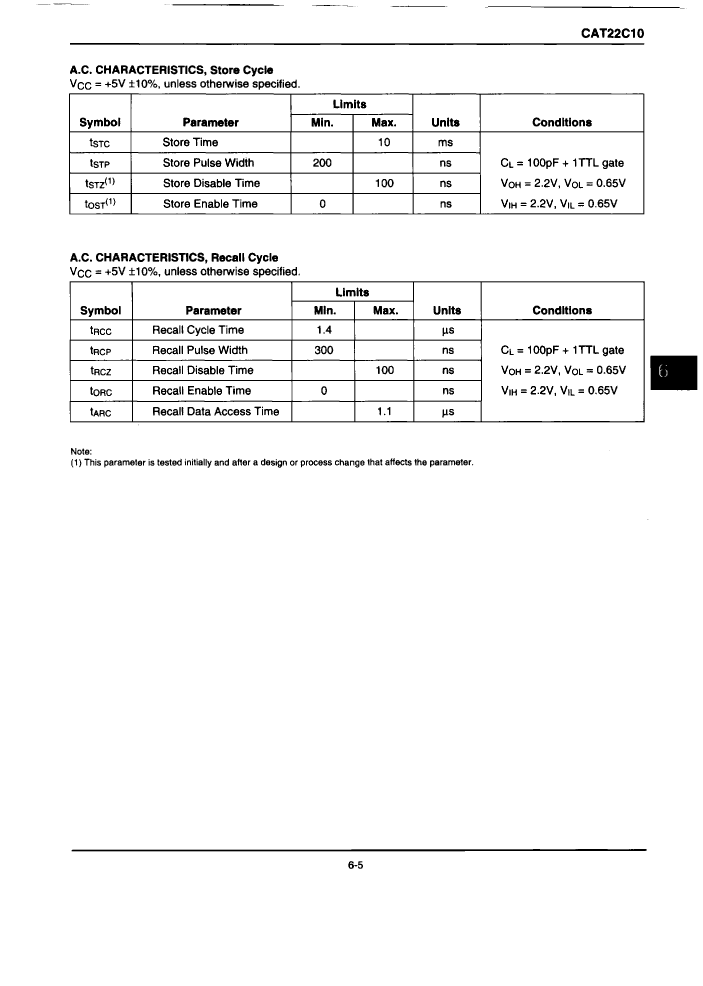

Preview

Download Datasheet

View All

CAT22C10WI-30TE7 Related Products

	CAT22C10WI-30TE7	CAT22C10WI-20TE7	CAT22C10W-20TE7
Description	Non-Volatile SRAM, 64X4, 300ns, CMOS, PDSO16, 0.300 INCH, SOIC-16	Non-Volatile SRAM, 64X4, 200ns, CMOS, PDSO16, 0.300 INCH, SOIC-16	Non-Volatile SRAM, 64X4, 200ns, CMOS, PDSO16, 0.300 INCH, SOIC-16
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Parts packaging code	SOIC	SOIC	SOIC
package instruction	SOP,	SOP,	SOP,
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Maximum access time	300 ns	200 ns	200 ns
Other features	DATA RETENTION > 10 YEARS	DATA RETENTION > 10 YEARS	DATA RETENTION > 10 YEARS
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e3	e3	e3
length	10.3 mm	10.3 mm	10.3 mm
memory density	256 bit	256 bit	256 bit
Memory IC Type	NON-VOLATILE SRAM	NON-VOLATILE SRAM	NON-VOLATILE SRAM
memory width	4	4	4
Humidity sensitivity level	1	1	1
Number of functions	1	1	1
Number of ports	1	1	1
Number of terminals	16	16	16
word count	64 words	64 words	64 words
character code	64	64	64
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-
organize	64X4	64X4	64X4
Output characteristics	3-STATE	3-STATE	3-STATE
Exportable	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	2.65 mm	2.65 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	MATTE TIN	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40
width	7.5 mm	7.5 mm	7.5 mm
Maker	Catalyst	Catalyst	-
Base Number Matches	-	1	1
