Continental Device India Limited
An ISO/TS 16949 and ISO 9001 Certified Company
Silicon Epitaxial Planar Switching Diode
BAS32L
SOD-80C/LL-34
Minimelf
FEATURES :
.
Small hermetically-sealed glass SMD package
.
High switching speed
ABSOLUTE MAXIMUM RATINGS (T
a
=25ºC)
DESCRIPTION
Repetitive Peak Reverse Voltage
Continuous Reverse Voltage
Continuous Forward Current
Repetitive Peak Forward Current
Non Repetitive Peak Forward Surge
Current
Power Dissipation
Junction Temperature
Storage Temperature Range
at t = 1s
at t = 1ms
at t = 1us
I
FSM
P
tot
T
j
T
stg
SYMBOL
V
RRM
V
R
I
F
I
FRM
VALUE
75
75
200
450
0.5
1
4
500
175
- 65 to +175
UNIT
V
V
mA
mA
A
mW
o
o
C
C
CHARACTERISTICS (T
a
=25ºC unless specified otherwise)
DESCRIPTION
Forward Voltage
TEST CONDITION
at I
F
= 5mA
at I
F
= 100mA
at I
F
= 100mA, T
j
=100°C
at V
R
= 20V
at V
R
= 75V
at V
R
= 20V, T
j
=150°C
at V
R
= 75V, T
j
=150°C
at IR=100uA
at VR = 0, f = 1MHz
at I
F
=10mA to I
R
=1mA,
V
R
=6V, R
L
=100ohm
SYMBOL MIN MAX
V
F
620
-
-
-
-
-
-
100
-
-
750
1000
930
25
5
50
100
-
2
4
UNIT
mV
Reverse Current
I
R
uA
Reverse Breakdown Voltage
Diode Capacitance
Reverse Recovery Time
V
(BR)R
C
d
t
rr
V
pF
ns
BAS32L_Rev_0_030913E
Continental Device India Limited
Data Sheet
Page 1 of 3
Continental Device India Limited
An ISO/TS 16949 and ISO 9001 Certified Company

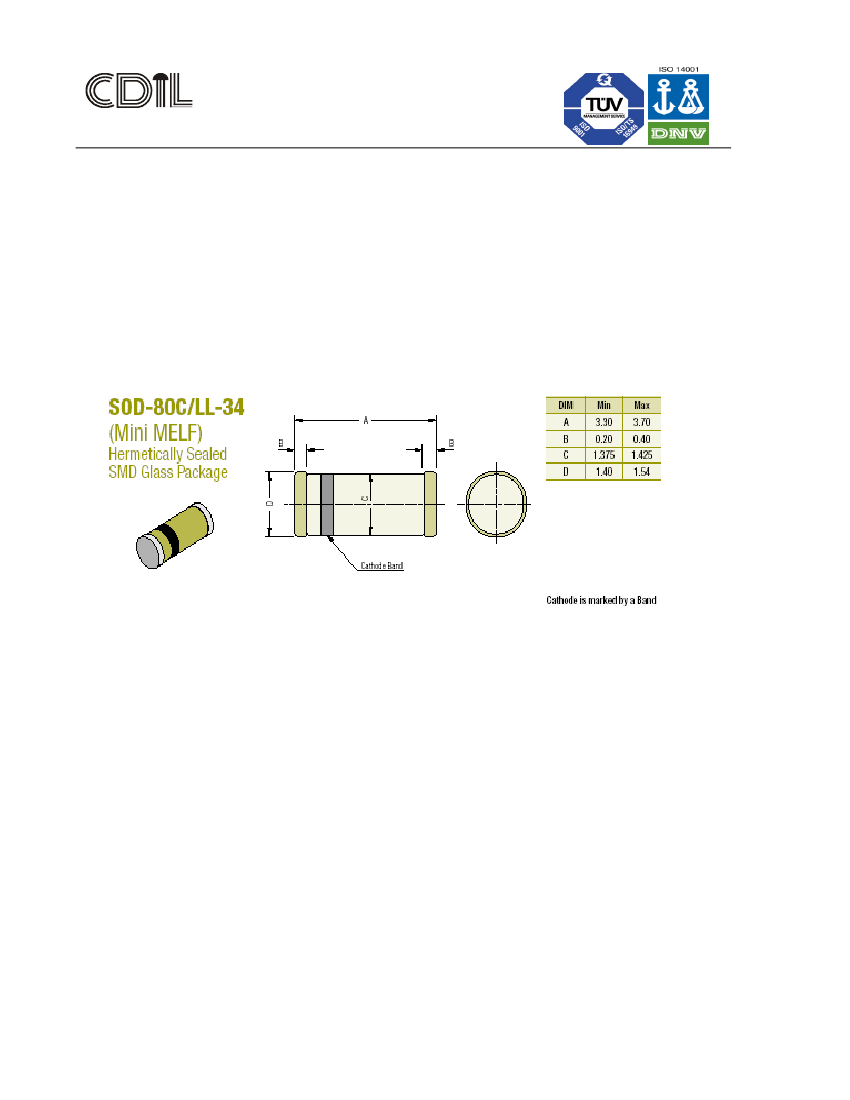

SOD-80C/LL-34 PACKAGE OUTLINE
BAS32L_Rev_0_030913E
Continental Device India Limited
Data Sheet
Page 2 of 3
Continental Device India Limited
An ISO/TS 16949 and ISO 9001 Certified Company
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Semiconductor Device(s) best
suited for application in your product(s) as per your requirement. It is recommended that you completely review
our Data Sheet(s) so as to confirm that the Device(s) meet functionality parameters for your application. The
information furnished on the CDIL Web Site/CD are believed to be accurate and reliable. CDIL however, does not
assume responsibility for inaccuracies or incomplete information. Furthermore, CDIL does not assume liability
whatsoever, arising out of the application or use of any CDIL product; neither does it convey any license under its
patent rights nor rights of others. These products are not designed for use in life saving/support appliances or
systems. CDIL customers selling these products (either as individual Semiconductor Devices or incorporated in
their end products), in any life saving/support appliances or systems or applications do so at their own risk and
CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products
without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 4141 1112 Fax + 91-11-2579 5290, 4141 1119
email@cdil.com
www.cdil.com
BAS32L_Rev_0_030913E
Continental Device India Limited
Data Sheet
Page 3 of 3
