BD239C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BD239C

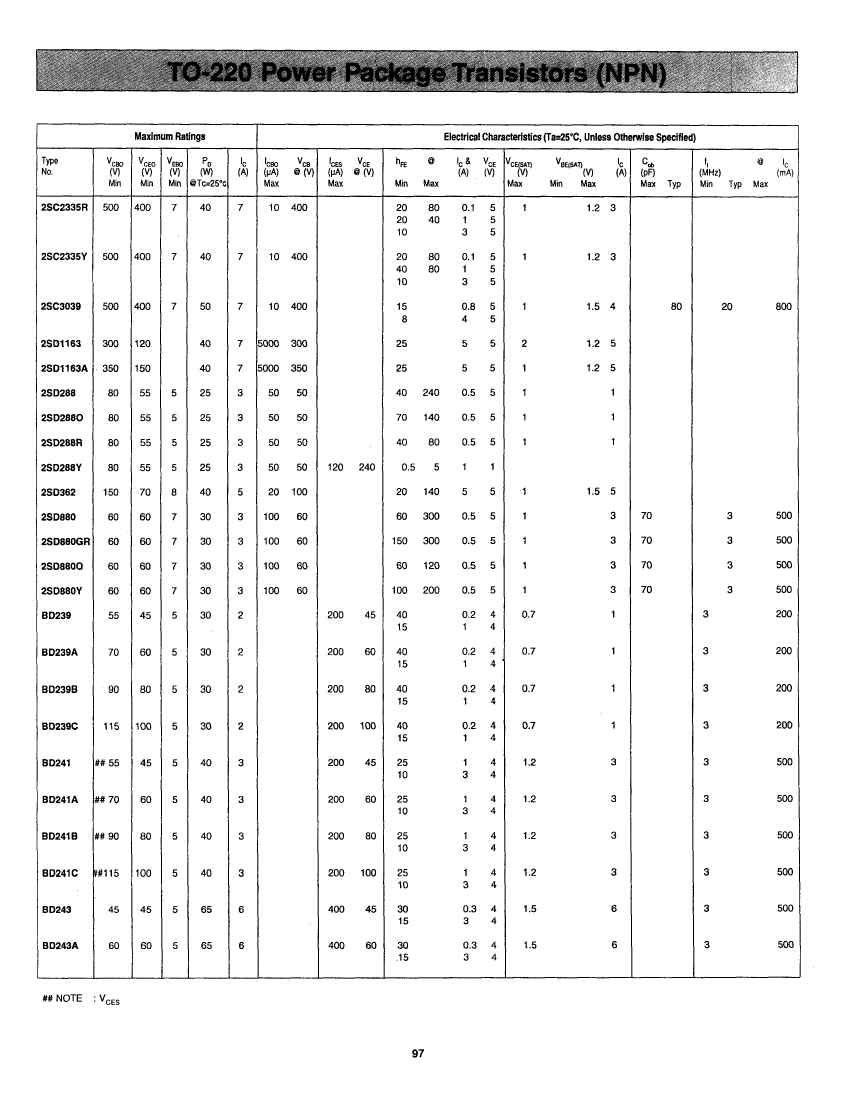

BD239C: DescriptionPower Bipolar Transistor, 2A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, PLASTIC, TO-220, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size89KB，1 Pages; ManufacturerCDIL[Continental Device India Pvt. Ltd.]; Environmental Compliance

Download Datasheet Parametric Compare View All

BD239C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BD239C	-	-	View	Buy Now

BD239C Overview

Power Bipolar Transistor, 2A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, PLASTIC, TO-220, 3 PIN

BD239C Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	CDIL[Continental Device India Pvt. Ltd.]
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99

Preview

Download Datasheet

View All

BD239C Related Products

	BD239C	2SD1163	2SC2335Y	2SD288O	2SD362	2SC3039	BD241B
Description	Power Bipolar Transistor, 2A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, PLASTIC, TO-220, 3 PIN	Power Bipolar Transistor, 7A I(C), 120V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 7A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 3A I(C), 55V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 5A I(C), 70V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 7A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 3A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN
Parts packaging code	SFM	SFM	SFM	SFM	SFM	SFM	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3	TO-220, 3 PIN	FLANGE MOUNT, R-PSFM-T3	TO-220, 3 PIN	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3	3	3	3	3	3
Reach Compliance Code	compliant	compli	compli	compli	compli	compli	compliant
Is it Rohs certified?	conform to	-	incompatible	incompatible	incompatible	incompatible	conform to
ECCN code	EAR99	EAR99	-	EAR99	EAR99	-	EAR99
Maximum collector current (IC)	-	7 A	7 A	3 A	5 A	7 A	3 A
Collector-emitter maximum voltage	-	120 V	400 V	55 V	70 V	400 V	80 V
Configuration	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	-	25	10	70	20	8	10
JEDEC-95 code	-	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	-	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	-	1	1	1	1	1	1
Number of terminals	-	3	3	3	3	3	3
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	-	NPN	NPN	NPN	NPN	NPN	NPN
Maximum power consumption environment	-	40 W	40 W	25 W	40 W	50 W	40 W
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	-	NO	NO	NO	NO	NO	NO
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Transistor component materials	-	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
VCEsat-Max	-	2 V	1 V	1 V	1 V	1 V	1.2 V
Base Number Matches	-	1	1	1	1	1	1
JESD-609 code	-	-	e0	e0	e0	e0	-
Maximum power dissipation(Abs)	-	-	40 W	25 W	40 W	1.7 W	40 W
Terminal surface	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
