CMSZ5232BPBFREE

Description
Zener Diode,
CategoryDiscrete semiconductor    diode
File Size556KB，3 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric Compare View All

CMSZ5232BPBFREE Overview

Zener Diode,

CMSZ5232BPBFREE Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerCentral Semiconductor
package instructionSOT-323, 3 PIN
Reach Compliance Codecompli
ECCN codeEAR99
Date Of I2018-03-29
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
Maximum dynamic impedance11 Ω
Maximum forward voltage (VF)0.9 V
JESD-30 codeR-PDSO-G3
JESD-609 codee3
Maximum knee impedance1600 Ω
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityUNIDIRECTIONAL
Maximum power dissipation0.275 W
Nominal reference voltage5.6 V
Maximum reverse current5 µA
Reverse test voltage3 V
surface mountYES
technologyZENER
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrie
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Voltage temperatureCoeff-Max2.13 mV/°C
Maximum voltage tolerance5%
Working test current20 mA

Preview

Download Datasheet

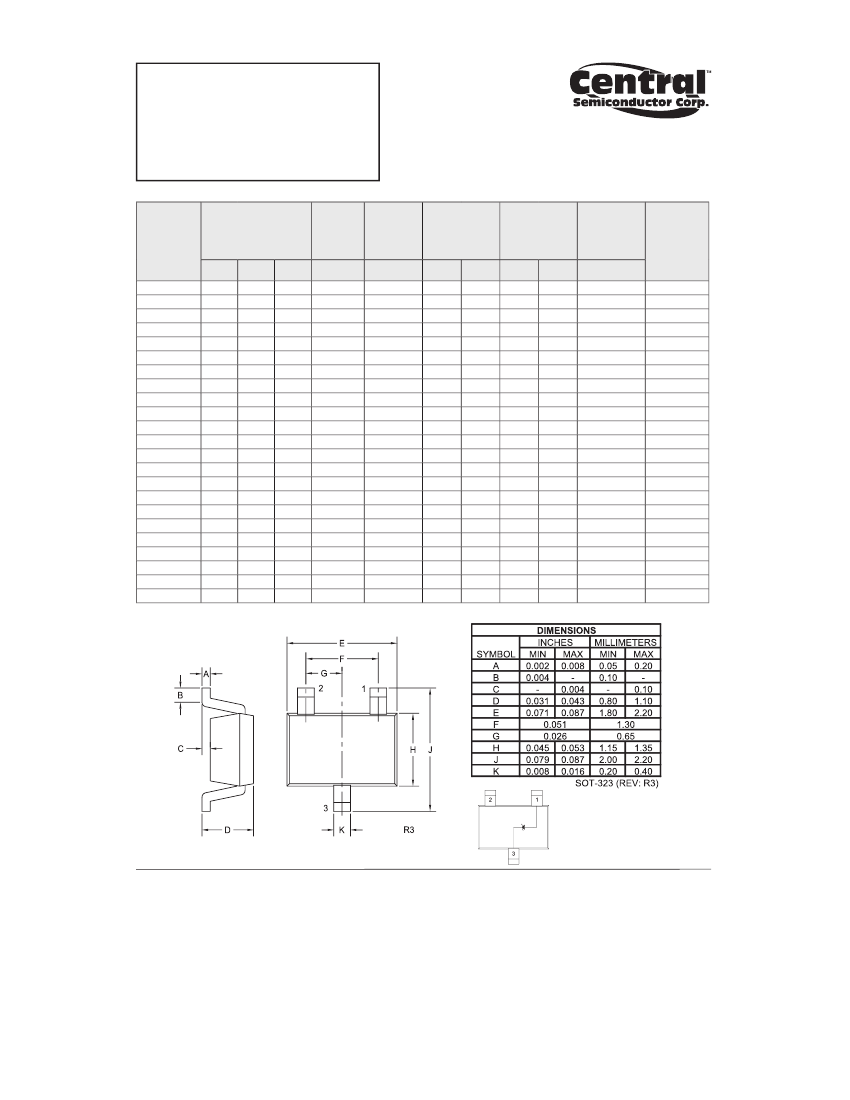

CMSZ5221B THRU CMSZ5267B
SURFACE MOUNT
SILICON ZENER DIODE
275mW, 2.4 THRU 75 VOLTS
5% TOLERANCE
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMSZ5221B series
silicon Zener diode is a high quality voltage regulator
for use in industrial, commercial, entertainment and
computer applications.
MARKING CODE: SEE MARKING CODES ON
ELECTRICAL CHARACTERISTICS TABLE
SOT-323 CASE
• Device is
Halogen Free
by design
MAXIMUM RATINGS:
(TA=25°C)
Power Dissipation
Operating and Storage Junction Temperature
Thermal Reistance
SYMBOL
PD
TJ, Tstg
Θ
JA
275
-65 to +150
455
UNITS
mW
°C
°C/W
ELECTRICAL CHARACTERISTICS:
(TA=25°C) VF=0.9V MAX @ IF=10mA (for all types)
ZENER VOLTAGE
TYPE
VZ @ IZT
MIN
V
CMSZ5221B
CMSZ5222B
CMSZ5223B
CMSZ5224B
CMSZ5225B
CMSZ5226B
CMSZ5227B
CMSZ5228B
CMSZ5229B
CMSZ5230B
CMSZ5231B
CMSZ5232B
CMSZ5233B
CMSZ5234B
CMSZ5235B
CMSZ5236B
CMSZ5237B
CMSZ5238B
CMSZ5239B
CMSZ5240B
CMSZ5241B
CMSZ5242B
CMSZ5243B
CMSZ5244B
2.280
2.375
2.565
2.660
2.850
3.135
3.420
3.705
4.085
4.465
4.845
5.320
5.700
5.890
6.460
7.125
7.790
8.265
8.645
9.500
10.45
11.40
12.35
13.30
NOM
V
2.4
2.5
2.7
2.8
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.0
6.2
6.8
7.5
8.2
8.7
9.1
10
11
12
13
14
MAX
V
2.520
2.625
2.835
2.940
3.150
3.465
3.780
4.095
4.515
4.935
5.335
5.880
6.300
6.510
7.140
7.875
8.610
9.135
9.555
10.50
11.55
12.60
13.65
14.70
IZT
mA
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
9.5
9.0
ZZT @ IZT
Ω
30
30
30
30
29
28
24
23
22
19
17
11
7.0
7.0
5.0
6.0
8.0
8.0
10
17
22
30
13
15
ZZK @ IZK
Ω
1200
1250
1300
1400
1600
1600
1700
1900
2000
1900
1600
1600
1600
1000
750
500
500
600
600
600
600
600
600
600
mA
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
IR
μA
100
100
75
75
50
25
15
10
5.0
5.0
5.0
5.0
5.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
2.0
1.0
0.5
0.1
@ VR
V
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
3.0
3.5
4.0
5.0
6.0
6.5
6.5
7.0
8.0
8.4
9.1
9.9
10
TEST
CURRENT
MAXIMUM
ZENER
IMPEDANCE
MAXIMUM
ZENER
IMPEDANCE
MAXIMUM
REVERSE
CURRENT
MAXIMUM
TEMPERATURE
COEFFICIENT
ΘV
Z
%/°C
-0.085
-0.085
-0.080
-0.080
-0.075
-0.070
-0.065
-0.060
±0.055
±0.030
±0.030
+0.038
+0.038
+0.045
+0.050
+0.058
+0.062
+0.065
+0.068
+0.075
+0.076
+0.077
+0.079
+0.082
8A1
8B1
8C1
8D1
8E1
8AC
8BC
8CC
8DC
8EC
8FC
8GC
8HC
8JC
8KC
8LC
8MC
8NC
8PC
8QC
8RC
8SC
8TC
8UC
MARKING
CODE
R5 (12-December 2012)
