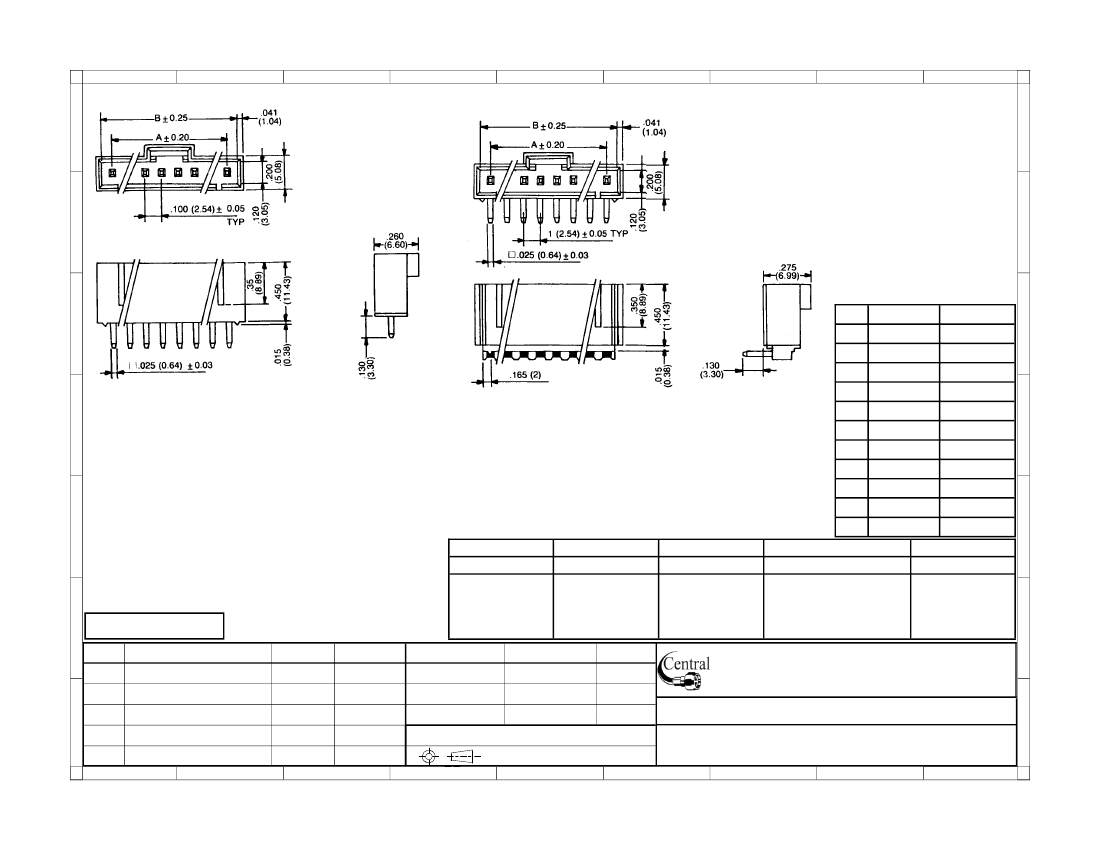

JS-1143 Top Entry
A
JS-1143R Side Entry
A
B
B
C
D
SPECIFICATIONS
Voltage rating:
Current rating:
Contact resistance:
E
250 VAC/VDC
3 amps AC/DC
Initial value 10 milliohms max.;
after testing 20milliohms max.
Insulation material:
PBT +15% glass fiber, UL94V-0
Insulation resistance: 1,000 megohms min.
Withstanding:
1,000VAC for 1 min.
Temperature range: -25°C to + 85°C
PC board thickness: .063 (1.6mm)
Poles
2
3
4
5
6
7
8
9
10
11
12
Series
JS
Connector
Type
1143X
X=Top Entry if
Blank
R=Side Entry
Positions
XX
02-12
Plating
XX
A
B
.100 (02.54) .199 (05.05)
.200 (05.08) .299 (07.59)
.300 (07.62) .399 (10.13)
.400 (10.19) .499 (12.67)
.500 (12.70) .599 (15.21)
.600 (15.24) .699 (17.75)
.700 (17.78) .799 (20.29)
.800 (20.32) .899 (22.83)
.900 (22.86) .999 (25.37)
1.000 (25.40) 1.099 (27.91)
1.100 (27.94) 1.199 (30.45)
Options
XX
Blank=none
NL=no latch
PP=Polarized pin
C
D
E
F
RoHS compliant
Rev.
Description
A PN, PNT
Date
Approved
09/14/10 Greg
Blank=Tin
SGXX=Selective Gold
GDXX=Gold
XX=flash if blank, 15,30u”
F
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
09/10/98
09/10/98
09/10/98 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
JS-1143X-XX-XX
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: Disconnectable locking connector, .100” (2.54mm) pitch
G
1
2
3
4
