EM280206 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> EM280206

Preview

EM280206: Description4 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK; CategoryThe connector; File Size38KB，1 Pages; ManufacturerCooper Industries

Download Datasheet Parametric View All

EM280206 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EM280206	-	-	View	Buy Now

EM280206 Overview

4 A, STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

EM280206 Parametric

Parameter Name	Attribute value
Maker	Cooper Industries
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	SAFETY APPROVAL: UL 94V-0, POLYAMIDE66
Fastening method	SPRING LOADED
Manufacturer's serial number	EM2802
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	6
Rated current	4 A
Rated voltage	125 V
safety certificate	UL; CSA; CE
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Wire gauge	20 AWG

Preview

Download Datasheet

View All

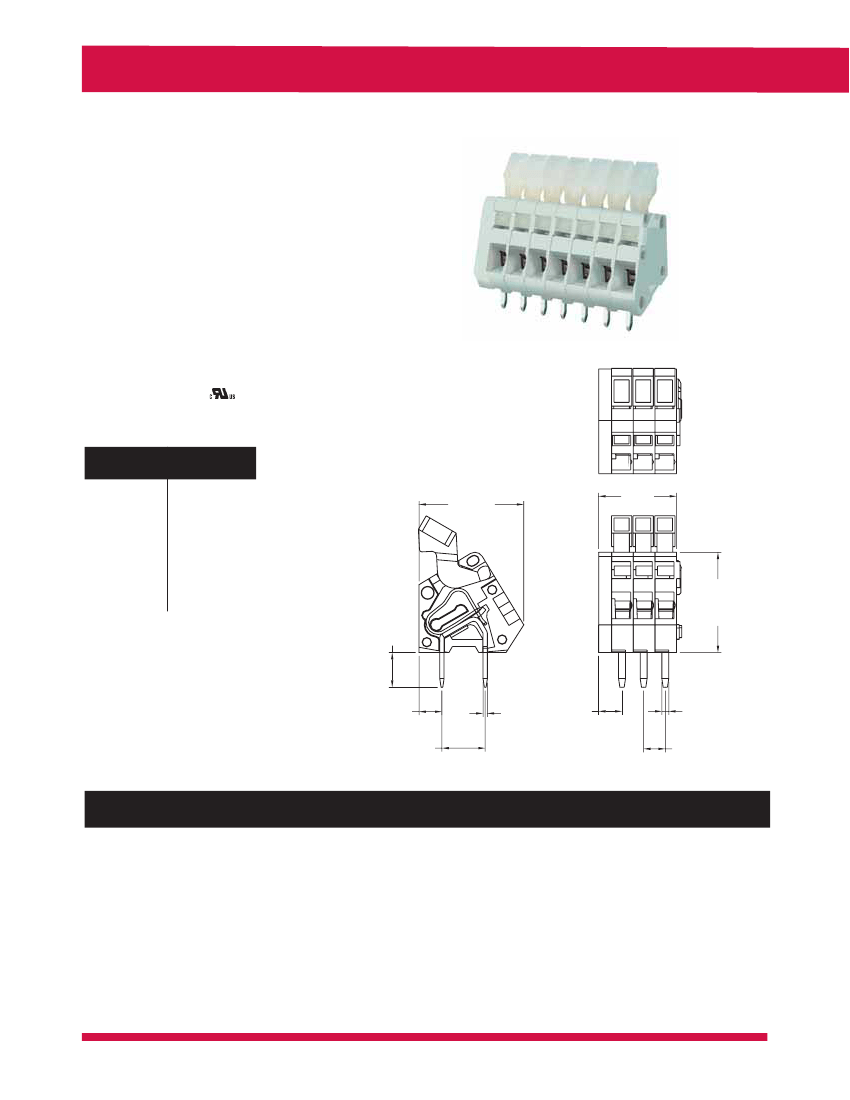

EuroMag Series PCB Mount Screwless Terminal Blocks

EM2802 Series

Euro-Mag Terminal Blocks

30° Entry; Screwless; 2.54 Centers

SPECIFICATIONS

Rating:

4A, 125V

Center Spacing:

0.10” (2.54mm)

Wire Range:

#20-24 AWG

Housing Material:

Gray Polyamide Type 6/6, 94V0

Contact Material:

Tin-Plated Brass

Spring Material:

Stainless Steel

Operating Temperature:

105°C (221°F) max., -40°C

(-40°F) min.

Recommended PCB Hole Diameters:

0.051" (1.30mm)

Construction:

Mold-to-Length

Agency Information:

File E62622; CE Certified

EM280207

Dimensions - mm (in)

Poles

2

3

4

5

6

7

8

9

10

11

12

L (mm)

7.08

9.62

12.16

14.70

17.24

19.78

22.32

24.86

27.40

29.94

32.48

12.1+0.3

_

(0.477")

L+0.5

_

To convert to inches, divide by 25.4

4+0.5

_

(0.158")

2.6+0.3

_

(0.102")

5+0.2

_

(0.197")

0.5+0.1

_

(0.020")

2.7+0.3

_

(0.106")

0.8+0.1

_

(0.032")

2.54+0.1

_

(1.00")

Part Numbering System

Series

# of Poles

EM2 80 2

IIIIII II

02

to

12

11.6+0.3

_

(0.457")
