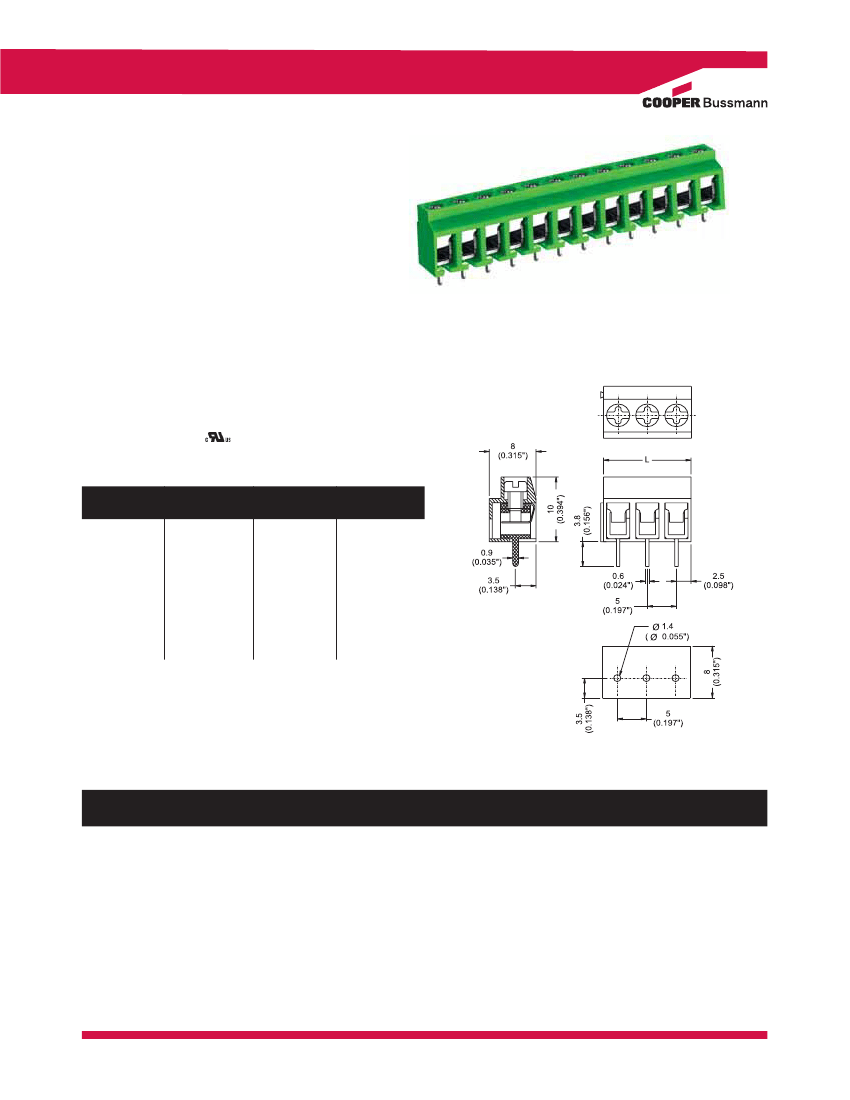

EuroMag Series PCB Mount Terminal Blocks
EM3665 Series
Euro-Mag Terminal Blocks
5.00 Centers; Modular
SPECIFICATIONS
Rating:
10A, 300V
Center Spacing:
0.197” (5.00mm)
Wire Range:
#16-22 AWG
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Tin-Plated Brass
Screw Size:
M2.5x5 Zinc-Plated Steel
Operating Temperature:
105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating:
2.5 lb-in.
Recommended PCB Hole Diameters:
0.055" (1.40mm)
Construction:
Modular design features dovetails for
interlocking to achieve longer lengths
Connector Style:
Spring Clamp
Agency Information:
File E62622; CE Certified
EM366512
Dimensions - mm (in)
Poles
2
3
4
5
6
7
8
9
10
11
12
13
L (mm)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
Poles
14
15
16
17
18
19
20
21
22
23
24
L (mm)
70.0
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
PCB Hole Layout
To convert to inches, divide by 25.4
Part Numbering System
Series
# of Poles
EM 3 6 6 5
IIIIII II
02
to
24
