B031-1410-002-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B031-1410-002-Z

B031-1410-002-Z: DescriptionCard Edge Connector, 124 Contact(s), 2 Row(s), Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch & Eject, Beige Insulator, Receptacle; CategoryThe connector The connector; File Size935KB，3 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

B031-1410-002-Z Overview

Card Edge Connector, 124 Contact(s), 2 Row(s), Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch & Eject, Beige Insulator, Receptacle

B031-1410-002-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT, TRAY PACKAGING
Board mount options	LOCATING POSTS
body width	0.313 inch
subject depth	1.031 inch
body length	2.528 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact material	PHOSPHOR BRONZE
Contact style	BELLOWED TYPE
Insulator color	BEIGE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	B031
Plug contact pitch	0.031 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	90 °C
Minimum operating temperature	-50 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	0.323 mm
Plating thickness	10u inch
polarization key	POLARIZED KEY
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	124

Preview

Download Datasheet

View All

ELECTRICAL:

CURRENT: 0.5A

VOLTAGE RATING: 50V AC

OPERATING TEMPERATURE: -50° C TO +90° C

HOW TO ORDER:

PACKAGING:

0 - Tray

RoHS COMPLIANT

MATERIAL:

INSULATOR: LCP +30% GLASS REINFORCED (UL94V-0)

CONTACT: PHOSPHOR BRONZE, C5210R-SH

METAL: STAINLESS STEEL, JIS SUS304-3/4H

PLATING: SELECTIVE GOLD ON CONTACT AREA;

MATTE TIN (100u” min.) ON SOLDRING AREA:, 50u” NICKEL UNDER PLATE

NUMBER OF POSITIONS

124

HEIGHT:

4 - 8.0 mm

LATCH:

1 - Metal

COLOR:

0 - Beige

1 - Black

Latch

Rev

SELECTIVE PLATING:

1 - 5u" Au

2 - 10u" Au

4 - 15u" Au

5 - 30u" Au

Issued

Revised for RoHS Compliance

Revised for Current &Voltage Rating

Added Matte Tin Plating to Solder Area

Revised Selective Plating Options

X. +/- 0.30

.X +/- 0.20

.XX +/- 0.10

.XXX +/- 0.05

Drawn Checked Approved

Date

A.M.

S.M.

01/13/05

G.T.

S.M.

11/21/05

B.S.

S.M.

1/15/07

B.S.

S.M.

1/08/08

B.S.

S.M.

04/07/09

ANGLE +/-

UNIT: mm

SMP TECHNOLOGY, INC.

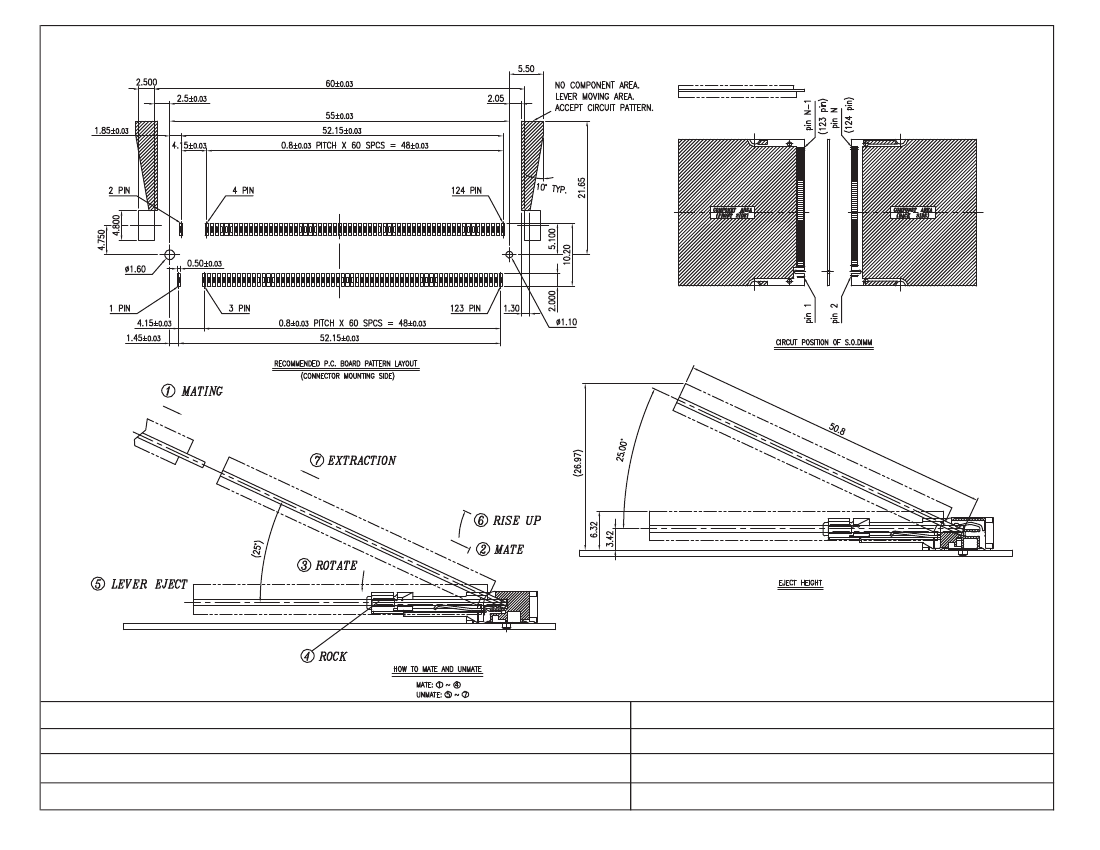

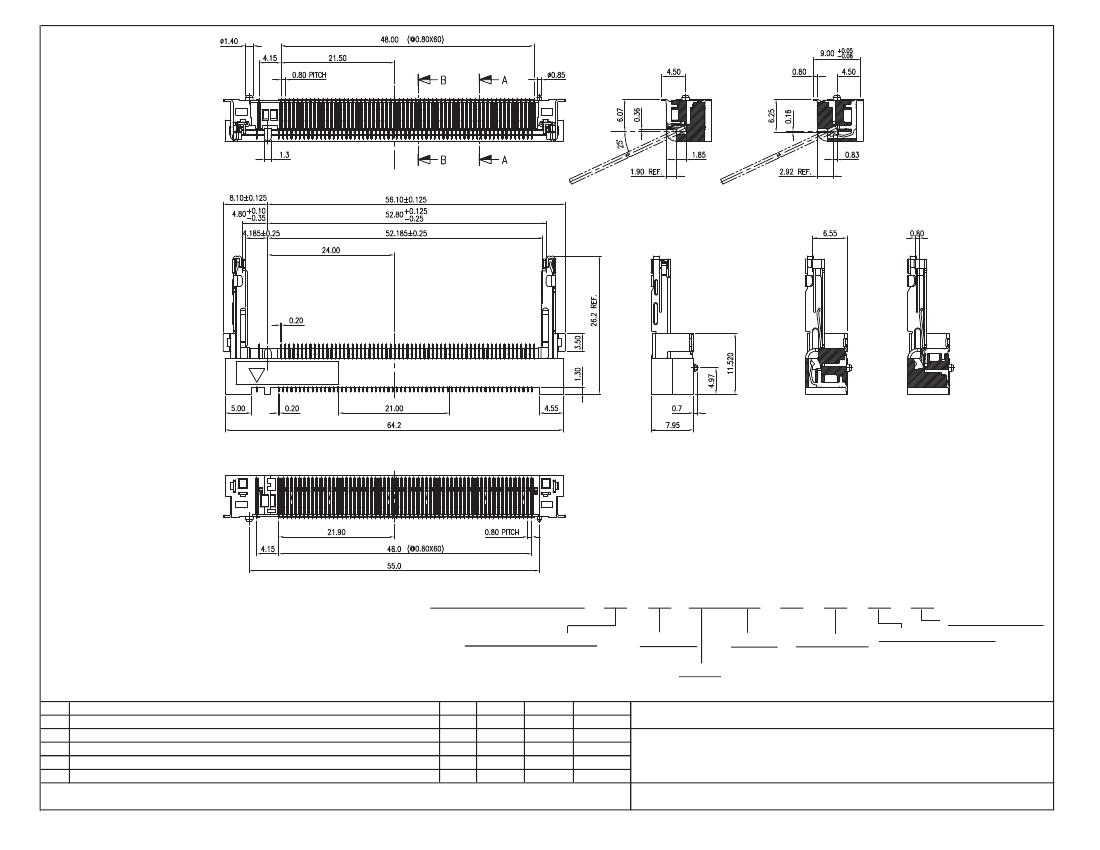

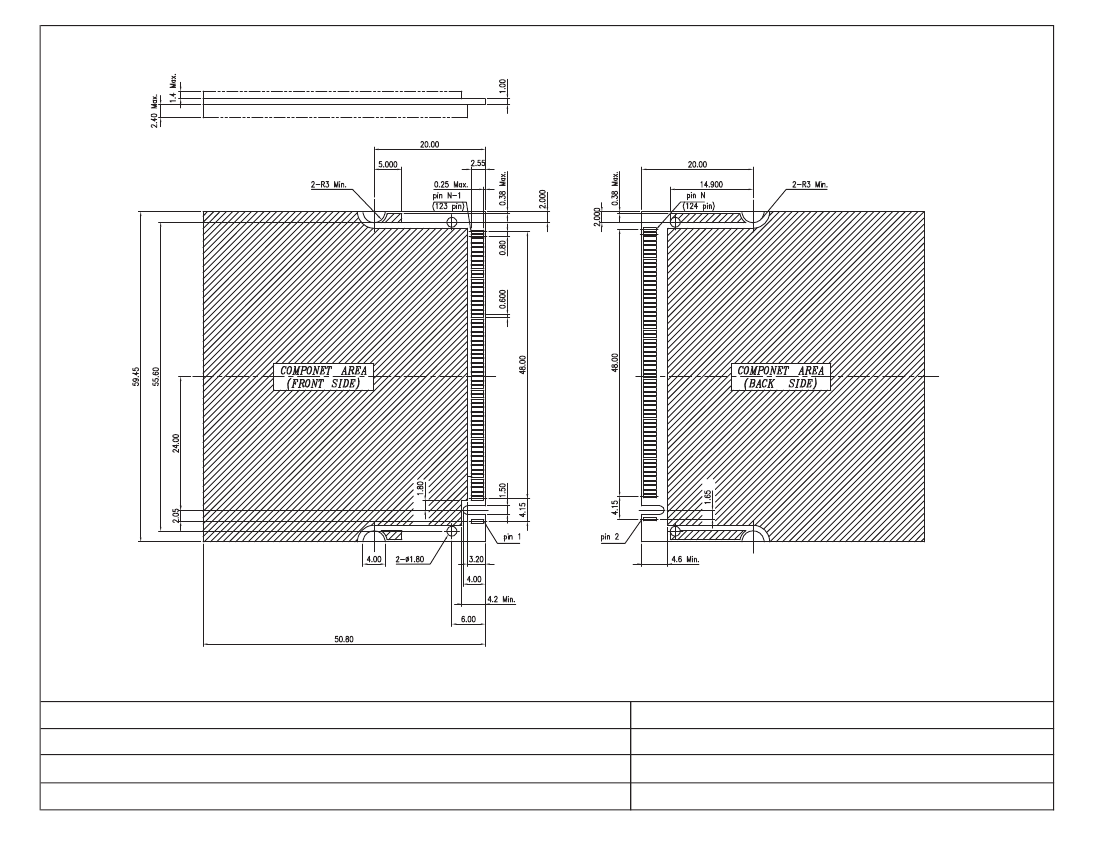

Mini PCI, Fax Modem Socket, 124 Position, Right Angle Surface Mount,

8.0 mm Height, Metal Latch

P/N: B031-141X-00X-Z

TOL. DEC.

Pg: 1/3

B031-1410-002-Z Related Products

	B031-1410-002-Z	B031-1410-001-Z
Description	Card Edge Connector, 124 Contact(s), 2 Row(s), Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch & Eject, Beige Insulator, Receptacle	Card Edge Connector, 124 Contact(s), 2 Row(s), Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Latch & Eject, Beige Insulator, Receptacle
Maker	SMP Technology Inc.	SMP Technology Inc.
Reach Compliance Code	unknown	unknown
Other features	ROHS COMPLIANT, TRAY PACKAGING	ROHS COMPLIANT, TRAY PACKAGING
Board mount options	LOCATING POSTS	LOCATING POSTS
body width	0.313 inch	0.313 inch
subject depth	1.031 inch	1.031 inch
body length	2.528 inch	2.528 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact style	BELLOWED TYPE	BELLOWED TYPE
Insulator color	BEIGE	BEIGE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	B031	B031
Plug contact pitch	0.031 inch	0.031 inch
Installation option 1	LATCH & EJECT	LATCH & EJECT
Installation option 2	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	90 °C	90 °C
Minimum operating temperature	-50 °C	-50 °C
PCB contact pattern	STAGGERED	STAGGERED
PCB contact row spacing	0.323 mm	0.323 mm
Plating thickness	10u inch	5u inch
polarization key	POLARIZED KEY	POLARIZED KEY
Rated current (signal)	0.5 A	0.5 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	0.7874 mm	0.7874 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	124	124
