HB14-0300-186-Z: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size209KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

HB14-0300-186-Z Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Receptacle

HB14-0300-186-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.157 inch
body length	0.724 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	NYLON
Manufacturer's serial number	HB14
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9878 mm
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	18

Preview

Download Datasheet

View All

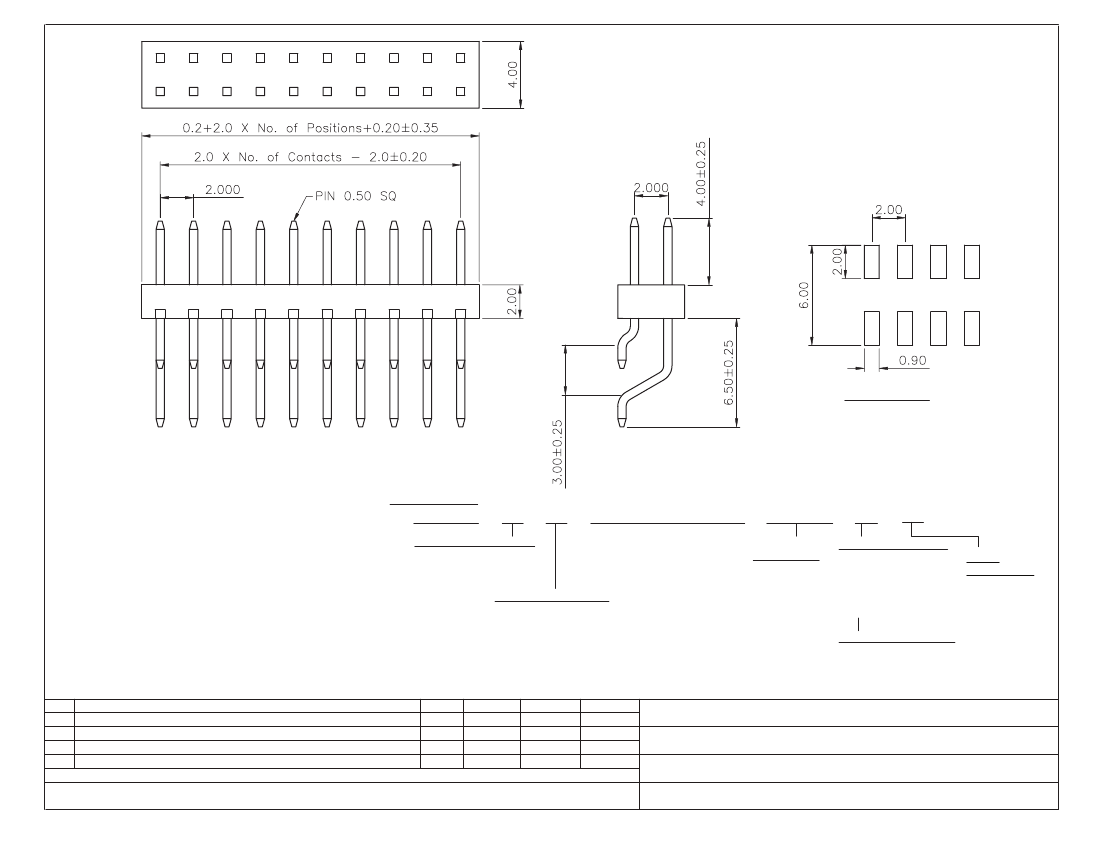

P.C.B. LAYOUT

HOW TO ORDER:

RoHS

COMPLIANT

CURRENT RATING: 2.0A

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 5000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500 AC FOR 1 MIN.

OPERATING TEMPERATURE: -40°C TO +105°C

MAX PROCESSING TEMPERATURE: 260°C FOR 10 SECONDS

ELECTRICAL:

CONTACT MATERIAL:

1 - COPPER ALLOY

NUMBER OF ROWS:

4 - DOUBLE ROW HORIZONTAL

NUMBER OF

CONTACTS:

02 thru 80

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au FLASH

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

MATERIAL:

INSULATOR: HIGH TEMPERATURE PLASTIC, UL94V-0 ( Nylon 6T )

Rev

0 Issued

A Revised for RoHS Compliance

Drawn

A.M.

B.S.

Checked

S.M.

Approved

S.M.

Date

07/28/03

08/14/08

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

Unshrouded Header, 2.00mm Pitch, Double Row, Horizontal, Surface Mount

Contact Mating Length 4.00mm; 6.50/3.00mm Solder Tail

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

ANGLE +/- 5°

UNIT: mm

SERIES: HB14

Pg: 1
