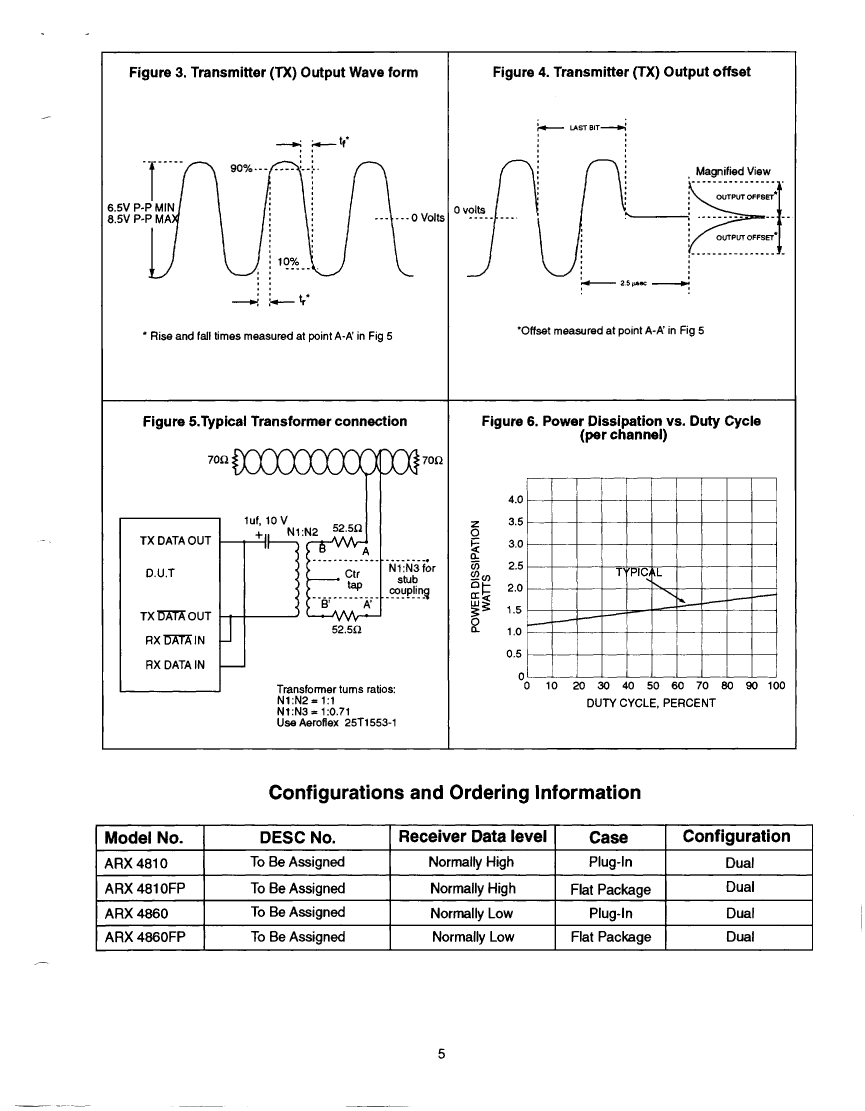

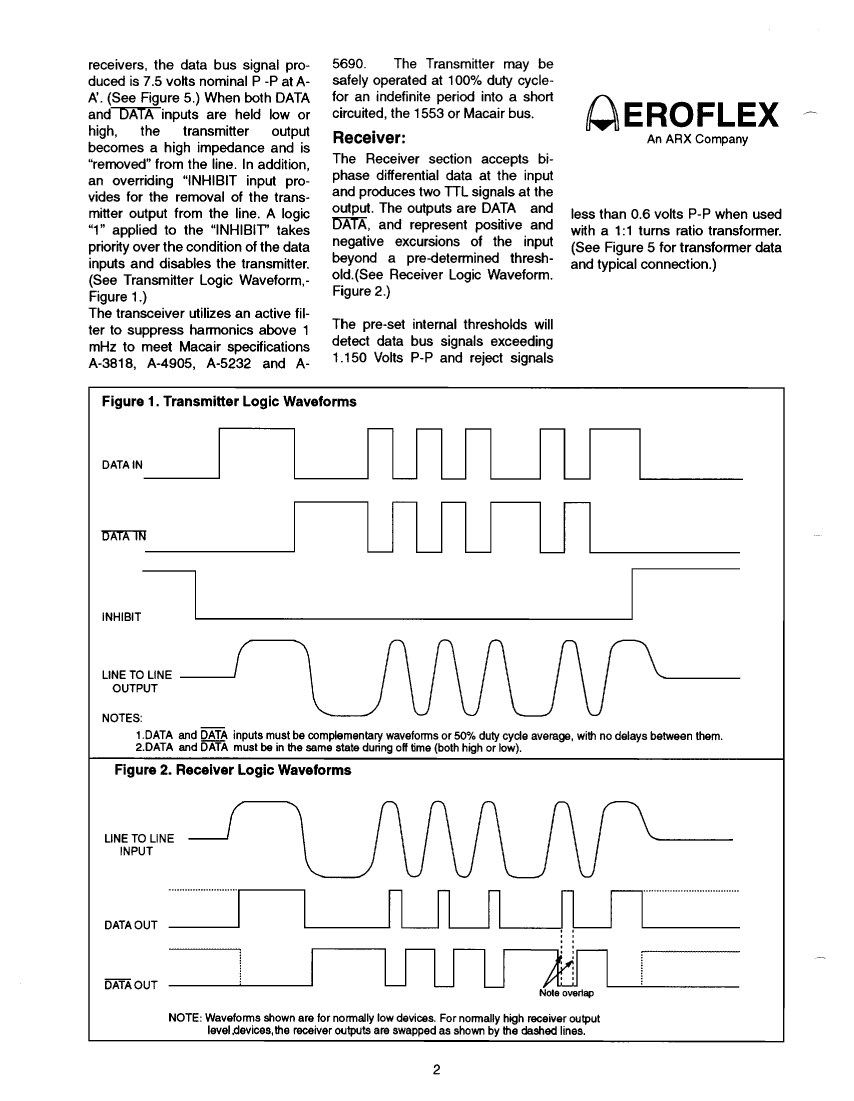

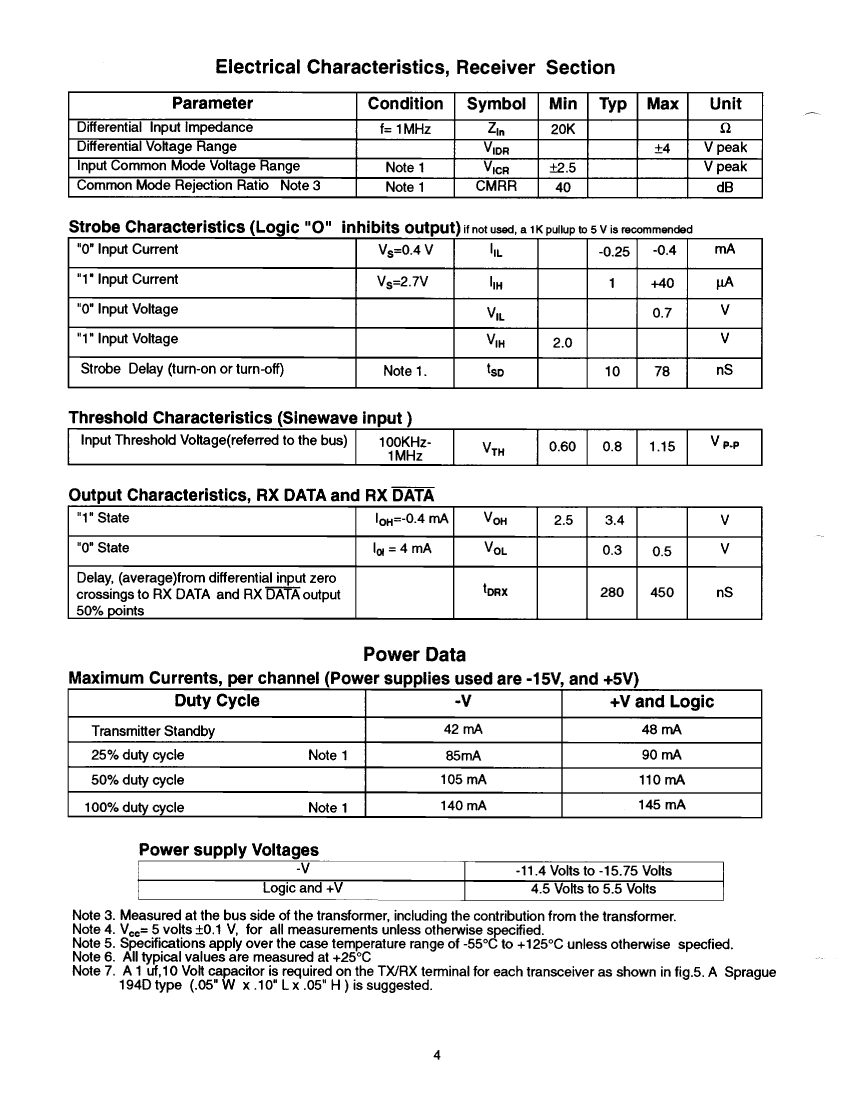

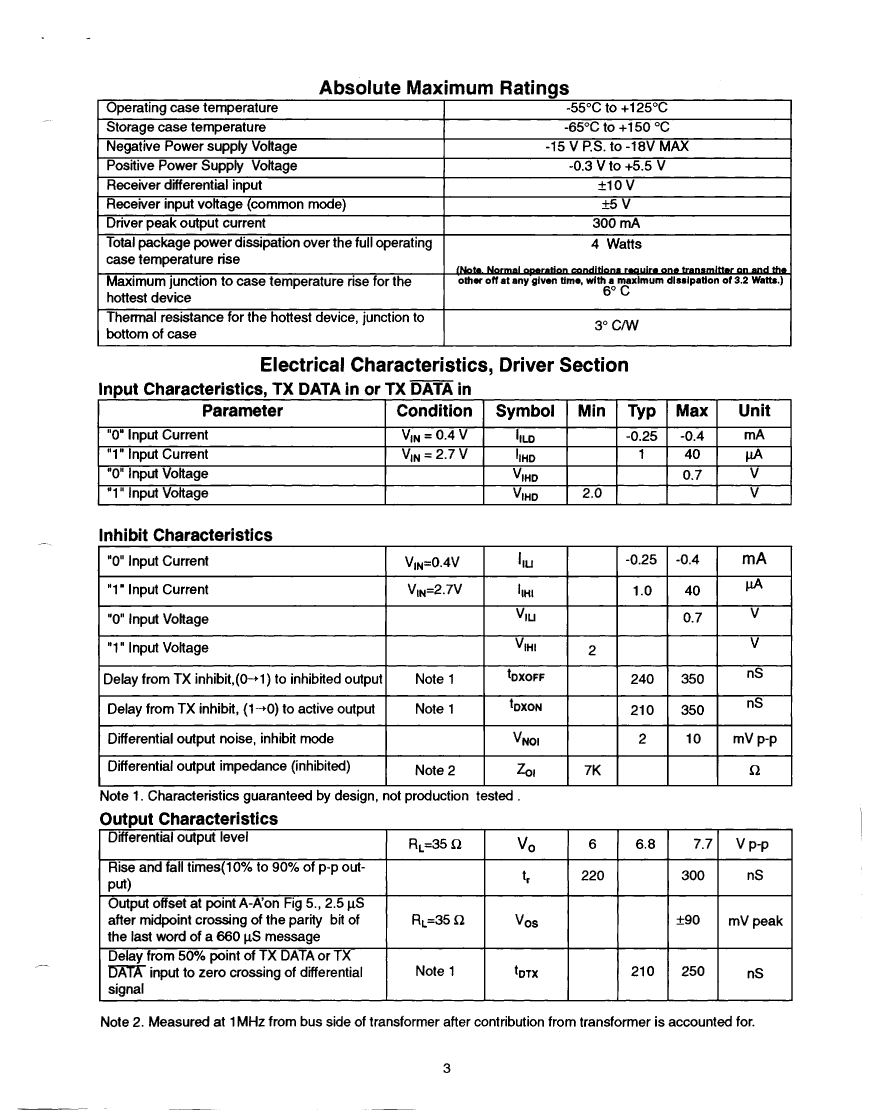

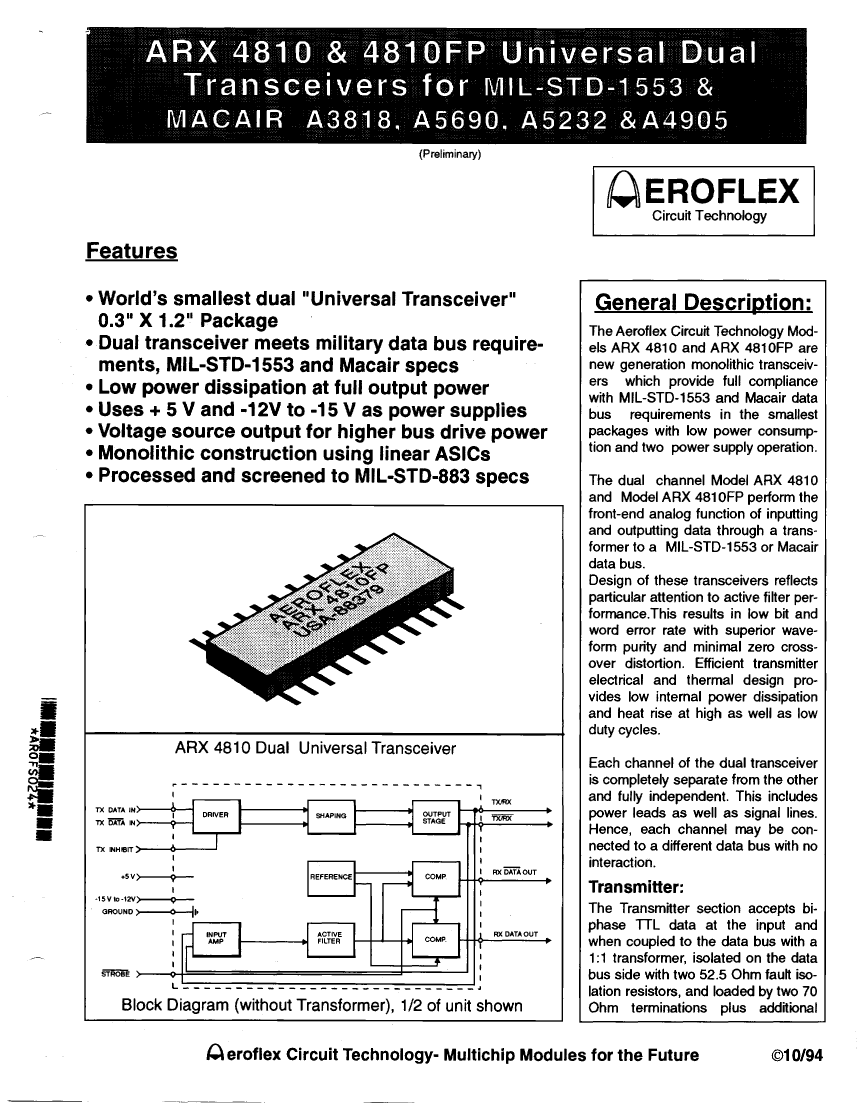

ARX4810FP Overview

MIL-STD-1553 Data Bus Transceiver, Bipolar, 0.300 X 1.200 INCH, FP-22

Parameter Name	Attribute value
Maker	Cobham Semiconductor Solutions
Parts packaging code	DFP
package instruction	SOP,
Contacts	22
Reach Compliance Code	unknow
JESD-30 code	R-XDSO-G22
Negative supply voltage rating	-15 V
Number of functions	2
Number of terminals	22
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	3.556 mm
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Telecom integrated circuit types	MIL-STD-1553 DATA BUS TRANSCEIVER
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL

	ARX4810FP	ARX4860FP	ARX4860
Description	MIL-STD-1553 Data Bus Transceiver, Bipolar, 0.300 X 1.200 INCH, FP-22	MIL-STD-1553 Data Bus Transceiver, Bipolar, 0.300 X 1.200 INCH, FP-22	MIL-STD-1553 Data Bus Transceiver, Bipolar, CDIP22, 0.300 X 1.200 INCH, PLUG IN-22
Parts packaging code	DFP	DFP	DIP
package instruction	SOP,	SOP,	DIP,
Contacts	22	22	22
Reach Compliance Code	unknow	unknown	unknown
JESD-30 code	R-XDSO-G22	R-XDSO-G22	R-CDIP-T22
Negative supply voltage rating	-15 V	-15 V	-15 V
Number of functions	2	2	2
Number of terminals	22	22	22
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	UNSPECIFIED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	SOP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum seat height	3.556 mm	3.556 mm	3.556 mm
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Telecom integrated circuit types	MIL-STD-1553 DATA BUS TRANSCEIVER	MIL-STD-1553 DATA BUS TRANSCEIVER	MIL-STD-1553 DATA BUS TRANSCEIVER
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	-	1	1
