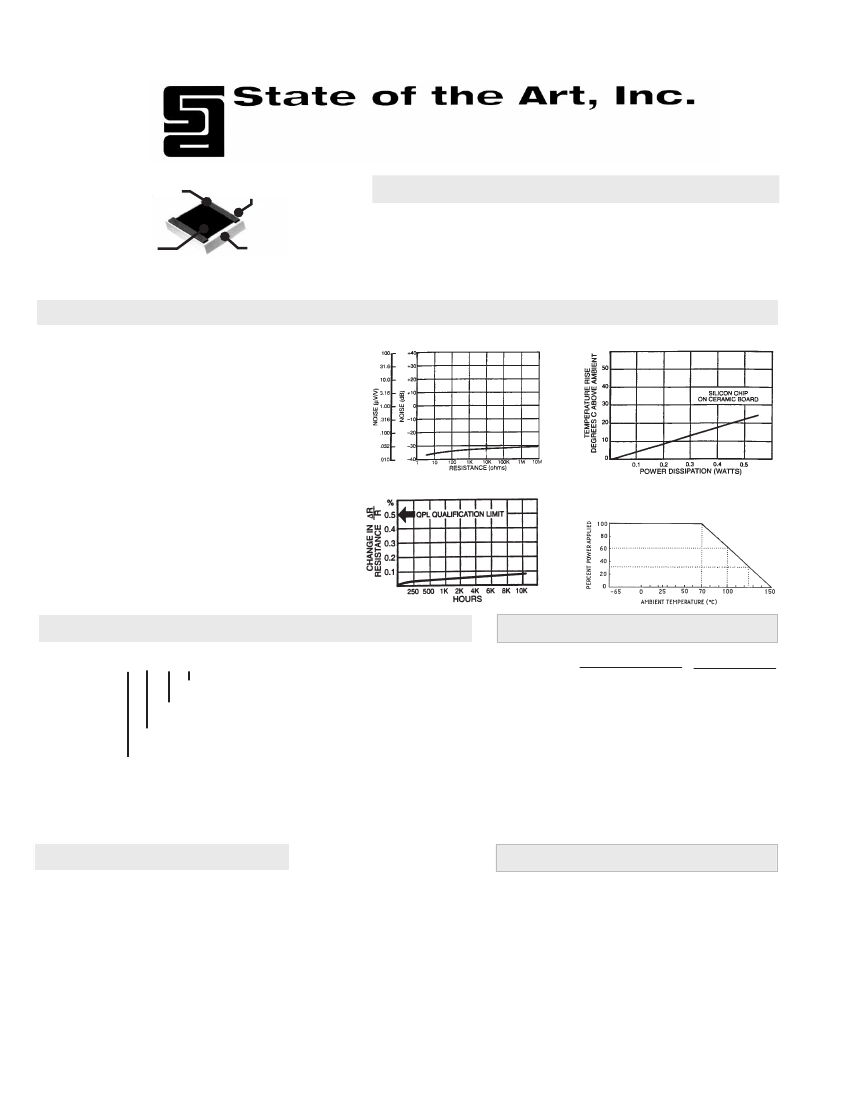

0505 Thin Film On Silicon Resistor
BONDING PADS
Surface Mount, Top-Side Termination/Bottom Isolated
O
10,000 A SiO
2
FEATURES
• Tolerances to ±0.1%
• Operating temperature range :
-55°C to +150°C
• For high-density hybrid circuits
where space is at a premium.
• TCR's to ± 25 ppm
• Delivers greater power handling capability
and lighter weight for the size than chips
constructed on alumina.
PRECISION
THIN FILM
RESISTOR
SILICON CHIP
(STYLE DEPENDS ON VALUE)
PERFORMANCE CHARACTERISTICS
Resistance Range (1)
Tolerances (2)
Maximum Power
Maximum Voltage
5W-2.5MW
0.1%, 0.25%, 0.5%, 1%, 2%, 5%, 10%
500 mW
100 Volts
CURRENT NOISE
POWER DISSIPATION
ENVIRONMENTAL PERFORMANCE
TCR (-55 to +125 °C in ppm/°C)
Thermal Shock
Low Temperature Operation
Short-time Overload
Resistance to Bonding Exposure
Moisture Resistance
High Temperature Exposure
Life
< 25 ppm
±0.02%
±0.02%
±0.02%
±0.03%
±0.05%
±0.05%
See Chart
TYPICAL LIFE TEST PERFORMANCE
POWER DERATING
(1) Minimum resistance range at 0.1% tolerance is 100 ohms.
(2) ±0.05% in limited availability - consult factory
MECHANICAL
S0505AS 150 J H W
TERMINATION MATERIAL
W: Gold A: Aluminum
TCR
E: ±25 ppm H: ±50 ppm K: ±100 ppm
TOLERANCES
B: 0.1% C: 0.25% D: 0.5% F: 1% G: 2% J: 5% K: 10% M: 20%
RESISTANCE VALUE
Three or four digits are used with all leading digits significant. Four digits
are used for 1% tolerance or lower, otherwise three digits are used. The last
digit specifies the number of zeros to add. The letter "R" is used to
represent the decimal for fractional ohmic values. Example: 5R6 is 5.6
ohms.
Length
Width
Thickness
Termination
INCHES
.050 (+.002/-.002)
.050 (+.002/-.002)
.009 - .012
.004 - .012
MM
1.27 (+.05/-.05)
1.27 (+.05/-.05)
.23 - .30
.10 - .30
Approx. Weight .0011 grams
PACKAGING
Silicon chips are only packaged in waffle pack at a
maximum of 400 per tray.
OPTIONS
SOTA offers a full line of component parts in the 0505 size
including termination style D (top-side termination with
isolated metalized bottom) and style F (Back Contact
Resistor - BCR).
STATE OF THE ART, INC.
2470 Fox Hill Road, State College, PA 16803-1797
Phone (814) 355-8004 Fax (814) 355-2714
Toll Free 1-800-458-3401
Where Quality Isn't a Goal...It's Our Tradition
