HVR3-7 datasheet, PDF - EEWORLD Datasheet

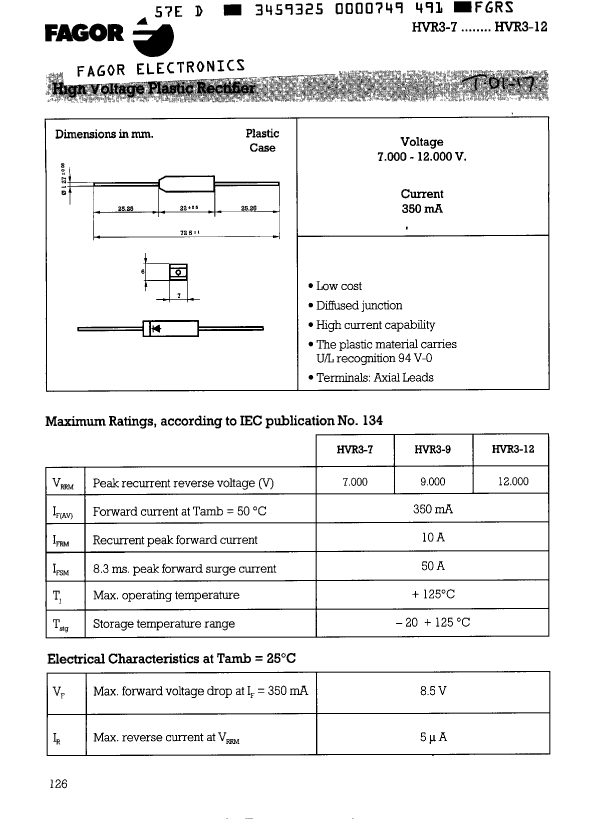

HVR3-7: DescriptionRectifier Diode, 1 Element, 0.35A, 7000V V(RRM), Silicon, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size286KB，7 Pages; ManufacturerFagor Electrónica

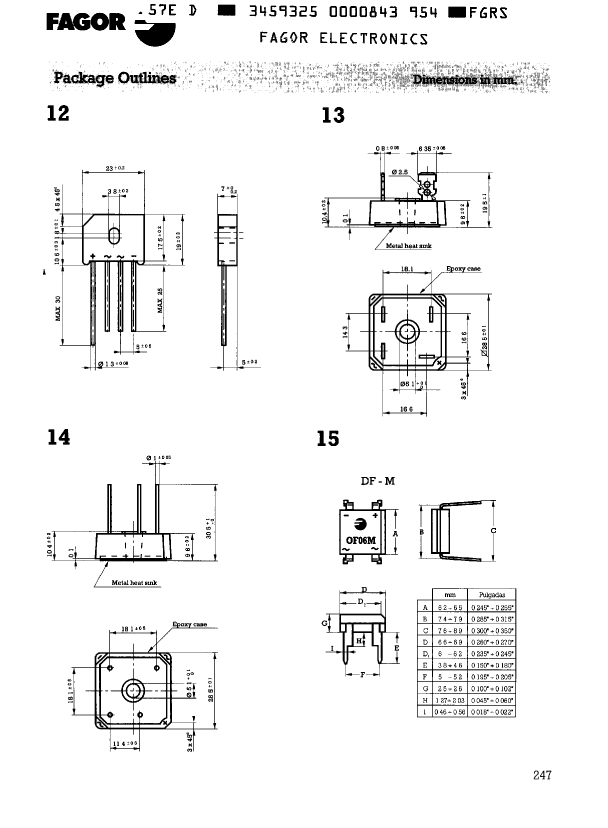

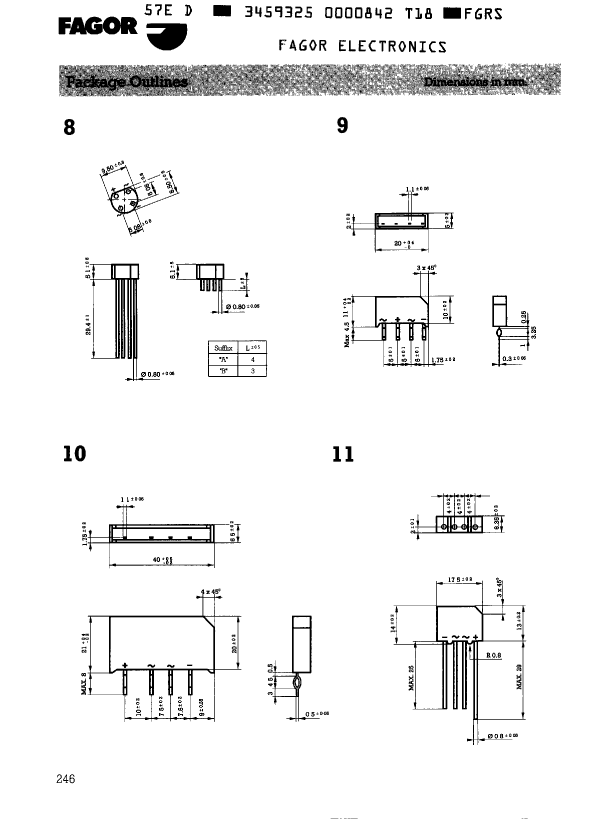

Download Datasheet Parametric Compare View All

HVR3-7 Overview

Rectifier Diode, 1 Element, 0.35A, 7000V V(RRM), Silicon, PLASTIC PACKAGE-2

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fagor Electrónica

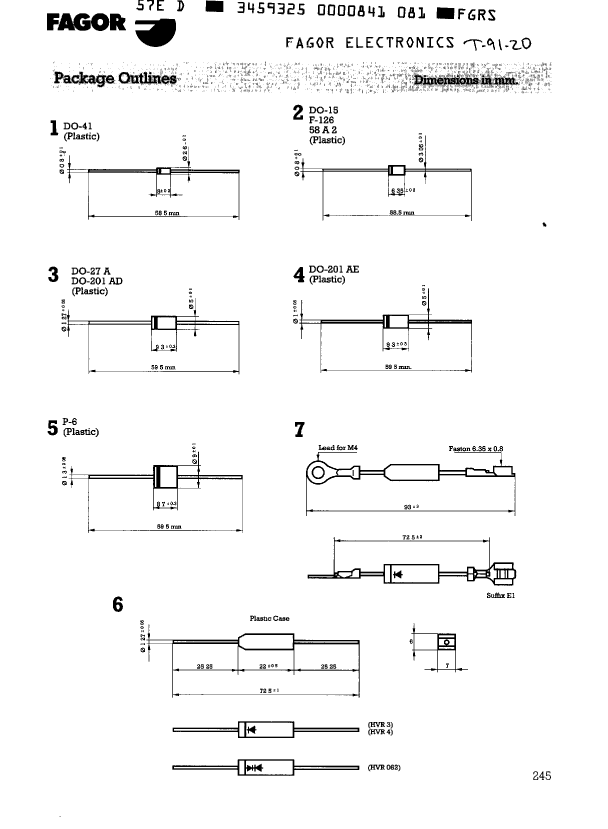

package instruction	PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	8.5 V
JESD-30 code	O-PALF-W2
JESD-609 code	e0
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	0.35 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	7000 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

	HVR3-7	HVR3-9
Description	Rectifier Diode, 1 Element, 0.35A, 7000V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, 1 Element, 0.35A, 9000V V(RRM), Silicon, PLASTIC PACKAGE-2
Is it Rohs certified?	incompatible	incompatible
Maker	Fagor Electrónica	Fagor Electrónica
package instruction	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2
Contacts	2	2
Reach Compliance Code	unknow	unknown
ECCN code	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	8.5 V	8.5 V
JESD-30 code	O-PALF-W2	O-PALF-W2
JESD-609 code	e0	e0
Humidity sensitivity level	1	1
Maximum non-repetitive peak forward current	50 A	50 A
Number of components	1	1
Number of terminals	2	2
Maximum operating temperature	125 °C	125 °C
Maximum output current	0.35 A	0.35 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND
Package form	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	260	260
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	7000 V	9000 V
surface mount	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE
Terminal location	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
