DP3D16MX8RY5-60C datasheet, PDF

Datasheet> All Categories > storage> storage> DP3D16MX8RY5-60C

DP3D16MX8RY5-60C: DescriptionFast Page DRAM Module, 16KX8, 60ns, CMOS, LEADLESS, TSOP-48; Categorystorage storage; File Size248KB，2 Pages; ManufacturerB&B Electronics Manufacturing Company

Download Datasheet Parametric View All

DP3D16MX8RY5-60C Overview

Fast Page DRAM Module, 16KX8, 60ns, CMOS, LEADLESS, TSOP-48

DP3D16MX8RY5-60C Parametric

Parameter Name	Attribute value
Maker	B&B Electronics Manufacturing Company
Parts packaging code	QMA
package instruction	,
Contacts	48
Reach Compliance Code	unknow
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-XQMA-N48
memory density	131072 bi
Memory IC Type	FAST PAGE DRAM MODULE
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	48
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16KX8
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	QUAD

Preview

Download Datasheet

View All

64 Meg Based, 50 - 70ns, M-Densus

30A179-00

High Density Memory Device

DESCRIPTION:

The

M-Densus

series is a family of interchangeable memory

modules. The 64 Megabit DRAM is a member of this family

which utilizes the new and innovative space saving TSOP

technology. The modules are constructed with 8 Meg x 8

DRAM’s available in 512, 256 and 128 Megabits.

The 64 Megabit based

M-Densus

modules have been designed

to fit in the same footprint as the 8 Meg x 8 DRAM TSOP

monolithic and are backward compatible with the 16 Megabit

based family of

M-Densus

modules. This allows the memory

board designer to upgrade the memory in their products

without redesigning the memory board, thus saving time and

money.

FEATURES:

•

Configurations Available:

512 Megabit: 64 Meg x 8

256 Megabit: 32 Meg x 8

128 Megabit: 16 Meg x 8

•

Access Times: 50, 60, 70ns (max.)

•

5.0V or 3.3V Supply

•

Common Data Inputs and Outputs

•

EDO or Fast Page Mode Capability

•

4096 Cycles / 64 ms

•

3 Variations of Refresh:

- RAS only Refresh

- CAS before RAS Refresh

- Hidden Refresh

•

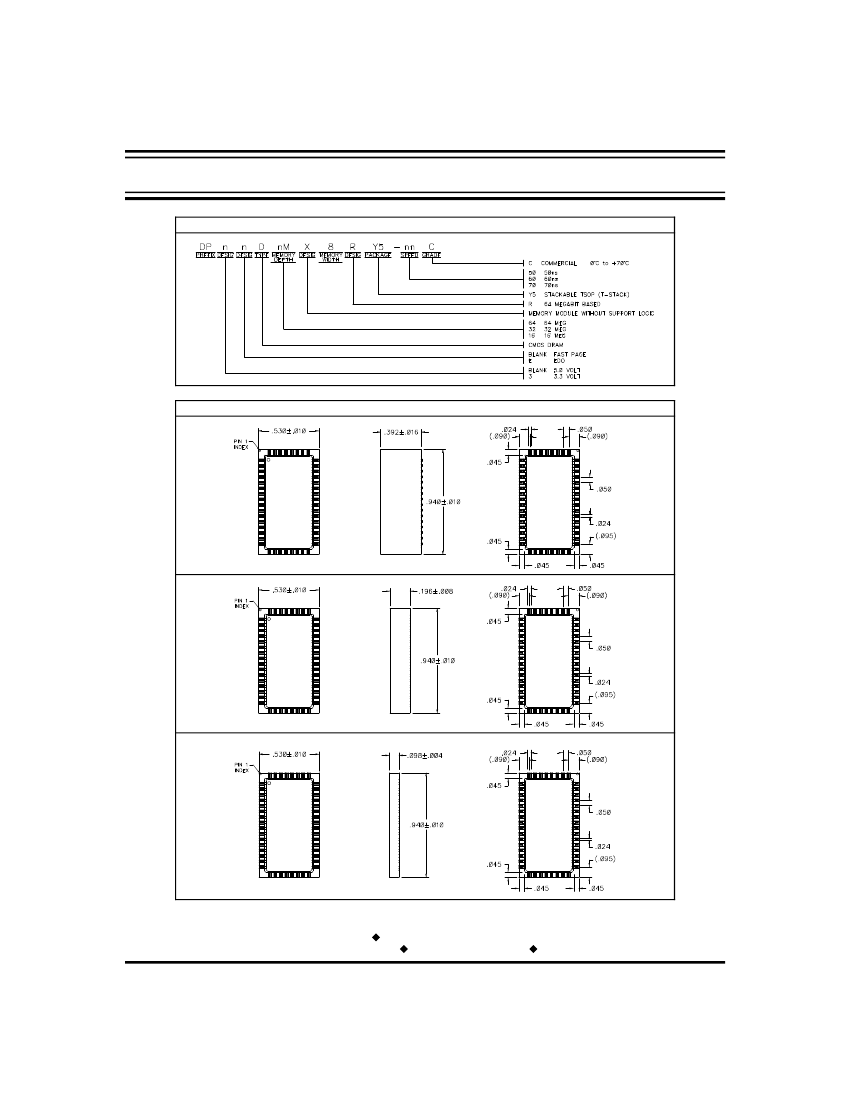

Package: Leadless TSOP Module

M-Densus

512 Megabit CMOS DRAM

256 Megabit CMOS DRAM

128 Megabit CMOS DRAM

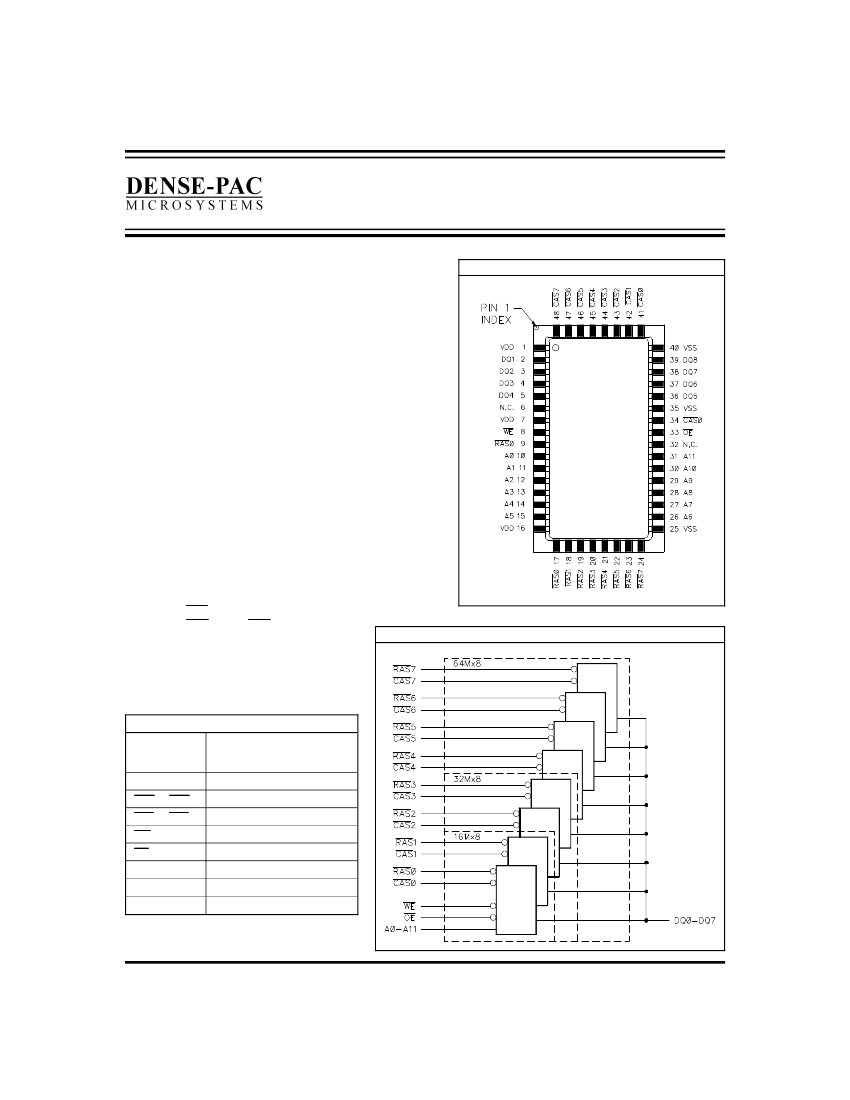

PIN-OUT DIAGRAM

* NOTE:

A12 on 8K refresh version, N.C. on 4K version.

FUNCTIONAL BLOCK DIAGRAM

PIN NAMES

A0 - A11

DQ0 - DQ7

CAS0 - CAS7

RAS0 - RAS7

N.C.

Row Address:

A0 - A11

Column Address: A0 - A11

Refresh Address: A0 - A11

Data In / Data Out

Column Address Strobes

Row Address Enables

Data Write Enable

Data Output Enable

Power Supply (+5V/3.3V)

Ground

No Connect

30A179-00

REV. C

This document contains information on a product that is currently released

to production at Dense-Pac Microsystems, Inc. Dense-Pac reserves the right

to change products or specifications herein without prior notice.
