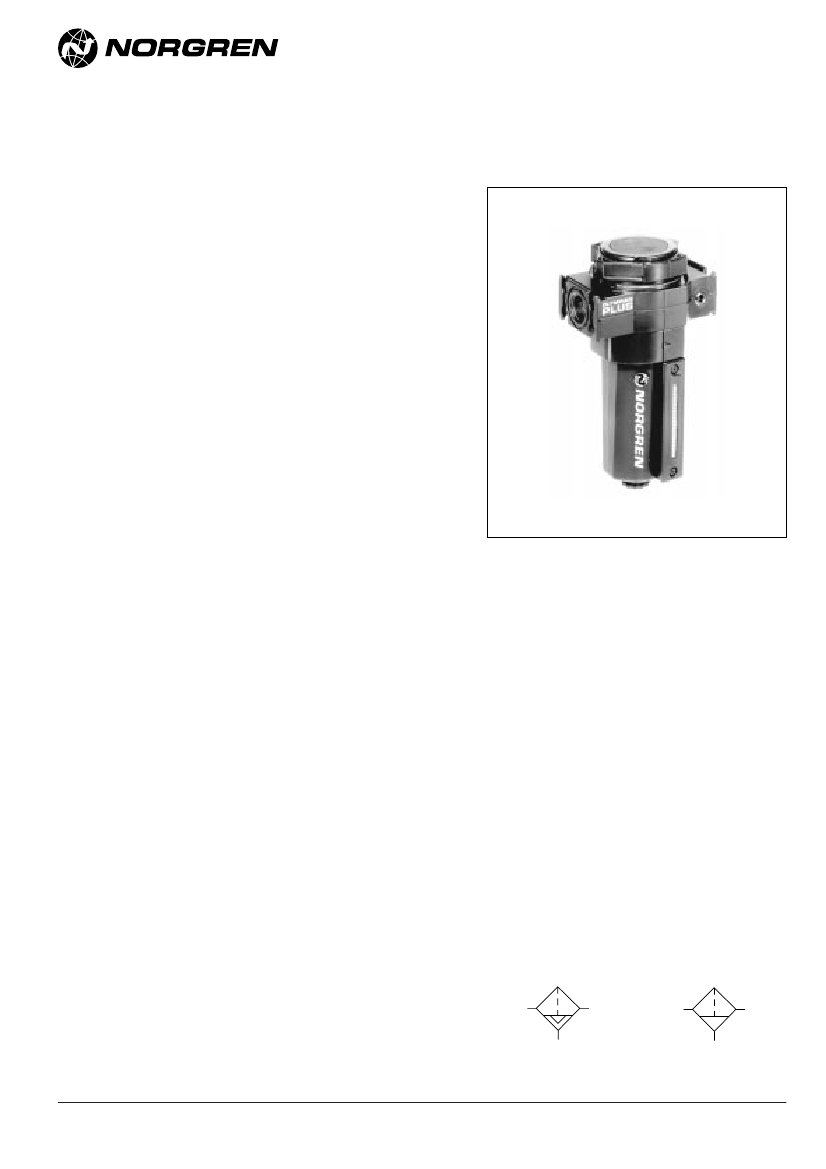

F64G
Olympian Plus
General Purpose Filter
1/4", 3/8", 1/2", 3/4" Port Sizes
q
Olympian Plus plug in design
q
High efficiency water and particle removal
q
Quick release bayonet bowl
q
High visibility prismatic sight glass*
q
Optional service indicator
* UK and other patents pending
Technical Data
Fluid: Compressed air
Maximum pressure:
Guarded transparent bowl: 10 bar (150 psig)
Metal bowl: 17 bar (250 psig)
Operating temperature*:
Guarded transparent bowl: -20° to +50°C (0° to +125°F)
Metal bowl: -20° to +80°C (0° to +175°F)
* Air supply must be dry enough to avoid ice formation at temperatures below +2°C
(+35°F).
Partical removal: 5 µm, 25 µm or 40 µm. Within ISO 8573-1,
Class 3 and Class 5
Typical flow at 6,3 bar (90 psig) inlet pressure and 0,5 bar (7 psig)
pressure drop:
5 µm element: 55 dm
3
/s (116 scfm)
40 µm element: 70 dm
3
/s (148 scfm)
Automatic drain connection: 1/8"
Automatic drain operating conditions:
Minimum pressure: 0,7 bar (10 psig). Drain opens when bowl
pressure drops below 0,2 bar (3 psig).
Minimum air flow: 1 dm
3
/s (2 scfm) required to close drain.
Nominal bowl size: 0,2 litre (7 fluid ounce)
Materials:
Body: Zinc
Yoke: Zinc
Metal bowl: Aluminium
Standard metal bowl prismatic liquid level
indicator lens: Grilamid
Optional metal bowl sight glass: Pyrex
Optional transparent bowl: Polycarbonate
Element: Sintered plastic
Elastomers: Synthetic rubber
Optional service life indicator:
Body: Transparent nylon.
Internal parts: Acetal
Spring: Stainless steel
Elastomers: Nitrile
Ordering Information
See
Ordering Information
on the following
pages.
ISO Symbols
Automatic Drain
Manual Drain
7/97
Our policy is one of continuous research and development.
We reserve the right to amend, without notice, the specifications given in this document.
N/AL.8.240.100.01
F64G
Typical Performance Characteristics
FLOW CHARACTERISTICS
bar g
0,8
1
PRESSURE DROP
0,6
8
psig
PORT SIZE: 1/2"
40
µm
ELEMENT
INLET PRESSURE - bar g (psig)
2,5
(36)
4,0
(58)
6,3
(91)
8,0 10,0
(116) (150)
6
0,4
4
0,2
2
0
0
0
0
20
40
40
80
60
120
AIR FLOW
80
160
100
200
dm
3
/s
240 scfm
Ordering Information.
Models listed include ISO G threads, automatic drain, metal bowl, 40 µm element. Models do not include the
service life indicator.
Port Size
G1/4
G3/8
G1/2
G3/4
Model
F64G-2GN-AD3
F64G-3GN-AD3
F64G-4GN-AD3
F64G-6GN-AD3
Flow
†
dm
3
/s (scfm)
33 (70)
66 (140)
70 (148)
N.A.
Weight kg (lb)
1,42 (3.13)
1,42 (3.13)
1,32 (2.91)
1,72 (3.79)
† Typical flow with a 40 µm element at 6,3 bar (90 psig) inlet pressure and a 0,5 bar (7 psig) pressure drop.
For replacement Filter (without yoke) substitute ‘N’ at the 5th and 6th digits eg: F64G-NNN-AD3.
Alternative Models
Port Size
1/4"
3/8"
1/2"
3/4"
Threads
PTF
ISO Rc taper
ISO G parallel
Service Life Indicator
With
Without
Substitute
2
3
4
6
Substitute
A
B
G
Substitute
D
N
F 6 4 G
-
5 5 5
-
55 5
Element
5 µm
25 µm
40 µm
Substitute
1
2
3
Bowl
Metal with liquid level indicator
Transparent with guard
Closed bowl*
Drain
Manual
Auto drain
* For vacuum use.
Substitute
D
P
E
Substitute
M
A
Accessories
Wall Mounting Bracket
74504-50
Service Indicator
Factory fit option only
See alternative models table
N/AL.8.240.100.02
Our policy is one of continuous research and development.
We reserve the right to amend, without notice, the specifications given in this document.
7/97
F64G

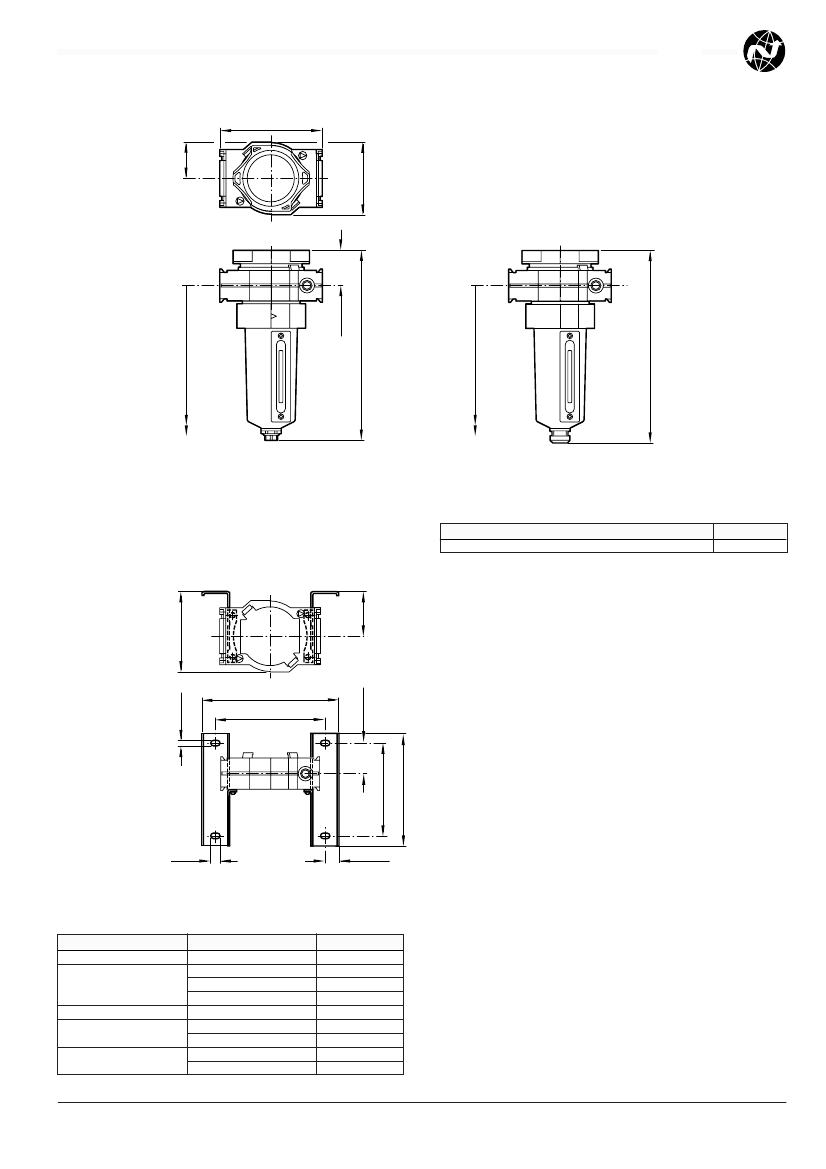

Dimensions mm (inches)
105 (4.13)*
37 (1.46)
37 (1.46)†
74 (2.91)
217 (8.54)†
201 (7.91)†
† Minimum clearance required to remove bowl.
*
157 mm (6.18") for G3/4 models
Bracket Mounting
Use 8 mm (5/16") screws to mount bracket to wall.
Bracket Kit Reference
Item
Wall Bracket
Part Number
74504-50
85 (3.35)
8,2 (0.32)
143 (5.63)
114 (4.49)
30,5 (1.20)
48 (1.89)
11 (0.43)
14,5 (0.57)
Service Kits
Item
Service kit
Elements
Service Life Indicator
Liquid level lens kit
Replacement drains
Prismatic
Pyrex
Automatic
Manual
Type
Seal and gasket
5 µm
25 µm
40 µm
Part Number
4380-200
4338-01
4338-99
4338-02
5797-50
4380-040
4380-041
3000-97
684-84
Service kit includes port seals, louvre o-ring, bowl o-ring and drain gasket.
7/97
Our policy is one of continuous research and development.
We reserve the right to amend, without notice, the specifications given in this document.
110 (4.33)
93 (3.66)
224 (8.82)†
208 (8.19)†
N/AL.8.240.100.03
F64G
Warning
These products are intended for use in industrial compressed air
systems only. Do not use these products where pressures and
temperatures can exceed those listed under
‘Technical Data’.
Before using these products with fluids other than those specified, for
non-industrial applications, life-support systems, or other applications not
within published specifications, consult NORGREN.
Through misuse, age, or malfunction, components used in fluid
power systems can fail in various modes. The system designer is warned
to consider the failure modes of all component parts used in fluid power
systems and to provide adequate safeguards to prevent personal injury or
damage to equipment in the event of such failure.
System designers must provide a warning to end users in the
system instructional manual if protection against a failure mode
cannot be adequately provided.
System designers and end users are cautioned to review specific
warnings found in instruction sheets packed and shipped with these
products.
Water vapor will pass through these units and will condense into
liquid if air temperature drops in the downstream system. Install an air
dryer if water condensation could have a detrimental effect on the
application.
N/SH.8.240.100.04
Issue No.1 Revision 0
Our policy is one of continuous research and development.
We reserve the right to amend, without notice, the specifications given in this document.
7/97
