SDA4430-1R5M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SDA4430-1R5M

SDA4430-1R5M: DescriptionGeneral Purpose Inductor, 1.5uH, 20%, 1 Element, Ferrite-Core, SMD, 1515, CHIP, 1515, ROHS COMPLIANT; CategoryPassive components inductor; File Size76KB，1 Pages; ManufacturerAssociated Components Technology Inc.; Environmental Compliance

Download Datasheet Parametric View All

SDA4430-1R5M Overview

General Purpose Inductor, 1.5uH, 20%, 1 Element, Ferrite-Core, SMD, 1515, CHIP, 1515, ROHS COMPLIANT

SDA4430-1R5M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Associated Components Technology Inc.
package instruction	1515
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1515
core material	FERRITE
DC Resistance	0.013 Ω
Nominal inductance(L)	1.5 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SDA4430
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Maximum rated current	1.45 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

New Product

FEATURES

RoHS compliant

- High current handling capacity

- Ultra thin

- Low profile

- A perfect fit for various applications including

DC-DC converters, laptops and mobile devices.

ELECTRICAL SPECIFICATIONS

- Inductance range

- Test condition (1uH - 8.2uH)

- Test condition (10uH - 6.8mH)

- Test equipment

PHYSICAL SPECIFICATIONS

- Operating temp.

- Core

- Packaging

- Tape & reel spec.

-25ºC to +105ºC

Ferrite

2500 pieces per reel

12 mm embossed carrier

330 mm

3.85 + 0.30

3.0 max

4.4 + 0.4

1.6 ref

0.5 ref

1uH to 6.8mH

100kHz @ 0.25Vrms

1kHz @ 0.25Vrms

Quadtech 1750 LCR Meter

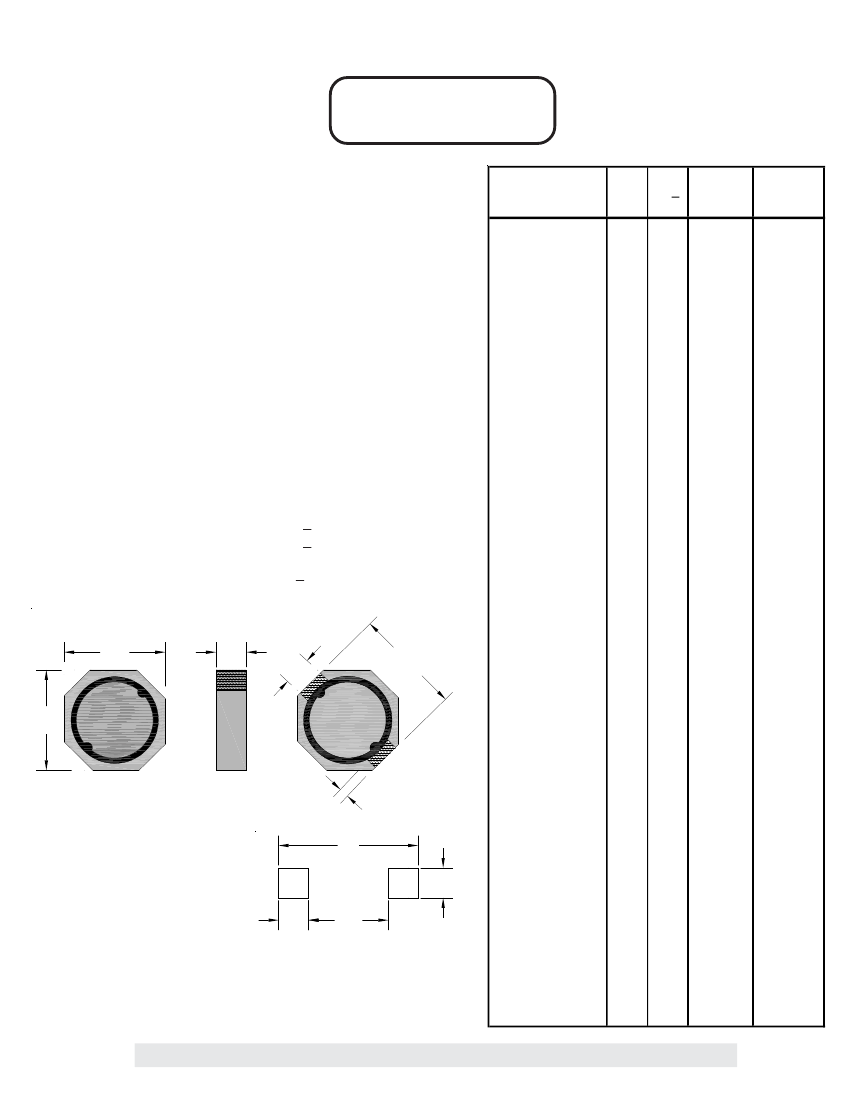

SURFACE MOUNT

SHIELDED POWER INDUCTOR

SERIES SDA4430

SPECIFICATIONS

Tol

L(uH) % +

1.0

1.2

1.5

2.0

2.2

2.5

2.7

3.3

3.5

3.9

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2700

3300

3900

4700

5600

6800

DCR

(ohms)

max

0.009

0.010

0.013

0.016

0.017

0.018

0.020

0.024

0.025

0.033

0.039

0.044

0.051

0.065

0.092

0.100

0.113

0.125

0.146

0.176

0.214

0.225

0.304

0.324

0.472

0.539

0.608

0.757

0.882

1.13

1.27

1.57

1.93

2.36

2.77

3.52

4.25

4.83

6.26

7.86

9.98

12.17

16.12

22.04

27.50

30.80

35.94

44.01

Rated

Current (A)

(Note 1)

1.90

1.75

1.45

1.25

1.15

1.05

1.00

0.96

0.95

0.87

0.78

0.74

0.68

0.57

0.43

0.38

0.33

0.30

0.28

0.26

0.23

0.21

0.19

0.17

0.156

0.142

0.128

0.116

0.106

0.095

0.087

0.080

0.078

0.073

0.068

0.065

0.056

0.050

0.047

0.043

0.039

0.036

0.029

0.026

0.022

0.020

0.019

0.017

Part Number

SDA4430-1R0M

SDA4430-1R2M

SDA4430-1R5M

SDA4430-2R0M

SDA4430-2R2M

SDA4430-2R5M

SDA4430-2R7M

SDA4430-3R3M

SDA4430-3R5M

SDA4430-3R9M

SDA4430-4R7M

SDA4430-5R6M

SDA4430-6R8M

SDA4430-8R2M

SDA4430-100M

SDA4430-120M

SDA4430-150M

SDA4430-180M

SDA4430-220M

SDA4430-270M

SDA4430-330M

SDA4430-390M

SDA4430-470M

SDA4430-560M

SDA4430-680M

SDA4430-820M

SDA4430-101M

SDA4430-121M

SDA4430-151M

SDA4430-181M

SDA4430-221M

SDA4430-271M

SDA4430-331M

SDA4430-391M

SDA4430-471M

SDA4430-561M

SDA4430-681M

SDA4430-821M

SDA4430-102M

SDA4430-122M

SDA4430-152M

SDA4430-182M

SDA4430-272M

SDA4430-332M

SDA4430-392M

SDA4430-472M

SDA4430-562M

SDA4430-682M

T&R

Tape

Reel

Dimensions in millimeters

Length A

Width B

Height C

Term width E

Term length F

Suggested PCB land pattern

H = 1.9

I = 0.8

J = 4.6

K = 3.0

Notes:

1. Based on

ΔL

30% max or

ΔT

of 40°C

max, whichever occurs first

2. All test data based on 25°C ambient. Part temperature (max ambient + temp rise) must

not exceed 105°C under worst case operating conditions.

Circuit design, other components, PCB trace size and thickness, airflow and

other cooling provisions all effect the part temperature.

Associated Components Technology / Phone 800-234-2645 / Fax 714-265-4810 / Website http://www.act1.com
