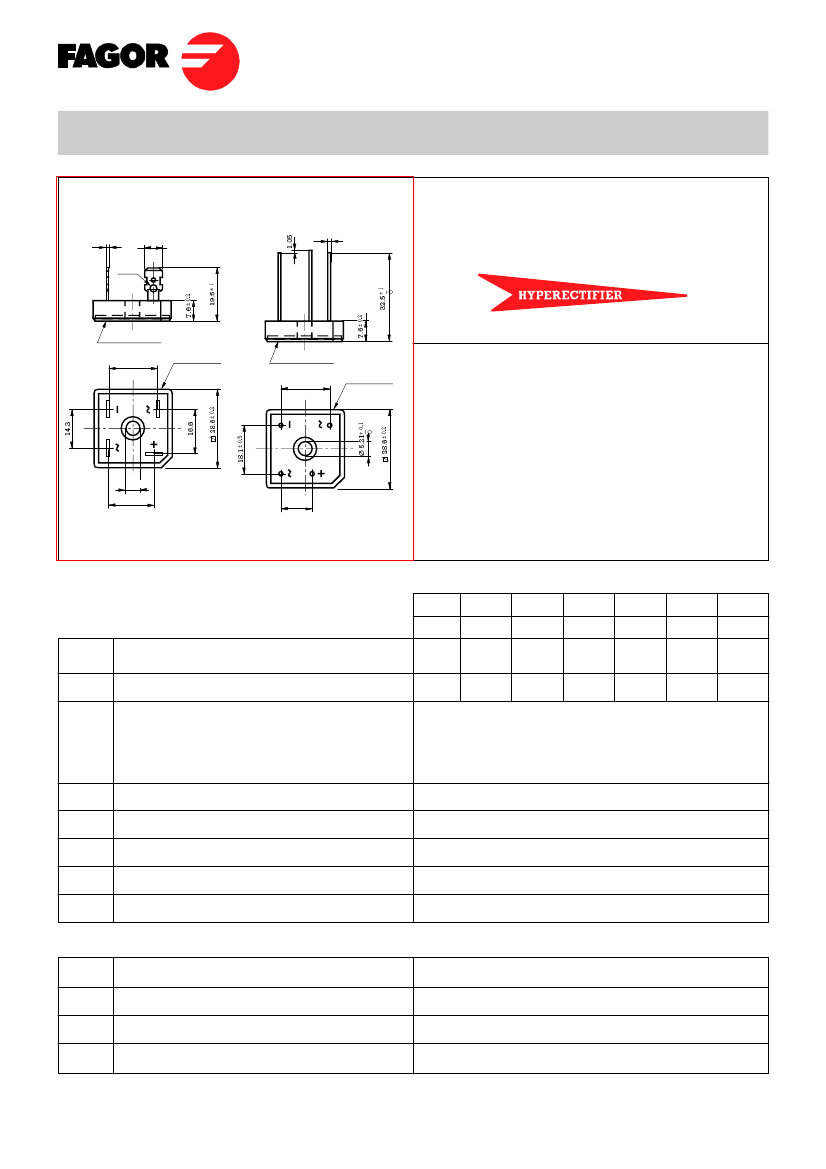

FB2500........ FB2510
FB2500L........ FB2510L
25 Amp. Glass Passivated Bridge Rectifier
Dimensions in mm.
0.8
± 0.05
Ø 1
± 0.05
6.35
± 0.05
Voltage
50 to 1000 V
Current
25 A
®
Ø 2.5
Metal heat sink
Epoxy case
Metal heat sink
Epoxy case
18.1
•
Glass Passivated Junction
•
UL recognized under component
index file number E130180
•
Terminals: FASTON
•
Terminals: WIRE LEADS
18.1
± 0.5
Ø 5.21
16.6
+ 0.1
–
0
11.4
± 0.5
•
Max. Mounting Torque: 25 Kg
x
cm
Lead and polarity identifications
High surge current capability
Maximum Ratings, according to IEC publication No. 134
FB2500 FB2501
FB2500L FB2501L
FB2502 FB2504 FB2506 FB2508 FB2510
FB2502L FB2504L FB2506L FB2508L FB2510L
200
80
400
125
600
250
800
380
1000
500
V
RWM
V
RMS
I
F(AV)
Max. peak working voltage (V)
Recommended input voltage (V)
Max. forward current R-load: At T case = 55
o
C
Max. forward current R-load:
At T case = 90
o
C
With Al Square Chassis (200 cm
2
x 3 mm.)
Tamb = 45
o
C
Recurrent peak forward current
10 ms. peak forward current
I
2
t value for fusing (t = 10 ms)
Operating temperature range
Storage temperature range
50
20
100
40
25 A
17 A
10 A
75 A
300 A
450 A
2
sec
– 55 to + 150 °C
– 55 to + 150 °C
I
FRM
I
FSM
I
2
t
T
j
T
stg
Electrical Characteristics at Tamb = 25 °C
V
F
I
R
R
thj-c
Max. forward voltage drop per element at I
F
= 12.5 A
Max. reverse current per element at V
RRM
d.c.
Typical thermal resistance junction to case
Isolation voltage from case to leads
1.1 V
5µA
1.4
o
C/W
2500 Vac
FB25

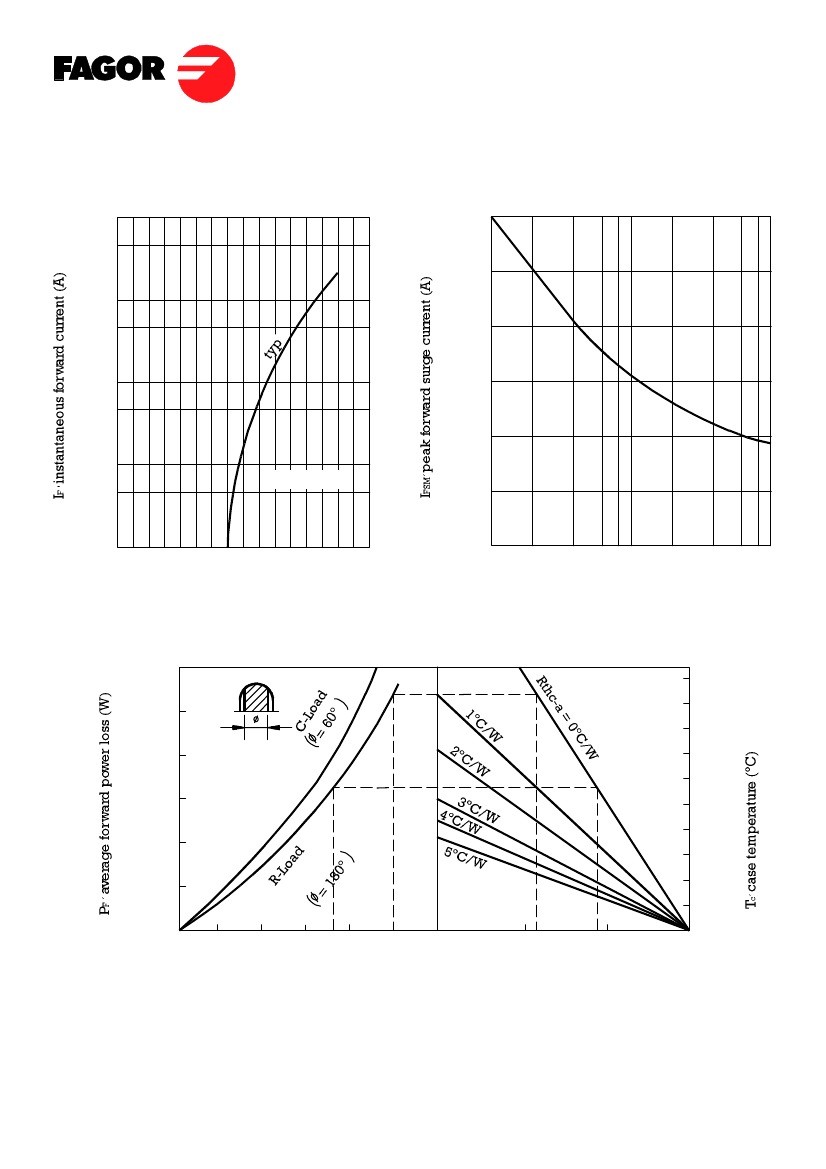

Characteristic Curves
TYPICAL FORWARD CHARACTERISTIC
MAXIMUM NON-REPETITIVE
PEAK FORWARD SURGE CURRENT
1000
500
300
250
100
50
200
10
5
150
100
1
0.5
0.1
Tj = 25ºC
50
0
0
0.4
0.8
1.2
1.6
1
2
4
6
10
20
40
60 100
V
F '
instantaneous forward voltage (V)
Number of cycles at 50Hz
60
50
40
30
20
10
50
60
70
80
90
100
110
120
130
140
0
5
10
15
20
25
0
50
100
150
I
F (AV)´
average forward current (A)
Tamb, ambient temperature (°C)
