INT ERNET DAT A SHEET for Article Number 7000-12021-2340250

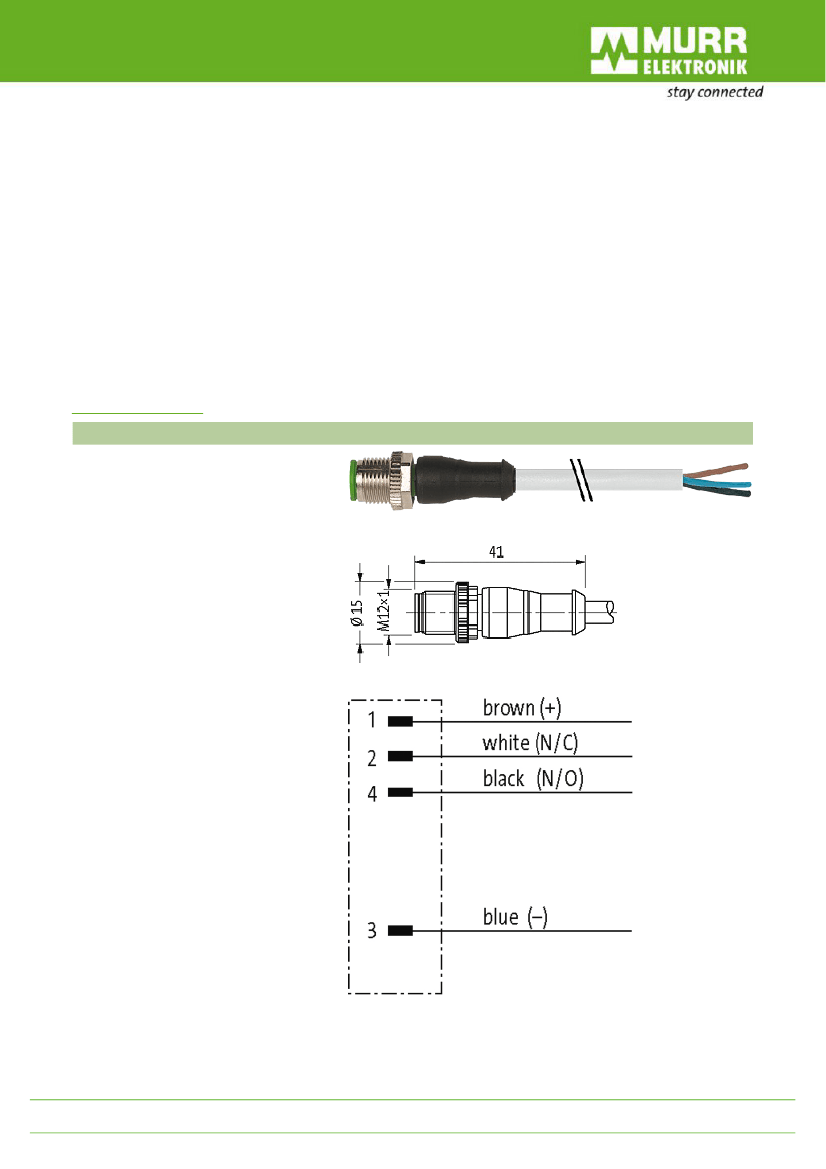

M12 male 0° wit h cable
PUR 4x0.34 gy UL/CSA+drag chain 2,5m
Male straight
M12, 4-pole
with cable sleeves
Plastic housings with good resistance against chemicals and oils. The resistance to
aggressive media should be individually tested for your application. Further details on
request. Further cable lengths on request.
Link t o Product
Illustra tio n
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-12021-2340250
Pro d uc t may d iffe r fro m Imag e
Appro va ls
* only for products with UL/CSA approved cable
cCSAus
Fo rm
Fo rm
Ca bles
No ./d iameter o f wires
Wire iso latio n
C-track p ro p erties
Material (jacket)
Outer Ø
Bend rad ius (mo ving )
T emp erature rang e (fixed )
T emp erature rang e (mo b ile)
Cab le id entificatio n
Cab le typ e
Ap p ro val (cab le)
Cab le weig ht [g /m]
Material (wire)
Resisto r (co re)
Sing le wire Ø (co re)
Co nstructio n (co re)
Diameter (co re)
AWG
Material (wire iso latio n)
4 × 0.34 mm²
PP (b r, wh, b l, b k)
10 Mio .
PUR (UL/CSA)
4.5 mm ±5%
10 × o uter Ø
-40...+80 °C
-25...+80 °C
234
3 (PUR)
cRUus (AWM-Style 20549/10493); CE co nfo rm
36,30
Cu wire, b are
max. 57
Ω/km
(20 °C)
0.1 mm
42 × 0.1 mm (multi-strand wire class 6)
4 × 0.34 mm²
similar to AWG 22
PP
12021
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-12021-2340250
Material p ro p erty (wire iso latio n)
Sho re hard ness (wire iso latio n)
Wire-Ø incl. iso latio n
Co lo r/numb ering o f wires
Strand ing co mb inatio n
Shield
Material (jacket)
Material p ro p erty (jacket)
Sho re hard ness (jacket)
Outer-Ø (jacket)
Co lo r (jacket)
chemical resistance
thermal resistance
No minal vo ltag e
T est vo ltag e
Current lo ad cap acity
T emp erature rang e (fixed )
T emp erature rang e (mo b ile)
Bend rad ius (fixed )
Bend rad ius (mo ving )
No . o f b end ing cycles (C-track)
T ravel sp eed (C-track)
Acceleratio n (C-track)
T o rsio n stress
No . o f to rsio n cycles
T o rsio n sp eed
Jacket Co lo r
T ec hnic a l da ta
Op erating vo ltag e
Op erating vo ltag e (o nly UL listed )
Op erating current p er co ntact
Rated surg e vo ltag e
Material g ro up
Co d ing
Lo cking o f p o rts
Co mp ressio n g land
Pro tectio n
Lo cking material
Material
CFC-, halo g en-, cad mium-, silico ne- and lead -free
70 ±5 D
1.25 mm ±5%
b r, b k, b l, wh
4 wires twisted
no
PUR
CFC-, halo g en-, cad mium-, silico ne- and lead -free, matt, lo w-
ad hesio n, machine easy to p ro cess, ab rasio n-resistant,
hyd ro lysis and micro b ial resistant
90 ±5 A
4.5 mm ±5%
g ray
g o o d resistance to o il, g aso line and chemicals (EN 60811-404)
flame retard ant to UL 1581 VW1 / CSA FT 1 / IEC 60332-1, IEC
60332-2-2
300 V AC
2 500 V AC
to DIN VDE 0298-4
-40...+80 °C, (+90 °C at max. 10 000 o p erating ho urs)
-25...+80 °C, (+90 °C at max. 10 000 o p erating ho urs)
5 × o uter Ø
10 × o uter Ø
max. 10 Mio . (25 °C)
max. 3 m/s
max. 10 m/s²
±180°/m
max. 2 Mio . (25 °C)
35 cycles p er min
g ray
max. 250 V AC/DC
max. 30 V AC/DC
max. 4 A
2.5 kV
IEC 60664-1, categ o ry I
A-co d ed
Screw thread M12 × 1 mm (reco mmend ed to rq ue 0.6 Nm) self-
securing
M12 (SW13)
IP65, IP66K, IP67 inserted and tig htened (EN 60529)
Zinc d ie casting , matte nickel p lated
PUR
The info rmatio n in this b ro c hure has b e e n c o mp ile d with the utmo s t c are .
Liab ility fo r the c o rre c tne s s c o mp le te ne s s and to p ic ality o f the info rmatio n is re s tric te d to g ro s s ne g lig e nc e . Ve rs io n: 02/19
Mu r r e l e ktr o n i k G m b H | Fa l ke n s tr a ße 3 | 71570 O p p e n we i l e r | Fo n +49 ( 71 91) 47-0 | Fa x +49 ( 71 91) 47-491000 | s h o p @ m u r r e l e ktr o n i k.co m |
s h o p .m u r r e l e ktr o n i k.co m
INT ERNET DAT A SHEET for Article Number 7000-12021-2340250
suitab le fo r co rrug ated tub e (internal Ø)
Genera l da ta
Stand ard s
Po llutio n Deg ree
T emp erature rang e
Co m m erc ia l da ta
co untry o f o rig in
custo ms tariff numb er
EAN
eClass
Packag ing unit
10 mm
DIN EN 61076-2-101 (M12)
3
-25...+85 °C, d ep end ing o n cab le q uality
DE
85444290
4048879218276
27279218
1
