PC107AVGHU100LC datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> PC107AVGHU100LC

PC107AVGHU100LC: DescriptionMultifunction Peripheral, CMOS, CBGA503, 33 X 33 MM, 3.20 MM HEIGHT, 1.27 MM PITCH, HITCE, CERAMIC, BGA-503; CategoryThe embedded processor and controller Microcontrollers and processors; File Size798KB，47 Pages; Manufacturere2v technologies

Download Datasheet Parametric View All

PC107AVGHU100LC Overview

Multifunction Peripheral, CMOS, CBGA503, 33 X 33 MM, 3.20 MM HEIGHT, 1.27 MM PITCH, HITCE, CERAMIC, BGA-503

PC107AVGHU100LC Parametric

Parameter Name	Attribute value
Maker	e2v technologies
Parts packaging code	BGA
package instruction	BGA,
Contacts	503
Reach Compliance Code	unknow
Other features	ALSO REQUIRES 3.3V SUPPLY
Address bus width	32
boundary scan	YES
Bus compatibility	POWERPC 603E; POWERPC 740; POWERPC 750; PC7400; 60X
maximum clock frequency	66 MHz
External data bus width	64
JESD-30 code	S-CBGA-B503
length	33 mm
Number of I/O lines
Number of terminals	503
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	BGA
Package shape	SQUARE
Package form	GRID ARRAY
Certification status	Not Qualified
Maximum seat height	3.2 mm
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
technology	CMOS
Terminal form	BALL
Terminal pitch	1.27 mm
Terminal location	BOTTOM
width	33 mm

Preview

Download Datasheet

View All

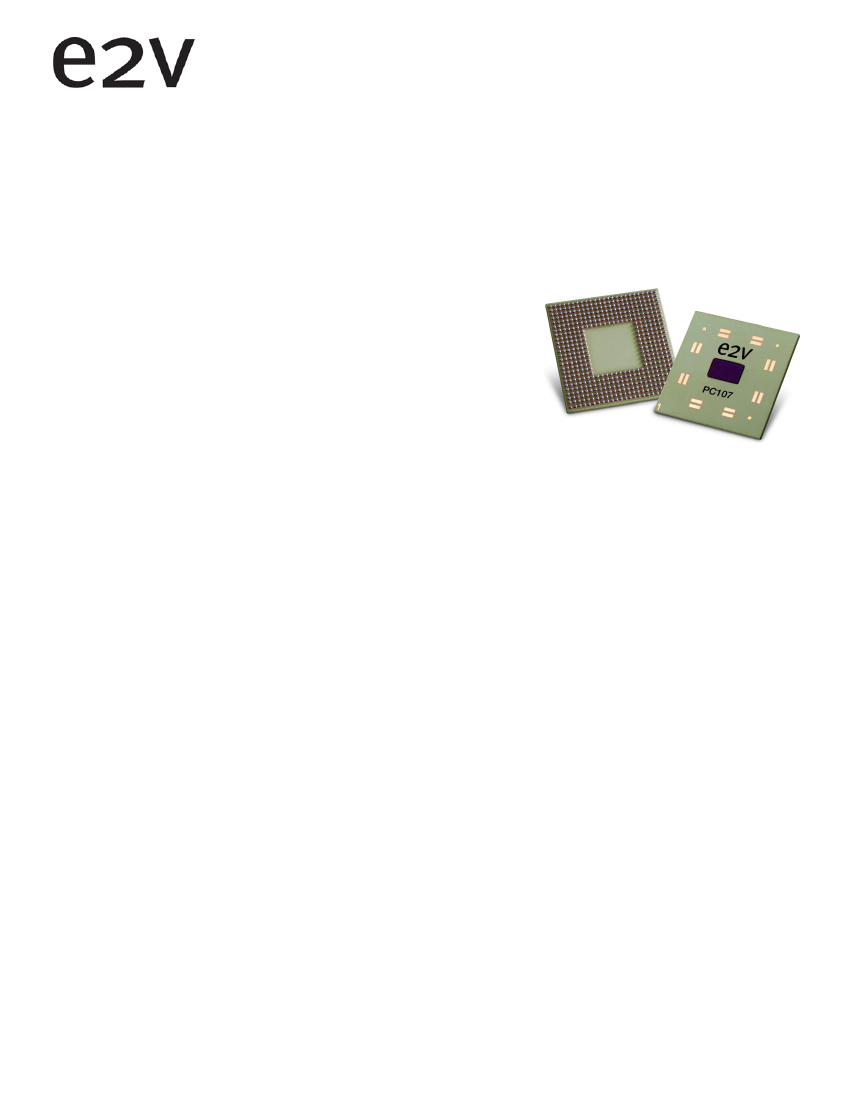

PC107A

PCI Bridge Memory Controller

Datasheet

Features

•

Processor Bus Frequency up to 100 MHz

•

64- or 32-bit Data Bus and 32-bit Address Bus

•

Provides Support for Either Asynchronous SRAM, Burst SRAM, or Pipelined

•

Burst SRAM

Compliant with PCI Specification, Revision 2.1

PCI Interface Operates up to 66 MHz/5.0V Compatible

IEEE

1149.1 Compliant, JTAG Boundary-scan Interface

PD Max = 1W (66 MHz), Full Operating Conditions

Nap, Doze and Sleep Modes for Power Savings

Two-channel Integrated DMA Controller

Message Unit

– Intelligent Input/Output (Two-wire Interface) Message Controller

– Two Door Bell Registers

– Inbound and Outbound Messaging Registers

Inter-integrated Circuit (Two-wire Interface) Controller, Full Master/Slave Support

Embedded Programmable Interrupt Controller (EPIC)

– Five Hardware Interrupts (IRQs) or 16 Serial Interrupts

– Four Programmable Timers

•

Description

The PC107A PCI Bridge/Integrated Memory Controller provides a bridge between the Peripheral Component Interconnect,

(PCI) bus and PowerPC

603e, PowerPC 740, PowerPC 750 or PC7400 microprocessors.

PCI support allows system designers to design systems quickly using peripherals already designed for PCI and other stan-

dard interfaces available in the personal computer hardware environment. The PC107A provides many other necessities

for embedded applications including a high-performance memory controller and dual processor support, 2-channel flexible

DMA controller, an interrupt controller, an I

O-ready message unit, an inter-integrated circuit controller (

Two-wire Interface

and low skew clock drivers. The PC107A contains an Embedded Programmable Interrupt Controller (EPIC) featuring five

hardware interrupts (IRQ’s) as well as sixteen serial interrupts along with four timers. The PC107A uses an advanced, 2.5V

HiP3 process technology and is fully compatible with TTL devices.

Visit our website: www.e2v.com

for the latest version of the datasheet

e2v semiconductors SAS 2007

0842E–HIREL–04/07
