853-11-04097-90 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 853-11-04097-90

853-11-04097-90: DescriptionPCMCIA Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size133KB，3 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric Compare View All

853-11-04097-90 Overview

PCMCIA Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle

853-11-04097-90 Parametric

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	TYPE II I/O HEADERS
body width	0.109 inch
body length	0.7 inch
Body/casing type	RECEPTACLE
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	AU ON PD-NI
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	10000 Cycles
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
reliability	COMMERCIAL
Terminal length
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

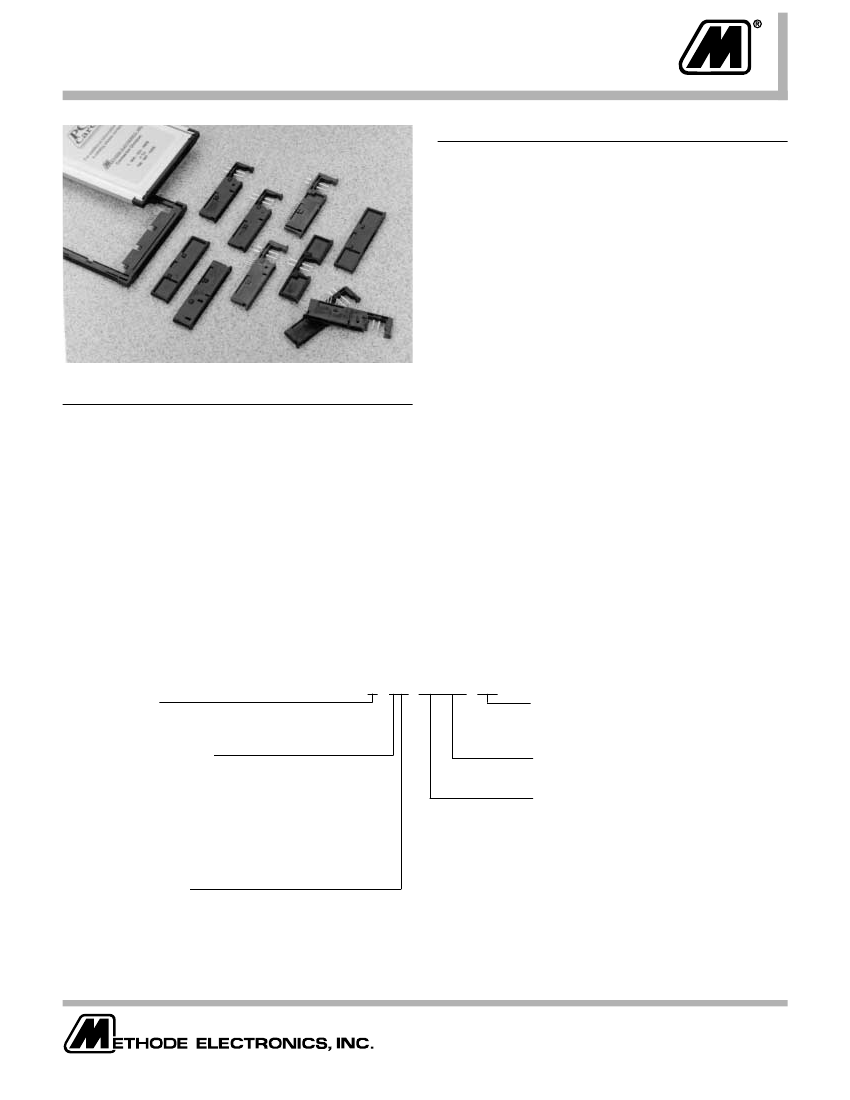

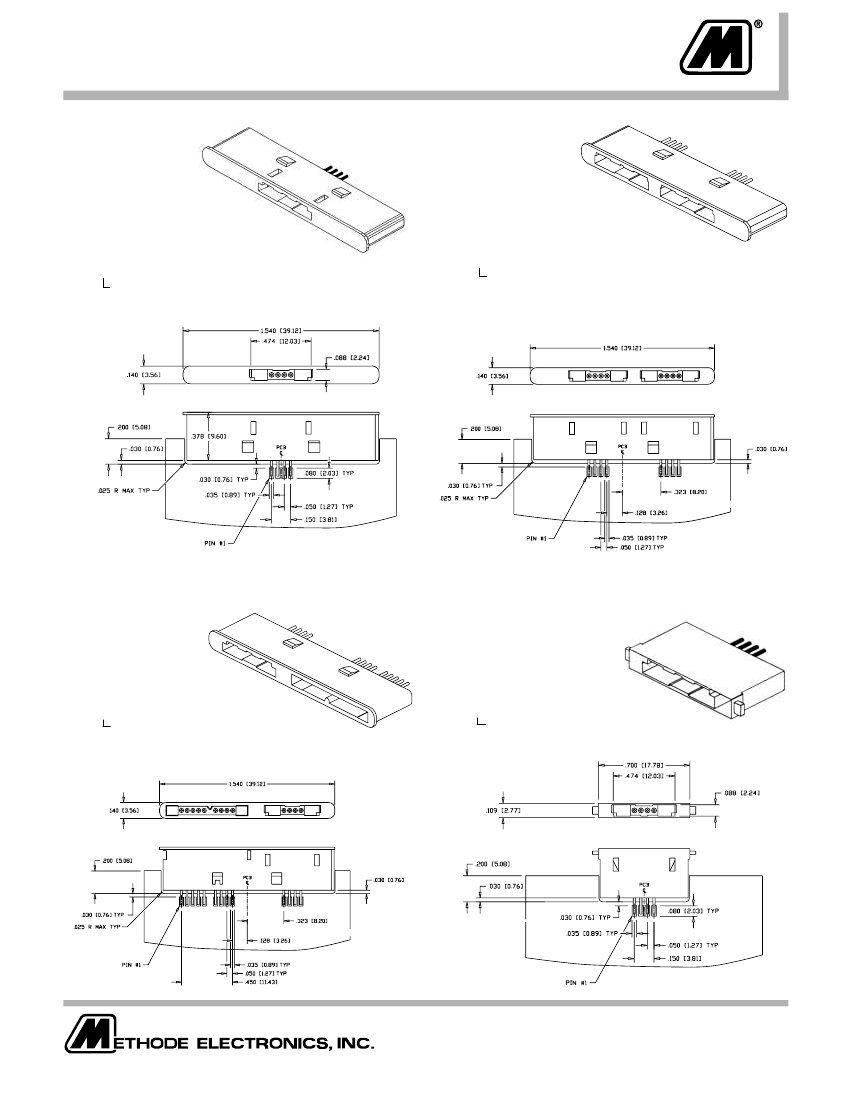

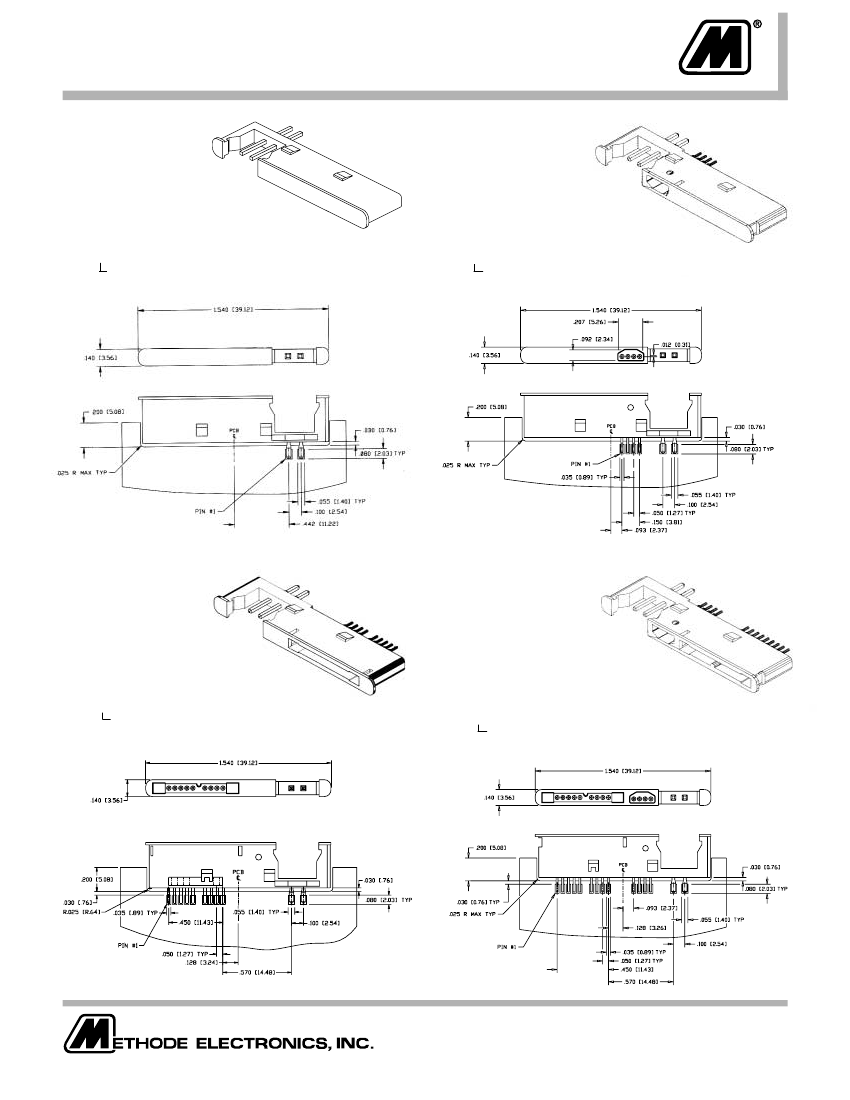

Type II I/O Headers 852/853 Series

Specifications

Materials

Contact Material:

Copper alloy

Insulator Material:

1 = Liquid crystal polymer (LCP)

2 = Polyphenylene oxide (PPO)

3 = Polycarbonate (PC)

Processing Temperature:

LCP recommended for

hot bar solder processing

Operating Temperature:

-55°C to +85°C

Plating:

90 = Select gold flash over palladium nickel in

mating area with tin/lead in solder area

23 = Select gold in mating area with tin/lead in

solder area

Features and Benefits

Single, dual or tri-port modular options offer multiple

I/O functions

Snap-in attachment to back end of card frame

provides easy assembly

Simple and proven contact design for consistent

performance

Mechanical Performance

Durability:

10,000 mating cycles

Vibration:

Per MIL-STD-202F, Method 204D

Shock:

Per MIL-STD-202F, Method 213B

Electrical Performance

Current Rating:

0.5 A DC

2 Pin Header: 3.0 A DC

Contract Resistance:

40 milliohms (initial)

∆

resistance

≤

20 milliohms (final)

MEMORY CARD I/O HEADERS

PART NUMBER DESCRIPTION

85X - XX - XXXXX - XX

SERIES NUMBER

2 = UNIVERSAL I/O PORT

3 = CUSTOM I/O PORT

NUMBER OF CABLE PORTS

1 = 2 POSITION (CENTERED)

= 2 POSITION (OFFSET)

= 4 POSITION

2 = 2 AND 4 POSITIONS

= 2 AND 9 POSITIONS

= 4 AND 4 POSITIONS

= 4 AND 9 POSITIONS

3 = 2, 4, AND 9 POSITIONS

INSULATOR MATERIAL

1 = LCP

2 = PPO

3 = PC

PLATING

23 = 2 POSITION PORT PRESENT

90 = WITHOUT 2 POSITION PORT

PCB OFFSET

097 = STANDARD (.097)

NUMBER OF CONTACT HOLES

02 = 2 POSITION (CENTERED AND OFFSET)

04 = 4 POSITION

06 = 2 AND 4 POSITIONS

08 = DUAL 4 POSITIONS

11 = 2 AND 9 POSITIONS

13 = 4 AND 9 POSITIONS

15 = 2, 4, AND 9 POSITIONS

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com

853-11-04097-90 Related Products

	853-11-04097-90	852-11-04097-90
Description	PCMCIA Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle	PCMCIA Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle
Maker	Methode Electronics Inc.	Methode Electronics Inc.
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Other features	TYPE II I/O HEADERS	TYPE II I/O HEADERS
body width	0.109 inch	0.14 inch
body length	0.7 inch	1.54 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contact to complete cooperation	AU ON PD-NI	AU ON PD-NI
Contact completed and terminated	TIN LEAD	TIN LEAD
Contact point gender	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO
Durability	10000 Cycles	10000 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e0	e0
MIL compliance	NO	NO
Plug contact pitch	0.05 inch	0.05 inch
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	1	1
Number of ports	1	1
Number of rows loaded	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
Plating thickness	FLASH inch	FLASH inch
Rated current (signal)	0.5 A	0.5 A
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER
Total number of contacts	4	4
