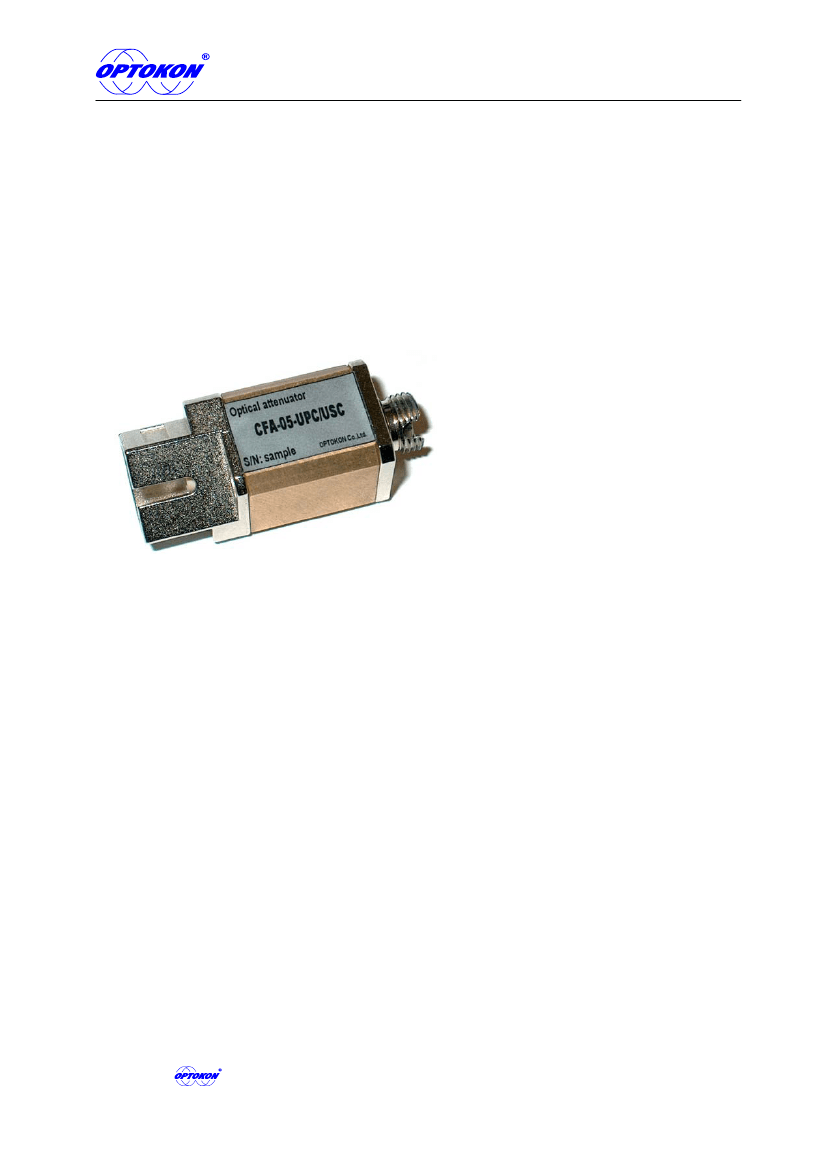

CFA series – Singlemode
Adaptor Type (Female/Female) Attenuators
Description:
The adaptor type singlemode attenuators are used directly on the ends of fiberoptic jumpers prior to
installation in adapters. These attenuators provide a fixed level of attenuation and feature excellent
return loss. Low wavelength dependency determines them for using in WDM and DWDM transmission
systems. The CFA series attenuators are available in UPC or APC polish for SC, FC connectors and UPC
for ST connectors.
Features:
•
•
•
•
•
Precise attenuation
Return loss:
!
UPC 50 dB
!
APC 60 dB
Low ripple broadband design for operation at wavelength 1250 to 1650 nm
Attenuation range 1, 5, 10, 15 , 20 and 30 dB
High power endurance
Application:
•
•
•
Fiberoptic systems
Receiver padding for optical receiver protection
Optical power equalization
Linearity and dynamic range testing in laboratory equipment
•
is registered trademark of Optokon Co., Ltd. Other names and trademarks mentioned herein may be the trademarks of their respective owners.
Optokon Co., Ltd., Cerveny Kriz 250, 586 02 Jihlava, Czech Republic
tel. +420 564 040 111, fax +420 564 040 134, +420 567 311 292, www.optokon.com, info@optokon.cz
ATT_01-03_EN
12/09/2003
1
FIBER OPTIC TECHNOLOGY
CALIBRATION LABORATORY
Specifications:
Parameter
Attenuation range
Operational wavelength
Stability'
attenuation range 1 dB
attenuation range 5 dB
attenuation range >10 dB
Return loss
UPC polishing
APC polishing
Power durability
Operating temperature
Storage temperature
1) –40 to +80°C over 10 cycles
>50 dB
>60 dB
250 mW
-25 to 70 °C
-40 to 80 °C
1, 5, 10, 15, 20, 30 dB
1250 to 1650 nm
±0.5 dB
±0.8 dB
±10%
Ordering Code:
CFA - XX - XXX / YYY
Insertion Loss
01
1 dB
05
5 dB
10
10 dB
15
15 dB
20
20 dB
30
30 dB
UPC
NPC
USC
NSC
USL
Adaptor Type
FC/UPC
FC/APC*
SC/UPC
SC/APC
ST/UPC
*) Note:
NPC
NPC215
Seikoh Giken, JDSU, Methode standard
(key width 2.05 mm)
SII standard
- on demand
(key width 2.15 mm)

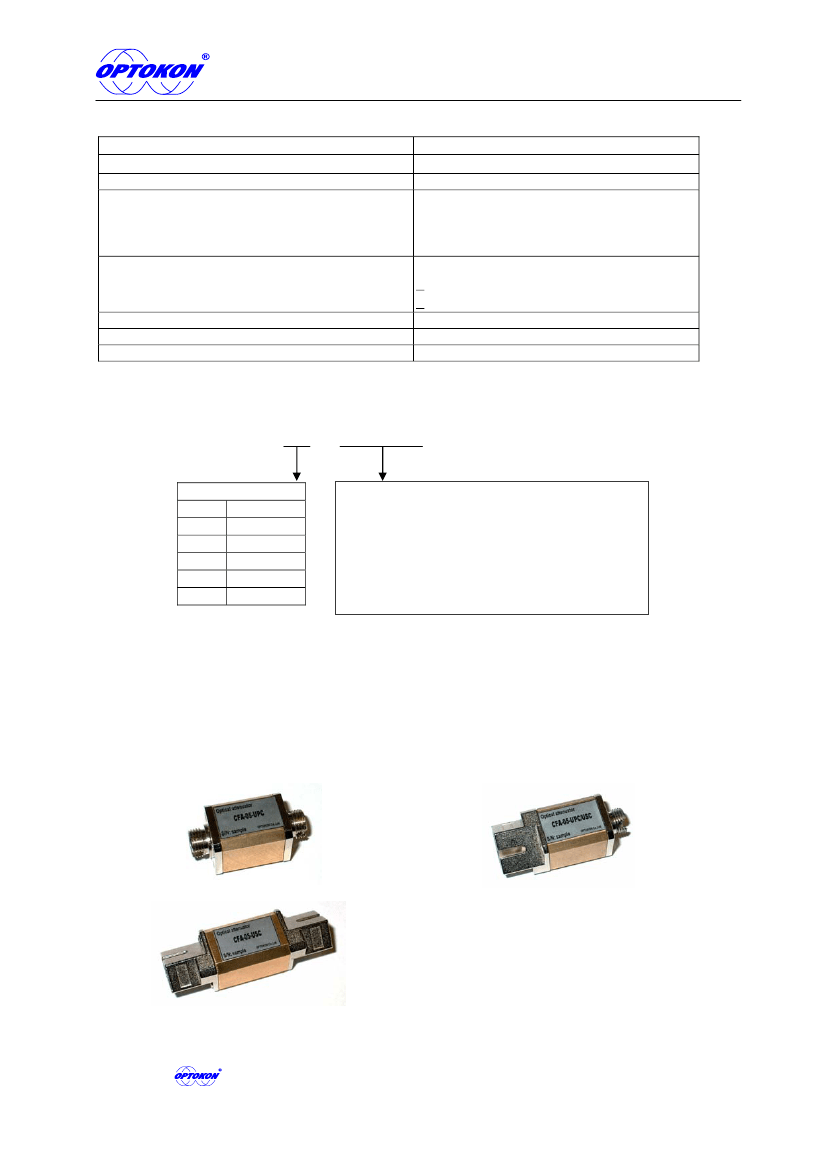

Samples of Attenuators:
CFA-05-UPC
CFA-05-UPC-USC
CFA-05-USC
LC
®
and ST
®
are trademark of Lucent Technologies, Inc.
ATT_01-03_EN
12/09/2003
is registered trademark of Optokon Co., Ltd. Other names and trademarks mentioned herein may be the trademarks of their respective owners.
Optokon Co., Ltd., Cerveny Kriz 250, 586 02 Jihlava, Czech Republic
tel. +420 564 040 111, fax +420 564 040 134, +420 567 311 292, www.optokon.com, info@optokon.cz
2
