CBDPB25W3M0/25W3F0X

Description
D Subminiature Connector, 25 Contact(s), Male-Female, Solder Terminal,
CategoryThe connector    The connector
File Size110KB,5 Pages
ManufacturerPositronic Industries
Download Datasheet Parametric View All

CBDPB25W3M0/25W3F0X Overview

D Subminiature Connector, 25 Contact(s), Male-Female, Solder Terminal,

CBDPB25W3M0/25W3F0X Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerPositronic Industries
Reach Compliance Codeunknow
Other featuresPANEL MOUNT, OTHER STACKING CONNECTOR: 25 CONTACTS, SHELL SIZE: 4/C
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationGOLD FLASH OVER NICKEL
Contact completed and terminatedGOLD FLASH OVER NICKEL
Contact point genderMALE-FEMALE
Contact materialCOPPER ALLOY
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED POLYESTER
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberCBDPB
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsYES
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell surfaceTIN
Shell materialSTEEL
Housing size4/C
Termination typeSOLDER
Total number of contacts25
UL Flammability Code94V-0
Combo
Dual Port
Series
PROFESSIONAL QUALITY PRINTED BOARD MOUNT COMBINATION POWER AND
SIGNAL CONTACT DUAL PORT VERTICALLY STACKED CONNECTOR ASSEMBLY
FOR SHELTERED INDOOR/OUTDOOR ENVIRONMENTAL APPLICATIONS
Power and Signal
Contacts
U.L. Recognized
File #E49351
CSA Recognized
File #LR54219
Telecommunication
U.L. File #14095

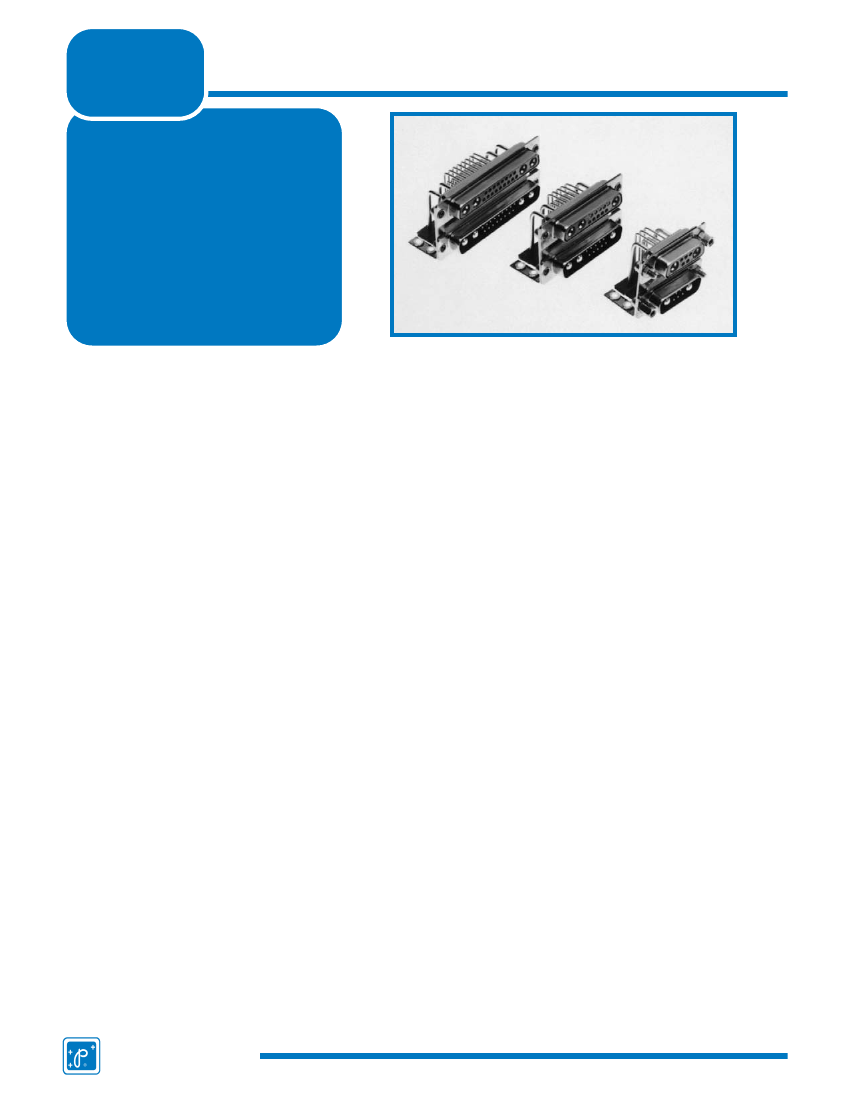

The Combo-Dual Port connector series offers several combinations of
power and signal contacts within the same connector assembly. Fifteen
different combinations of power and signal contact stacked assemblies
are available within four standard shell sizes. The connector assembly
can be partially populated with either signal or power contacts installed
in the connector bodies to customer selected contact positions. The
stacked connectors may be spaced apart to two dimensional spacings.
On special order, the 90° printed board mount 15 ampere contacts
may be replaced with size 8 power, shielded or high voltage contacts
having crimp or solder cup terminations. Signal contacts remain in dual
port configuration.
Mounting angle brackets can be ordered riveted to the connector by
specifying R2, R6, R7 and R8 options. Locking systems are available
utilizing 4-40 threaded jackscrew systems, polarized or non-polarized,
or with a quick-release vibration lock system for either front or rear
panel mounted connectors.
Combo-Dual Port Series connectors comply with the dimensional
requirements of IEC 807-2 and DESC 85039.
COMBO-DUAL PORT TECHNICAL CHARACTERISTICS
MATERIALS AND FINISHES:
Insulator:
Polyester, glass filled per MIL-M-24519, UL
94V-0, blue color.
Signal Contacts:
Male contacts–precision machined copper
alloy. Female contacts–precision machined
high tensile phosphor bronze.
Signal Contact Plating:
Gold flash over nickel plate. Other finishes avail-
able upon request.
Power Contacts:
Male contacts-precision machined copper
alloy. Female contacts-precision machined
high tensile copper alloy.
Power Contact Plating:
Gold flash over nickel. Other finishes available
upon request.
Shells:
Steel or brass with tin plate or zinc plate with
dichromate seal. Other materials and finishes
available upon request.
Mounting Spacers
Steel or brass with tin plate or zinc with
and Brackets:
dichromate seal.
Cross Bar:
Nylon, UL 94V-0, black color.
Push-On Fasteners:
Beryllium copper, tin plated.
Jackscrew Systems:
Steel with clear zinc plate or zinc plate with
dichromate seal.
Vibration Lock Systems:
Lock tabs, steel with nickel plate.
MECHANICAL CHARACTERISTICS:
Signal Contacts:
Size 20 male contacts–0.040 inch
[1.0mm] diameter. Female contact-
rugged open entry design.
9 lbs. [40N]
Printed board mount with 90° termina-
tions supported by alignment bar.
Termination diameter 0.028 inch
[0.71mm].
Size 8 male contact-0.142 inch
[3.61mm] diameter. Female contact-
open entry and closed entry options.
22 lbs. [92N]
Printed board mount with 90° terminations
of 0.078 inch [1.98mm] diameter. Size 8
removable solder cup contacts with wire
hole diameters of 0.188 inch [4.78mm],
0.112 inch [2.84mm] and 0.069 inch
[1.75mm].
Male connector shells may be dimpled for
EMI/ESD ground paths.
Trapezoidally shaped shells and polar-
ized jackscrews.
Riveted fasteners with 0.120 inch
[3.05mm] diameter clearance hole, with
4-40 threads or 4-40 threads with nylon
lock insert.
Rapid installation push-on fasteners.
Jackscrews and vibration locking sys-
tem for either front or rear panel mount-
ed connectors.
500 operations minimum per IEC 512-5.
-55°C to +125°C.
10 days.
Contact Retention
In Insulator:
Contact Terminations:
Power Contacts:
Contact Retention
In Insulator:
Contact Terminations:
Shells:
Polarization:
Mounting Bracket
Riveted to Connector:
ELECTRICAL CHARACTERISTICS:
Signal Contacts:
Initial Contact
Resistance:
Power Contacts:
Initial Contact
Resistance:
Proof Voltage:
Insulator Resistance:
Clearance and Creepage
Distance [minimum]:
Working Voltage:
7.5 amperes nominal.
0.008 ohms maximum.
15 ampere nominal for 90° board mount. 10,
20 and 40 ampere nominal are removable
contacts with solder or crimp terminations.
0.0005 ohms max. per 512-2, test 2b
1000 V r.m.s.
5 G ohms.
0.039 inch [1.0mm]
300 V r.m.s.
Mounting To
Printed Board:
Locking Systems:
Mechanical Operations:
Temperature Range:
Damp Heat, Steady State:
CLIMATIC CHARACTERISTICS:

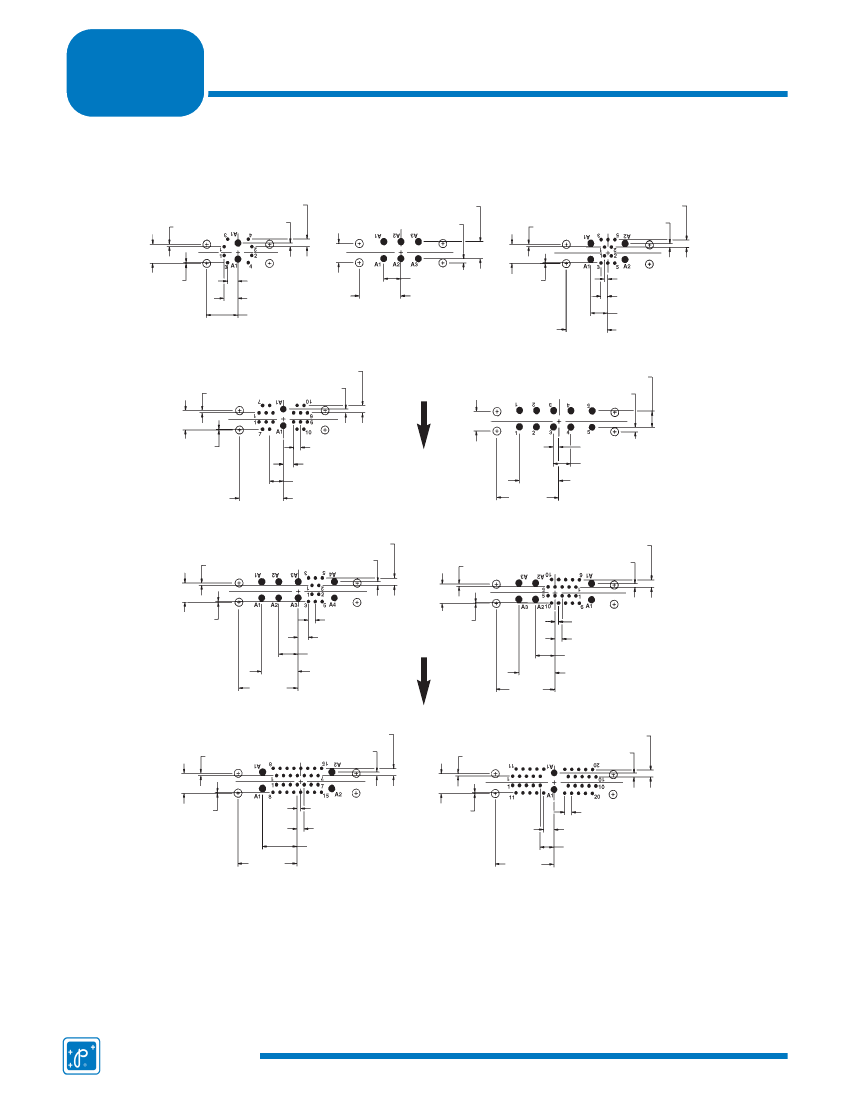

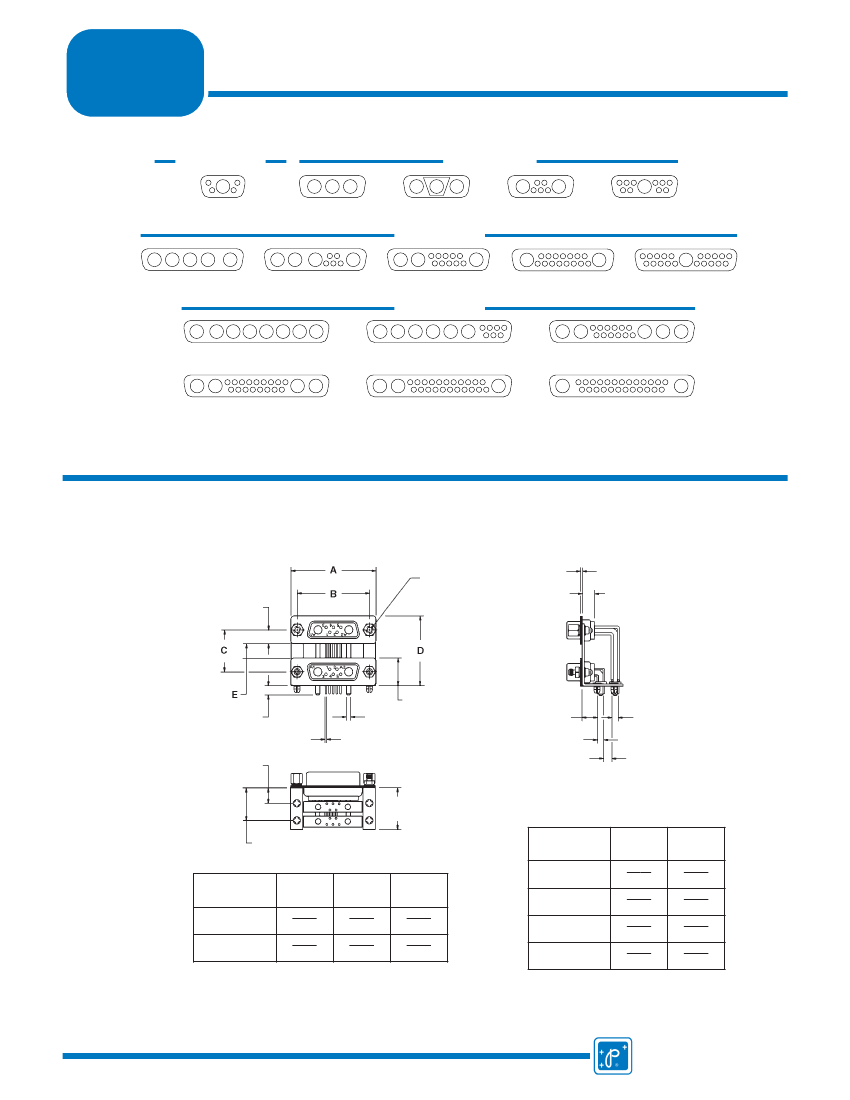

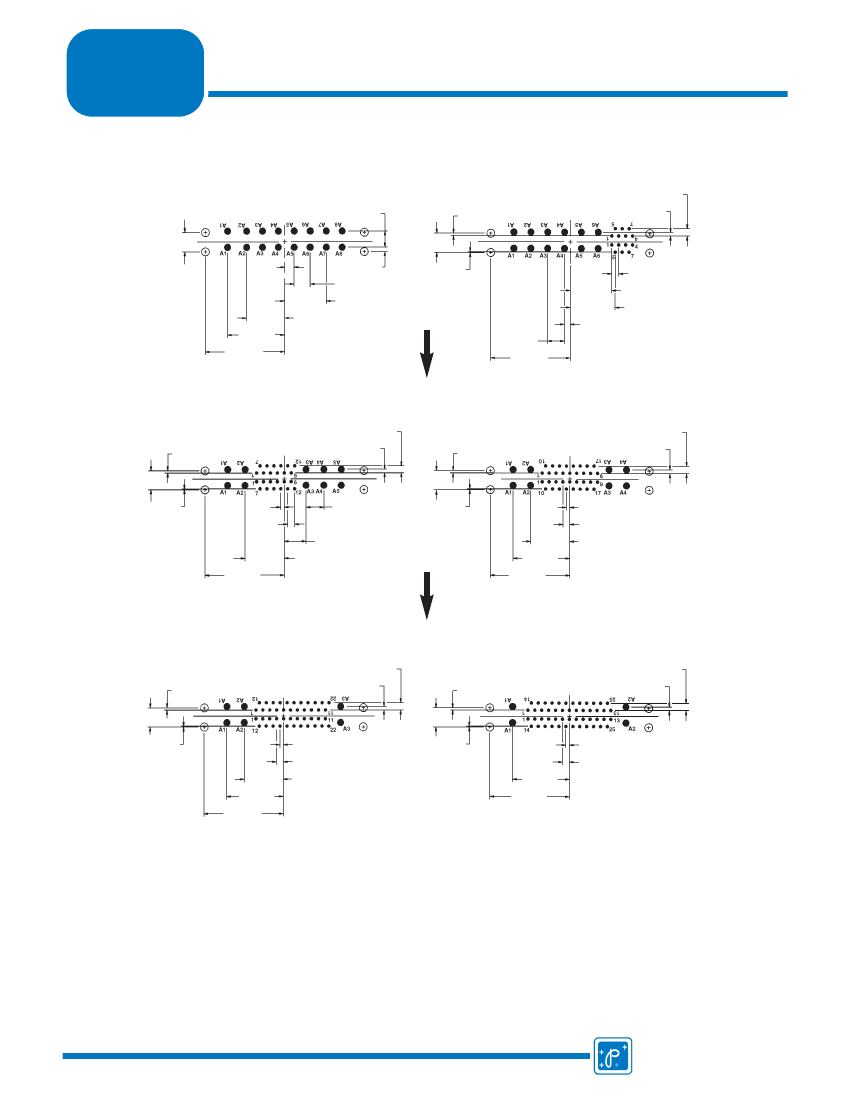

19
Positronic
Industries, Inc.
