PLAH03F4BN0A1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PLAH03F4BN0A1

PLAH03F4BN0A1: DescriptionRectangular Power Connector, 3 Contact(s), Female, Solder Terminal; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerPositronic Industries

Download Datasheet Parametric View All

PLAH03F4BN0A1 Overview

Rectangular Power Connector, 3 Contact(s), Female, Solder Terminal

PLAH03F4BN0A1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Positronic Industries
Reach Compliance Code	unknow
Other features	POLARIZED
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	GOLD FLASH OVER NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER/BRASS
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	PLA
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYESTER
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

ower

onnection

ystems

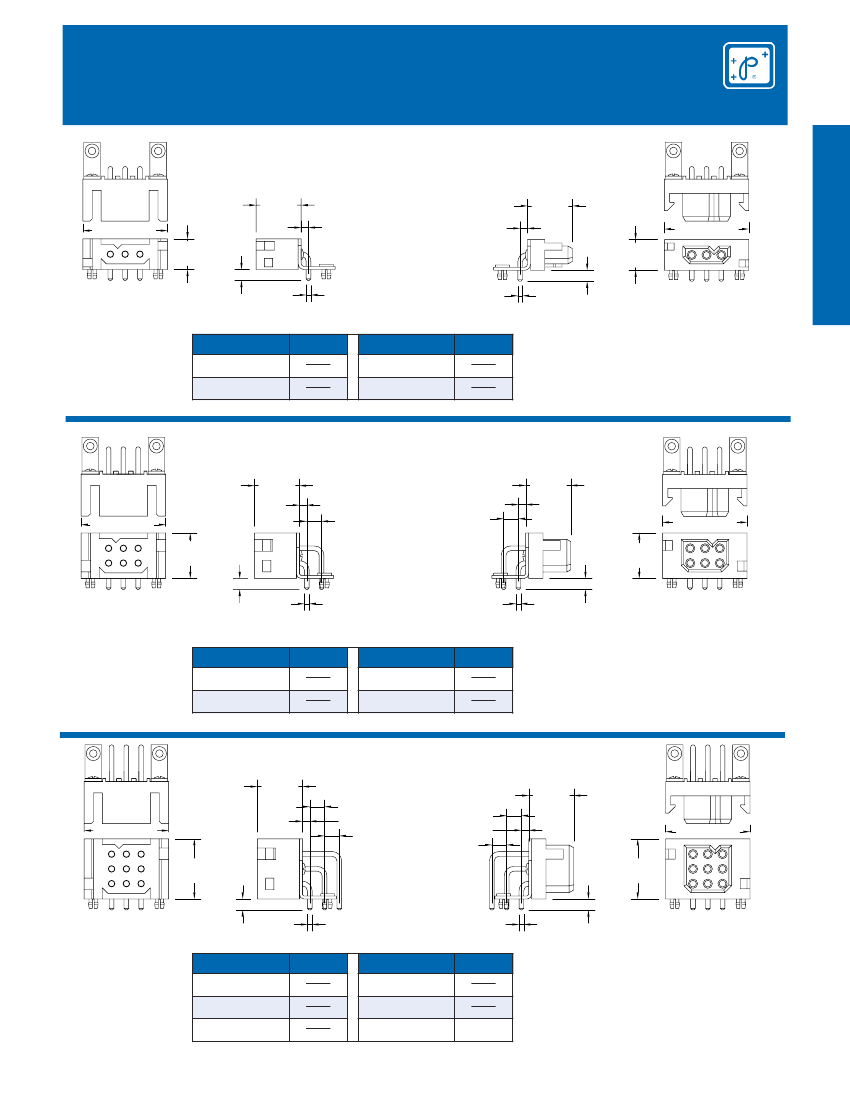

90° SOLDER PRINTED

BOARD CONNECTORS

PLA 90° PRINTED BOARD MOUNT CONNECTORS

CODE 4, 0.146 [3.71] CONTACT EXTENSION

MALE

0.600

[15.24]

0.098 [2.49]

0.600

[15.24]

Positronic Industries, Inc.

www.connectpositronic.com

FEMALE

A±0.020 [0.51]

0.408

[10.36]

A±0.020 [0.51]

0.408

[10.36]

0.146 [3.71]

ø0.062 [1.57]

Typical part number:

PLA03M4BN0A1

PLBH03M4BN0A1

PART NUMBER

*Asterisk determines

gender of connector,

M for male,

F for female.

PLA03*400A1

PLAH03*400A1

PLA04*400A1

PLAH04*400A1

Typical part number:

PLA03F4BN0A1

PLAH03F4BN0A1

Plating-Gold flash over nickel or 0.000030 [0.75µ] gold

over nickel on contacts. Solder coated tails

on terminating ends available.

See ordering information.

For connection systems 1, 2 and 5.

1.126

[28.60]

1.324

[33.63

PART NUMBER

PLA06*400A1

PLAH06*400A1

PLA08*400A1

PLAH08*400A1

1.718

[43.64]

2.112

[53.64]

PLB 90° PRINTED BOARD MOUNT CONNECTORS

CODE 4, 0.146 [3.71] CONTACT EXTENSION

MALE

A±0.020 [0.51]

0.606

[15.39]

0.146 [3.71]

ø0.062 [1.57]

0.600

[15.24]

0.098 [2.49]

0.197 [5.00]

0.098 [2.49]

0.197 [5.00]

0.606

[15.39]

A±0.020 [0.51]

0.600

[15.24]

FEMALE

Typical part number:

PLB06M4BN0A1

PLBH06B4BN0A1

PART NUMBER

PLB06*400A1

PLBH06*400A1

PLB08*400A1

PLBH08*400A1

Typical part number:

PLB06F4BN0A1

PLBH06F4BN0A1

Plating-Gold flash over nickel or 0.000030 [0.75µ] gold

over nickel on contacts. Solder coated tails

on terminating ends available.

See ordering information.

For connection systems 1, 2 and 5.

*Asterisk determines

gender of connector,

M for male,

F for female.

1.126

[28.60]

1.324

[33.63]

PART NUMBER

PLB12*400A1

PLBH12*400A1

PLB16*400A1

PLBH16*400A1

1.718

[43.64]

2.112

[53.64]

PLC 90° PRINTED BOARD MOUNT CONNECTORS

CODE 4, 0.146 [3.71] CONTACT EXTENSION

MALE

A±0.020 [0.51]

0.600

[15.24]

0.197 [5.00]

0.600

[15.24]

0.197 [5.00]

FEMALE

A±0.020 [0.51]

0.098 [2.49]

0.197 [5.00]

0.098 [2.49]

0.197 [5.00]

0.802

[20.37]

0.146 [3.71]

ø0.062 [1.57]

0.802

[20.37]

Typical part number:

PLC09M4BN0A1

PLCH09M4BN0A1

PART NUMBER

*Asterisk determines

gender of connector,

M for male,

F for female.

PLC09*400A1

PLCH09*400A1

PLC12*400A1

PLCH12*400A1

PLC18*400A1

PLCH18*400A1

Typical part number:

PLC09F4BN0A1

PLCH09F4BN0A1

Plating-Gold flash over nickel or 0.000030 [0.75µ]

gold over nickel on contacts. Solder

coated tails on terminating ends available.

See ordering information.

For connection systems 1, 2 and 5.

DIMENSIONS ARE IN INCHES [MILLIMETERS].

ALL DIMENSIONS ARE SUBJECT TO CHANGE.

1.126

[28.60]

1.324

[33.63]

1.718

[43.64]

PART NUMBER

PLC24*400A1

PLCH24*400A1

PLC30*400A1

PLCH30*400A1

2.112

[53.64]

2.506

[63.65]
