TECHNICAL CHARACTERISTICS
Contact diameter
Number of contact
Pitch
Rows
HYPERTAC® type Ø 0.50 mm rear removable
Up to 162
1.905mm between rows
1.27mm between quicuncial contacts
3
MATeriAlS & plATingS
Contact
Moulding
Guides
Brass or bronze
Glass fiber filled diallyl - Phtalate
Stainless steel or nickel plated brass
Standard
Pin body
Socket body
Socket wires
0.25 µm Gold / 1.27 µm Ni
0.25 µm Gold / 1.27 µm Ni on activ area
1.27 µm Ni on non activ area
1 µm Gold / 0.20 µm Ni
eSA
1.27 µm Gold / 1.27 µm Ni (min)
0.25 µm Gold / 1.27 µm Ni (min)
1.27 µm Gold / 0.20 µm Ni (min)
elecTricAl
Current rating (at 25°C)
Dielectric withstanding voltage
Contact resistance
Insulation resistance
3 A max
800 Vrms
≤ 8 mΩ
> 10
4
mΩ (500 Vcc)
MecHAnicAl
Mating & unmating cycle
Guiding
Keying
5000
By two outside guides (2 guiding styles)
and one central guide (3 guidind styles)
By rotating of outside polarised guides (up to 16 keying)
environMenTAl
Temperature range
Conformity
-55° C + 125° C
ESA/ESCC 3401/039, NF C-UTE C 93-424
Dimension are in mm
42
KMC
HOW TO ORDER
HYPERTAC & ESA CORRESPONDANCE TABLE
ESA
3401/039 01B
KMC
1
2
3
4
5
1
2
3
SerieS
nUMber oF conTAcTS
026
044
062
080
098
144
162
MoUlding polAriTy
nF c-UTe c 93-424
12 - 54
Female plug
13 55 55
Male plug
16 - 56
Tinned female plug*
17 - 57
Tinned male plug*
eSA/eScc 3401/03901b
1A -
-
1b -
-
22 44 44
23 - 45
Tinned female plug**
Tinned male plug**
Female receptacle
Male receptacle
SpAce grAde
26
27
2A
2b
-
-
-
-
46
47
-
-
Tinned female receptacle*
Tinned male receptacle*
Tinned female receptacle**
Tinned male receptacle**
4
TerMinATion STyleS
10
10
11
13
90° length 3 mm
(“A” moulding)
90° length 3 mm
(“B” moulding)
90° length 4 mm
(“A” moulding)
90° length 5.5 mm
(“B” moulding)
30
31
40
50
Through board solder - straight - length 4.5 mm
Through board solder - straight - length 5.6 mm
Solder bucket
Wire wrap
(2 wrapping levels)
51
90
91
Wire wrap
(3 wrapping levels)
Male - male
Female - male
5
MoUnTing HArdwAre
gUide STyleS
(consult us for special guides)
1 10
1 11
1 12
1 13
1 21
1 23
1 24
1 25
Male polarised, transverse mount
(1)
Male polarised, vertical mount
(2)
Male polarised, vertical mount
(2)
Male polarised, float mount
(2)
Female polarised, vertical mount
(2)
Female polarised, float mount
(2)
Female polarised, transverse mount
(2)
Male unpolarised, transverse mount
(1)
1 27
1 28
1 30
1 33
1 43
1 53
1 54
1 55
Male unpolarised, vertical mount
(2)
Male unpolarised, float mount
(2)
Female unpolarised, vertical mount
(2)
Female unpolarised, transverse mount
(2)
Female polarised, vertical mount
(2)
Female unpolarised, transverse mount
(2)
Female polarised, transverse mount
(2)
Male unpolarised, transverse mount
(2)
1 56
1 73
1 74
1 90
1 91
7 03
Male unpolarised, transverse mount
(2)
Female unpolarised, transverse mount
(1)
Female polarised, transverse mount
(1)
Female power or mass contact, vertical mount
(2)
Male power or mass contact, transverse mount
(1)
Female - male unpolarised guide
(2)
locKing STyleS
FeMAle
MAle
(2)
2 02
2 03
2 04
2 07
(1)
Jackscrew, vertical mount
Jackscrew, transverse mount
(1)
Jackscrew, transverse mount
(2)
Jackscrew, vertical mount
(2)
(2)
2 01
2 05
2 06
211
Jackscrew, free connector
(2)
Jackscrew, transverse mount
(1)
Jackscrew, free connector
(2)
Moulding A -
Moulding B
* For 90° & straight terminations
(splicing on PCB)
** RoHS conform for 90° & straight terminations
(splicing on PCB)
43
KMC

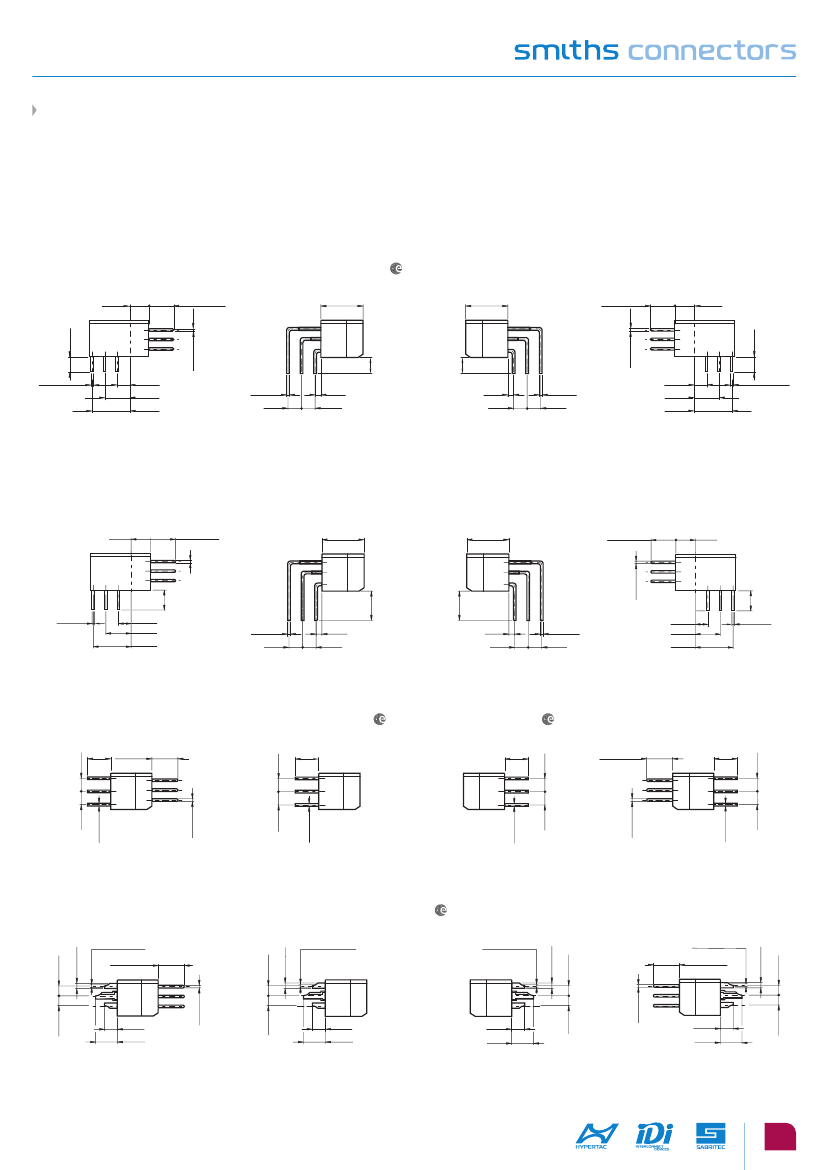

MOULDING STYLES
PLUG
ONE PART (moulding A)
“A”
RECEPTACLE
Fitted with male contacts
90° through board solder
“A”
Fitted with male contacts
90° through board solder
(same design as the “A”
plug type but printed as
receptacle)
TWO PARTS (moulding B)
Fitted with male contacts
(pins)
Straight through board solder
Wire wrap type
(2 and 3 wrapping levels)
Solder bucket
“B”
“B”
“B”
“B”
“B”
“B”
Fitted with female contacts
Straight through board solder
Wire wrap type
(2 and 3 wrapping levels)
Solder bucket
(same design as the “B”
plug type but printed as
receptacle)
“B”
“B”
“B”
“B”
Fitted with female contacts
(sockets)
90° through board solder
Note: the spacing of the rows
for board preparation is different
to the spacing of the plug fitted
with the 90° termination
Straight through board solder
Wire wrap type
(2 and 3 wrapping levels)
Solder bucket
“B”
“B”
Fitted with female contacts
(sockets)
90° through board solder
Note: the spacing of the
rows for board preparation is
different to the spacing
of the plug fitted with the
90° termination
Fitted with male contacts
(pins)
Straight through board solder
Wire wrap type
(2 and 3 wrapping levels)
Solder bucket
(same design as the “B”
plug type but printed as
receptacle)
“B”
“B”
44
