DCB10L16S Overview

Inside DC Block, 0.02MHz Min, 10000MHz Max, 0.6dB Insertion Loss-Max,

DCB10L16S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Smiths Group
Reach Compliance Code	compli
Other features	SMA
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	16 V
Maximum insertion loss	0.6 dB
JESD-609 code	e0
Maximum operating frequency	10000 MHz
Minimum operating frequency	0.02 MHz
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	INSIDE DC BLOCK
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.45

Preview

Download Datasheet

View All

Text

DC Block

Text

Complementary Signal Processing

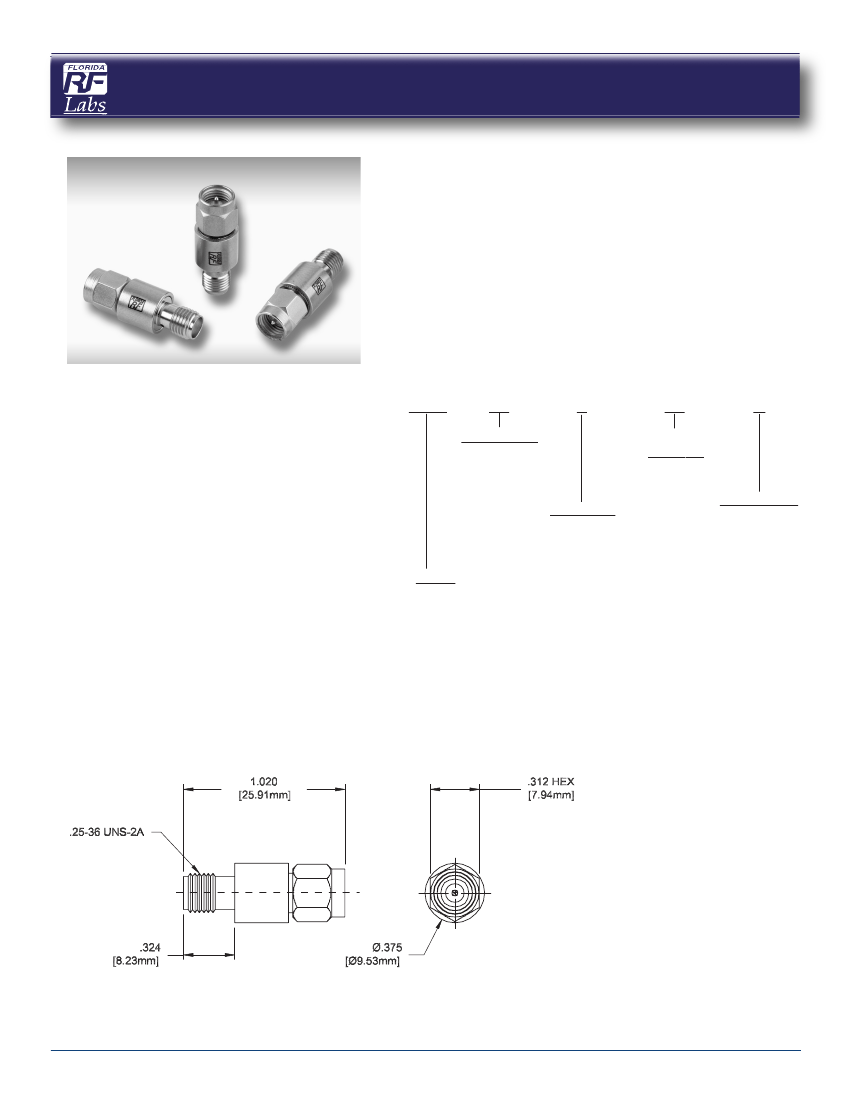

The Florida RF Labs line of DC Block devices are suitable

for applications up to 18 GHz and 75 volts. The DC

Block prevents DC current flow, while permitting RF

power to flow. The rugged construction of the device

ensures reliability and continuous performance.

The standard connector for the coaxial design is SMA.

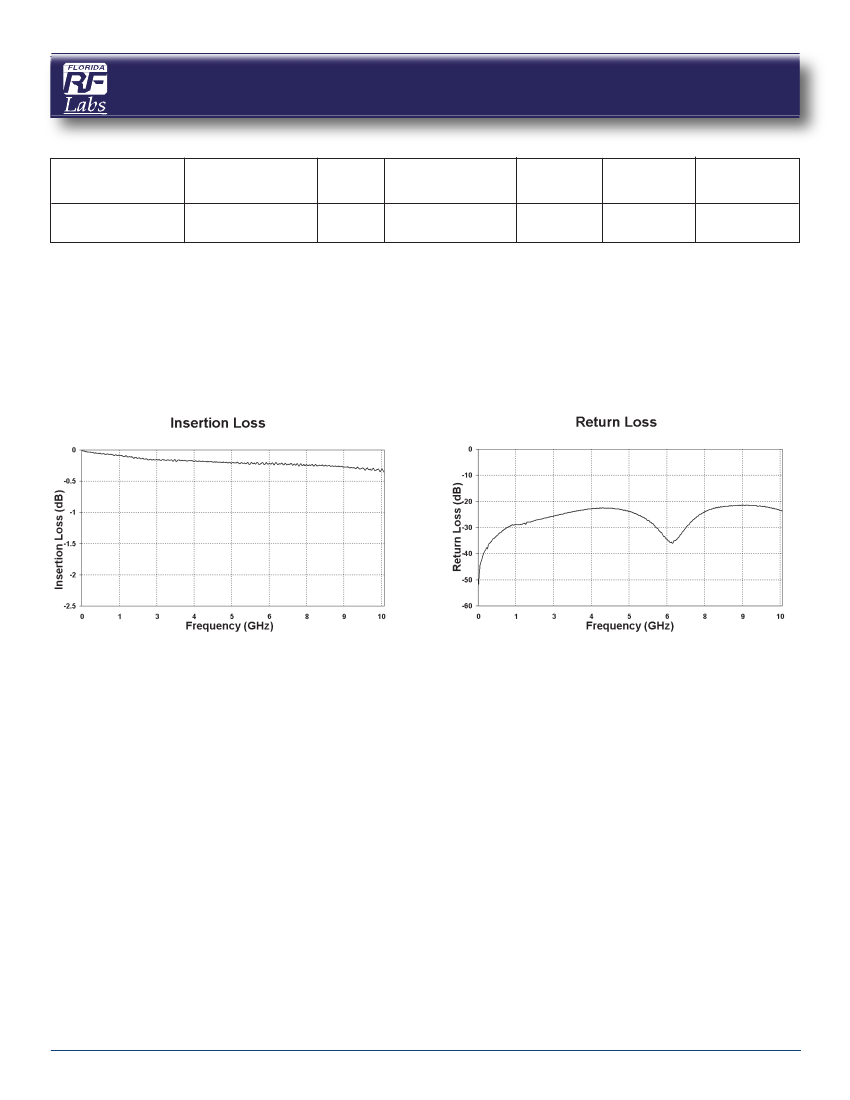

General Specifications

Impedance . . . . . . . . . . . . . . . . . . . . 50 Ohms ± 5%

Frequency . . . . . . . . . . . . . . . . . .20 KHz to 10 GHz

Insertion Loss . . . . . . . . . . . . . . . . . . . . 0.6 dB Max.

Voltage . . . . . . . . . . . . . . . . . . . . . . . 16 Volts Max.

Operating Temperature . . . . . . . . . . . . -55 to 150˚C

Ordering Information

DCB

MAX CAP

VOLTAGE

= 16 Volts

= 75 Volts

FREQUENCY

= 0.02-10 GHz

Coaxial Specifications

Substrate . . . . . . . . . . . . . . . . . . . . . . . . . . Alumina

Environment . . . . . . . . Meets applicable portions of

MIL-A-3933 and MIL-PRF-39012

Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . SMA

Body . . . . . . . . . . . . . . . . . . . . . . . . . .Stainless Steel

BODY SIZE

= Long Body (1.02 in, 25.91 mm)

CONNECTOR

= SMA

STYLE

DCB

= DC Block

Note:

All catalog number combinations may not be available.

Coaxial Dimensions

Florida RF Labs

8851 SW Old Kansas Ave. Stuart, FL 34997

(772) 286-9300 (800) 544-5594 www.rflabs.com

DCB10L16S Related Products

	DCB10L16S
Description	Inside DC Block, 0.02MHz Min, 10000MHz Max, 0.6dB Insertion Loss-Max,
Is it Rohs certified?	incompatible
Maker	Smiths Group
Reach Compliance Code	compli
Other features	SMA
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	16 V
Maximum insertion loss	0.6 dB
JESD-609 code	e0
Maximum operating frequency	10000 MHz
Minimum operating frequency	0.02 MHz
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	INSIDE DC BLOCK
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.45
