TS0303W3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> TS0303W3

TS0303W3: DescriptionFixed Attenuator, 0MHz Min, 12400MHz Max, 0.145 X 0.122 INCH, DIE; CategoryWireless rf/communication Radio frequency and microwave; File Size152KB，3 Pages; ManufacturerSmiths Group

Download Datasheet Parametric View All

TS0303W3 Overview

Fixed Attenuator, 0MHz Min, 12400MHz Max, 0.145 X 0.122 INCH, DIE

TS0303W3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Smiths Group
Reach Compliance Code	compli
Other features	I/P POWER-MAX(PEAK)=50W
Nominal attenuation	3 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	33.01 dBm
JESD-609 code	e0
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

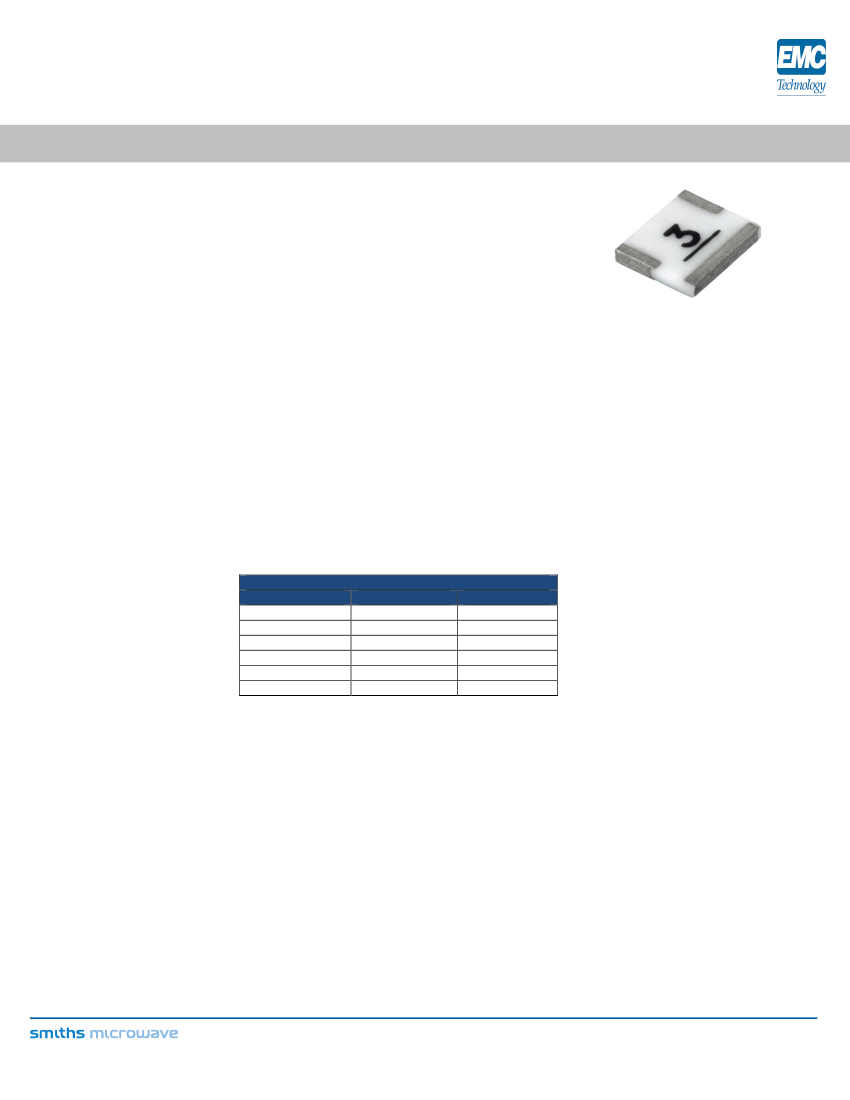

ATTENUATOR

CHIP 2 WATT

DATA SHEET

FEATURES

Small Footprint

High Power

Surface Mount

Low VSWR

Easy Installation

Wide Attenuation Offering

PART SERIES: TS03XXW3

APPLICATIONS

Mobile Networks

Broadcast

High Power Amplifiers

Isolators/Circulators

Military

Instrumentation

SHEET 1 OF 3

Dwg 1004125

EN 16-0604

Revision N

GENERAL DESCRIPTION

EMC Technology offers the widest selection of chip attenuators worldwide. Chip components are offered in Alumina, Aluminum Nitride,

Beryllium Oxide, and CVD diamond for maximum performance.

ORDERING INFORMATION

Part Identifier:

TS03XXW3

(XX) – dB Value

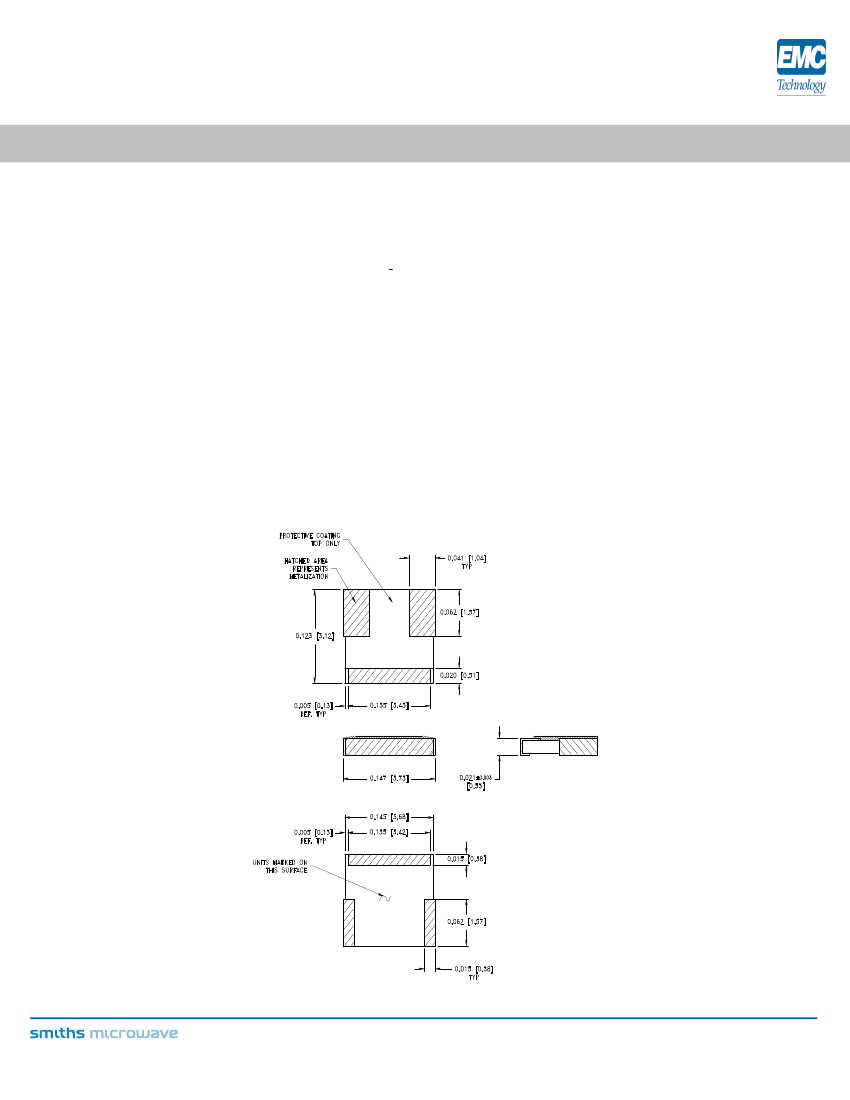

SPECIFICATIONS

1.0 ELECTRICAL

Nominal Impedance:

Frequency Range:

Attenuation Values Available:

Attenuation Accuracy:

ATTENUATION ACCURACY

DC – 4 GHz

4 – 8 GHZ

+0.3, -0.0

+0.5, -0.0

1–3

±0.3

±0.5

4–6

±0.4

±0.5

7 – 10

±0.5

11 – 15

±0.75

+0.5,-3.0

16 - 20

±1.0

+0.5,-4.0

2 Watts full rated power to 125°c, derated linearly to 0 watts at 150°c.

50 watts for 10us pulse width @ 1% duty cycle.

DC – 4 GHz - 1.25:1

4 – 8 GHz - 1.35:1

50 ohms

DC – 8 GHz

0 – 20 in 1 dB increments

Input Power CW:

Peak Power:

VSWR:

2.0 ENVIRONMENTAL

Operating Temperature:

Non-operating Temperature:

Temperature Coefficient:

Altitude Non-Operating:

Altitude Operating:

Vibration:

Shock:

Moisture Resistance:

-55˚C to +150˚C

+/-200 PPM / ˚C max

Sea Level to 50,000 Feet.

Per MIL-STD-202, METHOD 204, COND. D.

Per MIL-STD-202, METHOD 213, COND. I.

Per MIL-STD-202, METHOD 106 Except Sub cycle Steps 7a and

7b. Polarization and Load Are Not Applicable.

Form 423F110

Cage Codes: 24602 / 2Y194

Specifications are Subject to Change Without Notice

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified
