PN6157 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PN6157

PN6157: Description20 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, SM-11, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size200KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

PN6157 Overview

20 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, SM-11, 4 PIN

PN6157 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknow
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	10.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

Cross Reference Guide

PN6157 / SPN6157*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

20.0 - 500.0 MHz

13.0 dB Typical

10.5 dB Min

7.5 dB Typical

8.5 dB Max

22.0 dBm Typical

20.0 dBm Min

33.0 dBm Typical

45.0 dBm Typical

1.2/2.0 Input Typ/Max

1.8/2.0 Output Typ/Max

-23.5 dB Typical

-22.5 dB Min

15.0 Volts

75.0 mA

-55.0 - 85.0 °C

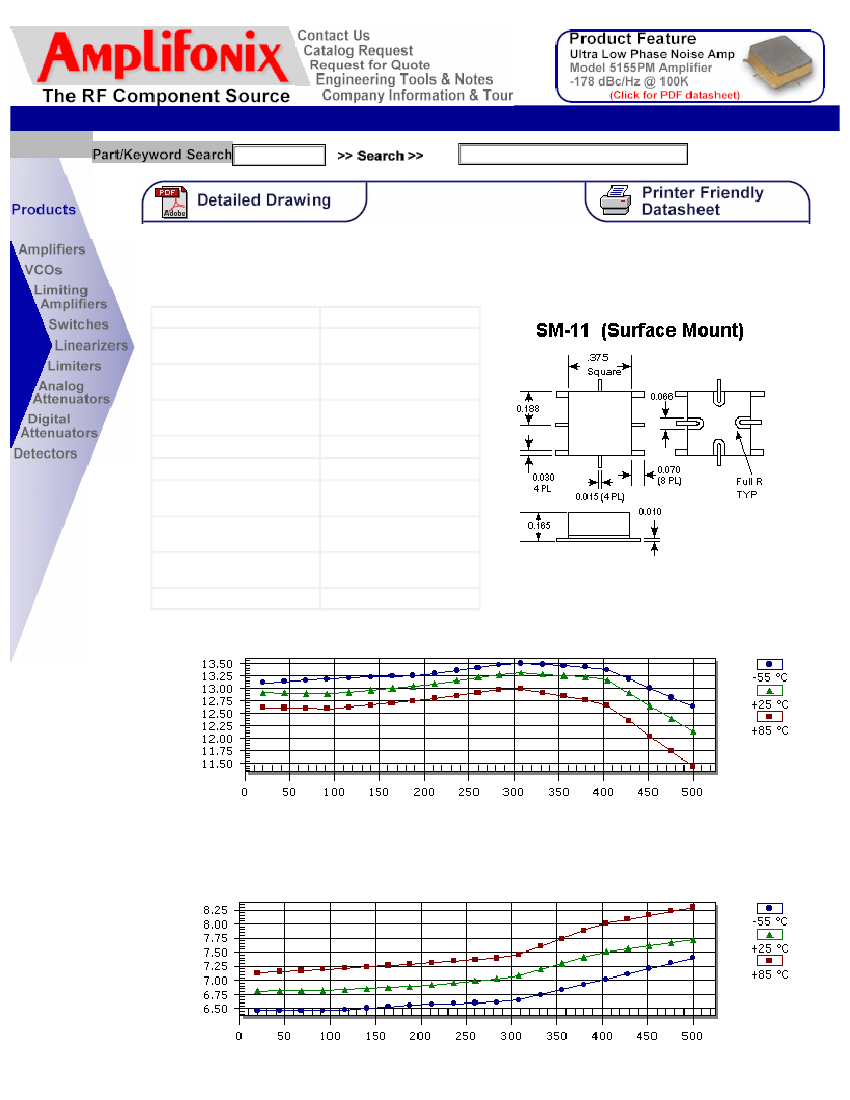

Package Drawing

Gain

Frequency (MHz)

Noise Figure

PN6157 Related Products

	PN6157	SPN6157
Description	20 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, SM-11, 4 PIN	20 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, SM-11, 4 PIN
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknow	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COMPONENT
Gain	10.5 dB	10.5 dB
Maximum input power (CW)	13 dBm	13 dBm
Maximum operating frequency	500 MHz	500 MHz
Minimum operating frequency	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2
