Data Sheet

March 2008

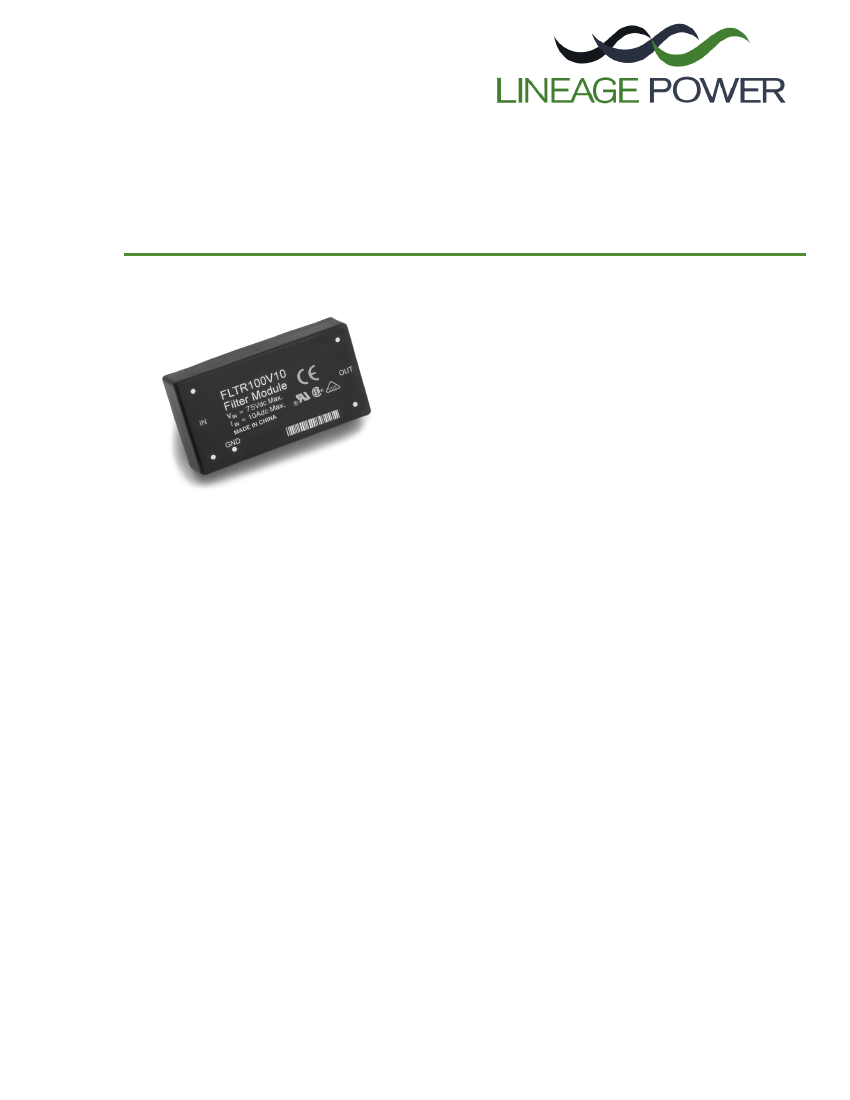

FLTR100V10 Filter Module

75 Vdc Input Maximum, 10 A Maximum

Features

RoHS Compliant

Compatible with RoHS EU Directive 200295/EC

Compatible in Pb- free or SnPb reflow environment

Small size: 51 mm x 28 mm x 12 mm

(2.0 in. x 1.1 in. x 0.46 in.)

Optimized for use with high-frequency dc-to-dc

power modules

Printed-circuit board mountable

Operating case temperature range:

–40 °C to +100 °C

UL*

60950 Recognized,

CSA

†

C22.2 No. 60950-00

Certified; VDE 0805 (IEC60950) Licensed

CE mark meets 73/23/EEC and 93/68/EEC

directives

‡

The FLTR100V10 Filter Module is encapsulated in a small,

nonconductive plastic case.

Application

Common-mode and differential-mode filtering of

power supply dc input and output lines

Computer applications

Communications equipment

Options

Short pin: 2.8 mm (o.110 in.)

Short pin: 3.7 mm (0.145 in.)

Short pin: 4.6 mm (0.180 in.)

Description

The FLTR100V10 Filter Module is designed to reduce the conducted common-mode and differential-mode

noise on input or output lines of high-frequency switching power supplies. The module has a maximum current

rating of 10 A. It provides high insertion loss throughout the frequency range regulated by the U.S. Federal

Communications Commission (FCC) and the International Special Committee on Radio Interference (CISPR)

for conducted emissions.

The module is 51 mm long, 28 mm wide, and 12 mm high (2.0 in. x 1.1 in. x 0.46 in.) and mounts on a PC board

in a natural convection or forced-air environment.

is a registered trademark of Underwriters Laboratories, Inc.

†

CSA

is a registered trademark of Canadian Standards Assn.

‡ This product is intended for integration into end-use equipment. All the required procedures for CE marking of end-use equipment should

be followed. (The CE mark is placed on selected products.)

FLTR100V10 Filter Module

75 Vdc Input Maximum, 10 A Maximum

Data Sheet

March 2008

Introduction

High-density power modules are usually designed to operate at a high switching frequency to reduce the size of

the internal filter components. The small EMI filters internal to the modules are often inadequate to meet stringent

international EMI requirements. Many high-density electronic packaging techniques can increase the noise con-

ducted onto the modules’ input and output lines. For example, the close proximity of switching components to the

input pins increases internal noise coupling; and planar transformers, designed to handle high-power levels in low-

profile packages, have high interwinding capacitance that can increase common-mode current levels. Also, metal

substrates used to facilitate heat transfer from the power train components to an external heat sink add to com-

mon-mode noise because of the large capacitance between switching components and the metal substrate.

Many international agencies specify conducted and radiated emissions limits for electronic products. Included

among these are CISPR, FCC, VCCI, and the new CE specifications. Most agency-conducted noise limits apply

only to noise currents induced onto the ac power lines in finished products. European Telecommunication Standard

Instructions (ETSI) are an exception, applying CE requirements to dc supplies with cables over three meters long.

Although not required to do so by agency standards, some system designers apply the conducted emissions

requirements to subassemblies within the product to reduce internal interference between subsystems and to

reduce the difficulty of meeting overall system requirements.

To meet these requirements, external filtering of the power module is often required. When used in conjunction with

the recommended external components and layout, the

Lineage Power

filter module will significantly reduce the

conducted differential and common-mode noise returned to the power source. CISPR and FCC class B require-

ments can be met by using the filter as described in the following sections.

Absolute Maximum Ratings

Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are abso-

lute stress ratings only. Functional operation of the device is not implied at these or any other conditions in excess

of those given in the operations sections of the data sheet. Exposure to absolute maximum ratings for extended

periods can adversely affect device reliability.

Parameter

Input Voltage:

Continuous

Transient (100 ms)

Voltage from GND to Either Input Lead (1 minute)

Operating Case Temperature

Storage Temperature*

Symbol

I, trans

—

stg

Min

—

–40

–55

Max

100

1500

100

125

Unit

Vdc

°C

* For the processing, handling and storage (module not powered), the filter module can handle -55°C to 125°C exposure.
