3345-3-9

Description
RF Connector, Male, Cable Mount, Crimp Terminal, Plug
CategoryThe connector    The connector
File Size537KB,2 Pages
ManufacturerKings Electronics
Download Datasheet Parametric Compare View All

3345-3-9 Overview

RF Connector, Male, Cable Mount, Crimp Terminal, Plug

3345-3-9 Parametric

Parameter NameAttribute value
MakerKings Electronics
Reach Compliance Codeunknown
Body/casing typePLUG
Characteristic impedance75 Ω
Connector typeRF CONNECTOR
Contact to complete cooperationGOLD (50) OVER NICKEL
Contact completed and terminatedGOLD (50) OVER NICKEL
Contact point genderMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number3345
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency0.3 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
voltage standing wave ratio1.22
Winchester Electronics Presents...
3345 Series RCA Connectors
75 Ohm
Product Benefits
75 Ohm impedance
Field installable
Full crimp design
Designed for Analog & Digital cables
Specifications
Electrical
Impedance
Voltage Rating
Return Loss
Insulation Resistance
75 Ohms
500 Volts RMS
Less than -20 dB to 300 MHz
5000 megohms
Environmental
Thermal Shock
Moisture Resistance
Corrosion (salt spray)
Flammability
6 lbs. Minimum
Vibration
Solvent Resistance
Nickel
50 millionths inch gold plating
over nickel over copper plate
-65°C to +165°C
0 to 95%
MIL-STD-202, Method 106
MIL-STD-202, Method 101
Test Condition B
UL 94-VO Rated
(Center Conductor Insulator)
MIL-STD-202, Method 204
Test Condition B
MIL-STD-202, Method 215
Mechanical
Center Contact
Retention
Finishes
Body
Center Conductor
Return Loss

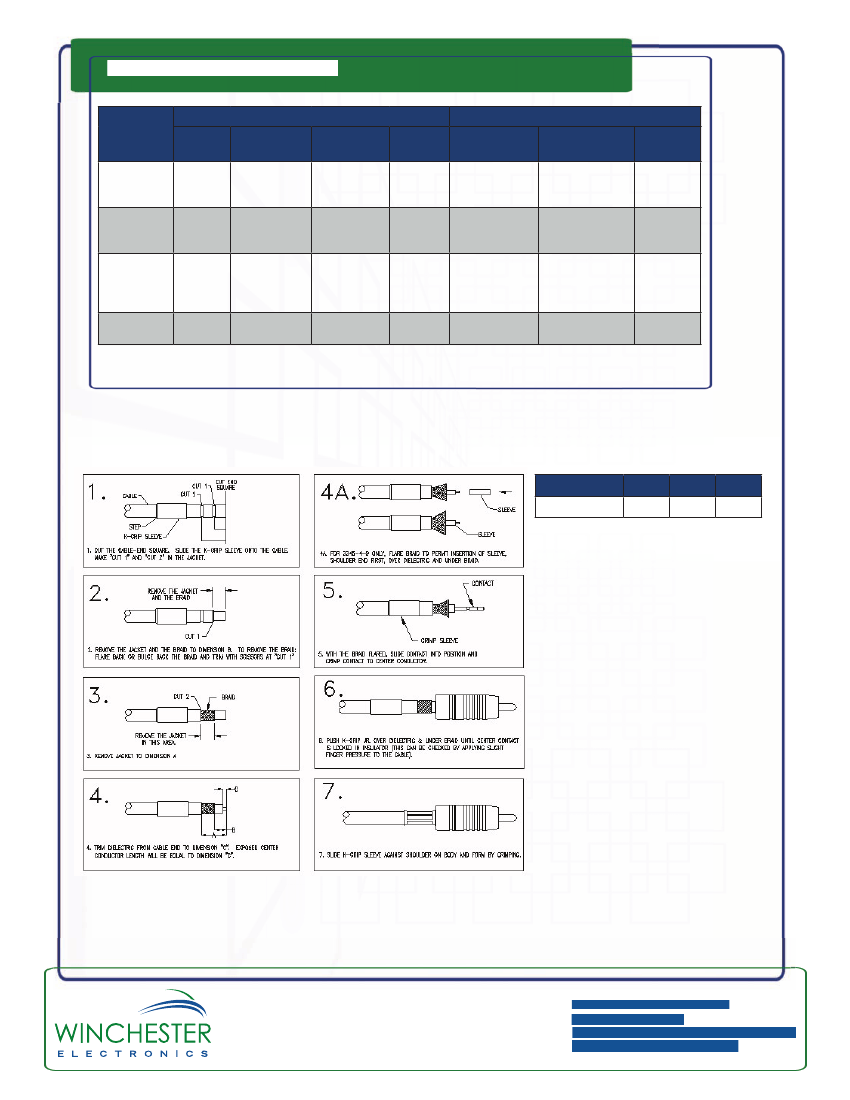

Outline Drawing (Plug)
March 2009
www.winchesterelectronics.com

3345-3-9 Related Products

3345-3-9 3345-2-9 3345-1-9 3345-4-9
Description RF Connector, Male, Cable Mount, Crimp Terminal, Plug RF Connector, Male, Cable Mount, Crimp Terminal, Plug RF Connector, Male, Cable Mount, Crimp Terminal, Plug RF Connector, Male, Cable Mount, Crimp Terminal, Plug
Maker Kings Electronics Kings Electronics Kings Electronics Kings Electronics
Reach Compliance Code unknown unknown unknown unknown
Body/casing type PLUG PLUG PLUG PLUG
Characteristic impedance 75 Ω 75 Ω 75 Ω 75 Ω
Connector type RF CONNECTOR RF CONNECTOR RF CONNECTOR RF CONNECTOR
Contact to complete cooperation GOLD (50) OVER NICKEL GOLD (50) OVER NICKEL GOLD (50) OVER NICKEL GOLD (50) OVER NICKEL
Contact completed and terminated GOLD (50) OVER NICKEL GOLD (50) OVER NICKEL GOLD (50) OVER NICKEL GOLD (50) OVER NICKEL
Contact point gender MALE MALE MALE MALE
Coupling type SNAP SNAP SNAP SNAP
DIN compliance NO NO NO NO
Filter function NO NO NO NO
IEC compliance NO NO NO NO
insulator material POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE POLYTETRAFLUORO ETHYLENE
JESD-609 code e4 e4 e4 e4
MIL compliance NO NO NO NO
Manufacturer's serial number 3345 3345 3345 3345
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type CABLE CABLE CABLE CABLE
Maximum operating frequency 0.3 GHz 0.3 GHz 0.3 GHz 0.3 GHz
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Panel mounting NO NO NO NO
Termination type CRIMP CRIMP CRIMP CRIMP
voltage standing wave ratio 1.22 1.22 1.22 1.22
Base Number Matches - 1 1 1
